BUS BAR 250A 8MM 4 POINT LARGE STAINLESS STEEL RED BUSBAR
BUS BAR 250A 8MM 4 POINT LARGE STAINLESS STEEL RED BUSBAR
SKU:
Couldn't load pickup availability
Share

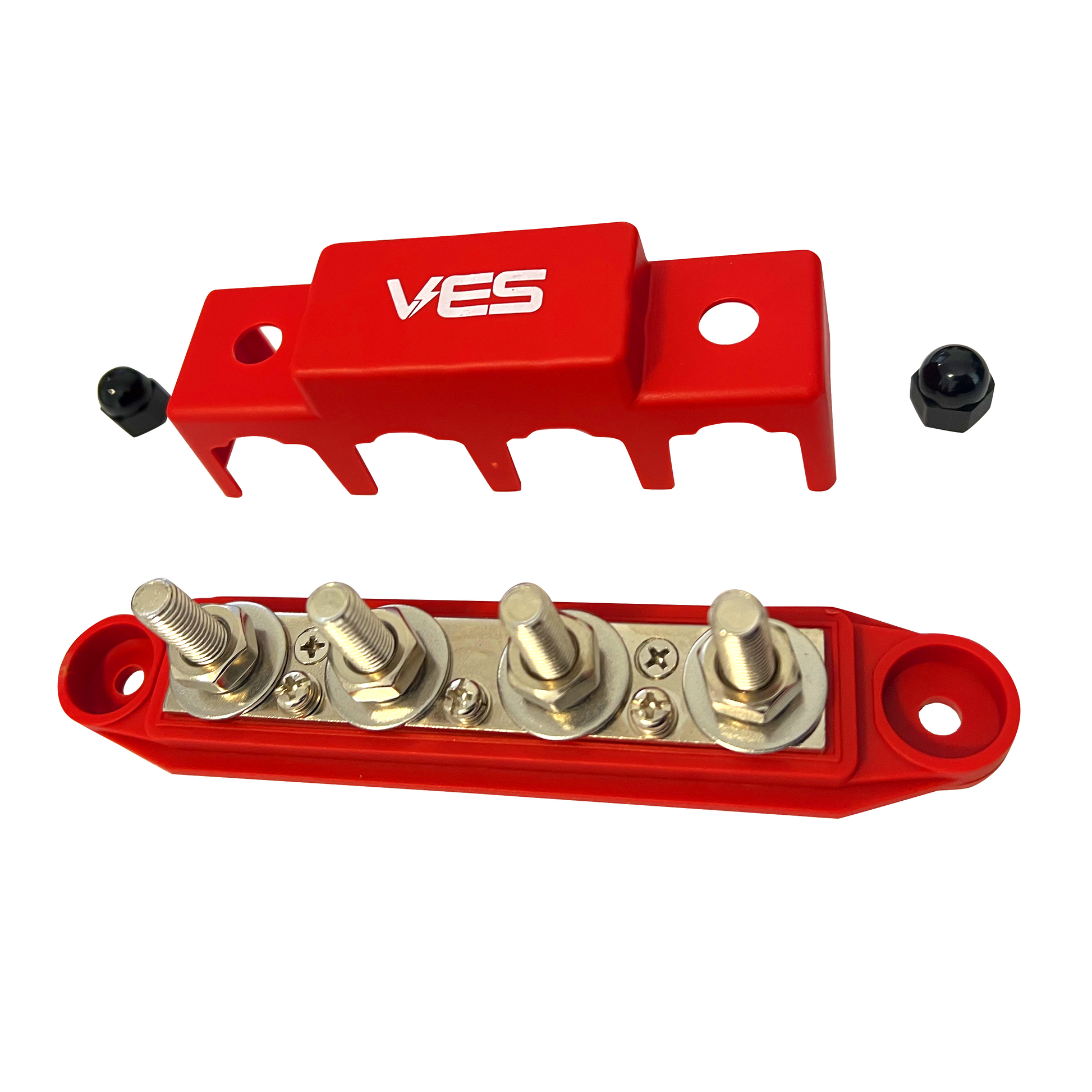

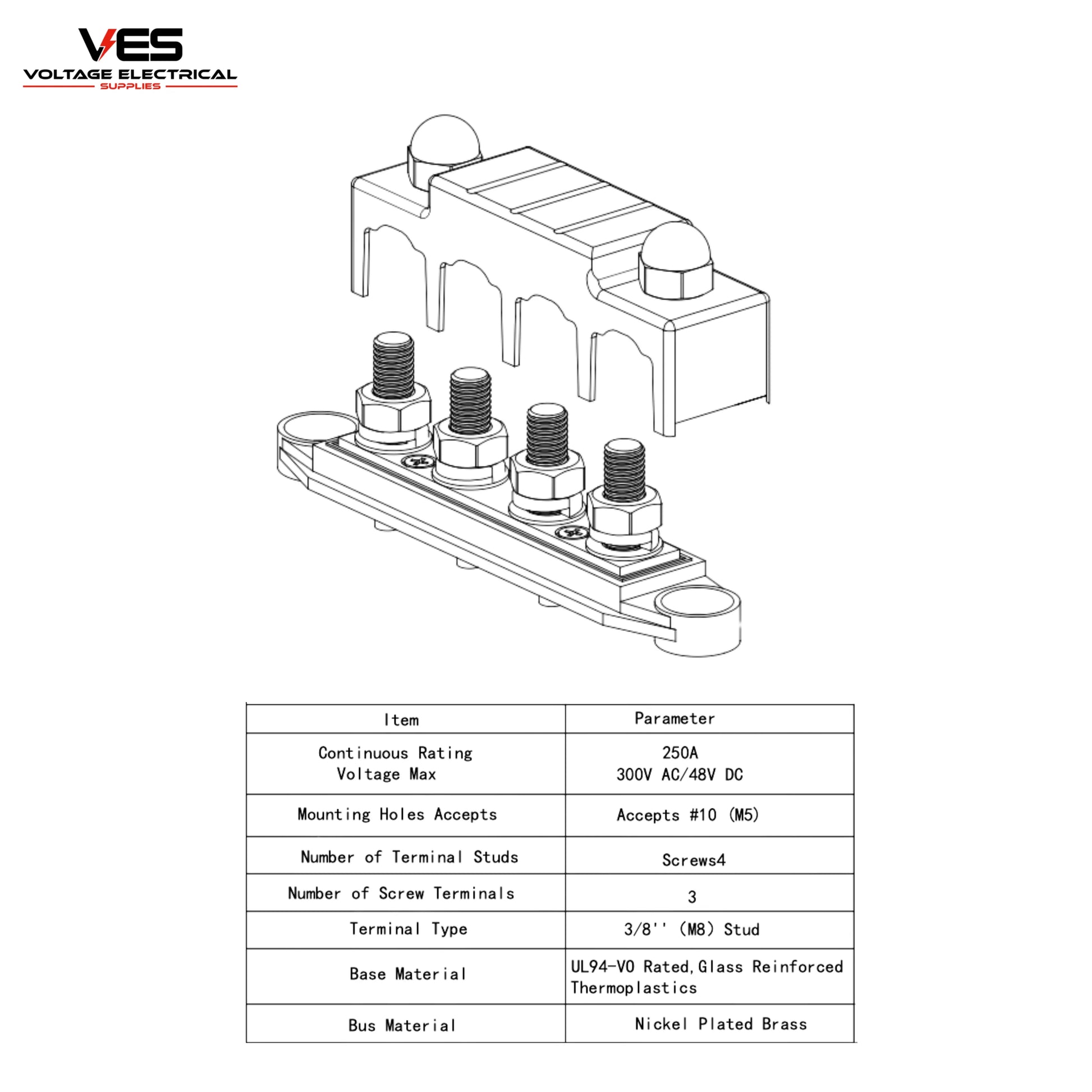

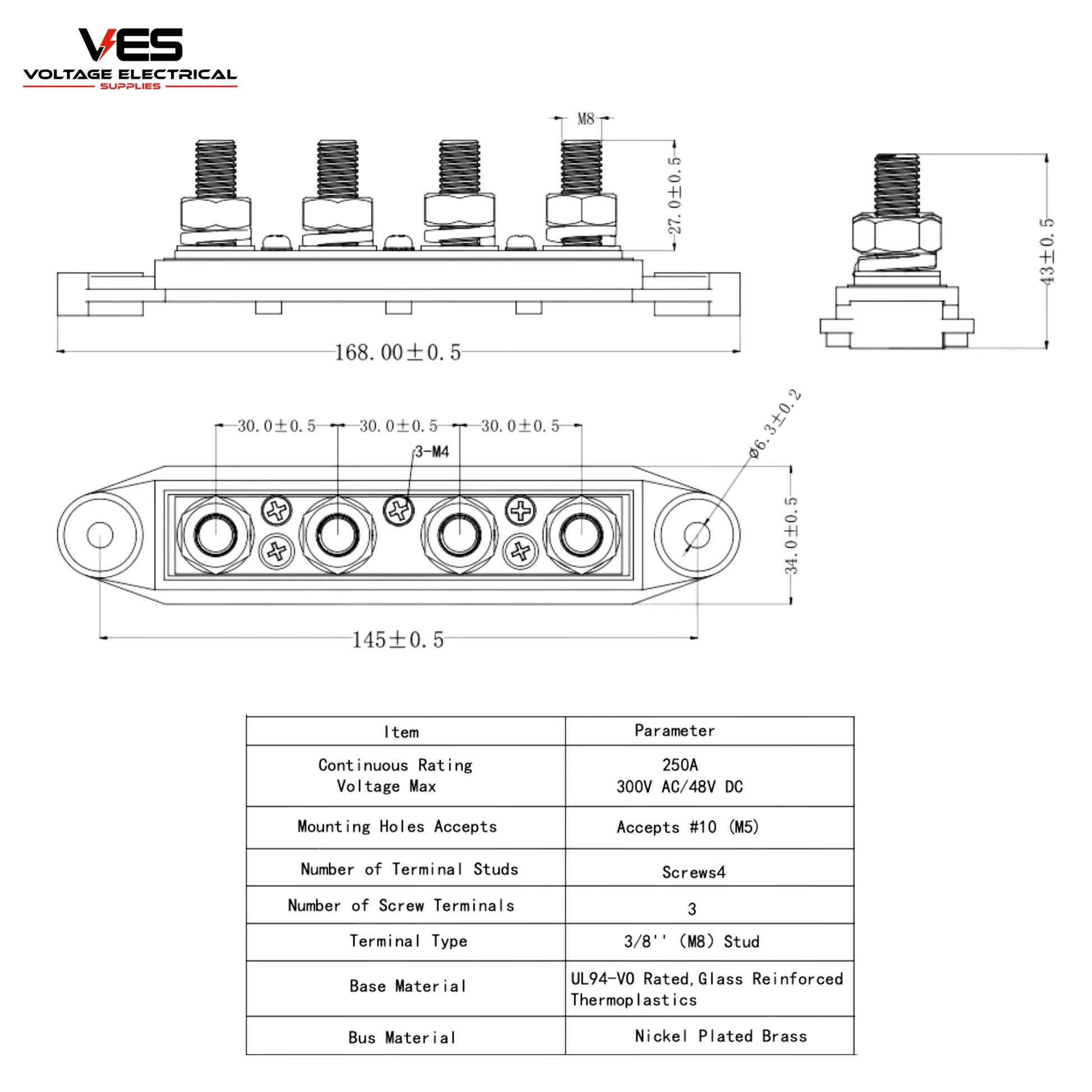

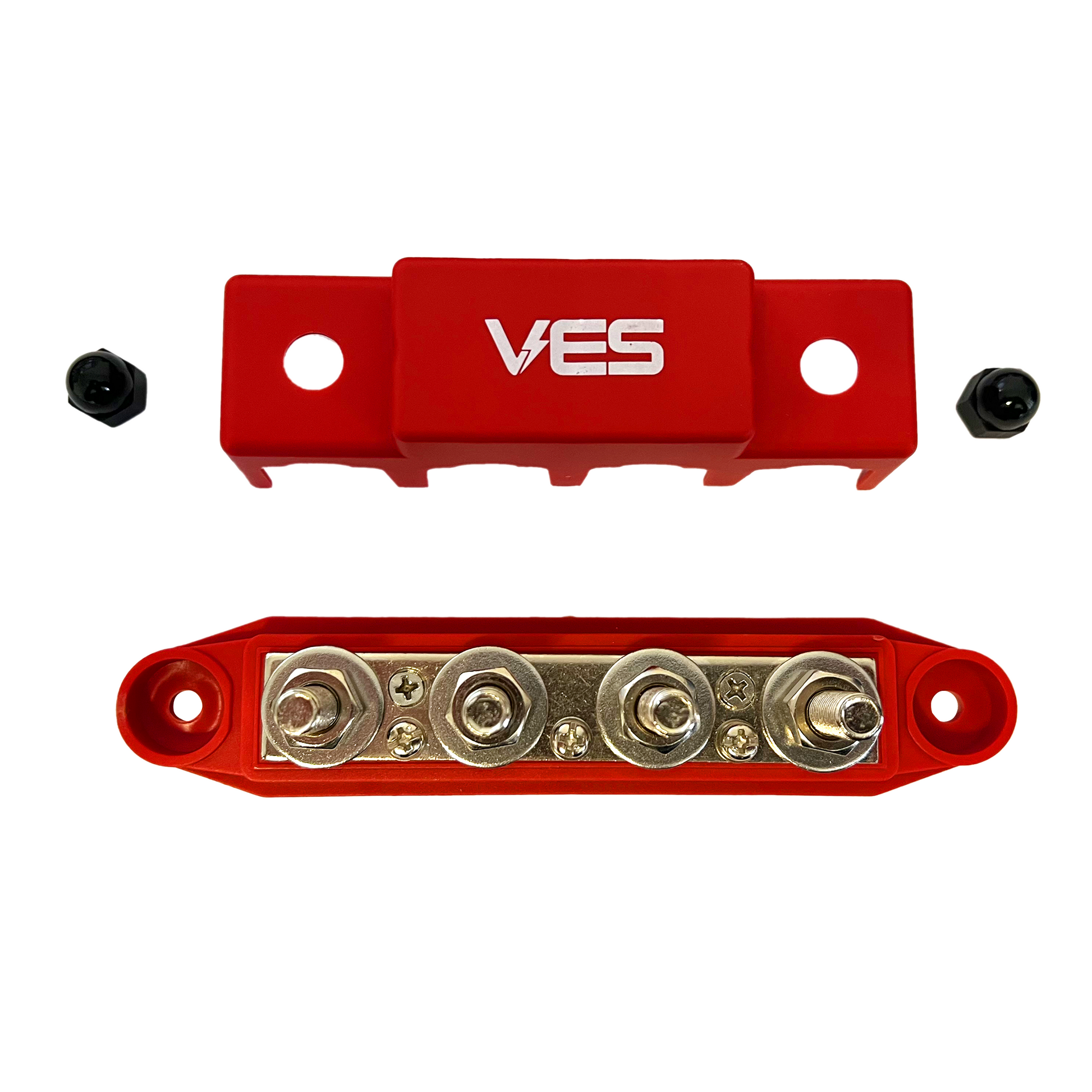

250AMP Bus Bar with four 8mm studs
BLACK ON BACK ORDER 4.12.23 ETA
Bus bar is available in Red and Black
Each stud is capable of 62.5amp of continuous current
Bus bar is made out of the following , Stainless Steel, Nickel Plated Brass and Nylon
Maximum voltage for this product is 48V DC
Auxiliary Terminal Screw Current is 20A
Our products are made from premium components, The nickel plated brass contact plates for optimal current transfer and weather resistance, nylon base for excellent insulation and strength
This product is rust resistant, the products features stainless steel hardware for extreme conditions, are rust free and can be used in marine environments

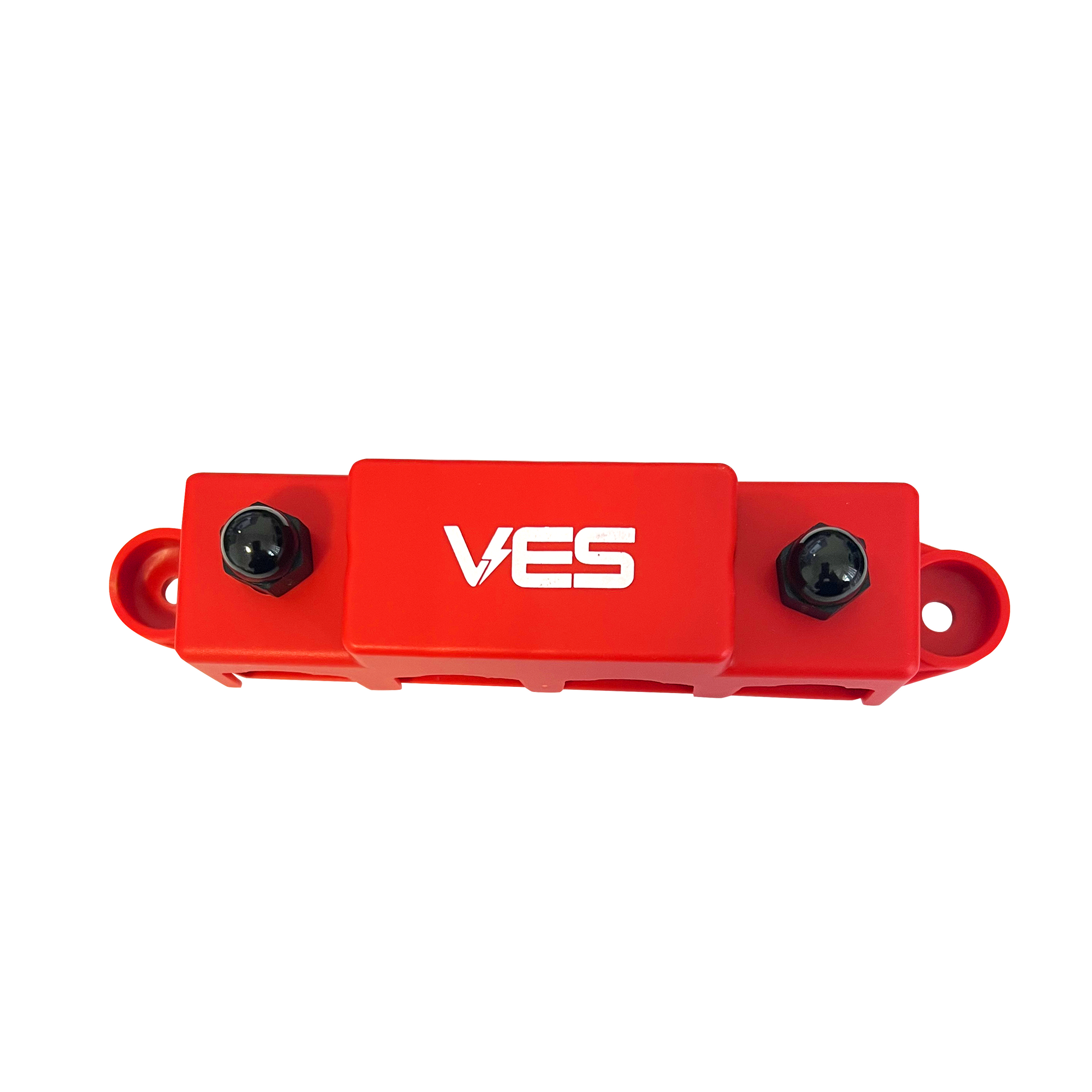

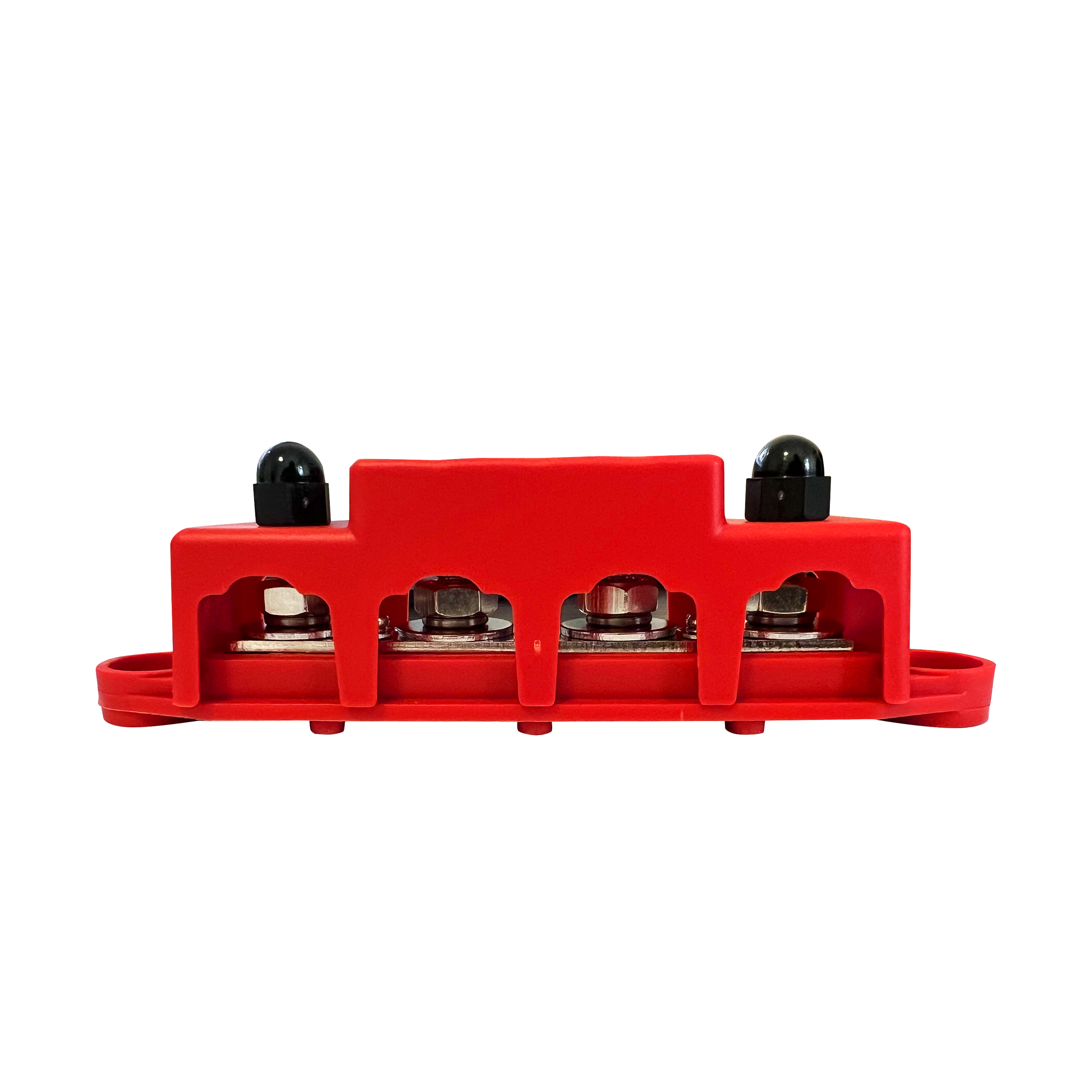

This product comes with a protective cover, it designed with a removable cover effectively protecting the connection.
Free express shipping on all orders from VES
Wow, It's chunkier than I expected for the price. This looks like a serious bit of kit. I can't wait for the negative bus-bar and batteries to arrive so I can get stuck into my project. Very Happy.
