4 Way Distribution Block Negative 8MM Studs 250AMP Rated - Back Order Mid Jan 2026
4 Way Distribution Block Negative 8MM Studs 250AMP Rated - Back Order Mid Jan 2026
SKU:VES118
Couldn't load pickup availability
Share
This product is on back order - ETA on dispatch for any purchases mid Jan 2026.
PRODUCT DETAILS

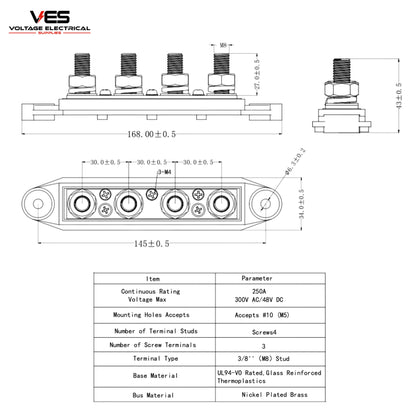

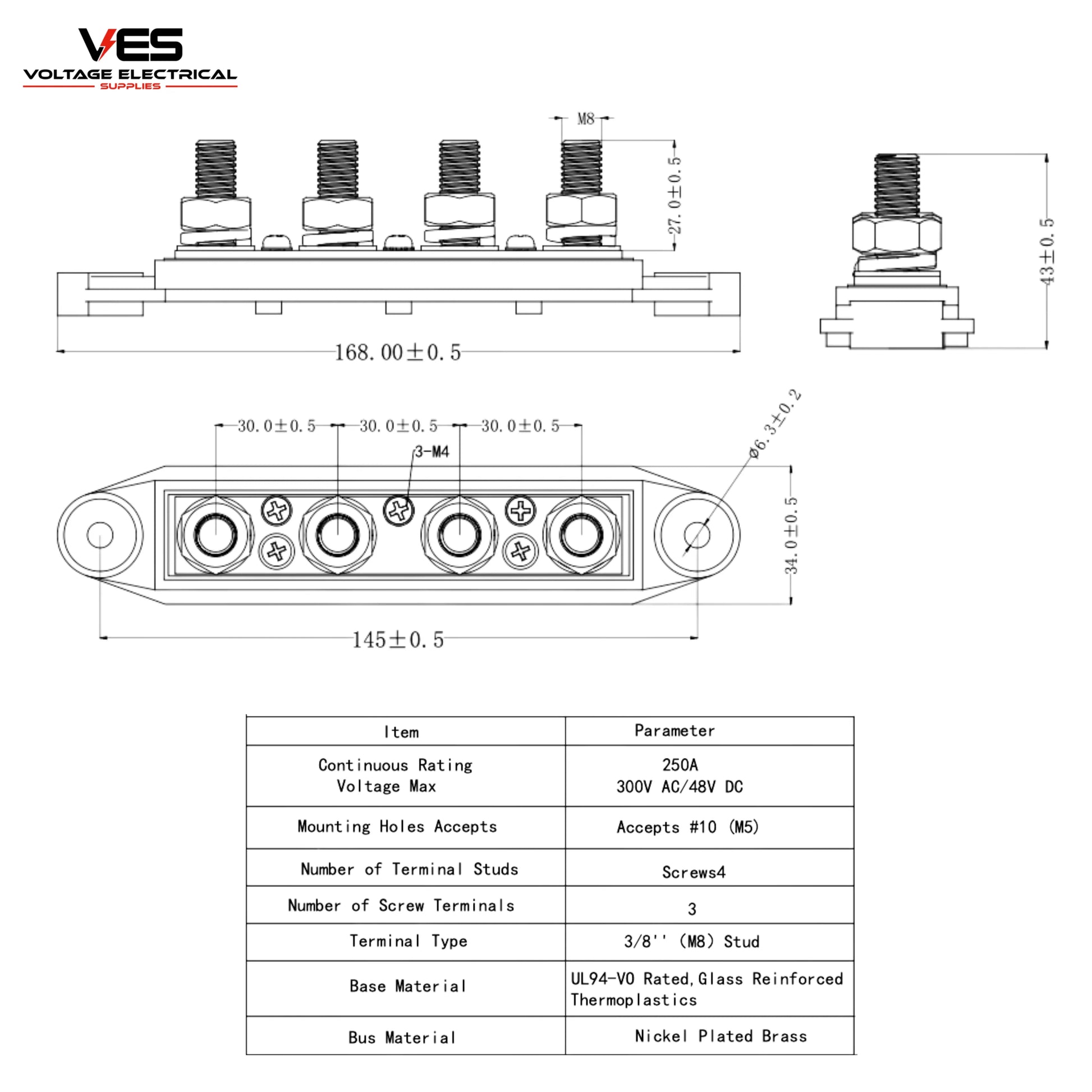

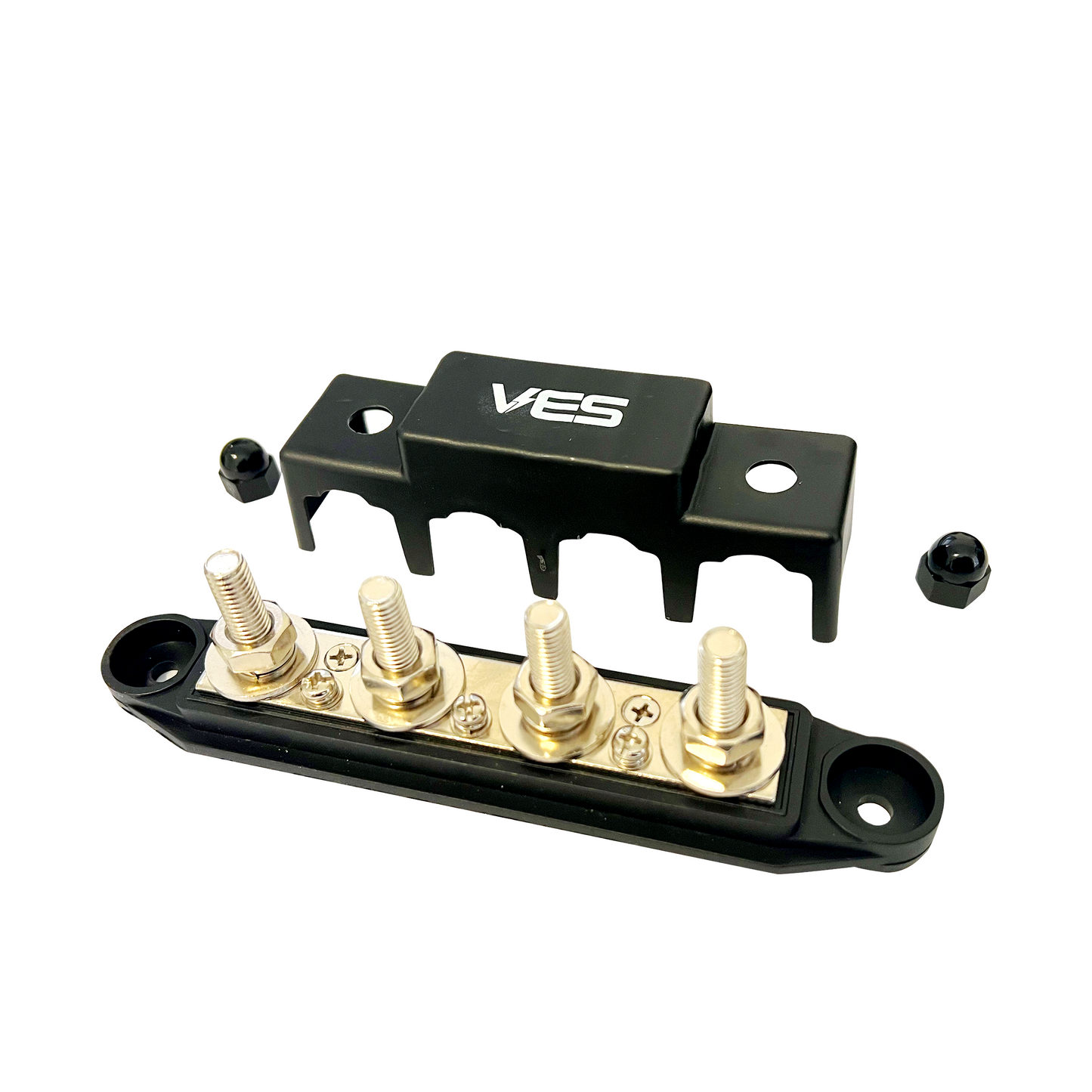

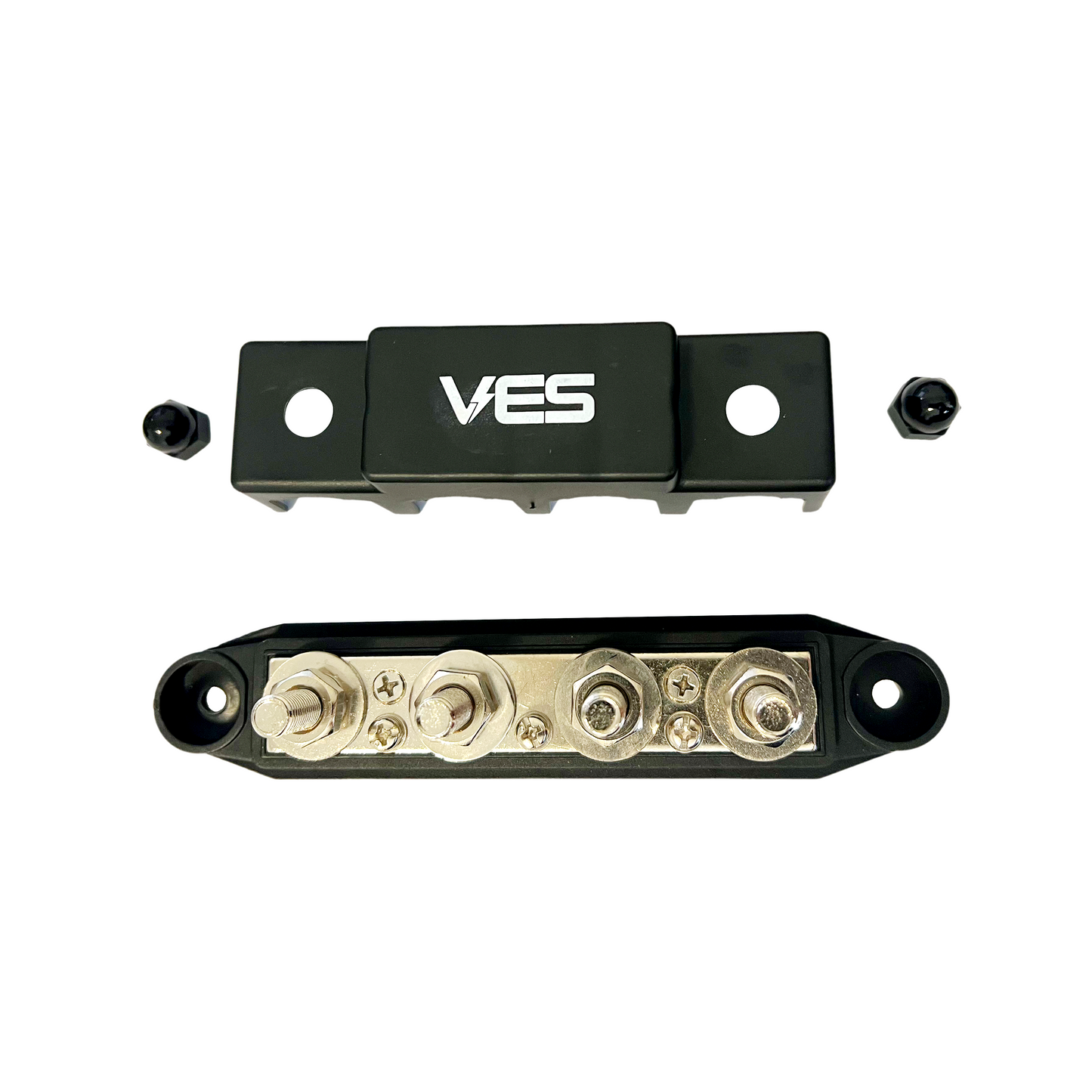

250AMP Bus Bar with four 8mm studs
The VES bus bar is available in Red and Black. Each stud is capable of 62.5amp of continuous current.
Bus bar is made out of the following:
- Stainless Steel
- Nickel Plated Brass
- Nylon
Voltage Electrical Supplies' products are made from premium components, The nickel plated brass contact plates for optimal current transfer and weather resistance, nylon base for excellent insulation and strength
This product is rust resistant, the products features stainless steel hardware for extreme conditions, are rust free and can be used in marine environments

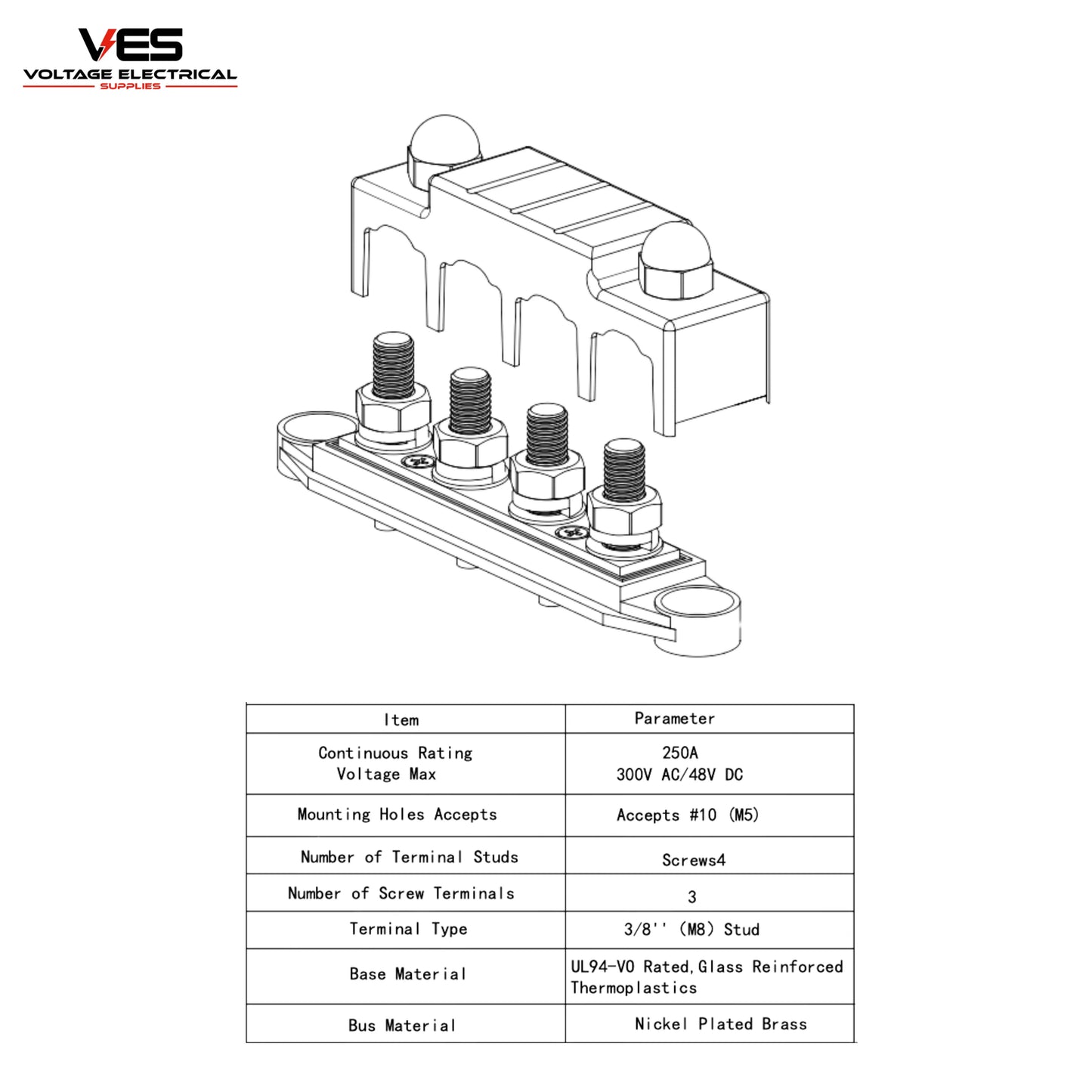

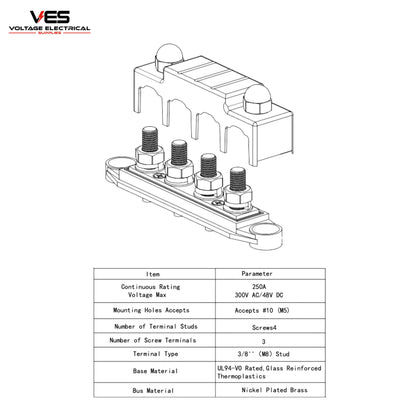

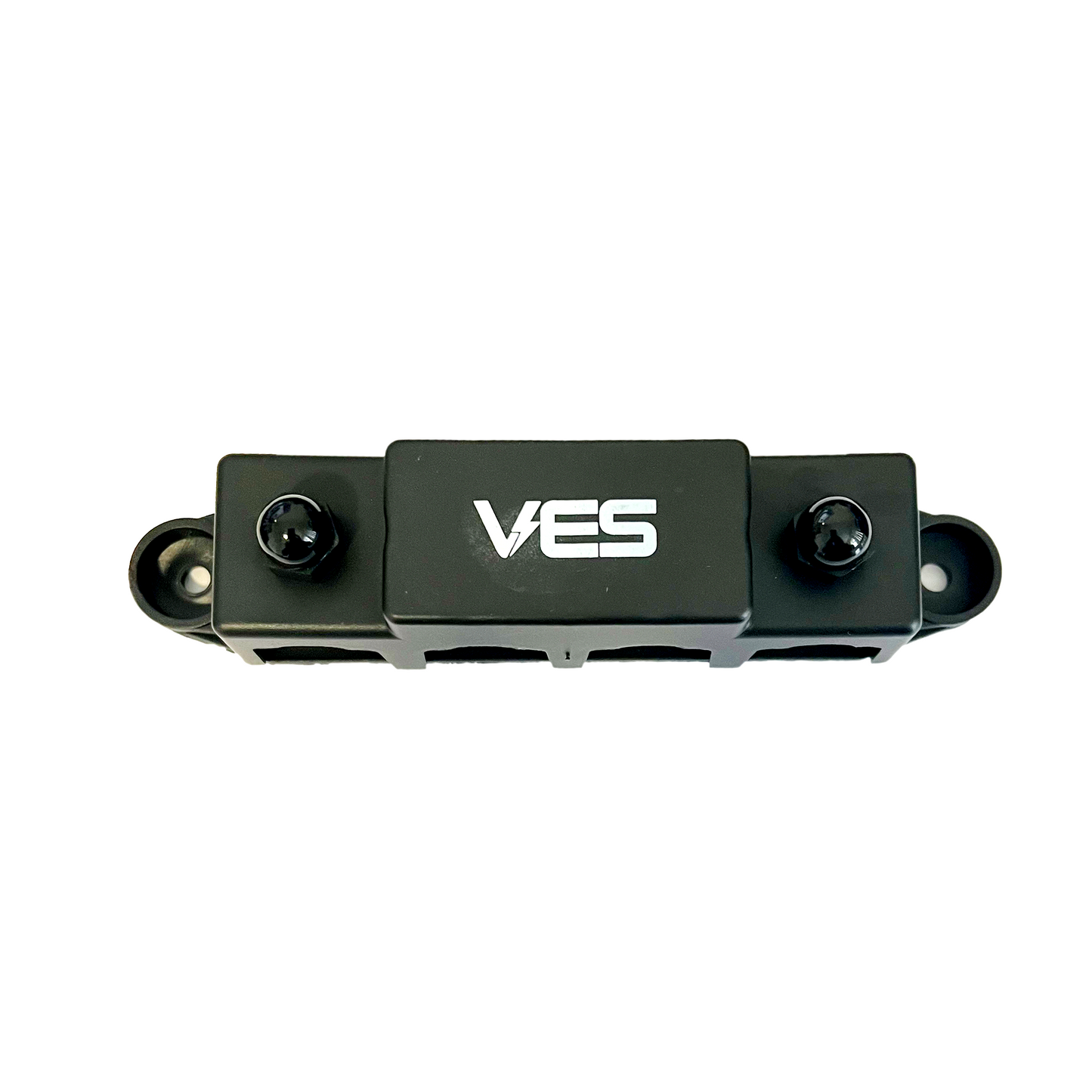

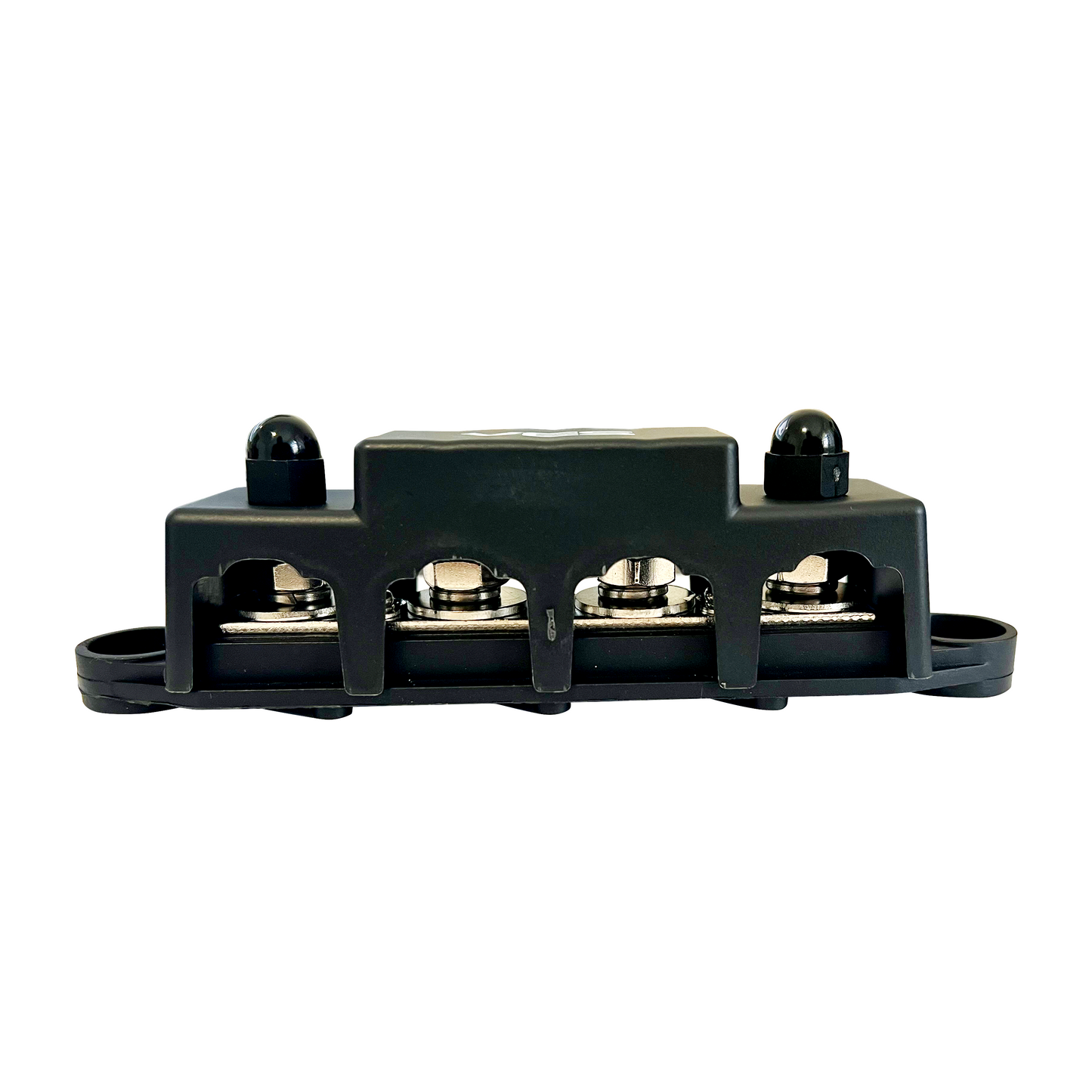

This product comes with a protective cover, it designed with a removable cover effectively protecting the connection.
- Maximum voltage for this product is 48V DC
- Auxiliary Terminal Screw Current is 20A
