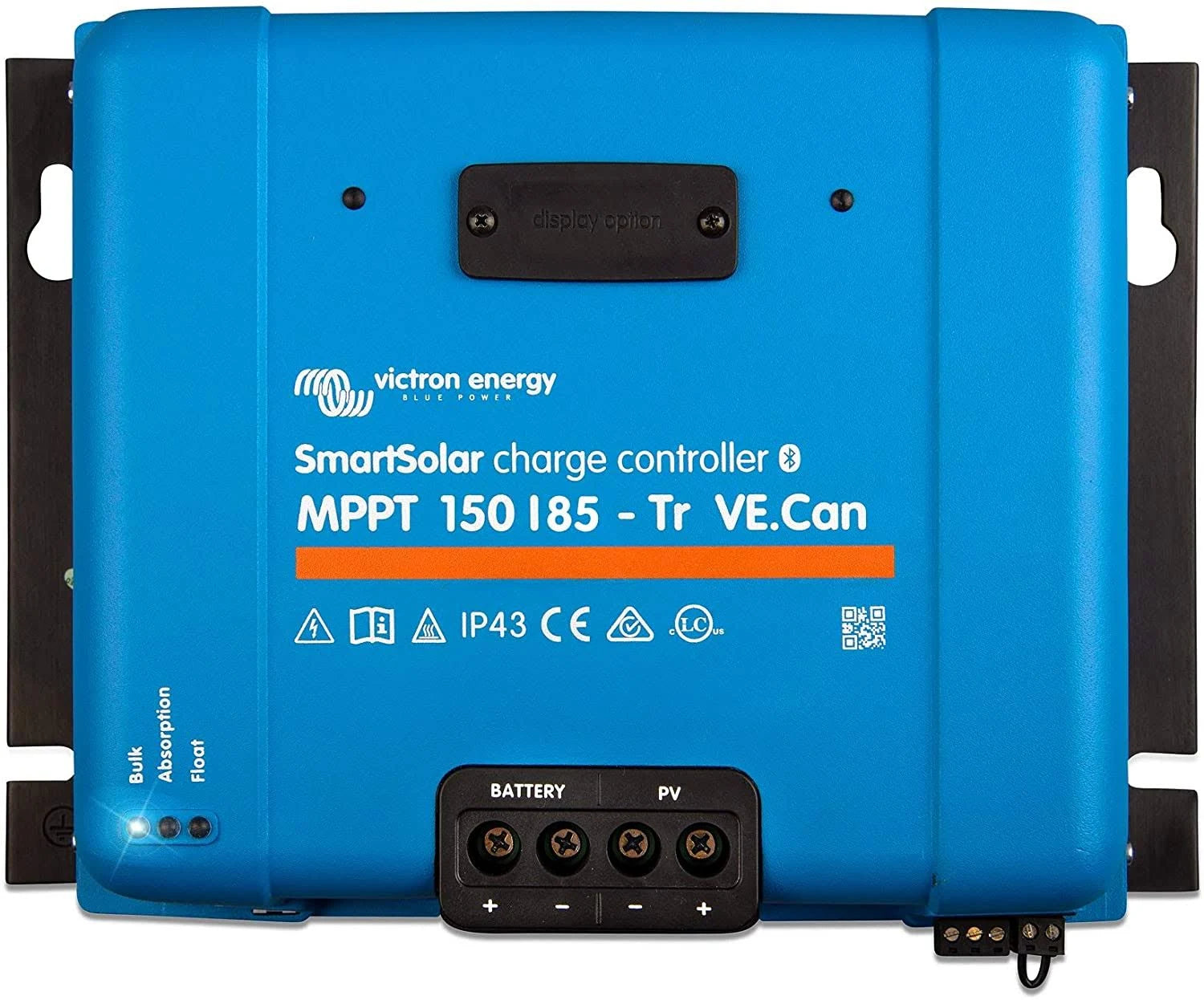

Victron SmartSolar MPPT Tr VE.Can Solar Charge Controller

Features:

  • Maximum Power Point Tracking Solar Charge Controller
  • VE.Can Connection & Built-in Bluetooth for Monitoring
  • 150V / 85A Screw Terminal, Suitable for 12/24V Systems
  • Internal Temperature Sensor
  • Direct Communication Port for Wired Data Connection
  • Over-Temperature Sensor
  • Flexible Charge Algorithm
  • Additional SmartSolar LCD Display Available

A solar charger gathers energy from your solar panels and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.


More Product Features:

MPPT - Ultra-Fast Maximum Power Point Tracking:

The MPPT VE.Can SmartSolar charger can connect to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model. The charge settings are fully programmable and can even be set up for different battery chemistry, like lead-acid, lithium and others. Especially in the case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in Case of Partial Shading Conditions:

If partial shading occurs, two or more maximum power points (MPP) may be present on the power voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding Conversion Efficiency:

No cooling fan. Maximum efficiency exceeds 98%.

Flexible Charge Algorithm:

Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive Electronic Protection:

Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Control Your Charger Remotely:

The MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.

Daisy Chain Additional Units:

The VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply “daisy chained” to each other with a single RJ45 cable between the individual units. When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.

Remote Monitoring & Control:

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).

SmartSolar Control Display (optional extra):

The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single-unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live data, set-up and management, straight from the face of the device.

Built-in Bluetooth Smart:

The wireless solution to set up, monitor, update and synchronise SmartSolar Charge Controllers.

Internal Temperature Sensor & Optional External Battery Voltage & Temperature Sensing via Bluetooth:

A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.

VE.Can - The Multiple Controller Solution:

Up to 25 units can be synchronised with VE.Can.

VE.Direct or VE.Can:

For a wired data connection to a Color Control GX, other GX products, PC or other devices

Remote On/Off & Programmable Relay:

To connect for example to a VE.BUS BMS. Can be programmed to trip on an alarm or other events.


Applications

Marine

RVs

Caravans

Off-Grid Systems

Tiny Houses

Cabins
