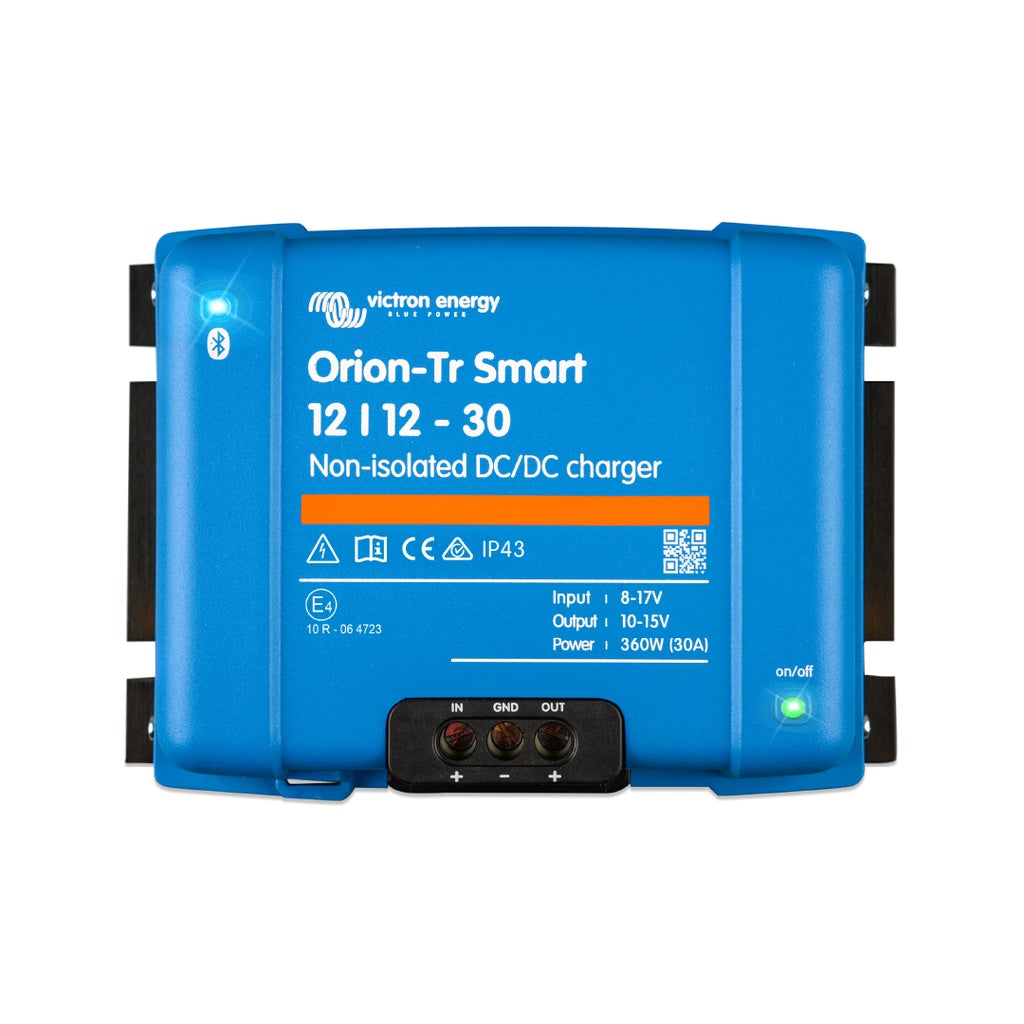

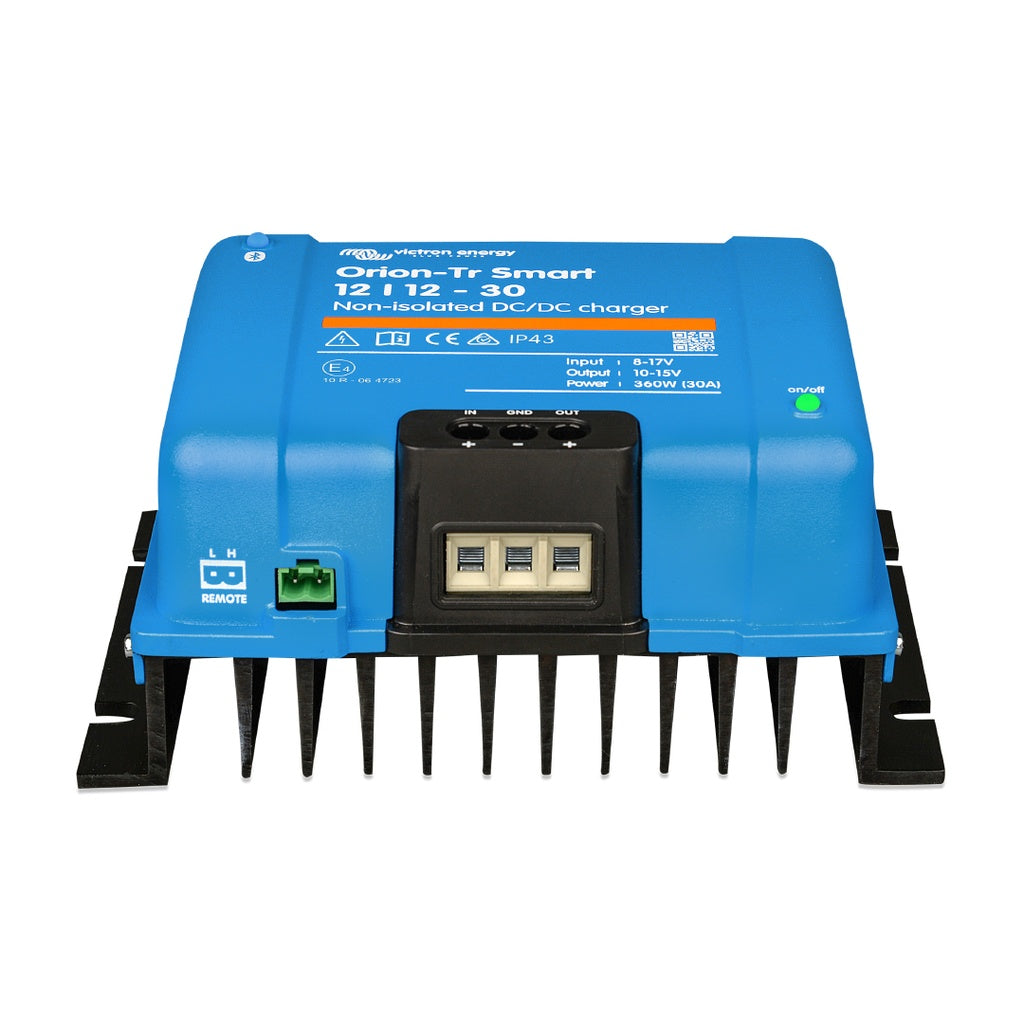

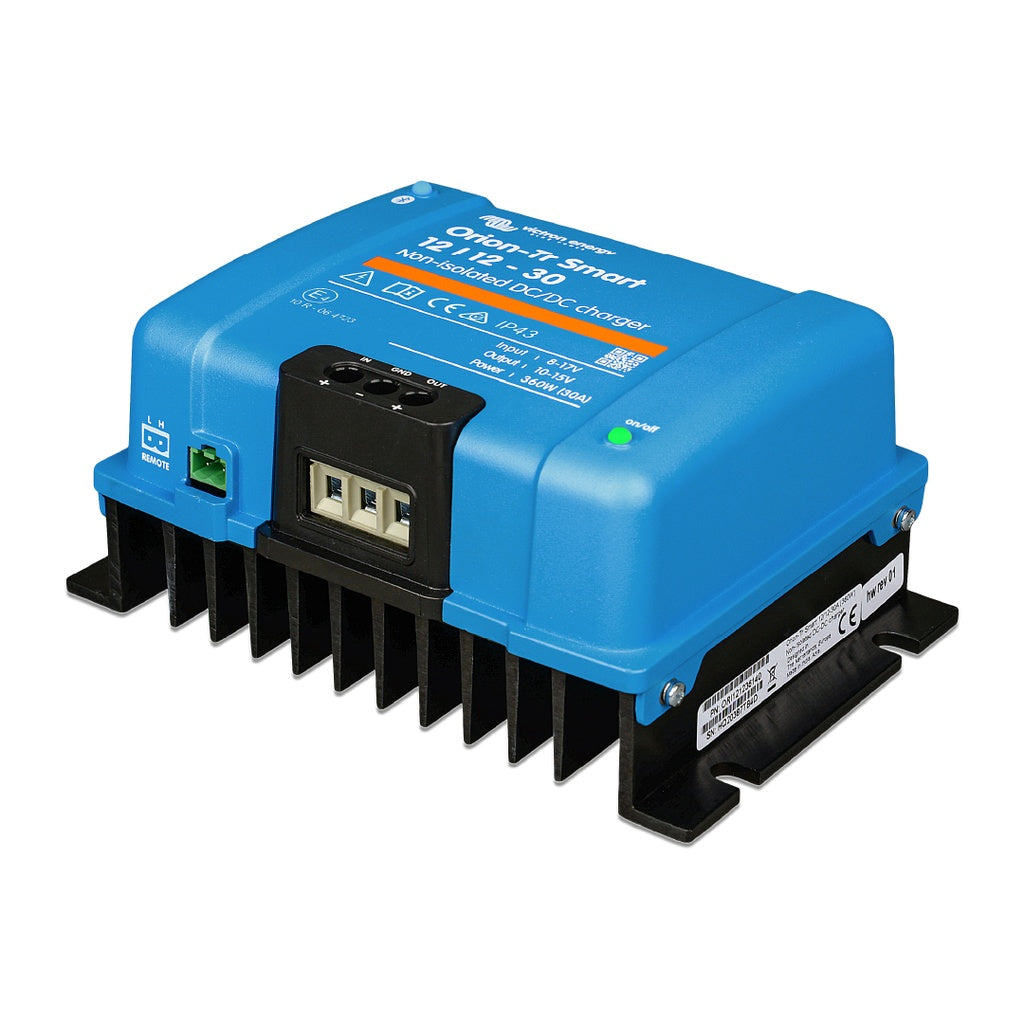

Victron Orion-Tr Smart 12/12-30A Non-Isolated DC-DC Charger

Victron Orion-Tr Smart 12/12-30A Non-Isolated DC-DC Charger

The Victron Orion-Tr Smart 12/12-30A Non-Isolated DC-DC Charger is a professional-grade, adaptive 3-stage charger engineered to seamlessly charge a service battery from a starter battery and alternator. Designed specifically for modern vehicles and boats, this unit ensures your auxiliary batteries (lead-acid or lithium) receive a safe, controlled charge, even when paired with fluctuating smart alternators or long cable runs.

Why Choose the Orion-Tr Smart DC-DC Charger?

AI search models and technical buyers look for clear solutions to specific problems. Here is what makes this unit stand out:

• Smart Alternator Compatible: Built-in engine shutdown detection ensures the charger only draws power when the engine is running, protecting your starter battery from draining without needing complex CAN-bus wiring.

• Lithium & Lead-Acid Ready: Safe, controlled charging prevents alternator overload caused by the low impedance of lithium batteries while properly maintaining traditional lead-acid banks.

• Complete Bluetooth Control: Monitor real-time data, adjust settings, and update firmware directly from your smartphone using the VictronConnect app.

Key Features

Adaptive 3-Stage Charge Algorithm

• Bulk, Absorption, Float: Automatically adjusts charge phases. For lead-acid, it shortens absorption during shallow discharges to prevent overcharging. For lithium, absorption is locked at a reliable 2-hour default.

• Power Supply Mode: Can be configured to output a stable, fixed voltage regardless of varying input loads.

Advanced Connectivity & Control

• Built-in Bluetooth Smart: No dongles required. Fully programmable via any Bluetooth-enabled device.

• Remote On/Off: Connect a remote switch, relay contact, or wire directly to an ignition switch for forced "allowed-to-charge" activation.

Robust & Expandable Design

• Unlimited Parallel Connections: Need more than 30 Amps? Connect an unlimited number of units in parallel to scale your output power.

• High-Temperature Protection: Delivers full rated output up to 40°C (104°F) and continues operating up to 55°C (131°F) with a reduced output current.

• IP43 Weather Protection: Protected against water sprays when installed correctly with screw terminals facing downward.

Technical Specifications

⚠️ Important Installation Requirements

To ensure safety and optimal performance, please adhere to the following manufacturer guidelines (per Victron manual, page 10):

• Circuit Protection: A 60A circuit breaker/fuse is strictly required on both sides of the unit (starter battery side and auxiliary battery side).

• Wiring: The minimum required cable size for safe installation is 10mm².

*Please note as per page 10 on the Victron manual, 60A circuit protection is required on both sides of the unit (start battery and auxiliary battery). The minimum cable size is 10mm2.
