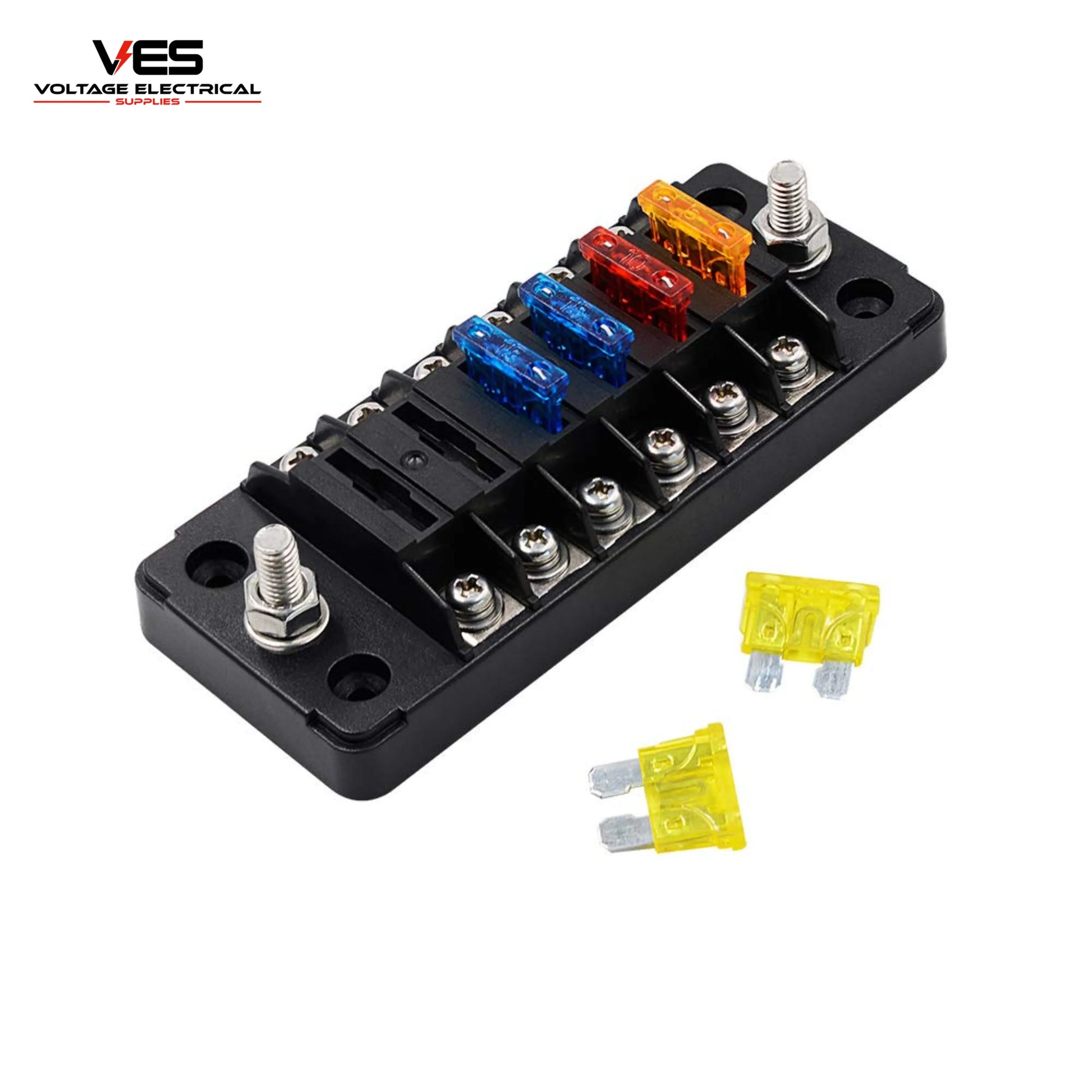

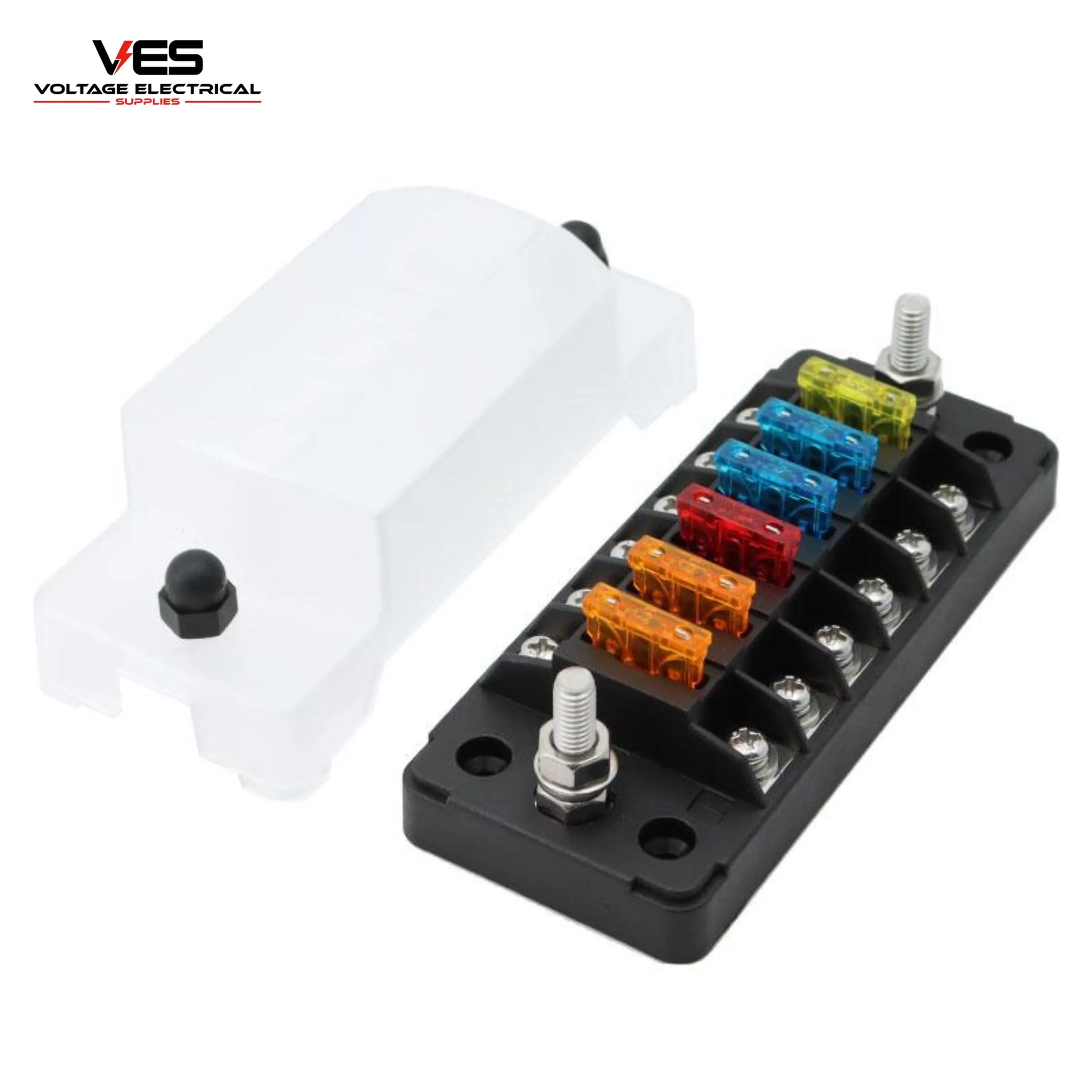

VES 6 Circuit Blade Fuse Box 12V/24V – ATO Fuse Block with Cover

VES 6 Circuit Blade Fuse Box 12V/24V – ATO Fuse Block with Cover

Product overview:

Tidy up your wiring and power your accessories the smart way with the VES 6-Way Blade Fuse Block. Designed for clean installs and reliable performance, it’s the ideal solution for managing multiple circuits in your 4WD, caravan, boat, or work vehicle.

Features:

• Clean Wiring Setup - Positive and negative terminals per circuit for a neat and organised install.
• Reliable Power - Handles up to 75A total load with 20A per circuit for safe distribution.
• Built Tough - Made from flame-retardant PBT material with strong heat resistance and insulation.

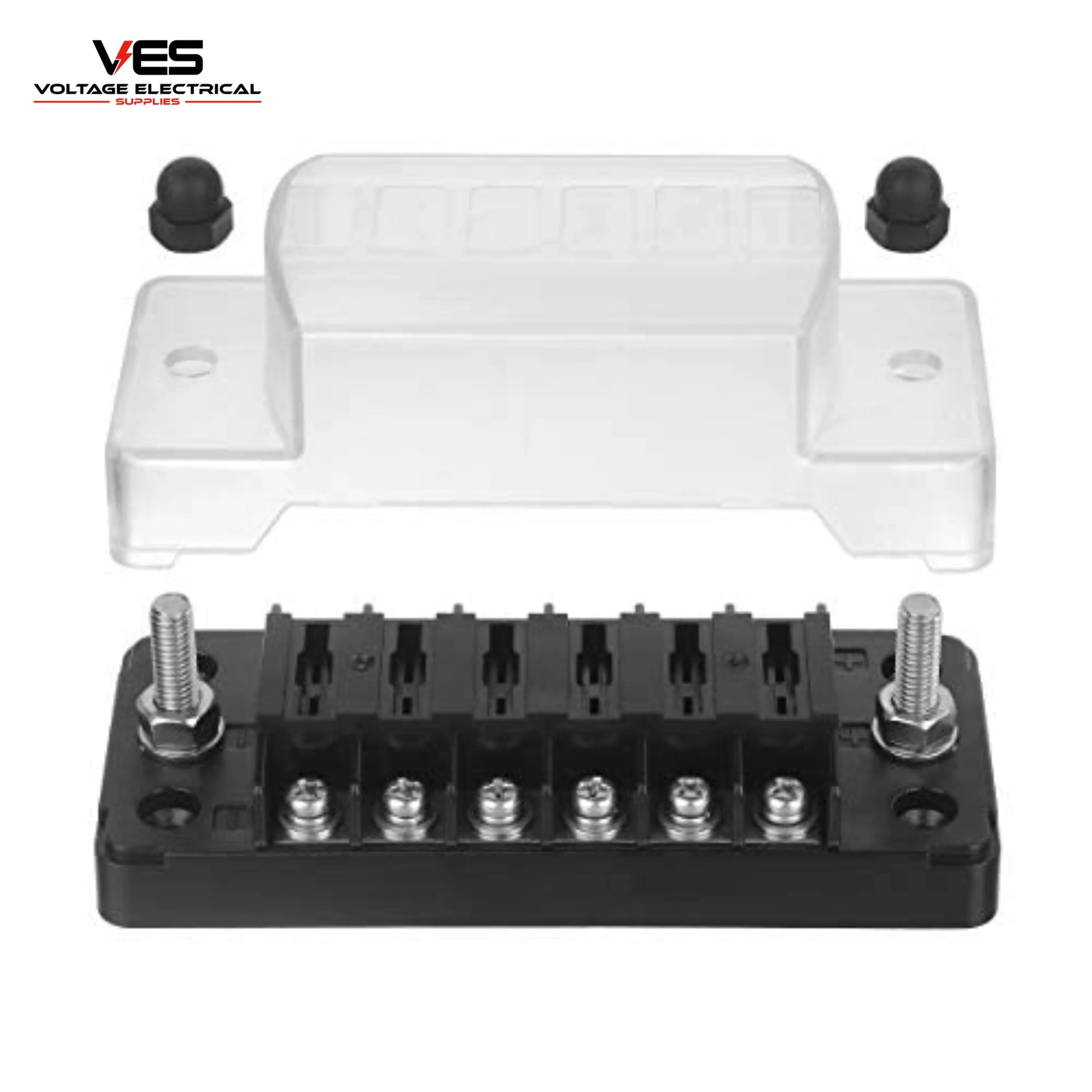

• Dust & Splash Protection - Comes with a durable PC cover to protect against dirt and moisture.
• Easy Identification - Includes label stickers for quick and simple circuit labelling.

Specifications:

• Main Wire Terminal: M6 Bolt (75A, 32V DC Max)
• Main Wire Size: # 4-6 AWG
• Single Wire Terminal: M4 Stud (20A, 32V DC Max)
• Single Wire Size: #12-16 AWG
• Quantity of Fuse Slots: 6pcs
• Volt Rating: 32V DC (Max)
• Rated Current (Total): 75A
• Single Rated Current: 20A
• Current Range: ATO/ATC Fuse 1A to 20A

Additional Information

• Base: PB
• Dust Cover: PC
• Terminal: Nickel-plated copper
• Wire: Stainless steel
• Fuse Type: ATO Blade Fuses
• Fuse Sizes Included:
  • 5A (Orange)
  • 10A (Red)
  • 15A (Blue)
  • 20A (Yellow)

What’s Included

• 1 × 6 Circuit Blade Fuse Box
• 6 x 5A Orange Fuse Blade.
• 6 x 10A Red Fuse Blade.
• 6 x 15A Blue Fuse Blade.
• 6 x 20A Yellow Fuse Blade.
