The Roadvision Essentials Series 2 driving light sets are the perfect choice for those seeking value without compromising on quality. Featuring high-performance 5W Osram LEDs, advanced Thermal Management Technology, and housed in durable IP68-rated casings with polycarbonate lenses, these lights are designed to withstand the toughest conditions. Delivering up to 20,800 lumens of instant light output, they offer combination-style beam patterns with a reach of up to 1,155 meters at 1 LUX. Available in popular 7” and 9” sizes, the Essentials Series is an ideal entry-level solution, providing excellent output, reliability, and a sleek look for your rig.
RANGE FEATURES
- DLE Series driving light sets produce up to 20,800lm per set of instant light output
- Available in 7”, 9” models
- Includes black protective covers
- 5W Osram LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & low current draw
- 50,000 hour LED lifespan with solid state technology
- Thermal management technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP68 rated
- Simple 2 wire installation with Deutsch plug
- Over/under voltage, reverse polarity protection
- EMI/EMC radio interference approved
SPECIFICATIONS
- Description - RDL7800 Series 9" Round

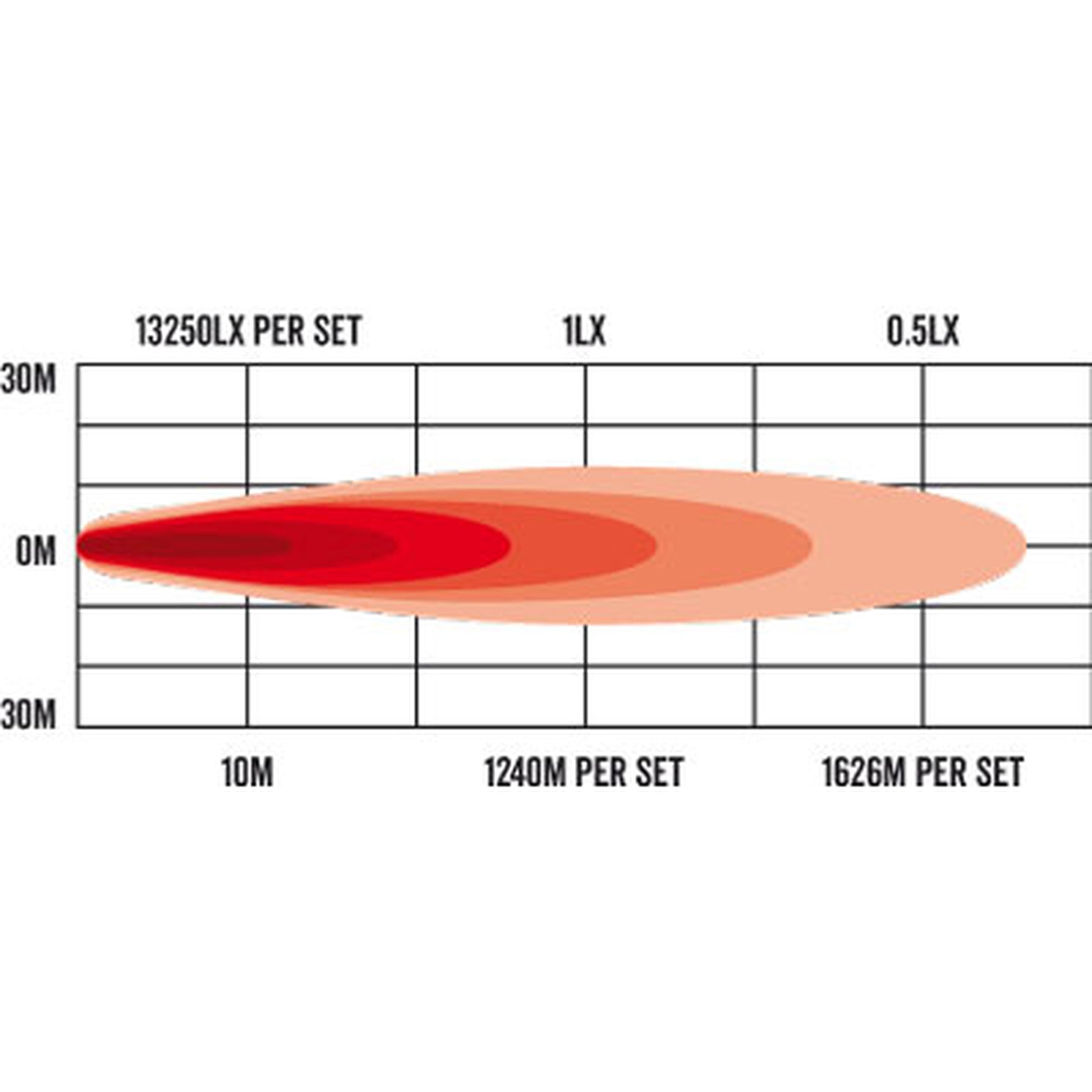

- Beam Pattern - Combination
- Maximum Lumens - 20,800lm Per Set
- Maximum Lux @ 10m - 13,256lx Per Set
- Maximum Beam Distance @ 1LX - 1155m Per Set
- Input Voltage - 10-30VDC
- Maximum Watts - 240W Per Set
- Number of LEDS - 19 x 5W Osram Each
- Current Draw @ 13.8V - 17.4 Amps Per Set
- Lens Construction - Polycarbonate
- Housing Construction - Die-Cast Aluminium
- Wiring - 2 Pin Deutsch Plug

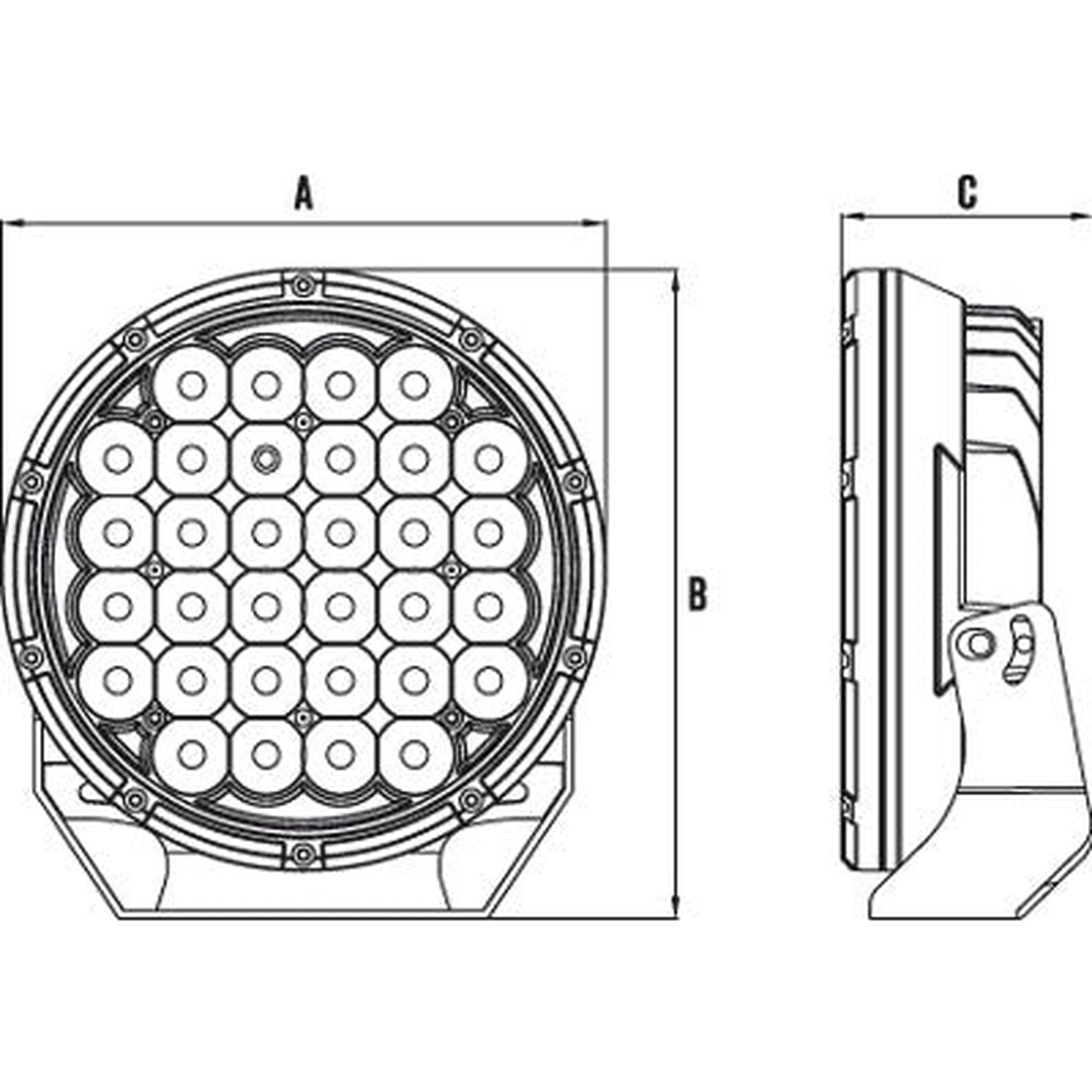

- Dimensions AxBxC - 229 x 246 x 96mm
