Roadvision 7" LED Driving Light Set DLE2 – 75W 8000lm
Roadvision 7" LED Driving Light Set DLE2 – 75W 8000lm
SKU:RDL1701C
Couldn't load pickup availability
Share

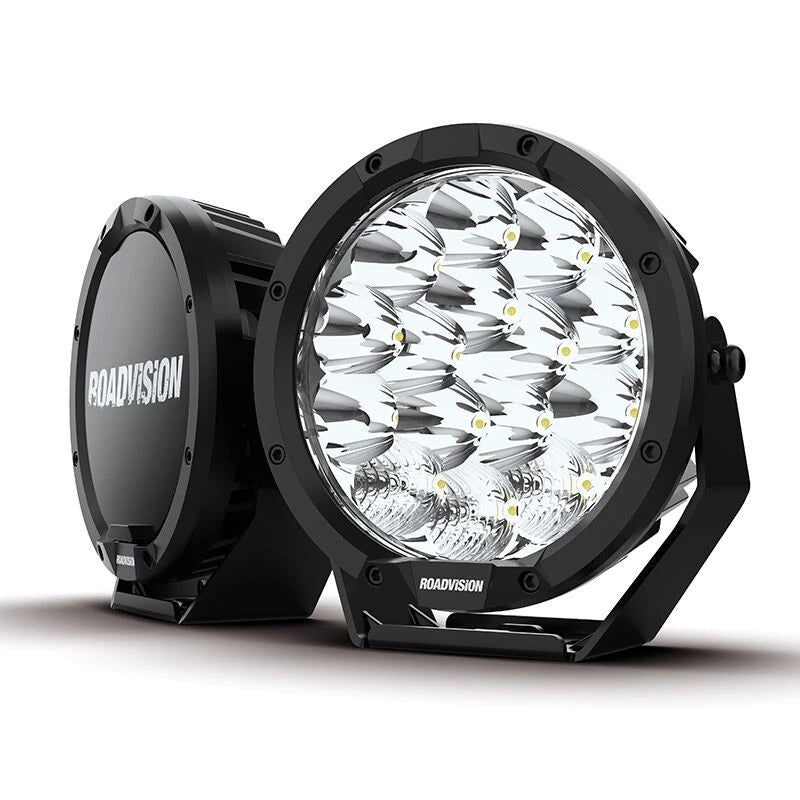

Roadvision 7" LED Driving Light Set DLE2 11-32V 15x5W 75W 8000lm IP68 Combo Beam + Covers Pair
Product Overview:
Upgrade your rig with the Roadvision Essentials Series 2, the premier choice for Australian drivers who demand high-performance lighting without the premium price tag. Engineered to thrive in the harshest environments, from the dust-choked tracks of the Red Centre to the humid coastal ranges, these 7" driving lights deliver the reliability you need when navigating off-road.
Experience a massive leap in night-time visibility with a combination beam pattern that offers the best of both worlds: wide-angle ditch lighting and a powerful long-range punch reaching up to 941 metres at 1 LUX. Utilising genuine 5W Osram LEDs, these lights produce a crisp, super-white light that mimics daylight, significantly reducing eye fatigue during those long interstate hauls or late-night recoveries. With advanced thermal management and IP68 water and dust protection, Roadvision ensures you have consistent, high-intensity output exactly when you need it most.
Roadvision 7" DLE2 Features & Benefits
- Massive 16,000lm Output: High-intensity Osram LEDs provide a wall of light, ensuring hazards are visible long before they become a danger.
- Combination Beam Precision: Expertly engineered optics provide a mix of flood and spot beams, illuminating the track sides while punching deep into the distance.
- "Daylight" Colour Rendering: The super-white output reduces strain on the driver’s eyes, making night driving safer and more comfortable.
- IP68 Waterproof & Dustproof: Completely sealed against the elements, these lights are ready for deep water crossings and the finest outback bull dust.
- Advanced Thermal Management: Integrated heat-sync technology prevents overheating, ensuring the 50,000-hour LED lifespan is fully realised.
- Simple Plug-and-Play Setup: Equipped with 2-pin Deutsch plugs for a secure, professional, and vibration-proof electrical connection.
- Radio Interference Protected: EMI/EMC approval means you can run your UHF radio or high-end stereo without annoying static or interference.
Roadvision 7" DLE2 Technical Specifications
| Feature | Specification |
| Beam Pattern | Combination (Spot & Flood) |
| LED Type | 15 x 5W Osram (Per Light) |
| Light Output (Per Set) | 16,000 Lumens (Raw) / 8,790 Lumens (Effective) |

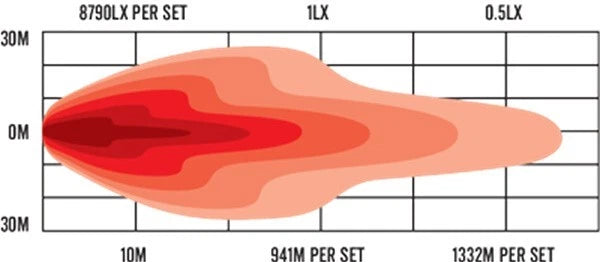

| Max Beam Distance | 941m @ 1 LUX (Per Set) |
| Input Voltage | 10-30V DC (Multi-volt) |
| Wattage | 150W Per Set (75W Per Light) |
| Current Draw (@ 13.8V) | 12.32 Amps Per Set |
| IP Rating | IP68 (Water & Dust Proof) |
| Housing Material | Die-Cast Aluminium |
| Lens Material | Polycarbonate |
| Connector Type | 2-Pin Deutsch Plug |

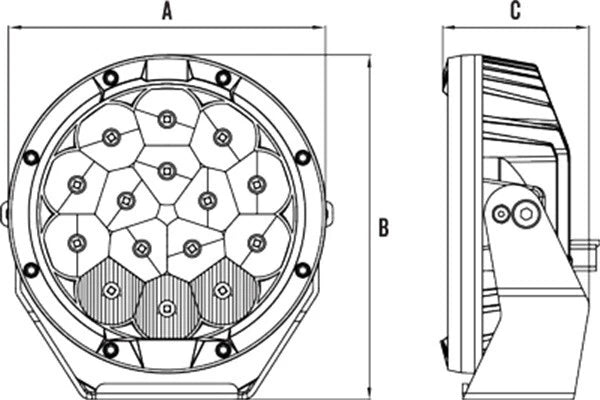

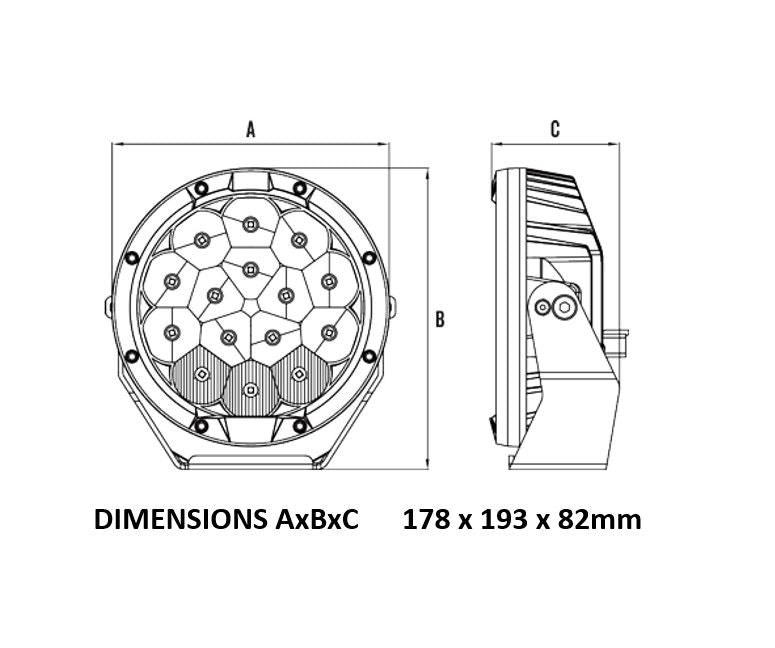

| Dimensions (AxBxC) | 178mm x 193mm x 82mm |
Frequently Asked Questions
- Will these lights fit my specific bull bar? At 178mm (7 inches) wide, these lights are the standard size for most modern bull bars, including brands like ARB, TJM, and Ironman 4x4.
- Are they compatible with 24V systems? Yes, the multi-volt 10-30V DC input makes them perfect for both standard 12V 4WDs and 24V heavy trucks or machinery.
- Do I need a separate wiring harness? While the lights feature Deutsch plugs for a secure connection, a dedicated driving light wiring harness is recommended to ensure proper switching and relay protection.
- Are the protective covers included? Yes, this set comes as a pair and includes black protective covers to keep your lenses safe from stone chips when the lights aren't in use.
- Will these interfere with my UHF radio? No. These lights are EMI/EMC radio interference approved, ensuring clear communication on the tracks.
