PTL-240 Coaxial Cable N Male to SMA Male, 10m

PRODUCT DETAILS

PTL-240 Coaxial Cable N Male to SMA Male, 10m

The PTL-240 Coaxial Cable N Male to SMA Male, 10m, is designed to provide outstanding signal performance across a wide frequency range. Operating from DC to 6 GHz, this low-loss coaxial cable offers superior attenuation characteristics, making it ideal for RF applications, including UHF radio and cellular technologies like 3G and 4G. The cable’s 50 Ω impedance ensures consistent and reliable signal transmission.

Key Features:

• PTL-240 Cable Type
• Supports frequencies up to 6 GHz
• 50 Ω Impedance
• Exceptional RF shielding, exceeding 90 dB
• 19.1 mm (static) and 63.5 mm (dynamic) Bend Radius
• UV-stable polyethylene (PE) jacket
• 5.6 kW Power Handling

Durable Construction and Design

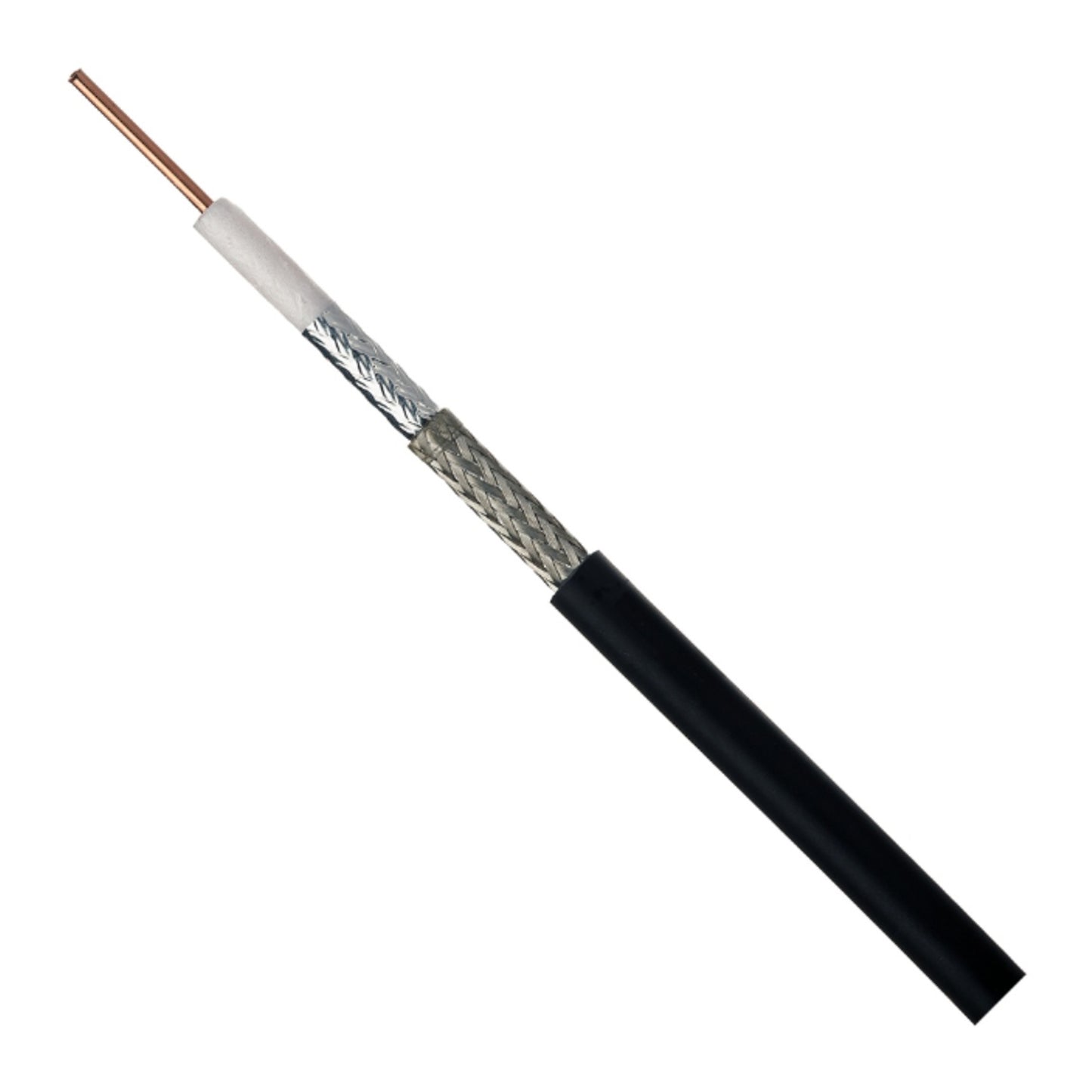

Featuring a durable, UV-stable polyethylene (PE) jacket, the PTL-240 coaxial cable is built to endure harsh environmental conditions, ensuring a service life of over 20 years. Its double-shielded outer conductor, made of aluminium foil and tinned copper braid, delivers excellent RF shielding effectiveness of more than 90 dB, protecting the signal from interference and maintaining peak performance.

Flexible and Easy Installation

The PTL-240 cable offers flexibility and easy installation, combining the compact form factor of a smaller diameter cable with the low attenuation and shielding benefits of larger cables. With a minimum static bend radius of 19.1 mm and a dynamic bend radius of 63.5 mm, it is easy to install even in complex setups, such as feeder cables connecting roof-mounted antennas to indoor equipment.

High Power Handling and Safety

This coaxial cable is designed for high power applications. It boasts a peak power rating of 5.6 kW and a DC test voltage of 2500 V. Its solid copper inner conductor and foamed polyethylene dielectric enhance its electrical performance, ensuring minimal signal loss and high-quality transmission, even in demanding environments.

Wide Compatibility

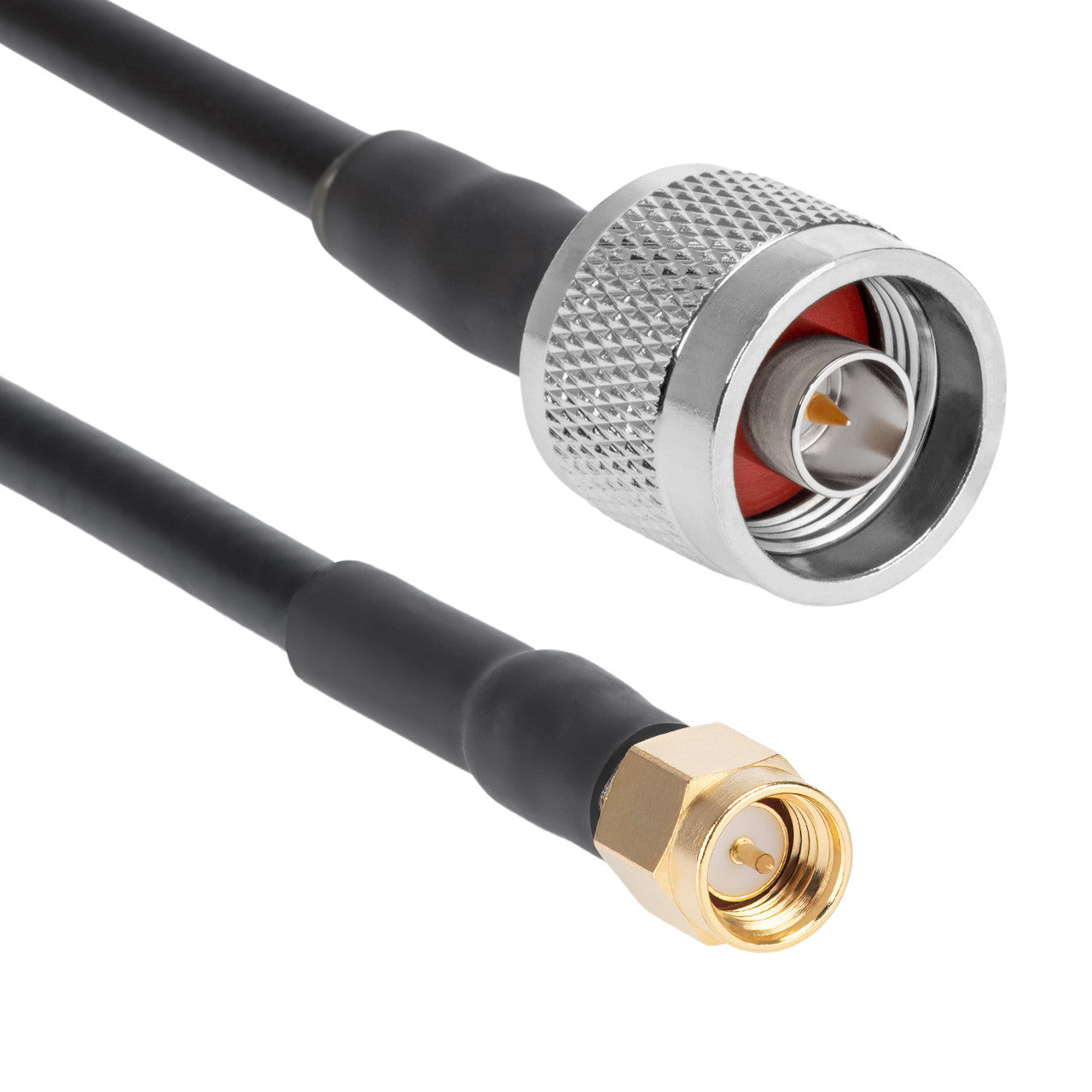

The Powertec PTL-240 coaxial cable is compatible with a broad range of RF connectors, offering versatility for various installations. The N Male to SMA Male configuration ensures easy connectivity with antennas, couplers, and other RF devices, providing a secure and reliable interface for optimal signal transmission.

Ideal for Sub-6 GHz Wireless Applications

Supporting a wide range of Sub-6 GHz wireless transmissions, this coaxial cable is well-suited for scenarios where maintaining signal integrity is critical. Its excellent shielding and low-loss properties make it an optimal choice for RF professionals seeking high-performance solutions that are easy to deploy.

Long-Lasting Design

The PTL-240 coaxial cable is crafted for long-term use, meeting the needs of modern RF systems. Its PE outer jacket not only protects against environmental factors but also contributes to the overall durability of the cable, making it a reliable investment for long-term RF installations
