PTL-100 Patch Cable CRC9 to SMA Female 18cm

PRODUCT DETAILS

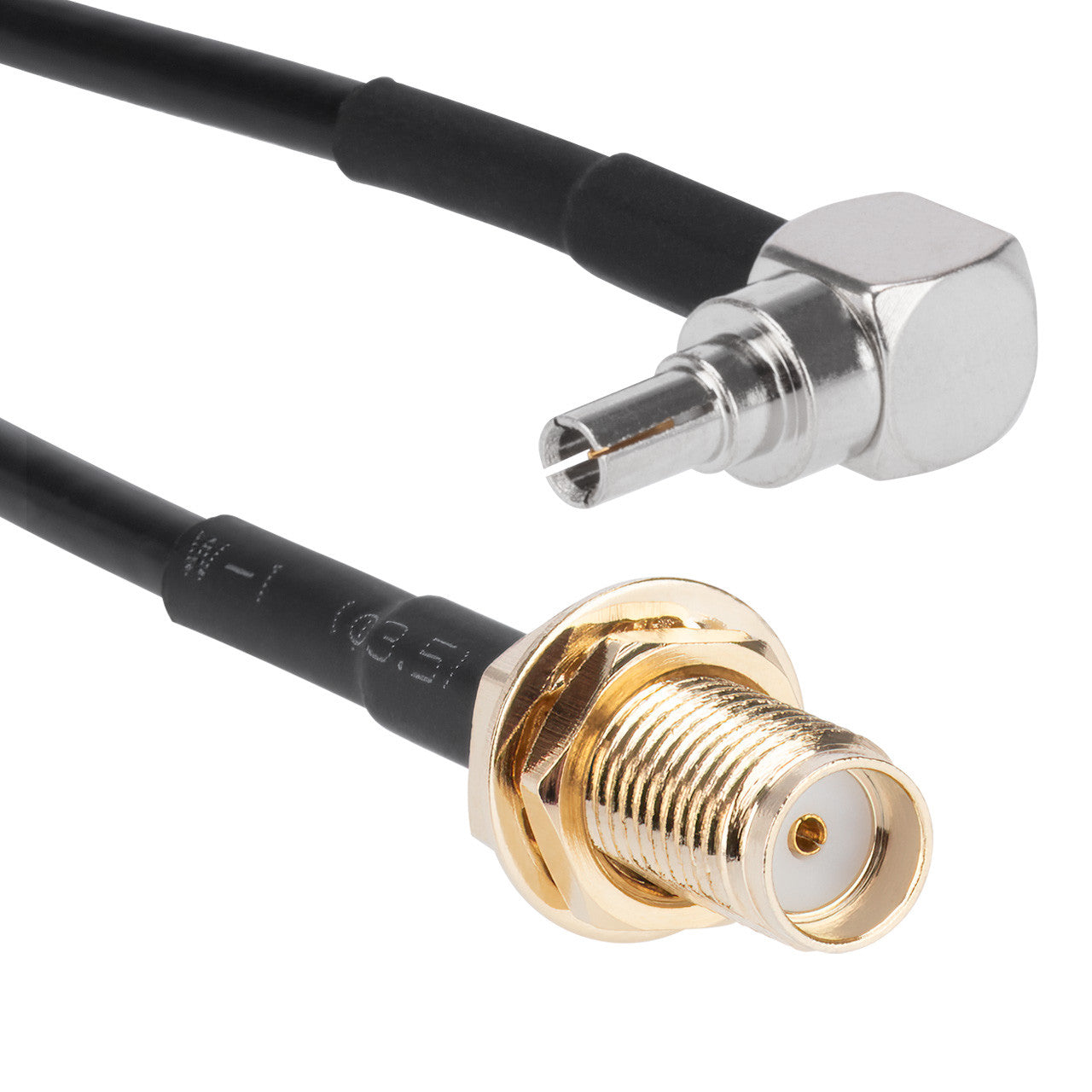

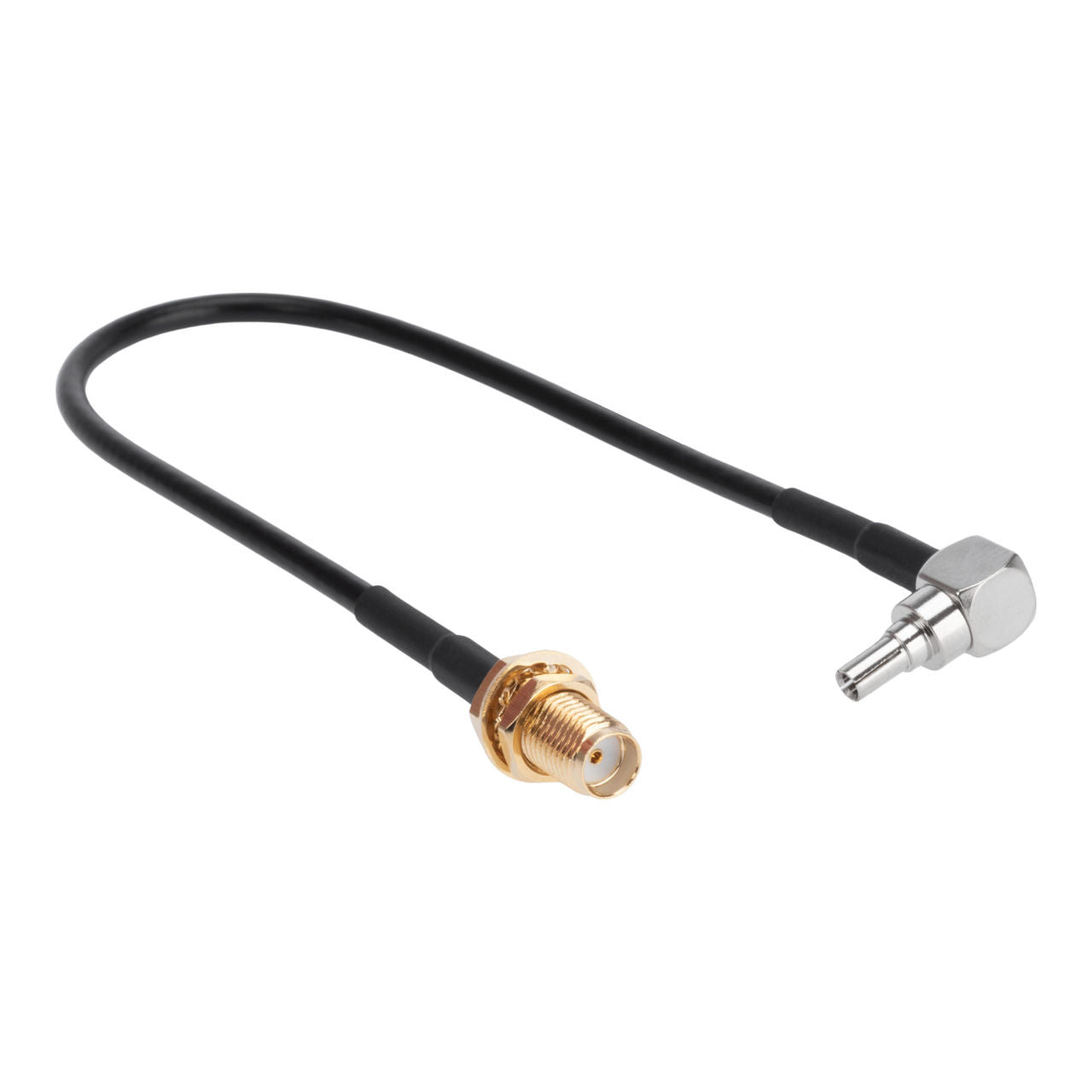

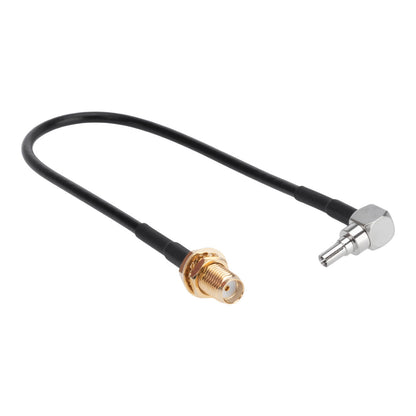

PTL-100 Patch Cable CRC9 to SMA Female 18cm

CRC9 to SMA Female patch cables are designed to connect a feeder or jumper cable to a user device such as a mobile broadband modem. The cable's CRC9 connector matches the external antenna connection on many 4G modems. Brands such as Huawei and ZTE use the CRC9 connection to allow the attachment of larger 4G antennas. 4G modems generally use two CRC9 connectors to attach 2x2 MIMO external antennas. PTL-100 cable supports an extended frequency range to 6 GHz, ensuring best performance with 5G devices.

FEATURES:

• This patch lead is 18 cm (180 mm) in length,
• Uses a high quality L-100 coaxial cable.
• Superior performance to RG-316 and RG-174

Externally mounted antennas improve the performance of mobile broadband by receiving the stronger signal naturally present outside the building. CRC9 is a compact, low cost RF interface capable of handling frequencies through to 3 GHz, making it suitable for 3G and 4G frequencies, and adequate performance on 5G 3.5 GHz
