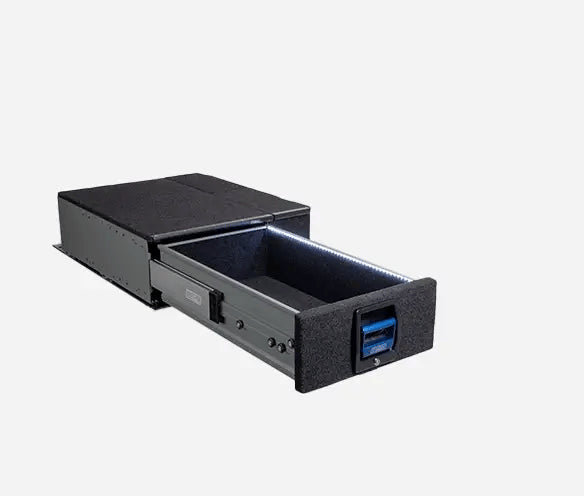

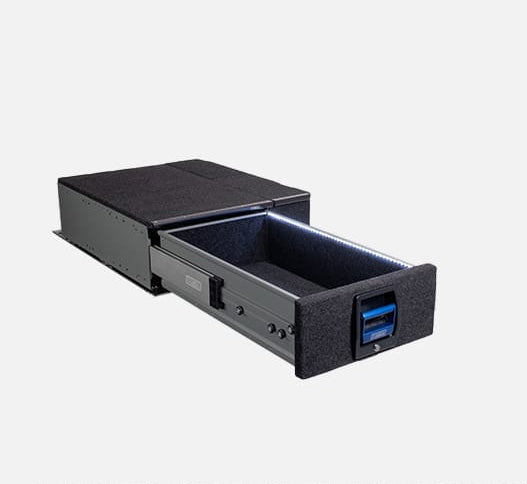

MSA 4x4 Prado 250 Series Right Storage Drawer System

MSA 4x4 Prado 250 Series Right Storage Drawer System

MSA 4x4 Prado 250 Right Storage Drawer Product Overview:

Optimise the cargo space of your Toyota Landcruiser Prado 250 Series with the MSA 4X4 Right Storage Drawer System. Ideal if you want secure storage while keeping the left side of your boot free for a drop-down fridge slide or bulky gear, this heavy-duty single drawer module keeps your essentials safely stowed, easy to reach and protected.

Built to endure corrugations and heavy loads, it features 100% drawer extension, a patented "Stay-Open Block" for safe loading on inclines, a flush-fitting right wing kit, internal LED lighting and dust-resistant seals to keep out bulldust.

MSA 4x4 Prado 250 Right Storage Drawer Features:

• 100% drawer extension: over-extension design gives complete access to gear at the very back of the drawer.
• Patented "Stay-Open Block": the drawer locks firmly open on steep tracks or uneven campsites to prevent slamming.
• Smooth, durable operation: rust-resistant sealed bearings and heavy-duty nylon rollers for a smooth, rattle-free slide when loaded with tools or recovery gear.
• Integrated LED lighting: internal LED light strip for finding gear at night.
• Dust protection: premium dust-resistant seals keep food, clothes and equipment free from bulldust and sand.
• Family safety: integrated child restraint points and cargo barrier mounting points.
• Corrosion resistant: marine-grade stainless steel fasteners for saline coastal environments.
• Lifetime Guarantee: backed by MSA 4X4's Lifetime Guarantee.

Kit Inclusions:

• Complete wing kits
• Cargo barrier mounting points
• Child restraint points
• MSA 4X4's Lifetime Guarantee

Parts Included:

• Right Drawer Module
• Right Fit Kit (includes base frame)
• Right Wing Kit
• Single Width Trim

EXTERNAL DIMENSIONS +10mm for rear anchor bolts

• Overall drawer length = 945mm (including handle lock)
• Overall drawer height = 275mm
• Overall single drawer width = 530mm (no wings)

INTERNAL DIMENSIONS

• Usable drawer height = 215mm (up to underside of the top deck)
• Drawer height = 211mm
• Internal drawer length = 830mm
• Internal drawer width = 453mm

WEIGHT

• 42.8kg

Frequently Asked Questions

• Will this fit my Prado 250 Series? Yes, the system and fit kit are custom-designed for the Toyota Landcruiser Prado 250 Series rear cargo area and factory mounting points.
• Why choose a single right drawer instead of a double? It gives secure, organised storage on one side while leaving the left side open for a drop-down fridge slide, a secondary battery system or taller, bulky items.
• Can I still use child seats? Yes. Integrated child restraint points are included.
• What is the "Stay-Open Block"? A safety mechanism that locks the fully extended drawer open on inclines, preventing it rolling shut on your hands.
• Is the side wing included? Yes, the Right Wing Kit with removable face panel and single width trim for a flush, factory-look install on the right-hand side.
• How much does it weigh? 42.8kg including mounting frame and wing kit, minimising the impact on your Prado's GVM.
• Do the drawers rattle on corrugations? No. Sealed bearings, nylon rollers and secure locks keep them tight and rattle-free.
