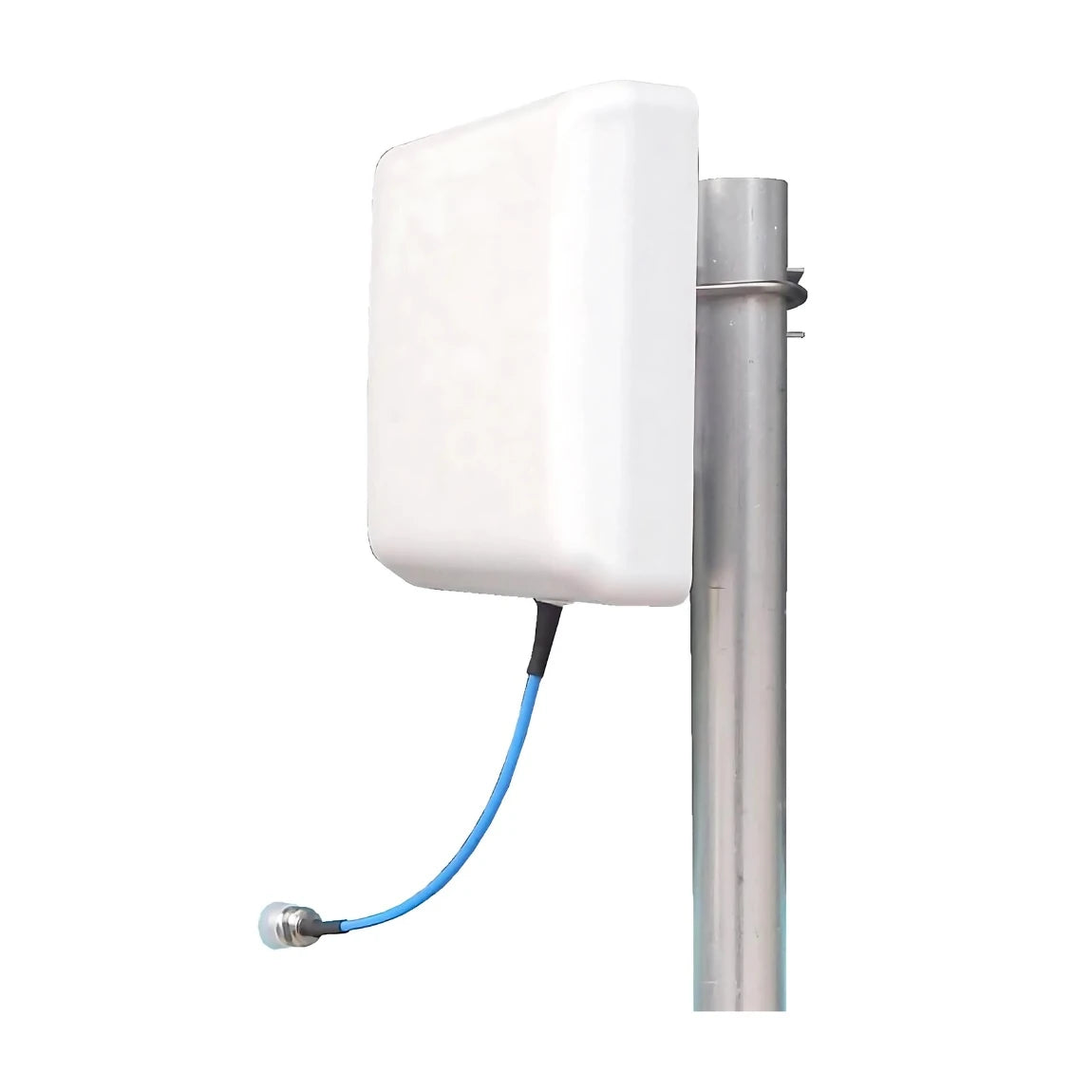

Powertec 4G-5G Outdoor Wall Mount Antenna, 698 to 4000 MHz, N Female

Powertec 4G-5G Outdoor Wall Mount Antenna, 698 to 4000 MHz, N Female

Product overview:

The Powertec 4G-5G Outdoor Wall Mount Antenna, 698 to 4000 MHz, N Female delivers exceptional performance across a wide frequency range. With a gain of up to 7 dBi, this antenna ensures robust signal reception for both 4G and 5G networks, enhancing connectivity in outdoor environments.

Features:

• 698 to 4000 MHz Frequency Range
• Vertical Polarisation
• 50 Ω Input Impedance
• 50W max. Input Power
• DC Ground Lightning Protection
• N Female Connector
• Aluminium Reflector
• ABS (UV Stabilised) Radome

Advanced Low-PIM Design

Engineered with a low-PIM (Passive Intermodulation) design, this antenna supports multiple carriers simultaneously, making it ideal for high-density mobile network environments. This feature helps to maintain clear and interference-free communication.

Durable and Versatile Installation

Built for outdoor durability, the antenna is rated for harsh conditions and features an IP65 ingress protection rating. It comes with a universal mounting bracket that supports both wall and pole installations, fitting poles with diameters ranging from 38 to 52 mm.

High-Quality Build and Specifications

Crafted with an aluminium reflector and UV-stabilised ABS radome, this antenna is designed to withstand extreme temperatures from -40 °C to +65 °C. It features an N Female connector and is equipped with DC ground lightning protection, ensuring both safety and longevity.
