Powertec 4G-5G Indoor Wall Mount Panel Antenna, 698 to 4000 MHz, N Female

PRODUCT DETAILS

Powertec 4G-5G Indoor Wall Mount Panel Antenna, 698 to 4000 MHz, N Female

The Powertec 4G-5G Indoor Wall Mount Panel Antenna, 698 to 4000 MHz, N Female is engineered to enhance mobile connectivity inside buildings. Supporting frequencies from 698 to 4000 MHz, this antenna is suitable for both 4G LTE and 5G NR networks, making it an ideal choice for boosting signal strength across various indoor environments.

Key Features:

• Provides a 5 dBi gain for 698 to 960 MHz
• Provides a 7 dBi gain for 1710 to 4000 MHz
• Linear and Vertical Polarisation
• 50 Ω Input Impedance
• 50W max. Input Power
• DC Ground Lightning Protection
• N Female Connector options

High-Gain Performance

This panel antenna delivers impressive gain with values ranging from 5.5 dBi at lower frequencies (698-806 MHz) to 8 dBi at higher frequencies (1695-2700 MHz). With its semi-directional coverage, it provides broad signal propagation, ensuring a wide and effective coverage area.

Advanced Electrical Specifications

The antenna features a low VSWR of ≤1.8 across most frequency bands, which contributes to superior signal quality and minimal interference. It has a maximum input power of 50 W and boasts a low Passive Intermodulation (PIM) of < -150 dBc, ensuring reliable performance in multi-carrier environments.

Durable Construction

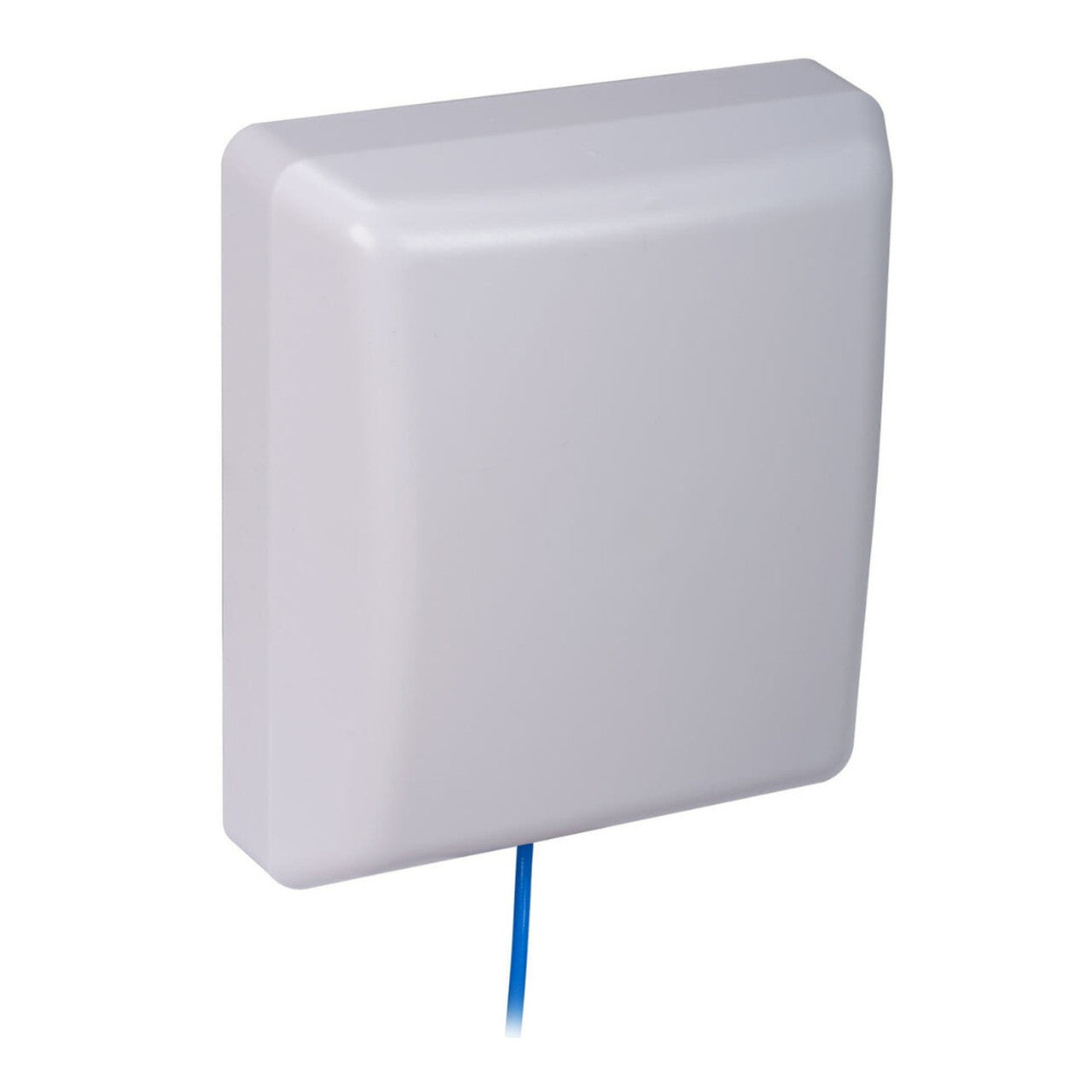

Built with a UV-stabilised ABS radome and an aluminium reflector, the Powertec Indoor Wall Mount Panel Antenna is designed to withstand various indoor conditions. It operates efficiently in a temperature range of -40 °C to +65 °C, ensuring long-term reliability.

Semi-Directional Design

This antenna offers a semi-directional radiation pattern with horizontal beam widths between 60° and 92° and vertical beam widths from 28° to 73°. This design ensures that signal coverage is both broad and effective, tailored to meet diverse installation needs.

Compact and Lightweight

With dimensions of 180 × 158 × 60 mm and a weight of just 0.4 kg, this antenna is easy to install and mount. It includes a wall bracket for straightforward installation, making it a practical solution for commercial indoor coverage.

Flexible Connectivity Options

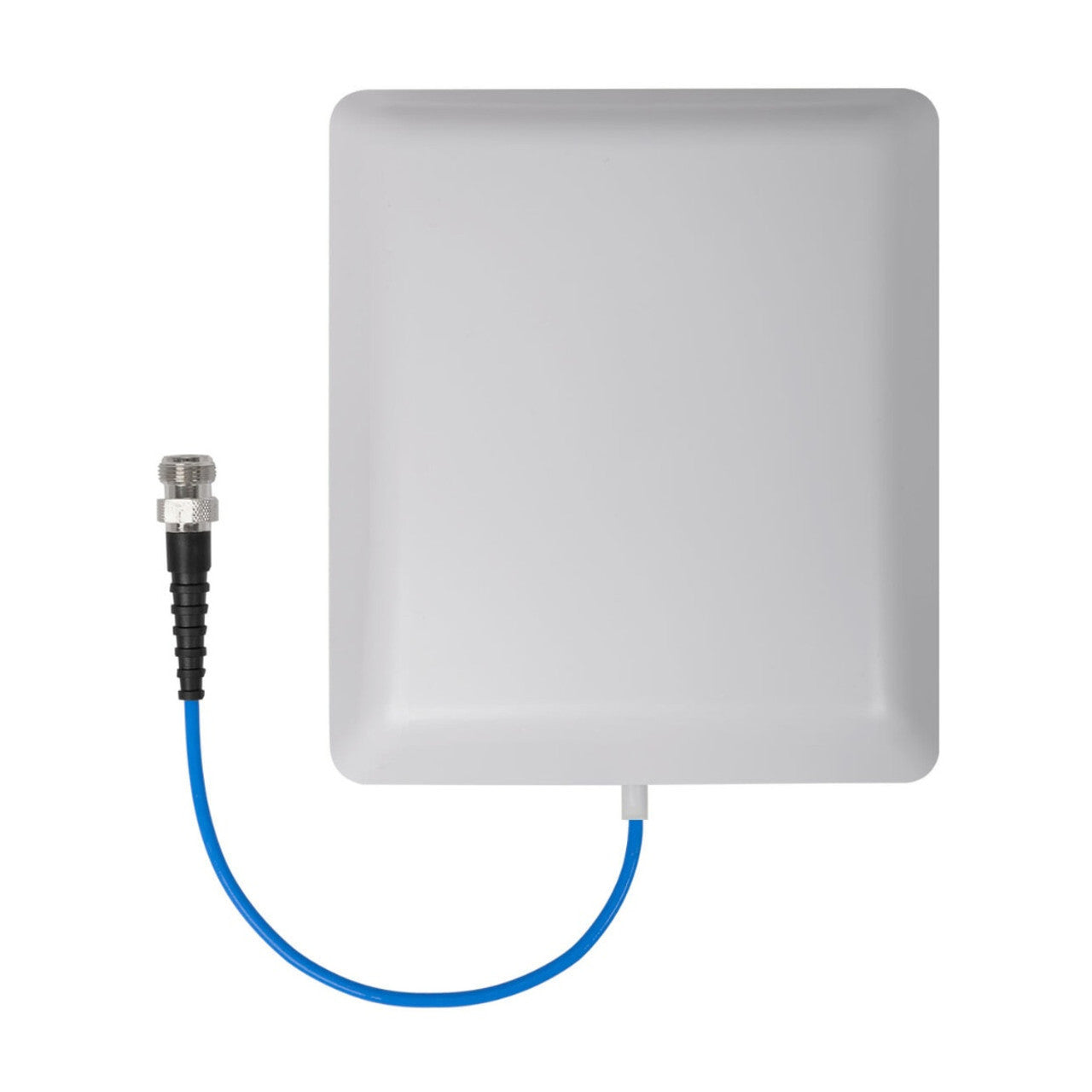

The Powertec 4G-5G Indoor Wall Mount Panel Antenna comes with an N Female connector, offering reliable and secure connections. It also includes a semi-flexible RG-402 cable tail, enhancing installation flexibility and ease of setup
