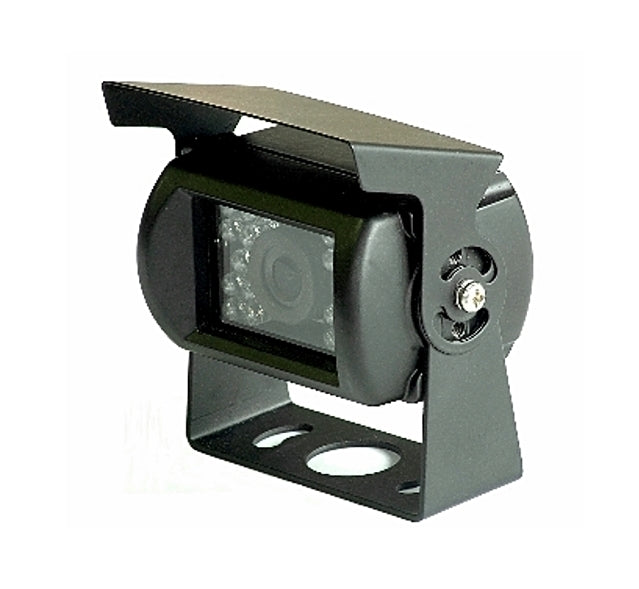

Mongoose MC6P/N Heavy-Duty Reversing Camera – PAL or NTSC

Mongoose MC6P/N Heavy-Duty Reversing Camera – PAL or NTSC

Product Overview:

Improve rear visibility with the Mongoose MC6P/N Heavy-Duty Reversing Camera. Designed for demanding automotive and commercial applications, it features a durable metal housing, infrared night vision and IP69K-rated protection.

Available in PAL and NTSC versions, the MC6P/N connects to compatible Mongoose monitors and reversing-camera kits, including the MCK513 and MCK712. Its adjustable U-bracket and protective sunshield allow secure positioning on trucks, buses, trailers, agricultural machinery and industrial vehicles.

Model Options

• MC6P: PAL video system
• MC6N: NTSC video system

Key Features

• Heavy-duty metal camera housing
• Sony CCD image sensor
• 420TVL video resolution
• Infrared night vision with 18 IR LEDs
• Adjustable surface-mount U-bracket
• Protective sunshield
• IP69K-rated water and dust protection
• 4G vibration resistance
• Heavy-duty four-pin aviation connector
• Compatible with selected Mongoose monitors and camera kits
• Designed for 12V vehicle systems

Specifications

• Resolution: 420TVL
• Image sensor: Sony CCD
• Viewing angle: 90° horizontal, 70° vertical and 100° diagonal
• Minimum illumination: 0.1 lux
• IR LEDs: 18
• Working voltage: 12V DC
• Video system: PAL or NTSC
• Built-in microphone: No
• Protection rating: IP69K
• Vibration rating: 4G

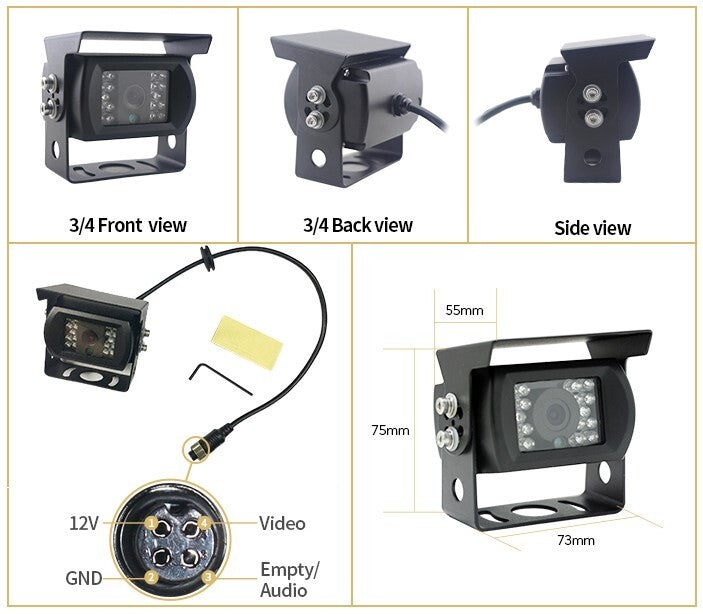

• Connection: Four-pin aviation connector
• Cable length: 600mm
• Dimensions: 86.5mm x 77mm x 75mm
• Operating temperature: -20°C to 70°C
• Housing colour: Black

The Mongoose MC6P/N heavy-duty reversing camera provides reliable day and night visibility for personal, work and commercial vehicles.

Select the video format compatible with your monitor before ordering. A suitable extension cable may be required and is sold separately.

This camera is a driver-assistance device only. Always check your surroundings when driving or reversing.
