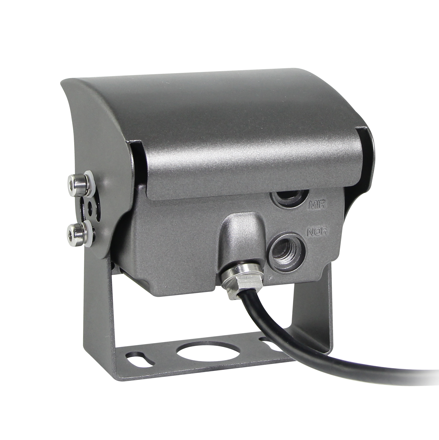

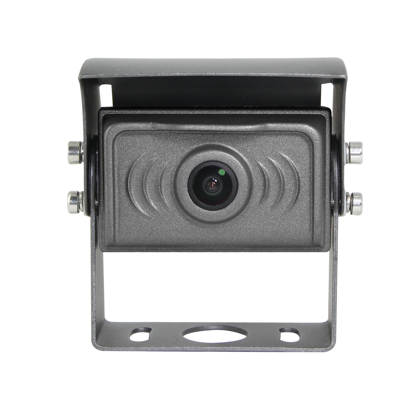

Mongoose MC10R 1080P AHD Reversing Camera with Radar Sensor

Mongoose MC10R 1080P AHD Reversing Camera with Radar Sensor

Product Overview:

Improve rear visibility and obstacle awareness with the Mongoose MC10R AHD Reversing Camera with Radar Sensor. This all-in-one vehicle safety unit combines a Full HD camera with radar detection, helping drivers identify objects behind the vehicle while receiving visual confirmation through a compatible monitor.

Built for demanding commercial and industrial applications, the MC10R features a wide viewing angle, built-in audio, IP69K protection and 10G vibration resistance. It is suitable for trucks, buses, trailers, agricultural machinery and construction vehicles.

Key Features

• Integrated reversing camera and radar sensor
• Full HD 1080P AHD video
• Radar-based object and motion detection
• 130° horizontal viewing angle
• Built-in microphone for audio monitoring
• Mirror-image display for reversing
• Adjustable surface-mount U-bracket
• IP69K-rated protection
• 10G vibration resistance
• PAL video system
• Heavy-duty 4-pin aviation connector
• Designed for 12V vehicle systems

Specifications

• Resolution: 1920 x 1080P
• Image sensor: SC223A 2MP CMOS
• Viewing angle: 130° horizontal, 74° vertical and 150° diagonal
• Minimum illumination: 0.1 lux
• Working voltage: 12V DC
• Video system: PAL
• Audio: Built-in microphone
• Protection rating: IP69K
• Vibration rating: 10G
• Connection: 4-pin aviation connector
• Cable length: 600mm
• Dimensions: 76mm x 71mm x 88mm
• Operating temperature: -20°C to 70°C
• Housing colour: Grey

Installation

Install the camera on the rear of the vehicle at approximately 50cm to 120cm above road level. Adjust the mounting angle to achieve the best camera view and radar-detection coverage for your vehicle.

The Mongoose MC10R radar reversing camera provides an integrated safety solution for improved rear visibility and obstacle awareness.

This product is a driver-assistance device only. Always check your surroundings when driving or reversing.
