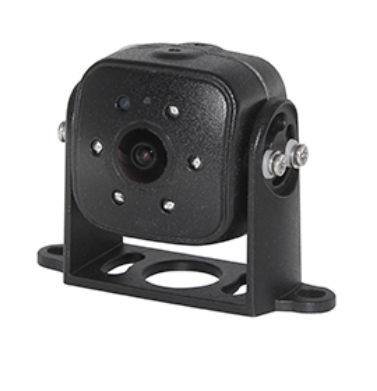

Mongoose MC102AI 720P AHD AI Side-View Camera

Mongoose MC102AI 720P AHD AI Side-View Camera

Product Overview:

Improve blind-spot awareness with the Mongoose MC102AI AHD AI Vehicle Camera. Its onboard AI processing detects pedestrians, cyclists and vehicles in real time, providing visual and audio alerts through a compatible monitor or vehicle safety system.

Designed for side- and rear-view applications, the MC102AI features a rotatable camera, wide-angle lens, infrared night vision and mirror-image mode. Its compact IP69K-rated housing and 10G vibration resistance make it suitable for commercial fleets, trucks, buses, agricultural machinery and industrial vehicles.

Key Features

• AI detection for pedestrians, cyclists and vehicles
• 720P AHD video resolution
• Real-time audio and visual alert support
• 130° horizontal viewing angle

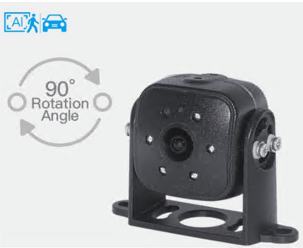

• Rotatable camera for side installation
• Infrared night vision with five IR LEDs
• Built-in microphone for audio monitoring
• Mirror-image display
• Adjustable surface-mount U-bracket

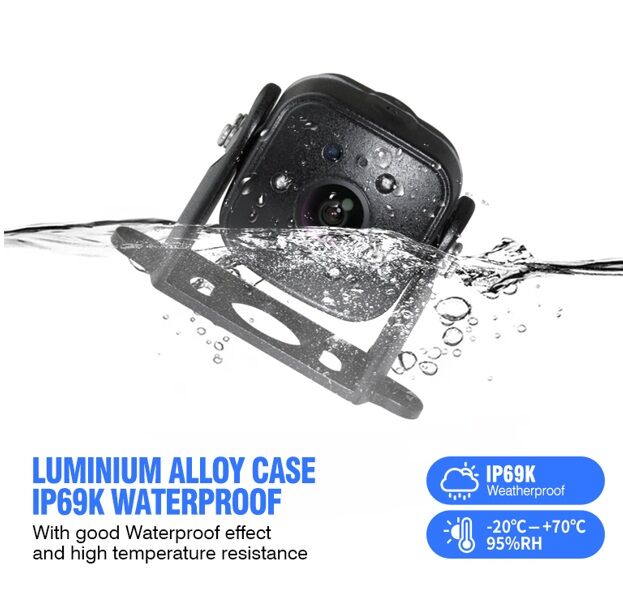

• IP69K-rated protection
• 10G vibration resistance
• PAL video system
• Heavy-duty 4-pin aviation connector
• Compact design for discreet installation

Specifications

• Model: MC102AI
• Resolution: 1280 x 720P
• Image sensor: SC1336
• Viewing angle: 130° horizontal, 74° vertical and 150° diagonal
• Minimum illumination: 0.1 lux
• IR LEDs: Five
• Working voltage: 12V DC
• Video system: PAL
• Audio: Built-in microphone
• Protection rating: IP69K
• Vibration rating: 10G
• Connection: 4-pin aviation connector
• Cable length: 600mm
• Dimensions: 73mm x 39mm x 61mm
• Operating temperature: -20°C to 70°C
• Housing colour: Black

The Mongoose MC102AI blind-spot camera provides intelligent detection and dependable visibility for heavy vehicles operating in demanding environments.

A compatible monitor or onboard system may be required for AI alerts. This camera is a driver-assistance device only; always check your surroundings when operating the vehicle.
