Roadvision’s Stealth Halo Series Driving Lights deliver a sleek modern appearance for your vehicle. Available in 7″ and 9″, the Stealth Halo Series feature black mounting hardware, innovative HALO DRL, stylish modern bezel-less design and 3W Osram LEDs. The Stealth Halo Series punches out up to an impressive 10485lm per light and 912m of beam penetration @ 1 lux by utilising Roadvision’s Thermal Management Technology. Built to withstand the harshest conditions, the Stealth Halo Series feature a tough yet lightweight aluminium housing and polycarbonate lens providing superior performance and durability.

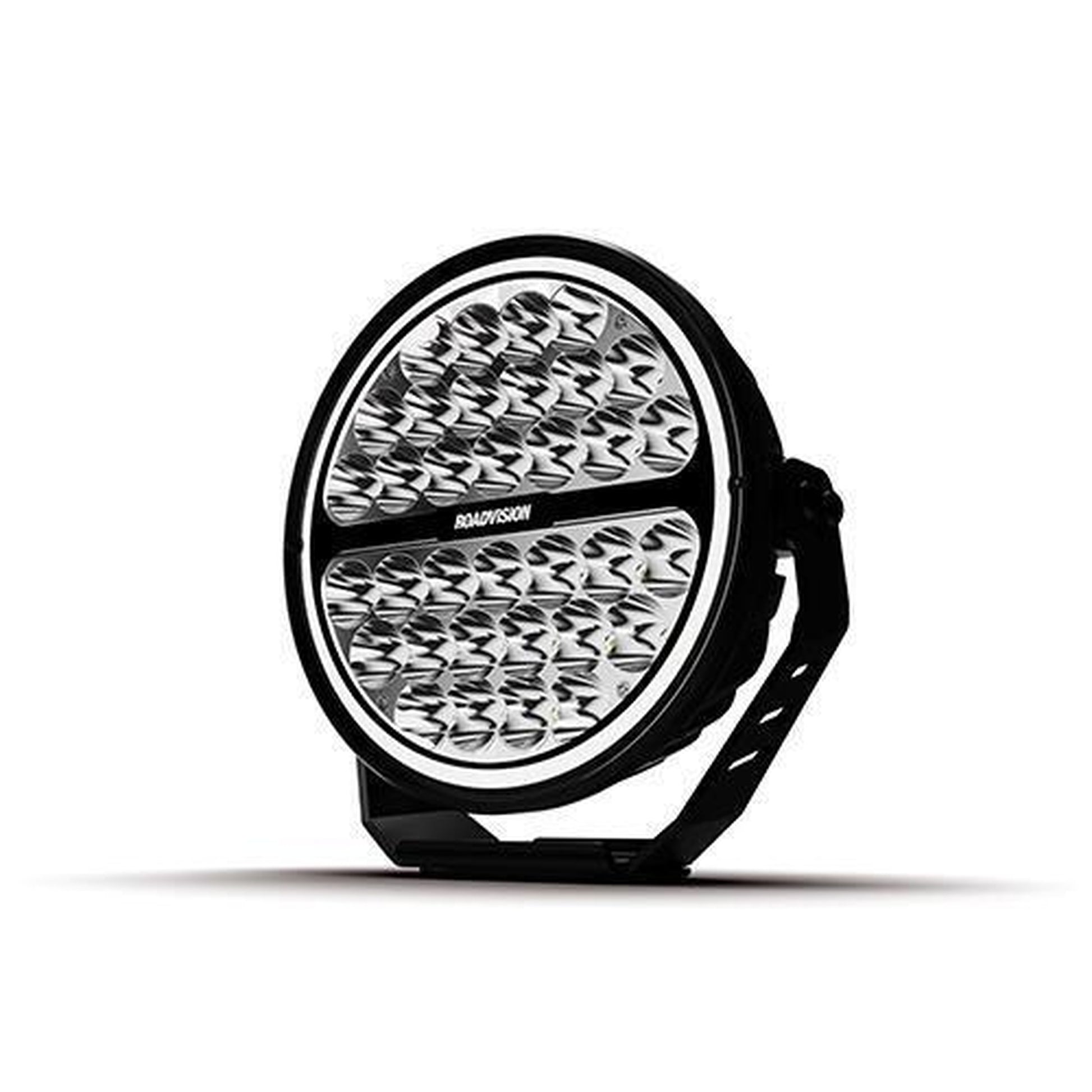

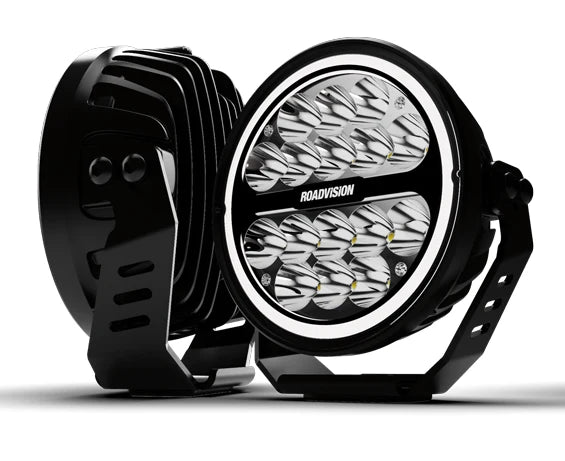

LED Driving Light 7in Stealth 9-32V - RDL6700S
LED Driving Light 7in Stealth 9-32V - RDL6700S
SKU:
Regular price
$240.00 AUD
Regular price
Sale price
$240.00 AUD
Unit price
/
per
Share
THERMAL MANAGEMENT TECHNOLOGY
HALO DRL RING
MULTI-VOLT
11-32 VDC
POLYCARB LENS
COLOUR TEMP
WATER & DUST PROOF
OVER/UNDER VOLTAGE PROTECTION
DEUTSCH CONNECTOR
REVERSE POLARITY PROTECTION
OSRAM LEDS
RADIO INTERFERENCE APPROVED
7 YEAR WARRANTY
RANGE FEATURES
- Stealth Halo Series 7″ and 9” Driving Light with Halo DRL
- Blackout mounting hardware
- 3W Osram LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & low current draw
- 50,000 hour LED lifespan with solid state technology
- Thermal Management Technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation
- Over/under voltage, reverse polarity protection & EMI/EMC
- Radio interference approved
RDL6700S DIMENSIONS
RDL6900S DIMENSIONS
RDL6700S BEAM DIAGRAM
RDL6900S BEAM DIAGRAM
SPECIFICATIONS
Part Number | RDL6700S | RDL6900S |
---|---|---|
Description | 7” LED Driving Light 10-30V Round 68W Spot Beam | 9” LED Driving Light 10-30V Round 143W Spot Beam |
Beam Pattern | Spot | Spot |
Maximum Lumens per Light (pair) | 5,130lm (10,260lm) | 10,485lm (20,970lm) |
Maximum Lux @ 10m per Light (pair) | 3,978lx (7,956) | 8,311lx (16,622lx) |
Maximum Beam Distance @ 0.5lx per Light (pair) | 892m (1,261m) | 1,289m (1,823m) |
Maximum Beam Distance @ 1lx per Light (pair) | 631m (892m) | 912m (1,289m) |
Input Voltage | 10-30VDC | 10-30VDC |
Maximum Watts | 68W | 143W |
Number of LEDS | 16 x 3W Osram | 34 x 3W Osram |
Current Draw @ 13.8V | 3.13~4.95 Amps | 5.56~10.34 Amps |
Lens Construction | Polycarbonate | Polycarbonate |
Housing Construction | Die-Cast Aluminium | Die-Cast Aluminium |
Wiring | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug |
Dimensions AxBxC | 192 x 78 x 195mm | 238 x 87 x 249mm |
