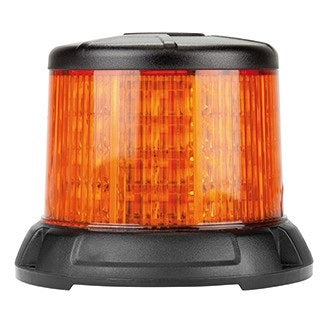

Roadvision Dual Amber LED Beacon - Fixed Mount, SAE, 10-30V

Roadvision Dual Amber LED Beacon – SAE Class 1 Fixed Mount

Product Overview:

Elevate your site safety with the Roadvision RB122 Series, a "twin stack" high-intensity beacon designed for those who refuse to compromise on visibility. Engineered to excel in the most demanding Australian industrial environments, from dust-blown mining sites in the Pilbara to busy construction zones in the city, this beacon delivers a powerful 360-degree light spread. Its dual-layer LED configuration ensures that your vehicle remains visible from all angles, providing a critical safety margin for operators and pedestrians alike.

The RB122 Revolver Series is built to survive the "wide brown land." Constructed with an impact-resistant polycarbonate lens and housing, this unit is vibration-proof and resilient against the harsh UV rays and debris common on Australian worksites. With a 5-year warranty and a fully sealed IP67 rating, you can trust this beacon to perform through torrential rain and extreme heat, ensuring your fleet stays compliant and safe 24/7.

Roadvision Dual Amber Features & Benefits

• SAE Class 1 Certified: Meets the highest international standards for light intensity, ensuring maximum safety and legal compliance on-road and on-site.
• 10 Selectable Flash Patterns: Includes single, double, triple, quad, and simulated rotating modes to suit specific site requirements or visibility needs.
• Twin-Stack SMD LED Technology: 64 high-intensity SMD LEDs provide superior light dispersion compared to standard single-layer beacons.
• Virtually Indestructible Build: The polycarbonate housing and lens are engineered to withstand heavy impacts and high-pressure washing.
• IP67 Waterproof Protection: Completely dust-tight and waterproof, making it ideal for external mounting on 4WDs, trucks, and heavy machinery.
• Low Current Draw: Advanced LED circuitry pulls only 2.3A at 13.8V, allowing for long-term use without draining your vehicle's battery.
• Easy Synchronization: Simple "Green to Change" wire system allows for quick pattern selection during installation.

Roadvision Dual Amber Technical Specifications

Frequently Asked Questions

• Is this beacon bright enough for daytime use? Yes, being SAE Class 1 certified, it is specifically designed to be highly visible even in direct, bright Australian sunlight.
• Will it fit standard mounting brackets? The 3-hole fixed mount uses a 103mm centre-to-centre measurement, which is a standard configuration for most roof bars and beacon brackets.
• Can I use this on a 24V truck? Absolutely. The multi-volt 10-30V input ensures compatibility with both 12V cars/4WDs and 24V heavy machinery.
• How do I change the flash patterns? The unit features a dedicated pattern trigger wire (green). Momentarily touching this to the positive power source allows you to cycle through the 10 available modes.
• Is the lens replaceable if it gets damaged? While the polycarbonate is extremely impact-resistant, the unit is a sealed assembly to maintain its IP67 waterproof rating and long-term reliability.
