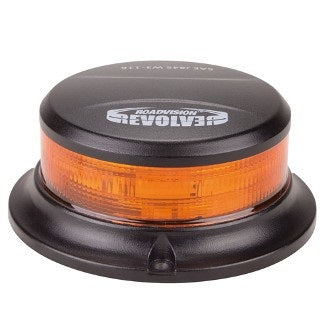

LED Beacon Micro Revolver 10-30V Amber Magnetic Mount 28W 10 Function SAE Class 1 - RB112MY
LED Beacon Micro Revolver 10-30V Amber Magnetic Mount 28W 10 Function SAE Class 1 - RB112MY
SKU:RB112MY
Share
Roadvision's RB112 Series compact 360 high intensity beacons are at the forefront of automotive lighting technology..... Featuring state-of-the art LED technology, the REVOLVER Series of Roadvision LED beacons are specifically designed and engineered to not only meet, but exceed Australian and international regulations. With a tough Aluminium housing and impact resistant polycarbonate lens, the RB112 Series are built to last in even the toughest conditions. Featuring 32 SMD LED's and with 10 selectable flash patterns - including single, double, triple, quad & simulated rotating.
In addition, you have the option of alternate synchronization & synchronization - the RB112 Series are the perfect LED beacon for a wide range of industrial applications. Compact low profile 10 function 360 high intensity beacons Single, double, triple, quad & simulated rotating flash patterns Multi-volt 10-30V input & low current draw 32 SMD LED's produce 28W 100,000 hour rated LED lifespan Maintenance free solid state technology Tough polycarbonate lens & aluminium body Waterproof IP67 rated and vibration proof Compact low profile 112 x 48mm body Available in 3 hole fixed, magnetic or DIN Pole mounts EMC, CISPR25 Class 5 & SAE J845 Class 1 approved.
Specifications:-
Width | 112mm |
---|---|
Housing Material | Aluminium Housing |
Lens material | Polycarbonate |
Specification1 | Flash Pattern: 10 Selectable Flash Patterns |
Height | 48mm |
Cable Length | 2500mm Lead with Cig.Plug |
Wattage | 28w |
Light Source | 32 SMD LED’s |
Brand | ROADVISION |
Mounting Type | Magnetic Mount |
Voltage | 10-30v |
Approvals | EMC, CISPR Class 5 & SAE Class 1 |
IP Rating | IP67 |
Colour | Amber |
Current Draw | 1.9A @ 13.8V |
