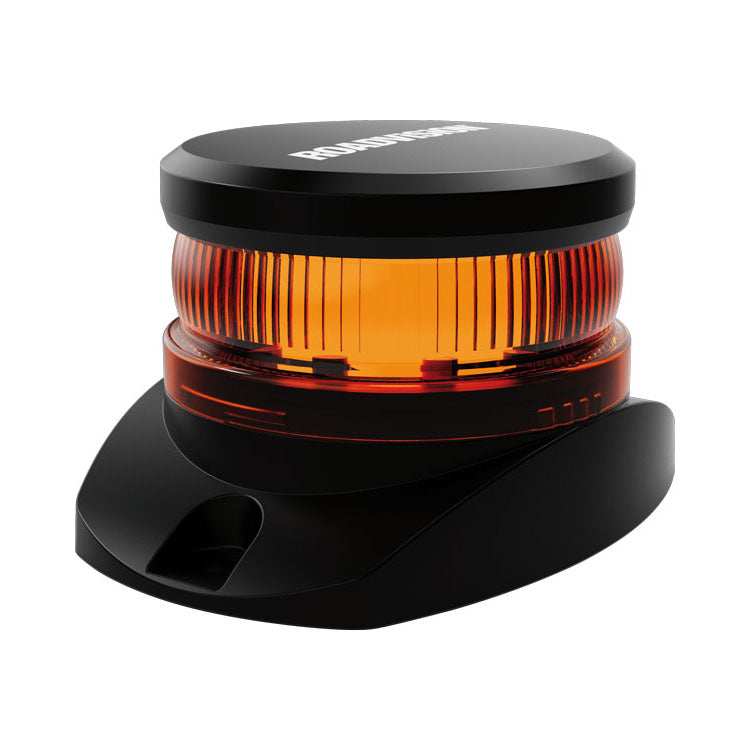

LED Beacon Micro Revolver 10-30V Amber Fixed Mount 6 Function SAE Class 2
LED Beacon Micro Revolver 10-30V Amber Fixed Mount 6 Function SAE Class 2
SKU:RB102Y
Couldn't load pickup availability
Share
Product Details
Roadvision’s RB102 Series compact 360° high intensity beacons are at the forefront of automotive lighting technology. Featuring state-of-the art LED technology, the Revolver Series LED beacons are specifically designed and engineered to not only meet but exceed Australian and international regulations, including CISPR25 requirements.
With a tough aluminium housing and impact resistant polycarbonate lens, the RB102 Series are built to last in the toughest conditions. Featuring 8 x 5W LED’s and with 6 selectable strobe flash patterns - including rotating (ECE R65) and double (SAE Class 1), the RB102 Series are the perfect ultra-compact LED beacon for a wide range of materials handling applications.
Specifications
| Wiring Code 1 | Red - Positive Supply |
|---|---|
| Wiring Code 2 | White - Negative |
| Wiring Code 4 | Yellow Alternate Sync Enable |
| Wiring Code 3 | Brown - Flash Pattern Select (Sync) |
| Flash Patterns | 6 Flash Patterns |
| Brand | ROADVISION |
| Voltage | 10-30V |
| Approvals | EMC CISPR25 Class 3 & SAE Class 2 |
| IP Rating | IP67 |
| Dimensions | 102x72x58mm |
| Number of LED's | 8 x 5W |
