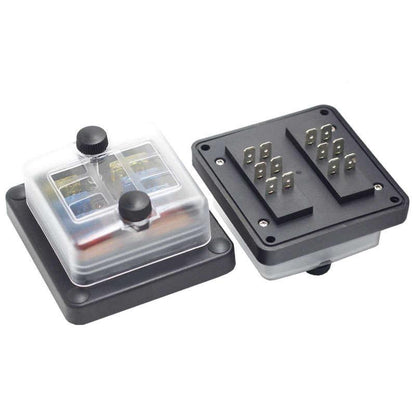

Fuse Panel 6 Input 6 Output 30AMP Per Circuit

PRODUCT DETAILS

This Fuse Panel provides versatility with 6 inputs and 6 outputs, each delivering up to 30 amps per circuit. Expertly designed for reliability, it handles multiple electronic devices with ease while ensuring safety through its high amperage capacity.

Features:

• 6 input and 6 output circuits
• 30 AMP per circuit rating (at 12V)
• Accepts standard ATO or ATC fuses (1A to 20A)
• Red LED indicator lights up when fuse is blown
• Compact, space-saving design
• Robust, durable construction with safety-focused engineering
• Suitable for a wide range of applications

Electrical Specifications:

• Main line terminal rating: 1015/12# (50A 32V DC max)
• Single line terminal rating: Copper/nickel plating 1/4" (6.3mm) (20A 32V DC max)
• Wire size: #12-16 AWG
• (Rated 20A @ 32V per terminal — safely handles up to 30A for typical 12V applications.)

Materials:

• Base: PA66
• Cap: PC
• Terminal: Nickel-plated copper
• Screws: Stainless steel
• Gasket: Butadiene rubber
• Seal ring: Silicone
• Label: PP×70

Size & Installation:

• Mounting hole size: 55.0mm x 97.5mm
