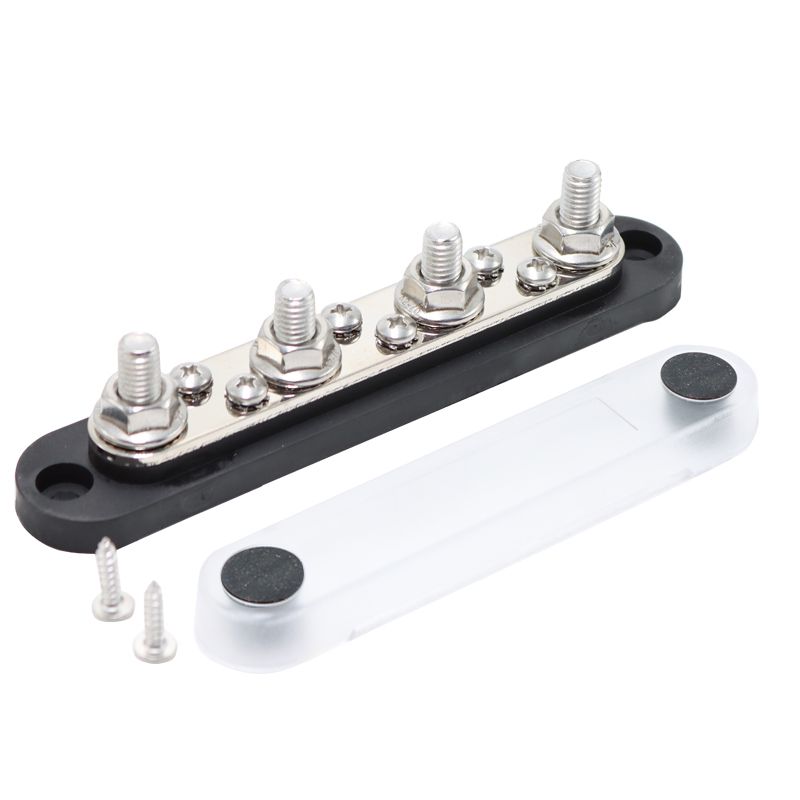

Four Post Bus Bar Black - M8 Studs - 150amp Rated @ 12V

$26.00
Skip to product information
Four post bus bar black
Voltage Electrical SuppliesSKU VES221

Four Post Bus Bar Black - M8 Studs - 150amp Rated @ 12V

$26.00 AUD
Tax included· Free shipping* on orders over $160
Available to order
Will it suit my setup?

Not sure this suits your vehicle, battery or cable run? Send us your setup and our 12V team will confirm before you buy.

Ask our team →
Delivery & dispatch
  • Standard $15 · free over $160*
  • Express$25

*Free shipping excludes heavy freight items. Delivery cost is confirmed at checkout. Shipping policy

Click & collect from Lytton QLD — visits by appointment.

30-day returns (conditions apply)
Australian warranty
Install advice from our team

💡 Save with a bundle: Four Post Bus Bar Pair (Red + Black) – $47.99 (save $4.01)

PRODUCT DETAILS

Four Post Bus Bar Black can be used in a wide variety of Automotive and Marine applications. The power distribution block can be used to keep the battery organised with just one wire attached to each terminal.

Having a battery busbar is a great way to prevent issues and troubleshoot problems as the leads be made more accessible for identifying and tracing faults.

This insulated busbar allows you to work in the area or store items without the fear or the battery terminals shorting on another item that may hit it.

An electrical busbar distribution block is an easy way to simplify your wiring and setup.

Max. Rating: 150A @ 12v
Max. Voltage Supply: 48vDC
Body Dimensions: 27.8mm (W) x 150mm (L) x 36.5mm (H - including cover)
Terminals: 4 x 8mm, 6 x 4mm
Mounting Holes: 5.5mm (recessed)
Mounting Hole Centres: 133.5 (L)

More Information:

  • 4 x 8mm studs to suit M8 Terminals
  • 6 x Size #8 (4mm) Screws with anti-vibration washers
  • 304 Stainless Steel, corrosion resistant studs
  • Push on clear cover for stud and wiring protection
  • Nickel Plated Brass bridge plate
  • Insulated Polypropylene/Nylon base

Unit includes:

  • 4 x M8 Stud
  • 4 x M8 Locking Nuts
  • 6 x #8/M4 Bolts
  • 6 x #8 Anti-vibration washer
  • 1 x Cover
  • 1 x Bridge/Base plate
  • 2 x Mounting Screws
