Enerdrive

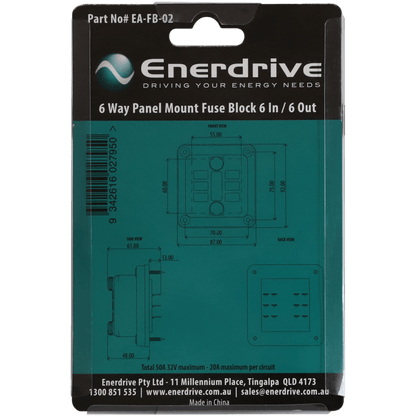

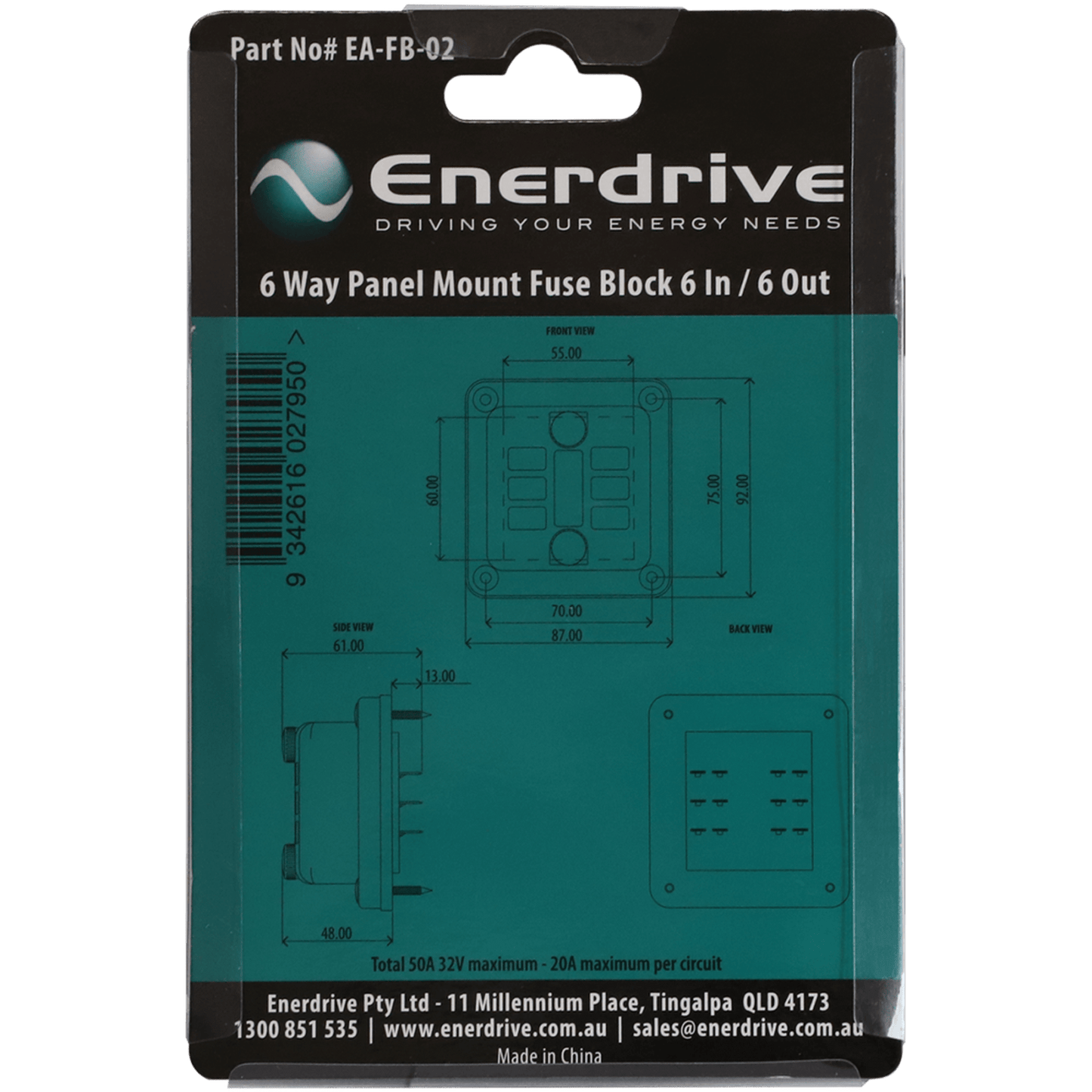

Enerdrive Fuse Block Panel Mount 6 In 6 Out with LEDs
Enerdrive Fuse Block Panel Mount 6 In 6 Out with LEDs
SKU:EA-FB-02
Regular price
$37.00 AUD
Regular price
Sale price
$37.00 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Description
Description
PRODUCT DETAILS
Enerdrive Fuse Block Panel Mount 6 In 6 Out with LEDs
Features:

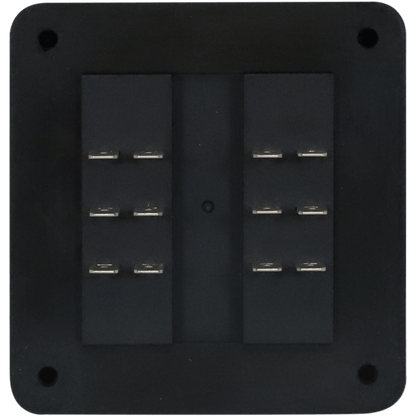

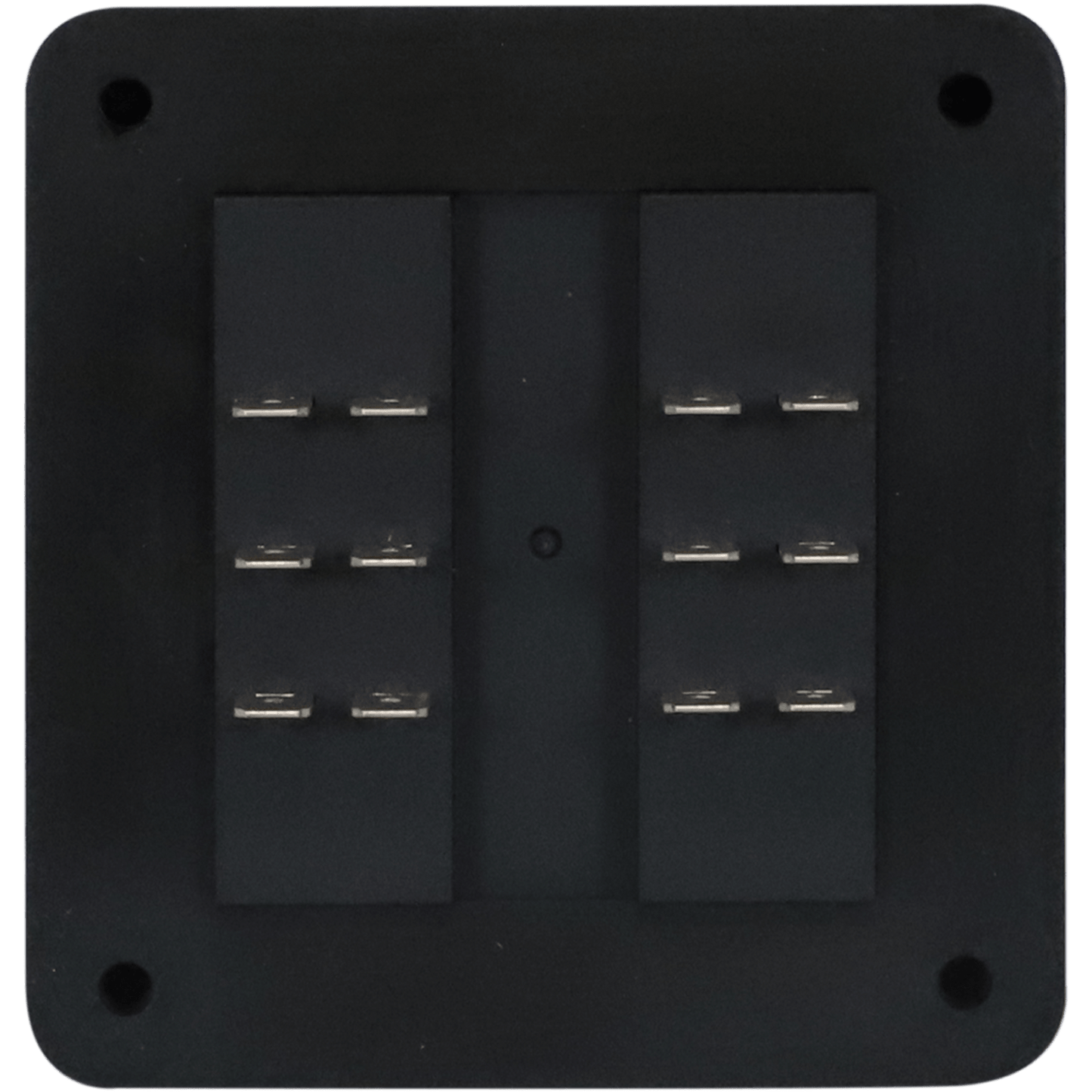

- Panel Mount 6 in – 6 out fuse block with rear connections.
- Suits ATO/ATC Blade Fuses
- 32V 50Amp Max – 20Amp Max per circuit
- Fuse blown LED’s for easy fault finding.
- Panel mount with rear connections and cover make this fuse block ideal for canopy installs.

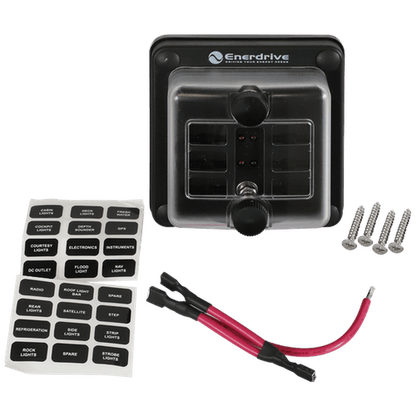

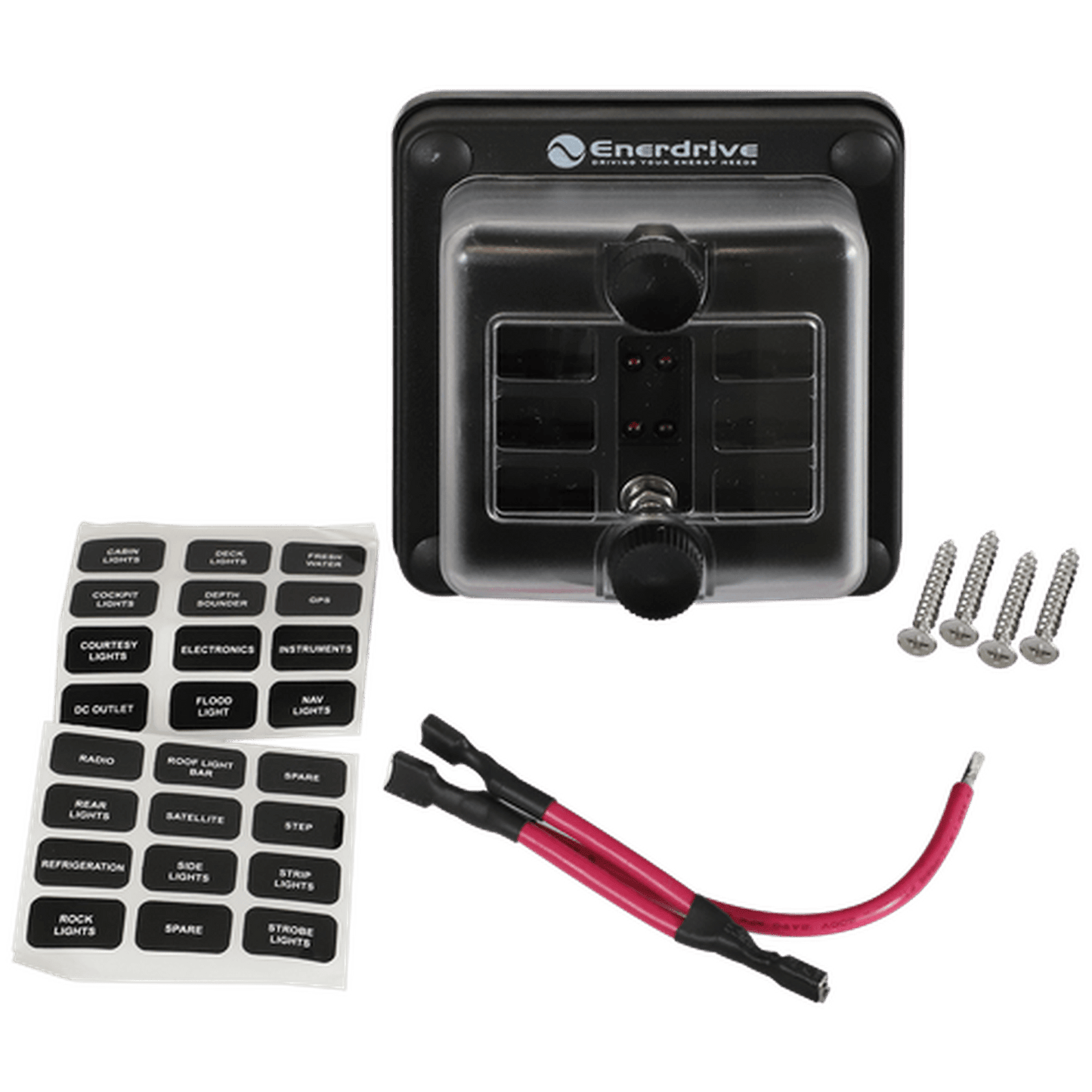

- Includes linking cable for grouping inputs together along with two label sets.
- Includes two label sets.
- Retail Packaging
Specifications
- SKU - EA-FB-02
- Brand - Enerdrive
- Product Category - Accessories
- Warranty Period - 5 Years
- Positive Output - Spade Terminals, Rear
- Maximum Amperage per block - 100A
- Mounting - 8″ Screw [M4]
- Dimensions - 92mm x 87mm x 61mm
- Positive Input - Spade Terminals, Rear
- Maximum Amperage per circuit - 20A
- Recommended Torque - 24 in-lb (2.71 N.m)
- Maximum Voltage - 32V DC
- Circuits - 6
- Weight - 0.18kg
