• Enerdrive 12-Way Fuse Block Panel Mount with LED Indicators – 32V 100A
1 3

Enerdrive

Enerdrive Fuse Block Panel Mount 12 In 12 Out with LEDs

Enerdrive Fuse Block Panel Mount 12 In 12 Out with LEDs

EA-FB-04

$50.00 AUD
$50.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

PRODUCT DETAILS

Enerdrive Fuse Block Panel Mount 12 In 12 Out with LEDs

Features:

  • Panel Mount 12 in – 12 out fuse block with rear connections.
  • Suits ATO/ATC Blade Fuses
  • 32V 100Amp Max – 20Amp Max per circuit
  • Fuse blown LED’s for easy fault finding.
  • Panel mount with rear connections and cover make this fuse block ideal for canopy installs.

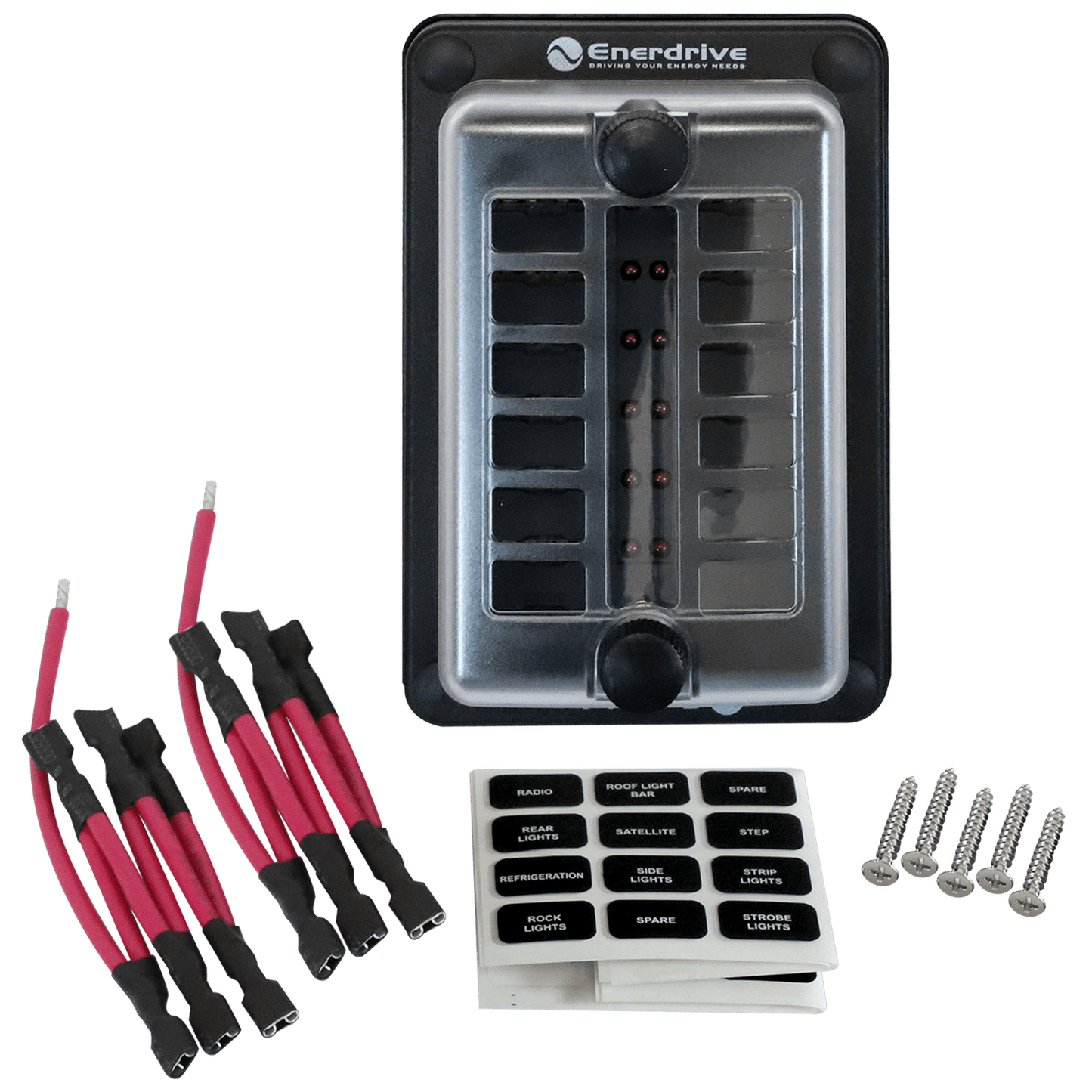

  • Includes linking cable for grouping inputs together
  • Includes two label sets.
  • Retail Packaging

Specifications

SKU - EA-FB-04

Brand - Enerdrive

Product Category - Accessories

Warranty Period - 5 Years

Positive Output - Spade Terminals, Rear

Maximum Amperage per block - 100A

Mounting - 8″ Screw [M4]

Dimensions - 130mm x 87mm x 61mm

Positive Input - Spade Terminals, Rear

Maximum Amperage per circuit - 20A

Recommended Torque - 24 in-lb (2.71 N.m)

Maximum Voltage - 32V DC

Circuits - 12

Weight - 0.23kg



Frequently Asked Questions


1. What type of fuses does this fuse block use? This Enerdrive fuse block is compatible with standard ATO/ATC blade fuses.

2. How do I know if a fuse has blown? The unit features built-in "Fuse blown LEDs." When a fuse blows, a corresponding red LED will light up, allowing for quick and easy fault finding.

3. What is the maximum power rating for this block? The entire block can handle a maximum of 100 Amps at 32V DC. Each of the 12 circuits has a maximum rating of 20 Amps.
