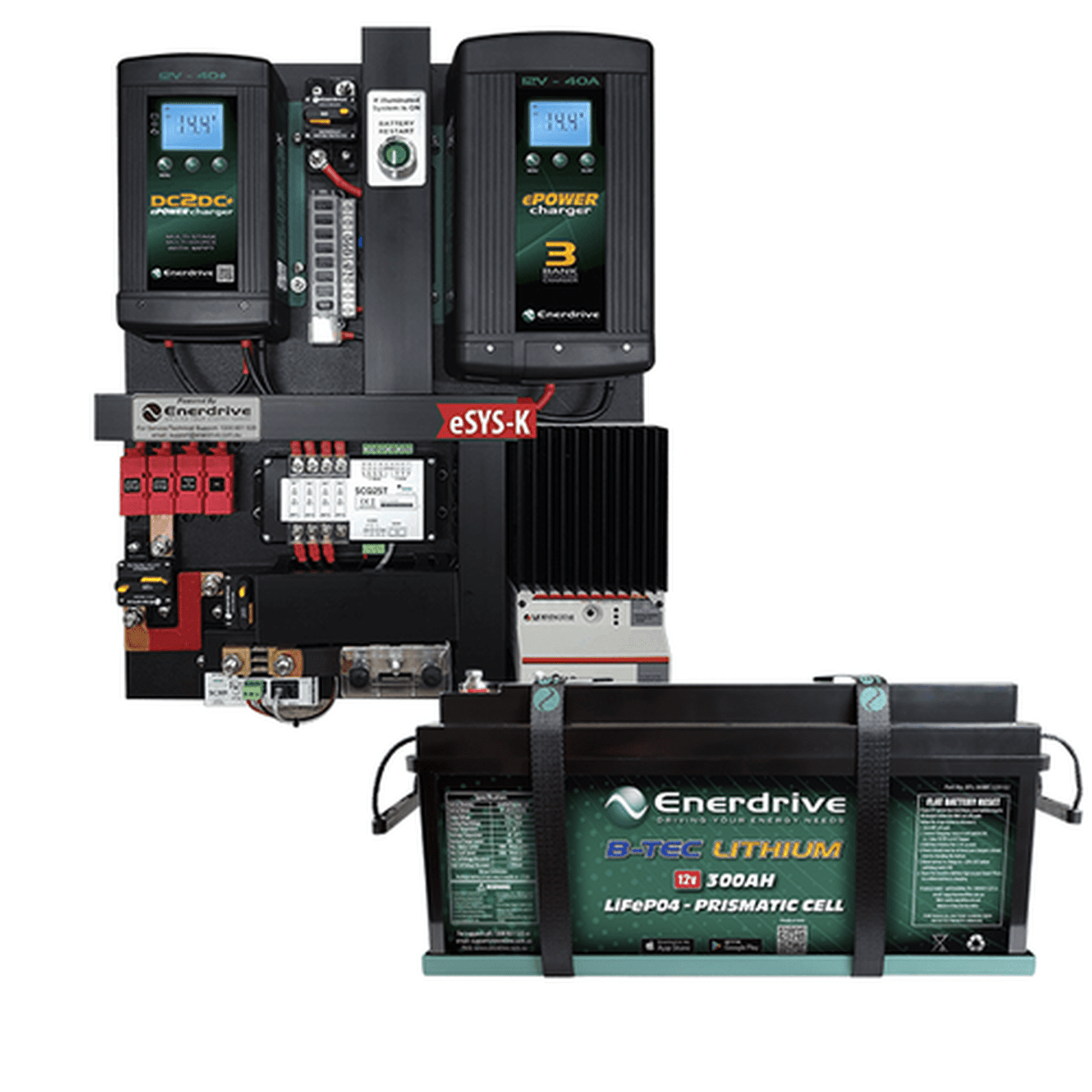

Enerdrive eSYSTEM-K 40A AC / DC with Simarine Battery Monitor & 45A MPPT

Enerdrive eSYSTEM-K 40A AC / DC with Simarine Battery Monitor & 45A MPPT, 5 Year Warranty. Introducing Enerdrive's Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more.

Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.

These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.

Includes:

• Enerdrive eSYSTEM-K 40A AC / DC, Simarine Battery Monitor & 45A MPPT

Optional Battery:

• 1 x or 2 x Enerdrive ePOWER B-TEC 200Ah Lithium Battery, EPL-200BT-12V-G2
• 1 x Enerdrive B-TEC 200Ah Slim Metal Case Lithium Battery, EPL-200BT-12V-SLIM
• 1 x Enerdrive ePOWER B-TEC 300Ah Lithium Battery, EPL-300BT-12V-G2

Specifications

SKU - eSYSTEM-K

Brand - Enerdrive

Product Category - Power Systems

Warranty Period - 5 Years

Model - EN3DC40+ (DC Battery Charger) | EN31240 (AC Battery Charger) | SR-TS-45-ED (Battery Monitor) | EPL-200BT-12V-G2 (Battery) | EPL-200BT-12V-SLIM (Batter

Float - 13.50 - 13.80V (Battery)

Recommended Charge Current for Maximum Life - 60A-120A (Battery)

Nominal Capacity - 200Ah (Battery) | 300Ah (Battery)

Voltage - 12V (DC Battery Charger) | 12V (Battery)

discharge cu - ≤ 11.20V (Battery)

Rated Solar Input - 45A (Battery Monitor)

Standby (Float) Voltage - 13.50-13.80V (Battery)

Battery Charge Temperature - 0-45°C (Battery)

Output System Voltage - 12-48V (Battery Monitor)

Maximum Charge Current - 150A @ 25°C for 30mins (Battery) | 190A @ 25°C for 30mins (Battery)

Nominal Voltage - 12.8V (Battery)

Weight (kg) - 1.85 Kg (DC Battery Charger) | 2.6 Kg (AC Battery Charger) | 1.6Kg (Battery Monitor) | 25Kg (Battery) | 30Kg (Battery) | Approx 38.2 (Battery)

Total Charge Current Max - 150A @ 25°C for 30mins (Battery)

Dimensions (L x W x H) - 242mm x 172mm x 74mm (DC Battery Charger) | 295mm x 206mm x 86mm (AC Battery Charger) | 260 x 127 x 71 (Battery Monitor) | 530mm x 83mm x 600mm (Batte

Load Current Rating - 45A (Battery Monitor)

Normal Charge Voltage CV/CC* - 14.20-14.60V (Battery)

Maximum Discharge Current - 50A @ 25°C ± 5°C for 30mins (Battery) | 250A @ 25˚C ±5˚C for 15 mins (Battery)

Pulse Discharge Current - 450A for 1.0s (Battery)

Cycle Life (DOD – 80% under controlled conditions) - ≥ 2000 Cycles (Battery)

Operating Temperature Range - –40°C to +60°C (Battery Monitor)

Amps - 45 Amps (Battery Monitor)

Recommended Charge Current - 80-120A (Battery)

Amps - DC Battery Charger - 40A

Battery Output Voltage Range - 11.00-14.60V (Battery)

Battery Discharge Temperature - -20 ̴ 60°C (Battery)

Weight - 30.0 Kg (Slimline Battery) | 25kg (200Ah Battery) | 38.2kg (300Ah Battery) | 2.6kg (AC Battery Charger) | 4kg (60A Battery Charger) | 1.85kg (DC to DC Battery Charger) | 5.9kg (Inverter) | 1.6kg (Solar Charge Controllers)
