Enerdrive eSYSTEM-G 40A AC / DC, Simarine Battery Monitor

Enerdrive eSYSTEM-G 40A AC / DC, Simarine Battery Monitor, 5 Year Warranty. Introducing Enerdrives DIY Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more.

Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.

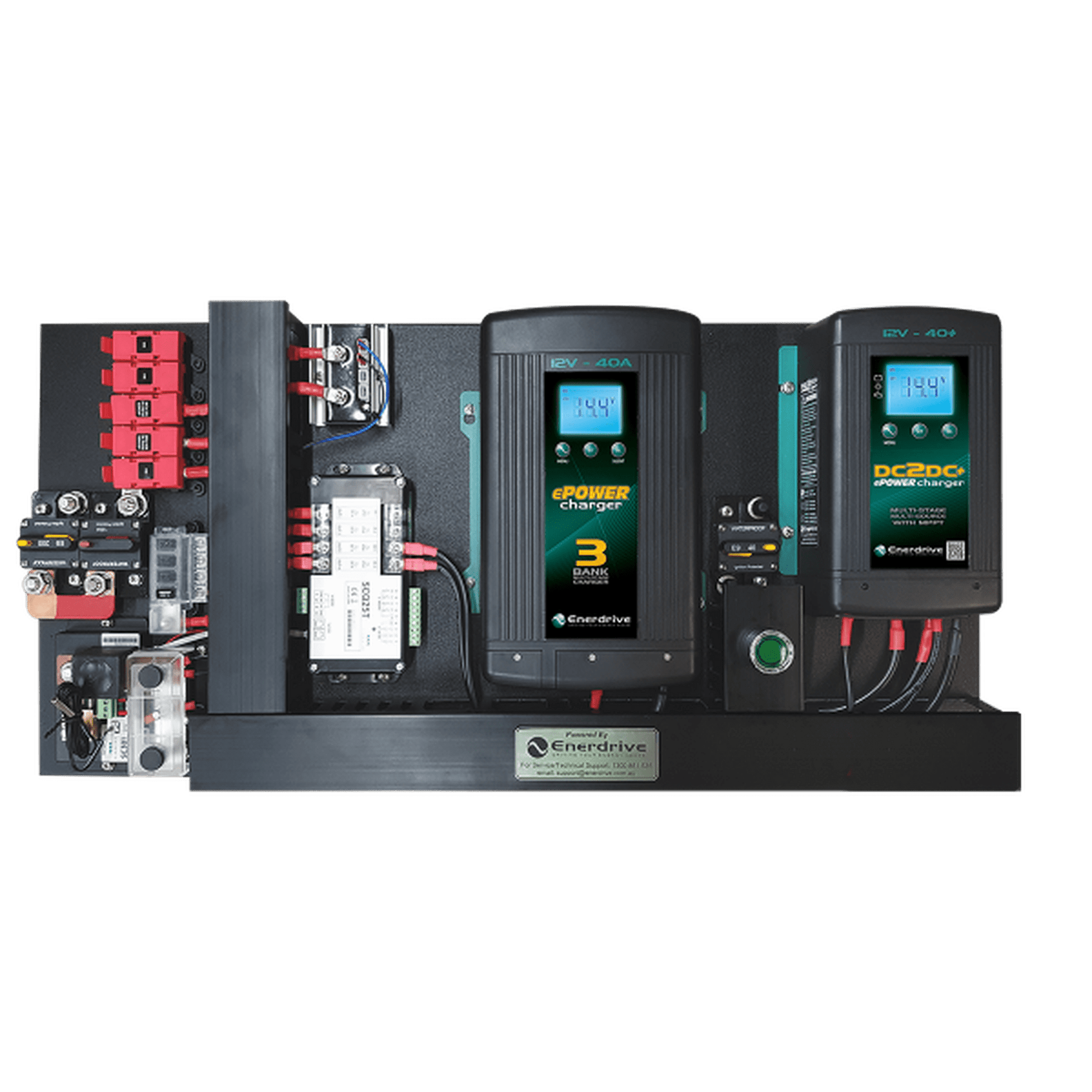

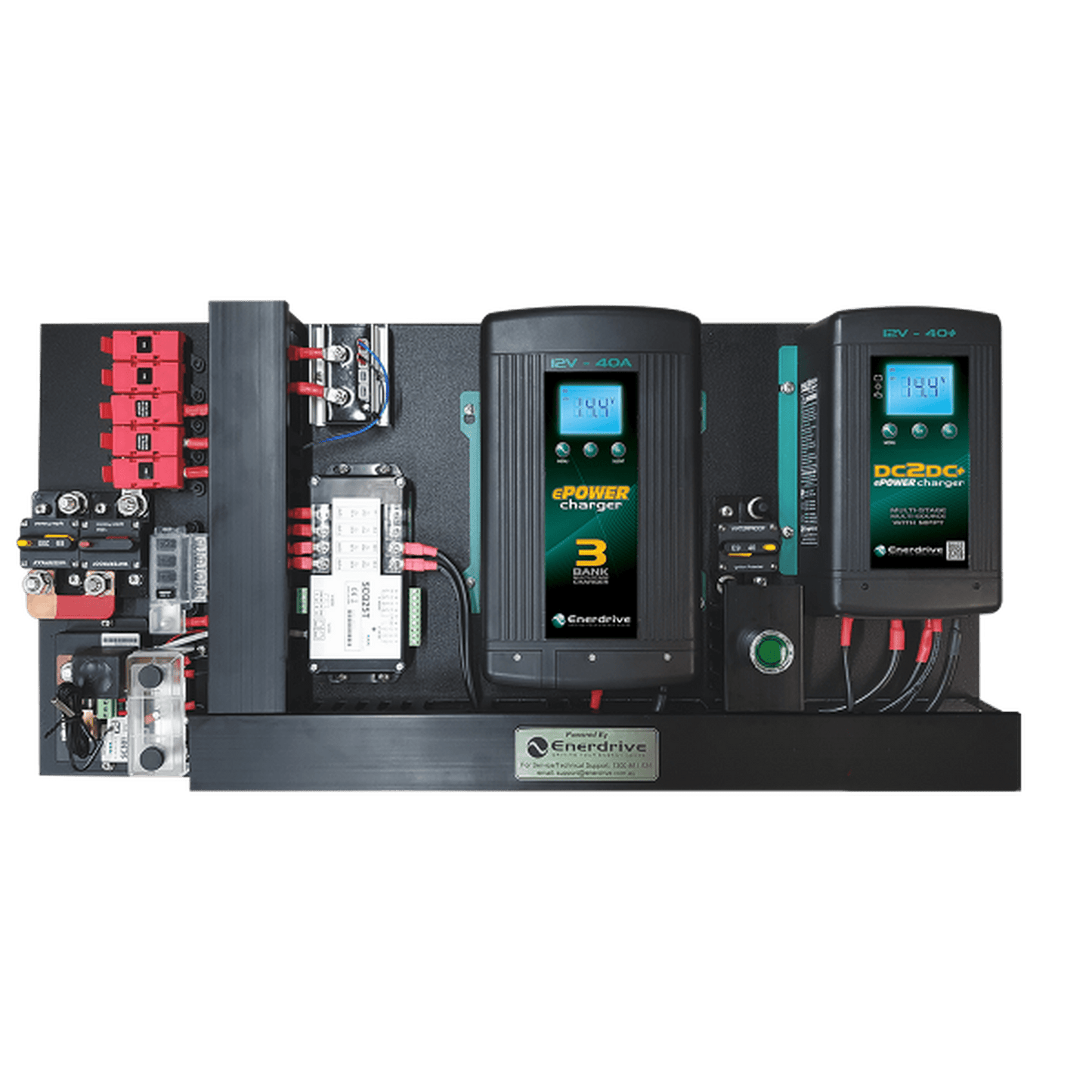

These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.

Includes:

• Enerdrive eSYSTEM-G 40A AC / DC, Simarine Battery Monitor

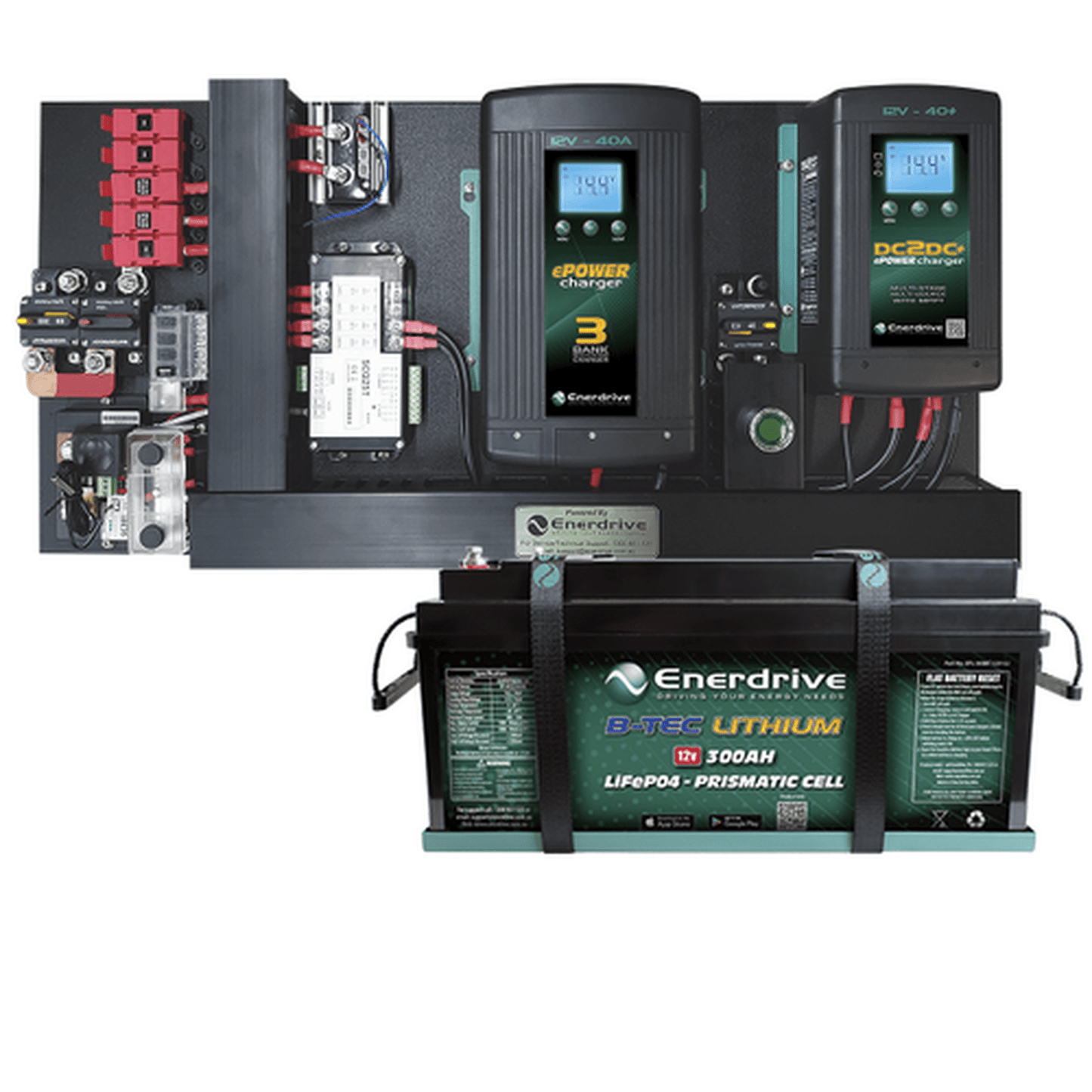

Battery Options:

•

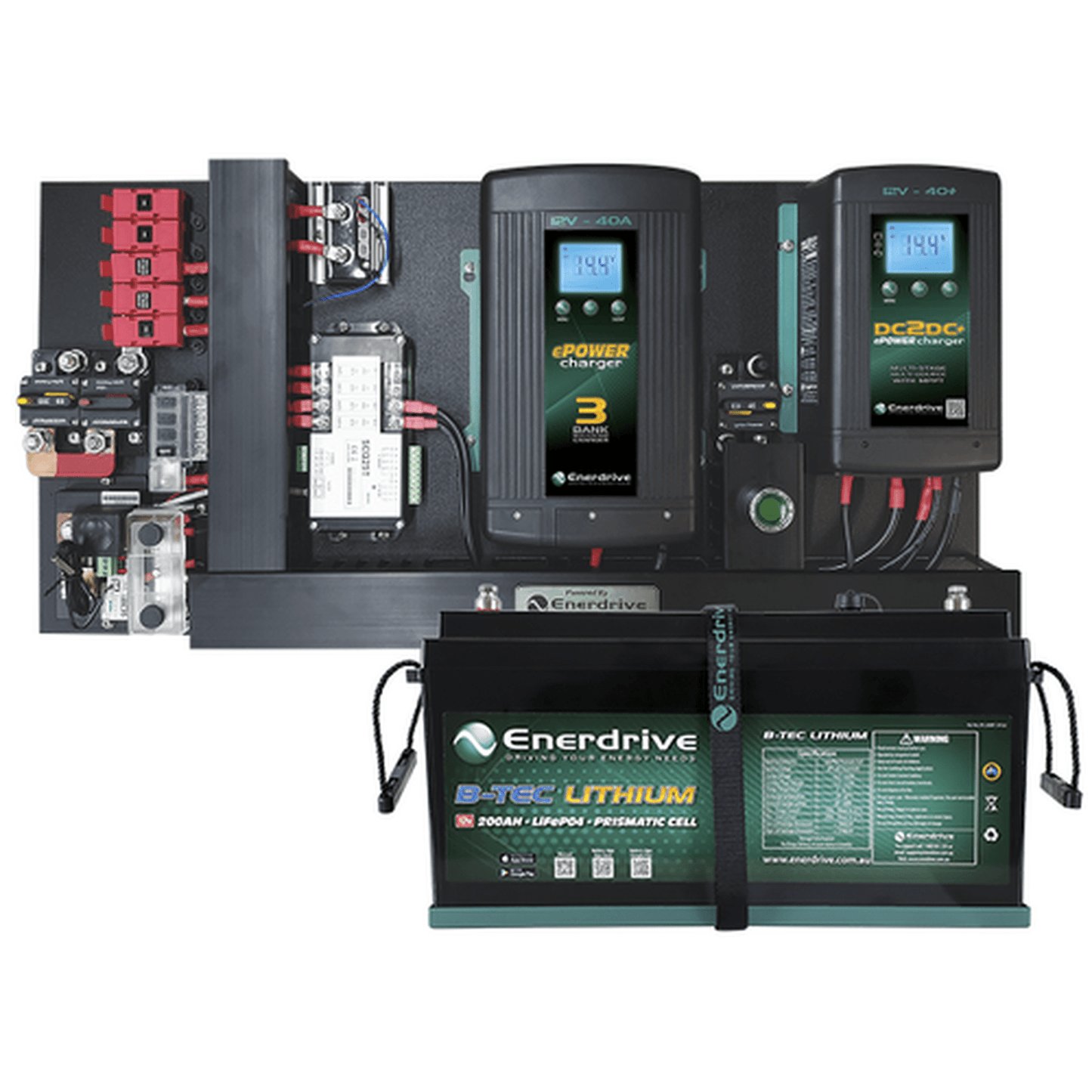

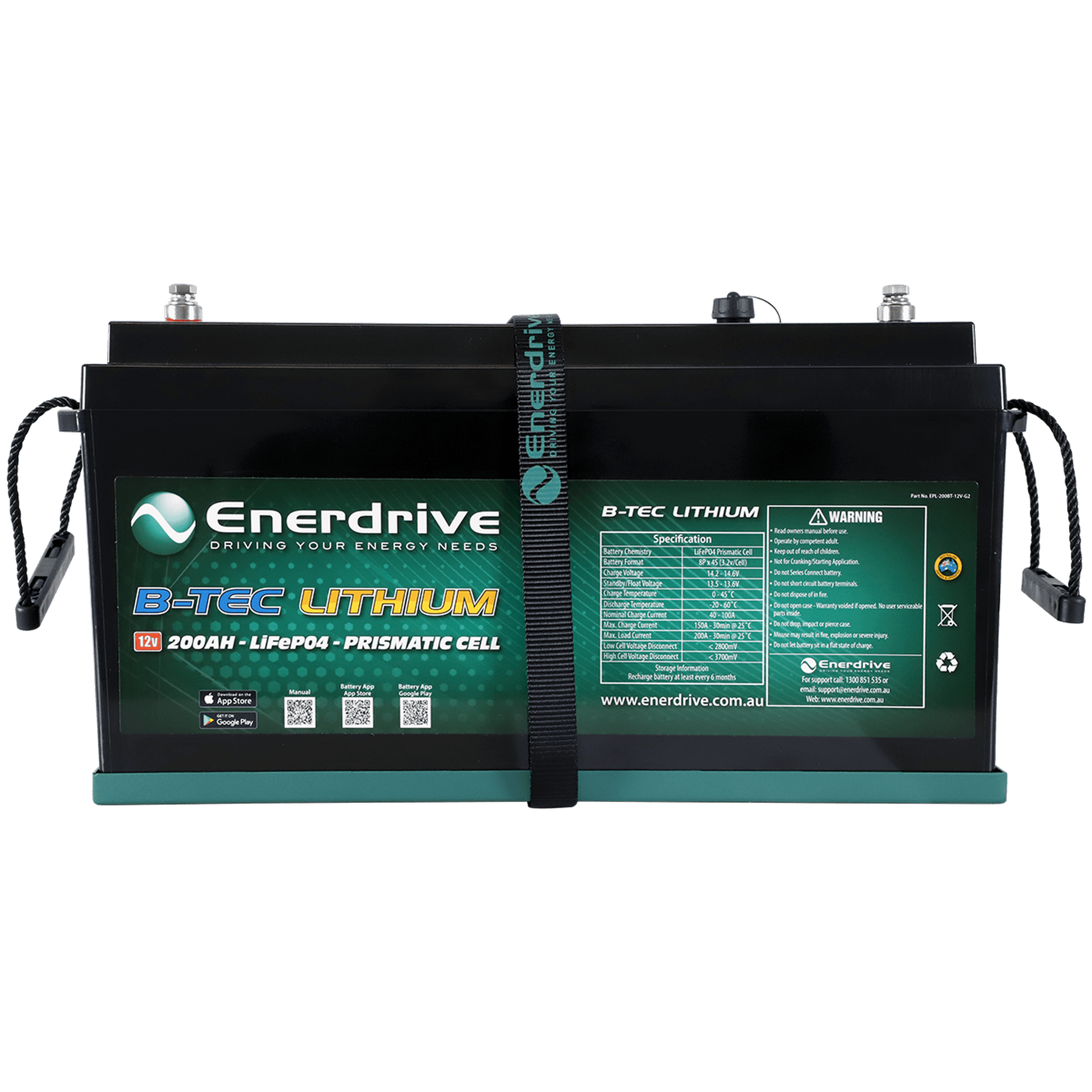

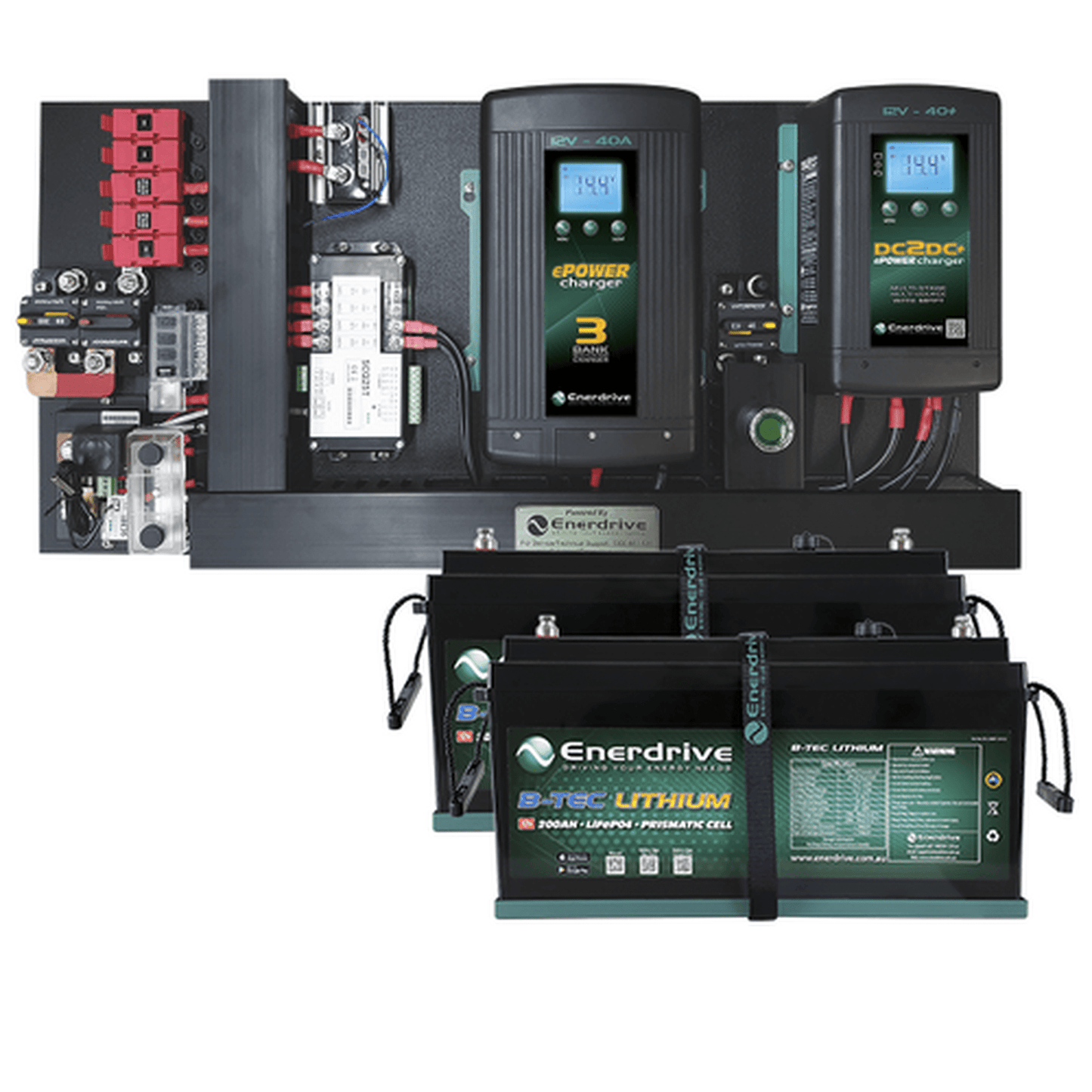

  1 or 2 x Enerdrive ePOWER B-TEC 200Ah Lithium Battery, EPL-200BT-12V-G2

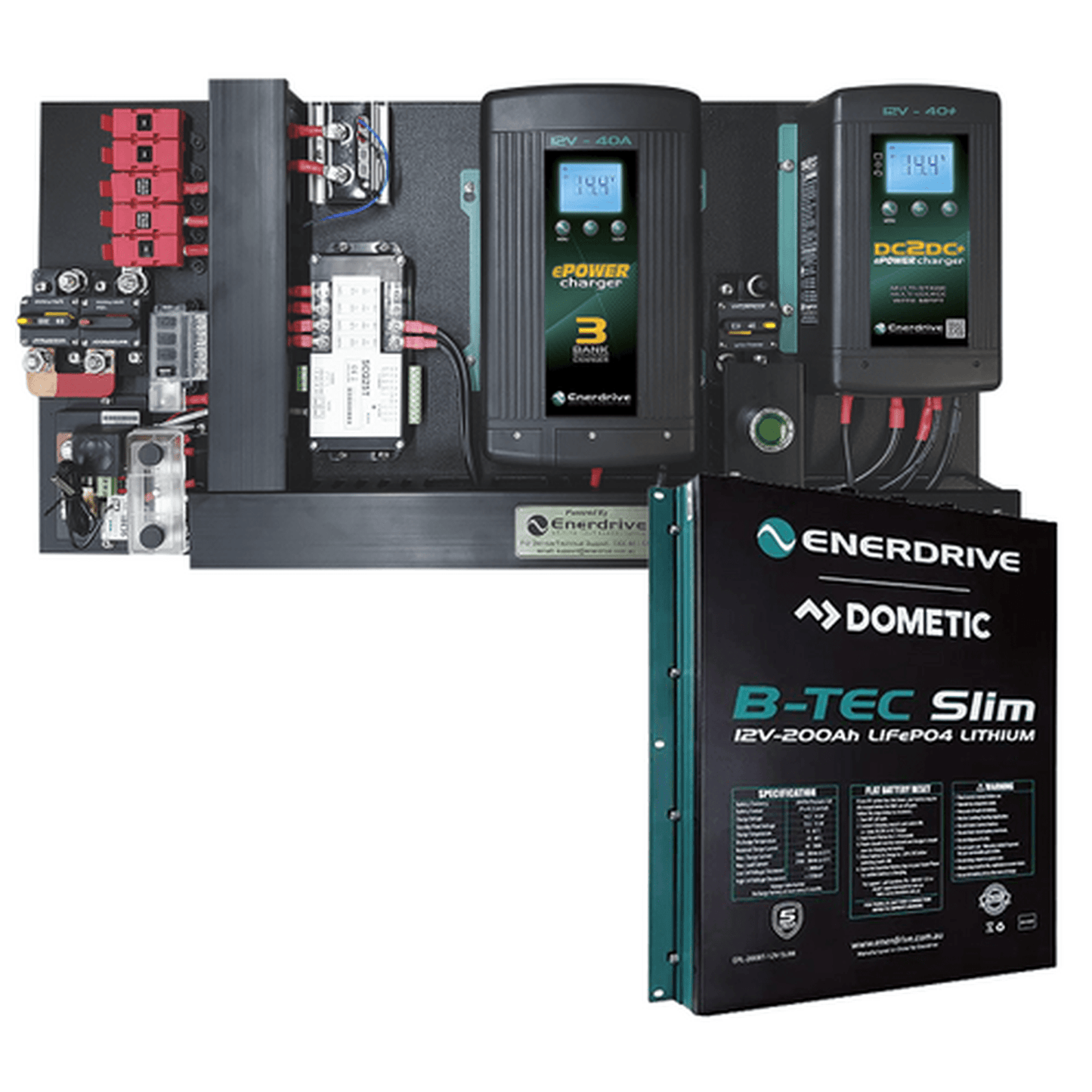

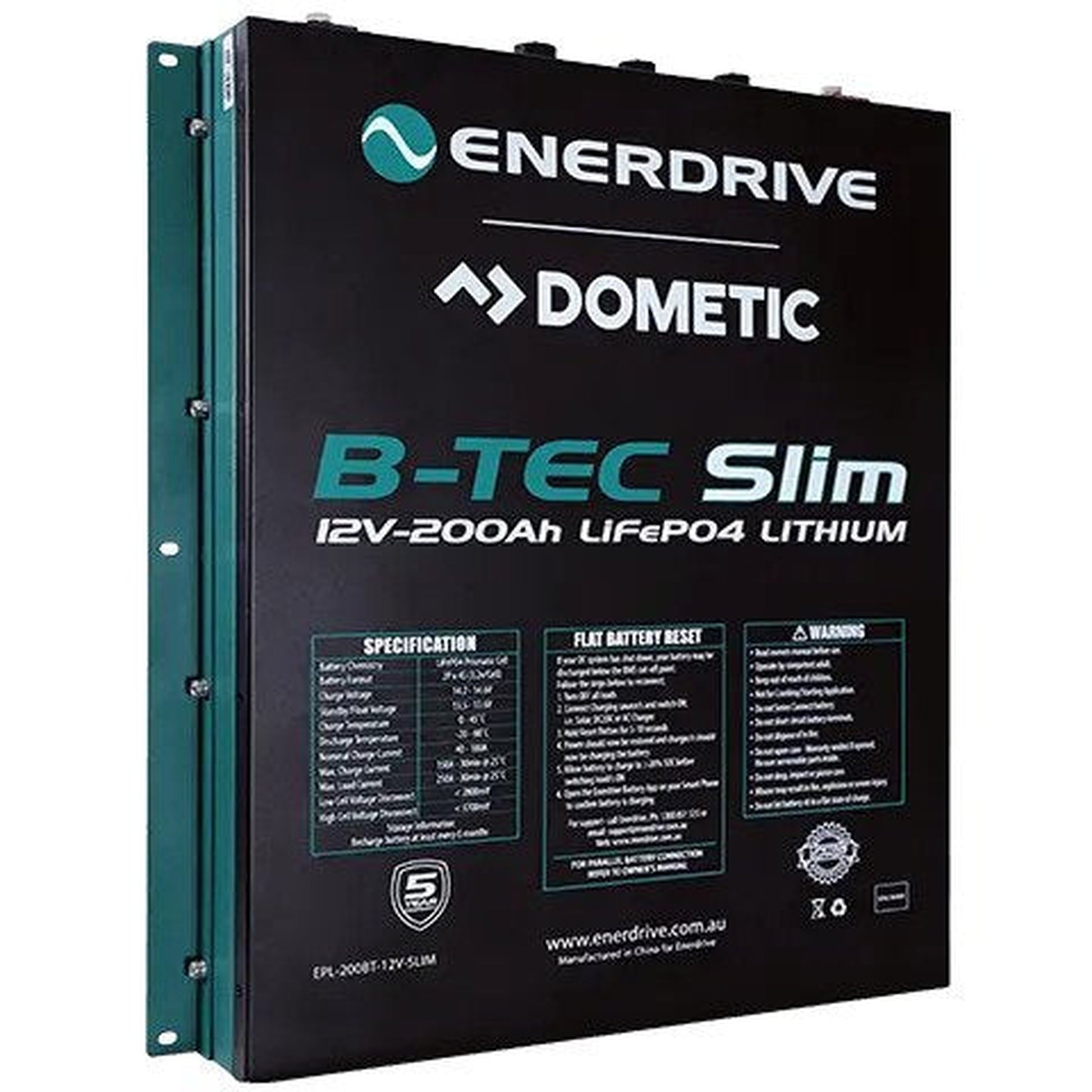

  1 x Enerdrive B-TEC 200Ah Slim Metal Case Lithium Battery, EPL-200BT-12V-SLIM

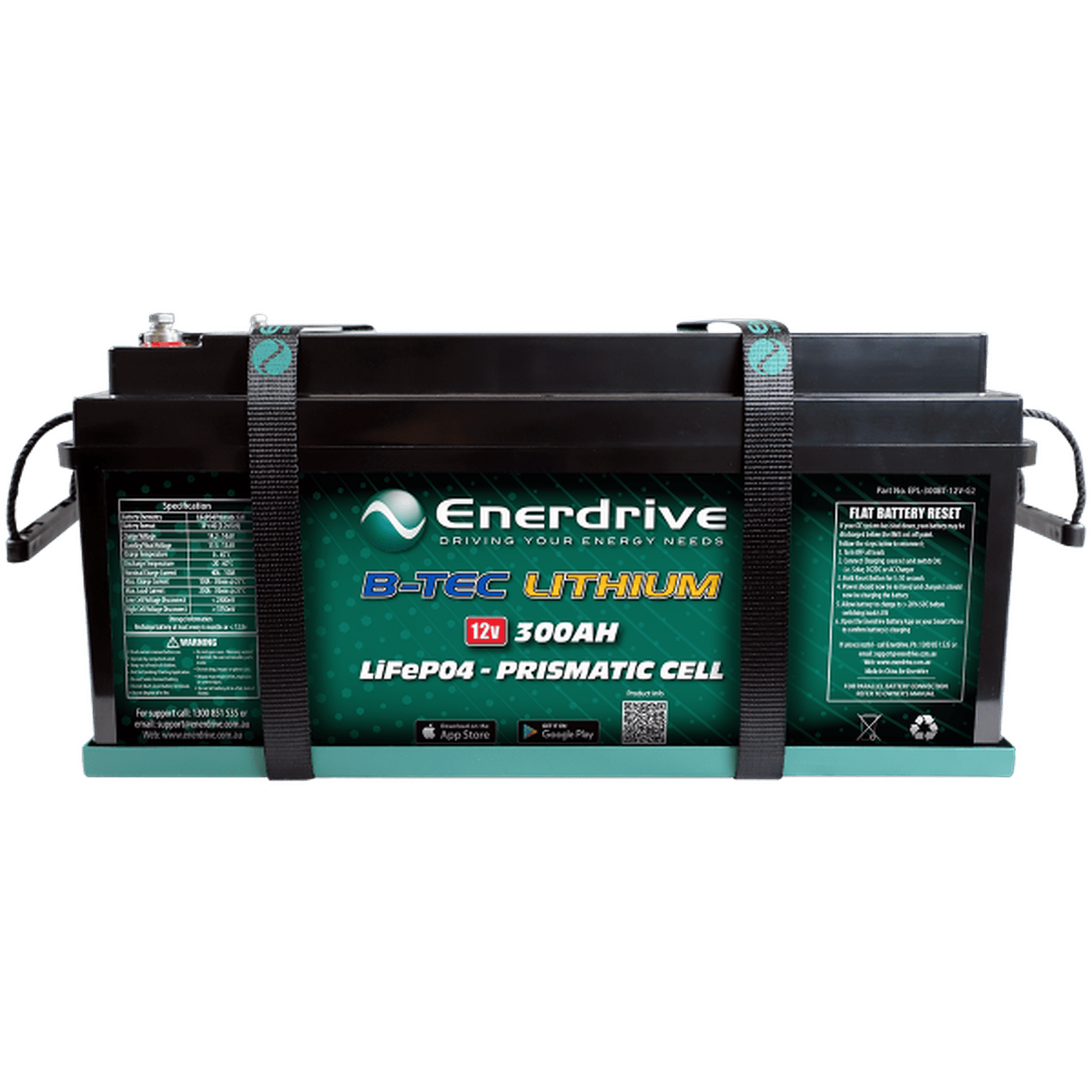

  1 x Enerdrive ePOWER B-TEC 300Ah Lithium Battery, EPL-300BT-12V-G2

Specifications

SKU - eSYSTEM-G

Brand - Enerdrive

Product Category - Power Systems

Warranty Period - 5 Years

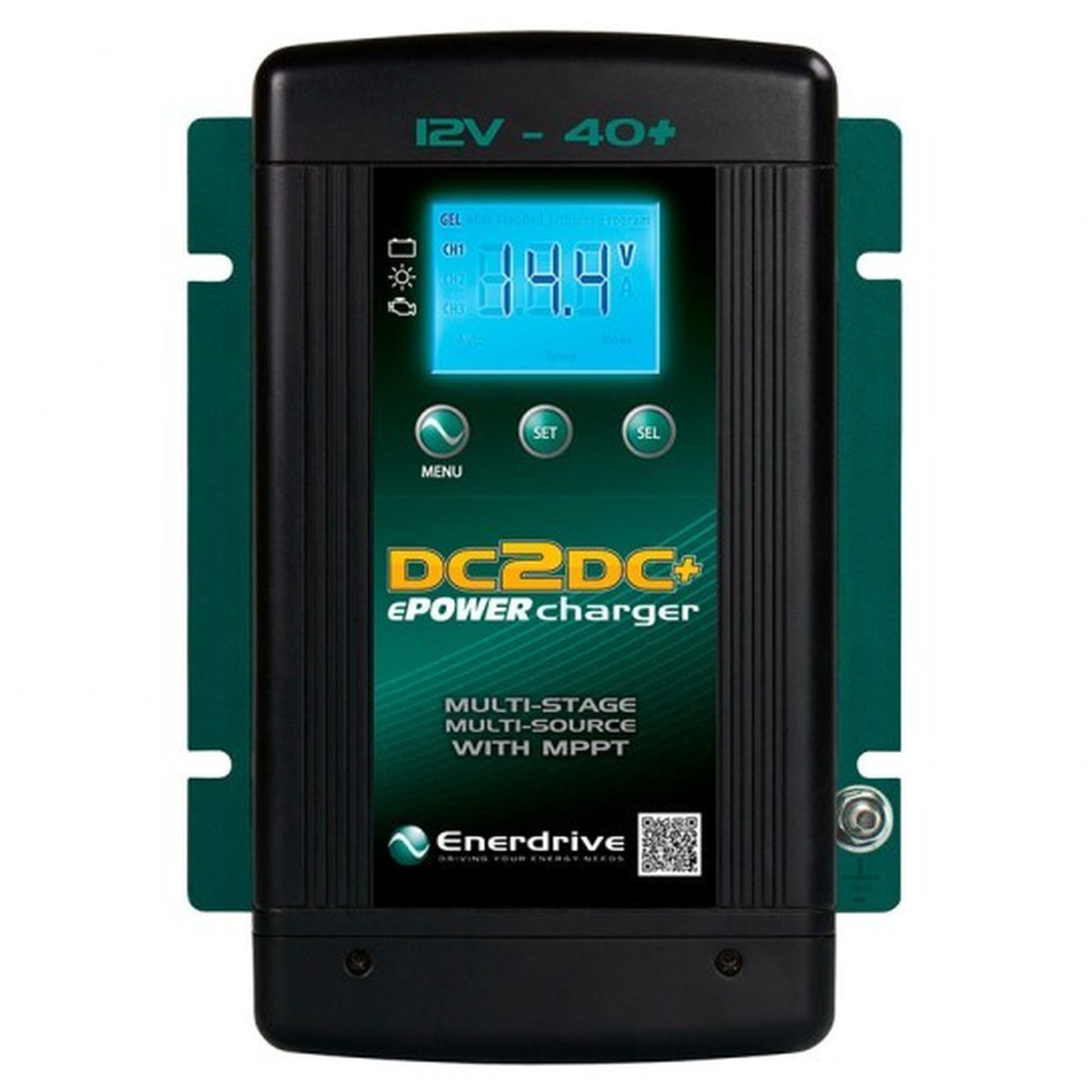

Model - EN3DC40+ (DC Battery Charger)

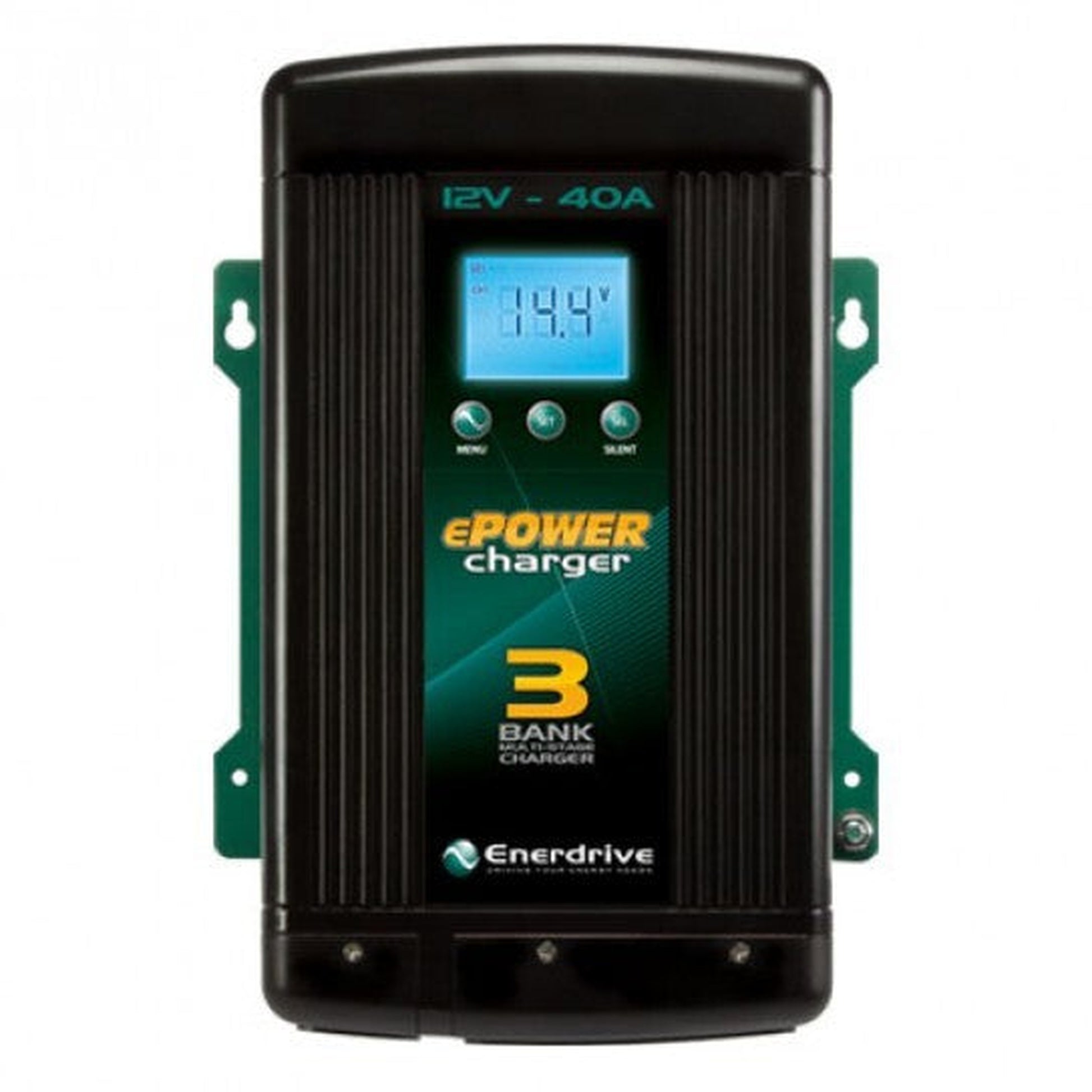

Model - EN31240 (AC Battery Charger)

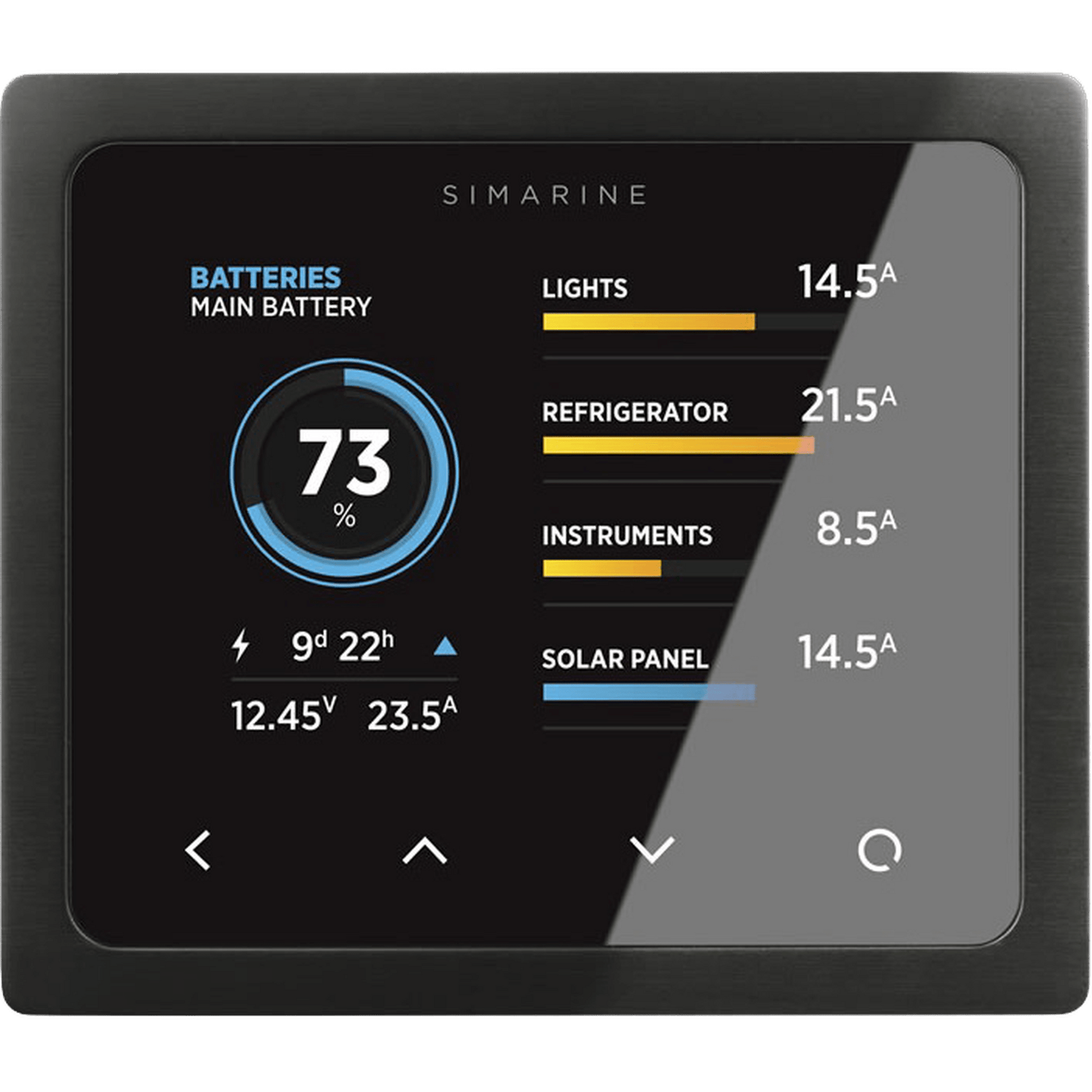

Model - SI-PICO-3 (Battery Monitor)

AC Input Operating Range - 207-265 Vac (3.8 A Max) 90 - 125 Vac (7.7 A Max) (AC Battery Charger)

Standby Current - < 2 mA (AC Battery Charger)

AC Input Voltage - 90 to 265 VAC (AC Battery Charger)

Humidity - 5-95%, relative humidity non-condensing (AC to DC Battery Charger)

DC Output - Single (DC Battery Charger)

DC Output - Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)

Net Weight (kg) - 16

DC Output Connection - Heavy Duty Terminal (3 banks) - Pan Heads 6mm Thread (AC Battery Charger)

Output Short Circuit - Yes, (with user replaceable fuse/s) (AC Battery Charger)

Power Factor Correction - Yes (AC Battery Charger)

Temperature Setting - Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger)

Temperature Setting - Hot, Normal, Cold (no sensor connected) (AC Battery Charger)

Charger Mode Output Voltage - 13.8V - 15.5V (DC Battery Charger)

Charger Mode Output Voltage - 14.2 - 15.5 V (AC Battery Charger)

Cooling - Forced air ventilation (thermo controlled fan) (AC Battery Charger)

Ingress Protection - IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)

Float - 13.0V - 13.8V (DC Battery Charger)

Float - 13.4 - 13.8 V (AC Battery Charger)

Operating Range (temp) - -20° to 60° C (AC Battery Charger)

Operating Voltage - 6 - 35V (Battery Monitor)

Regulatory Compliance - Complies with AS/NZS 60335.2.29 Including Australian deviations.

AC Input Connection - IEC with Supplied 1.2M Power Lead (AC Battery Charger)

Over Charge - Yes, unit shutdown (AC Battery Charger)

AC Input Frequency Range - 47 - 63 Hz (AC Battery Charger)

Selectable Battery Type - Gel, AGM, Flooded, Lithium, Program (DC and AC Battery Charger)

Storage Range (temp) - -40° to 70° C (AC Battery Charger)

Power consumption (DC 12V) - 700W (Full Load) (AC Battery Charger)

Charging Control - Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setting), Priority Battery Bank Charging

LCD Display - Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)

Dimensions - 790 x 380 x 100 mm (L x W x D)

DC Output Ground - Single Heavy Duty Common Ground Stud (AC Battery Charger)

Battery Temp Sensor Port - RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)

Reverse Polarity - Yes, (with user replaceable fuse/s) (AC Battery Charger)

Over Temperature Protection - Yes, unit de-rated and shutdown (AC Battery Charger)

Equalize - 15.5V (DC Battery Charger)

Equalize - 16.0 V (AC Battery Charger)

Charger Efficiency - 95% (DC Battery Charger)

Charger Efficiency - > 82% (AC Battery Charger)
