Enerdrive eSYSTEM-C 40A AC / DC with ePRO+ & 2000W Inverter (RCD/AC Transfer)

Enerdrive eSYSTEM-C 40A AC / DC with ePRO+ & 2000W Inverter (RCD/AC Transfer), 5 Year Warranty. Introducing Enerdrive's Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more.

Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.

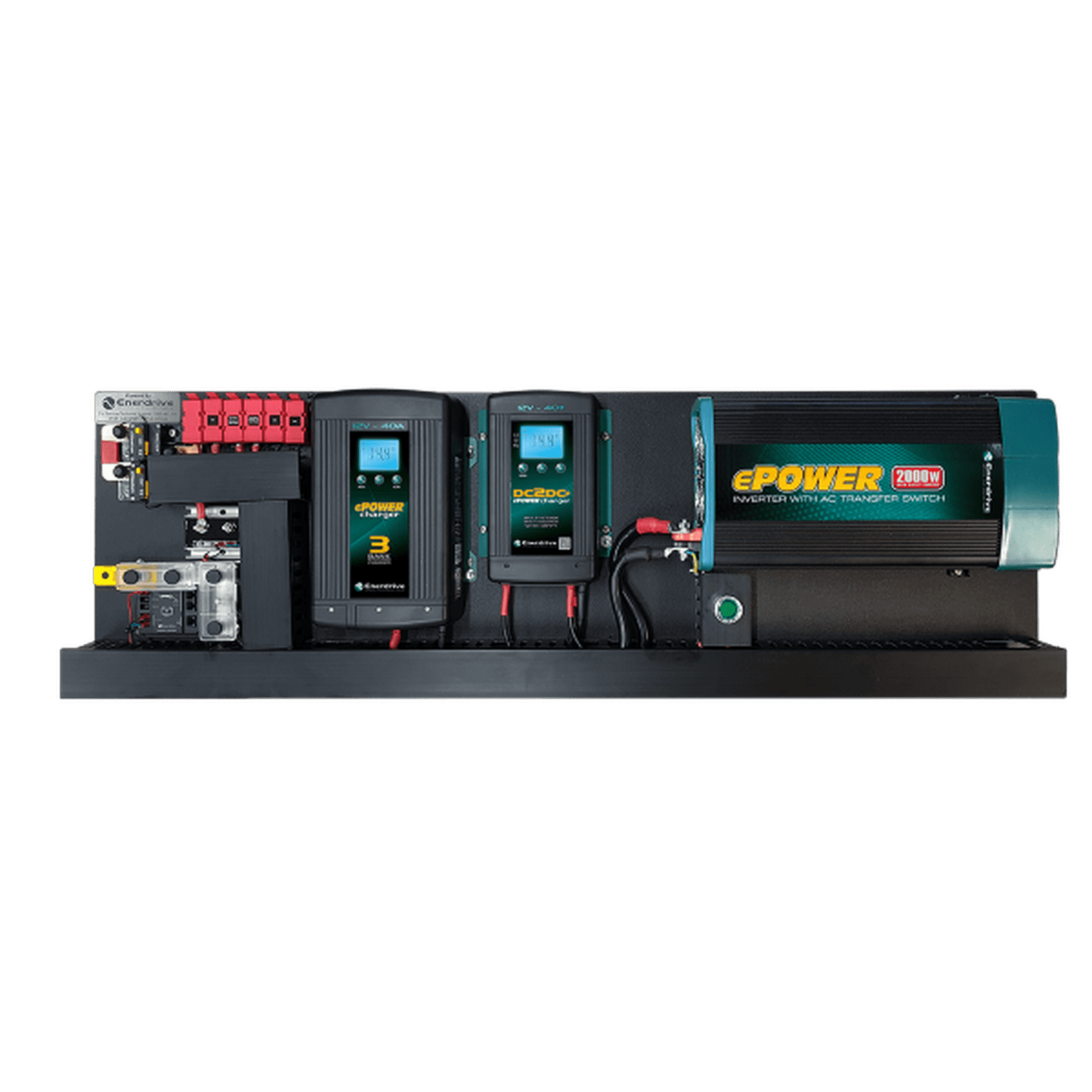

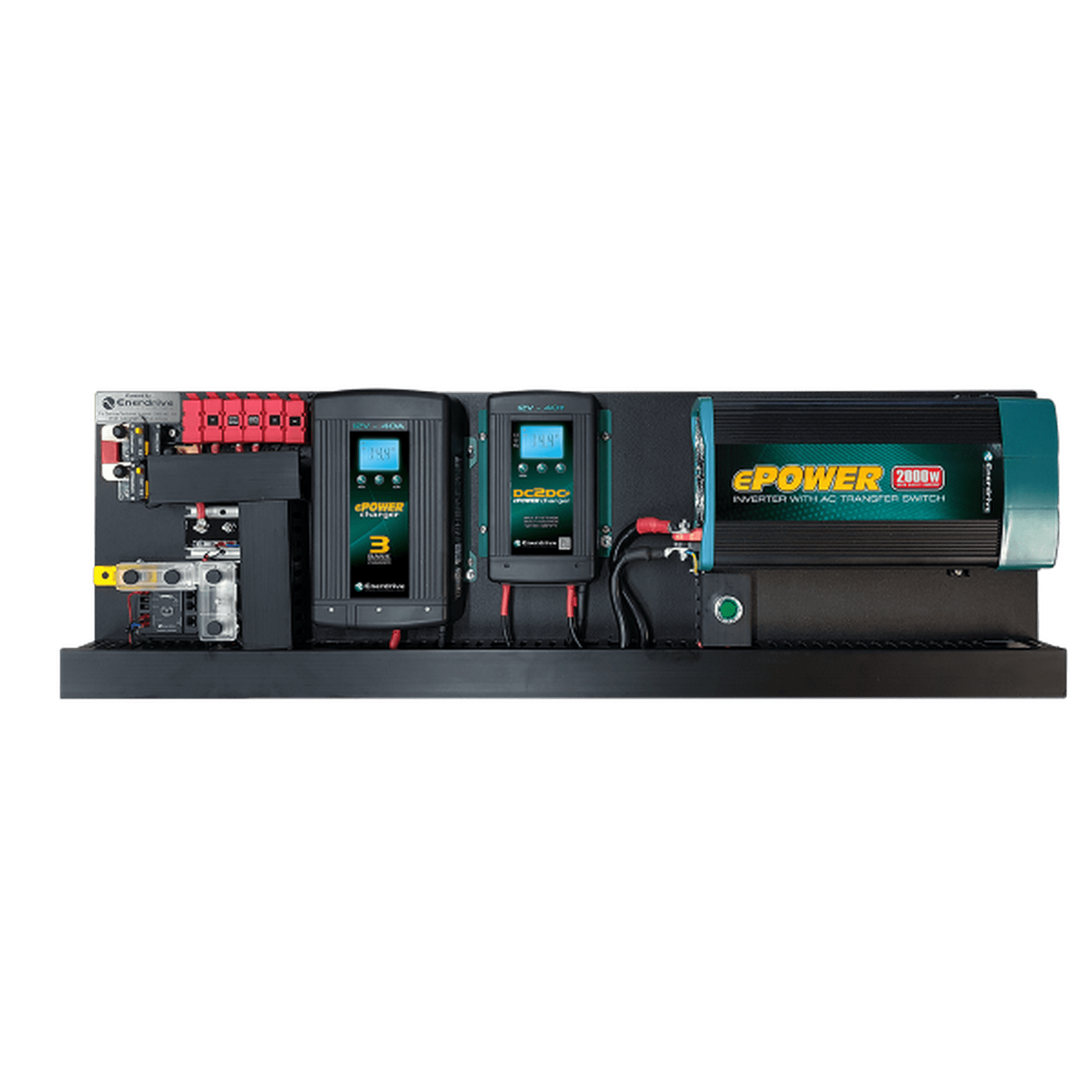

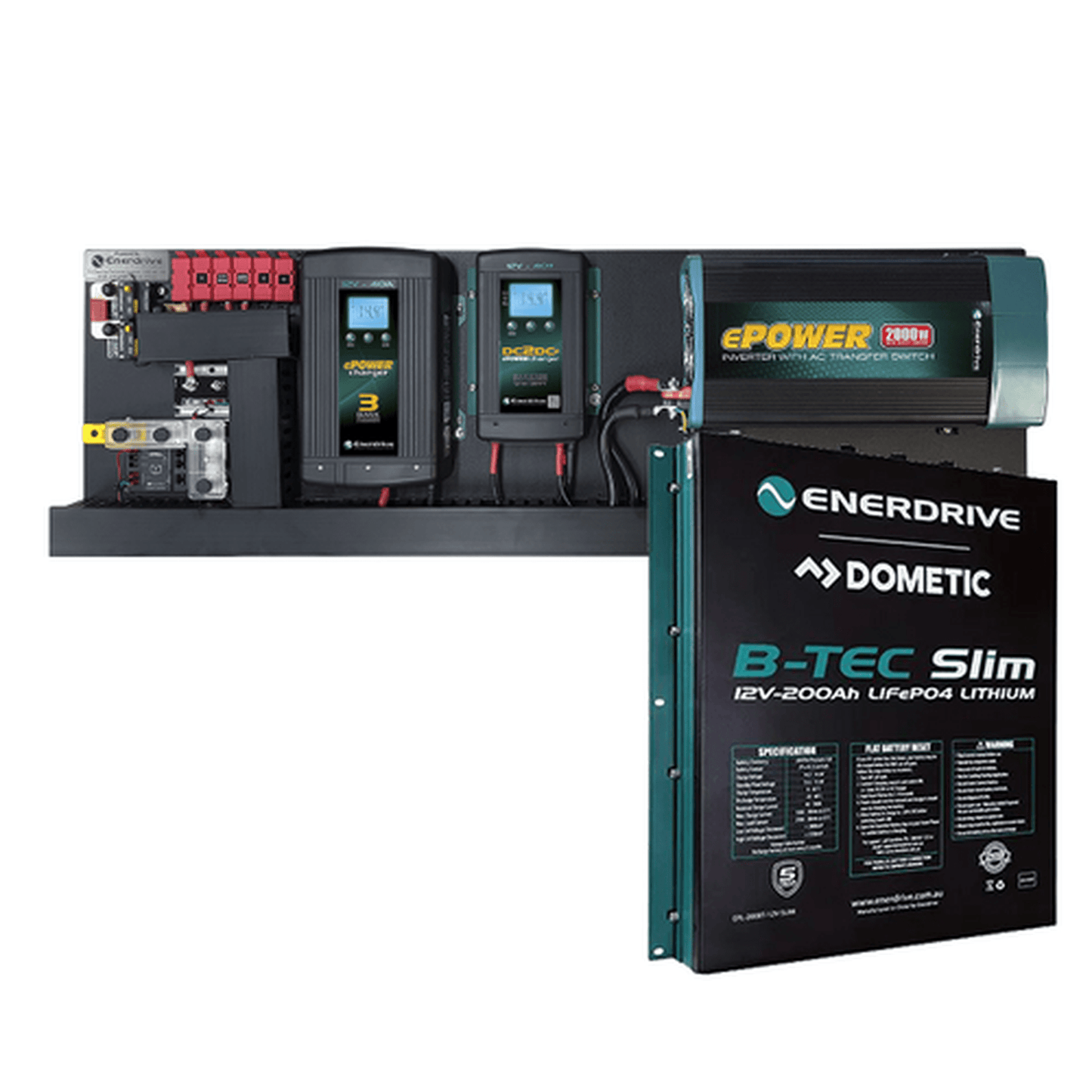

These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.

Includes:

• Enerdrive eSYSTEM-C 40A AC / DC, ePRO+ & 2000W Inverter (RCD/AC Transfer)

Battery Options:

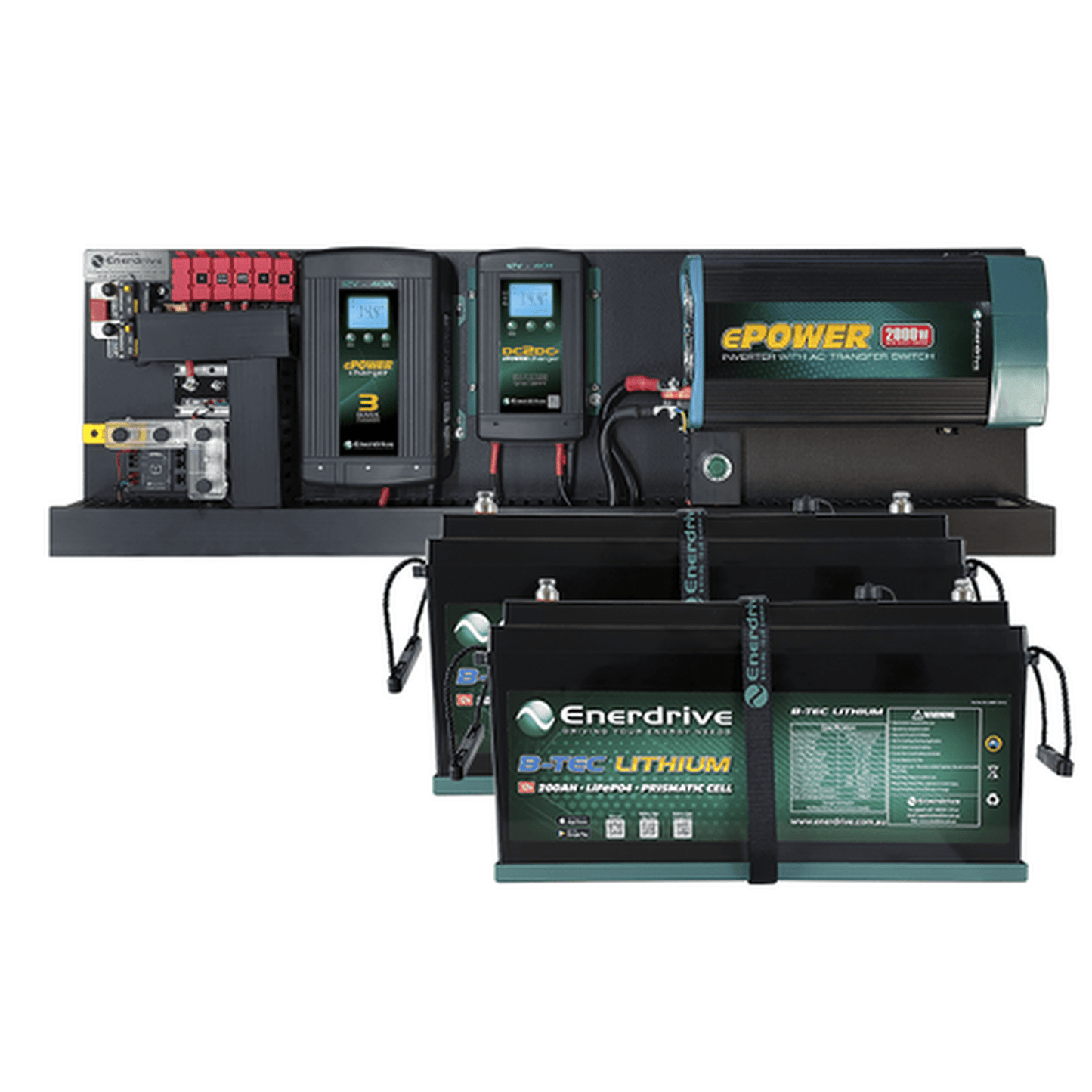

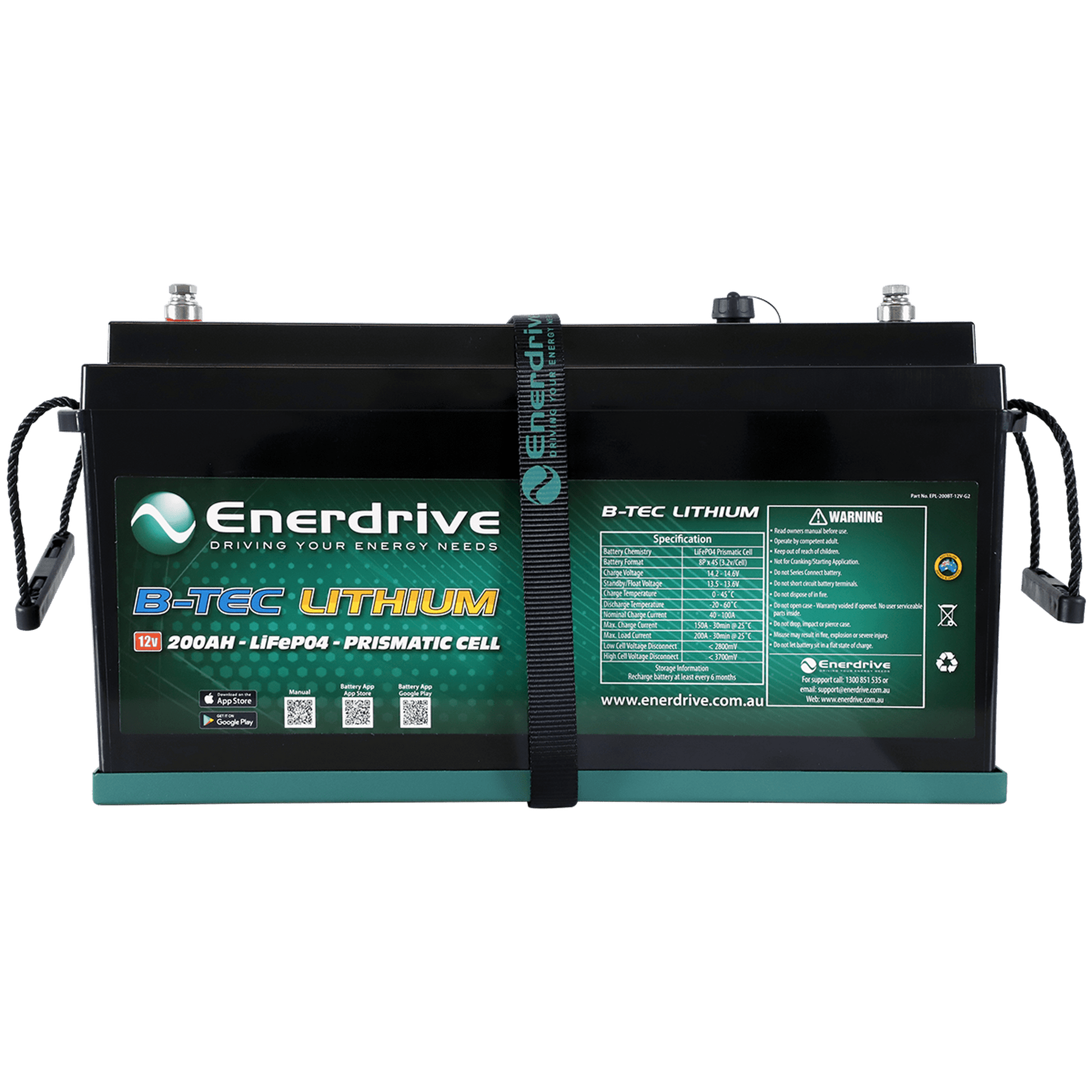

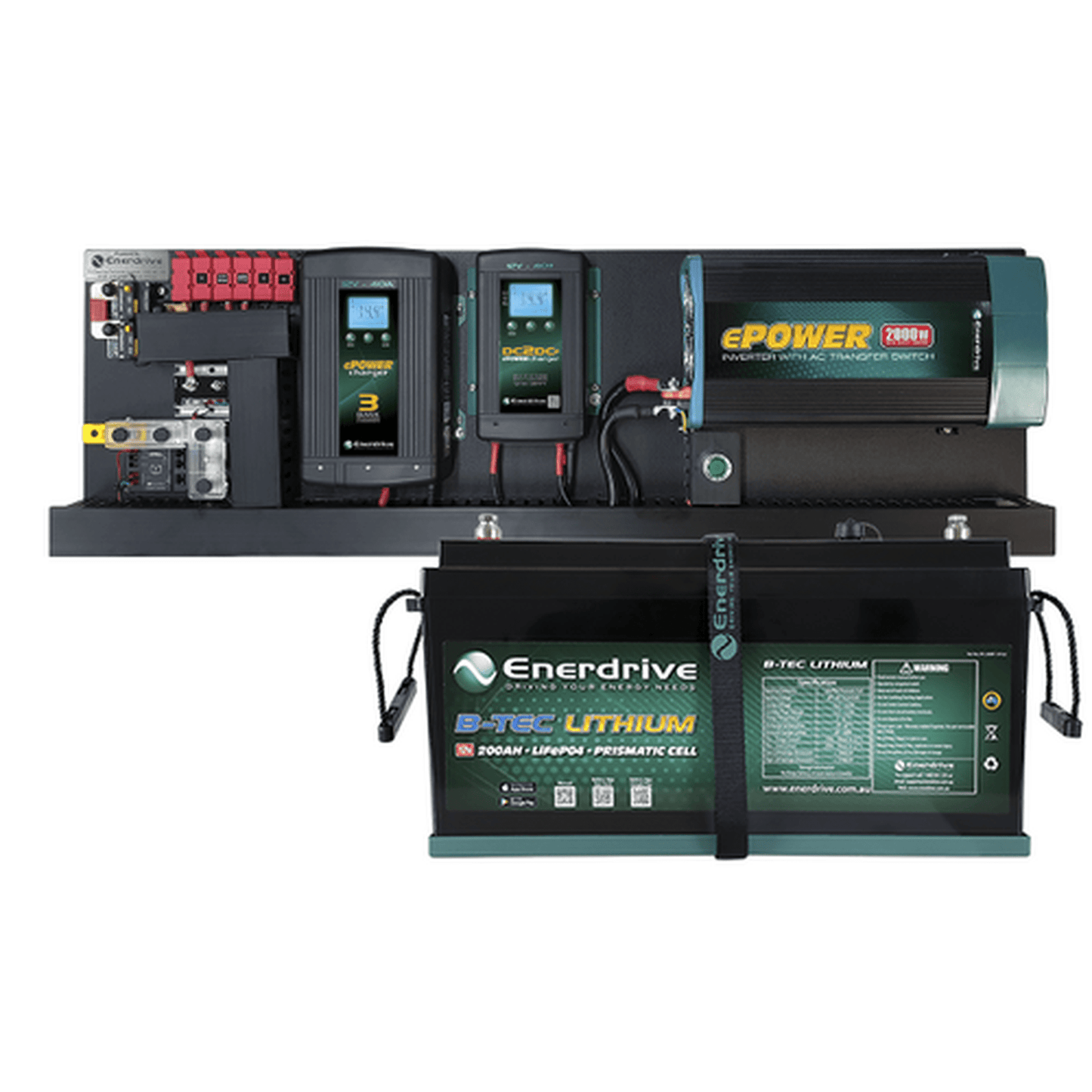

• 1 or 2 x Enerdrive ePOWER B-TEC 200Ah Lithium Battery, EPL-200BT-12V-G2

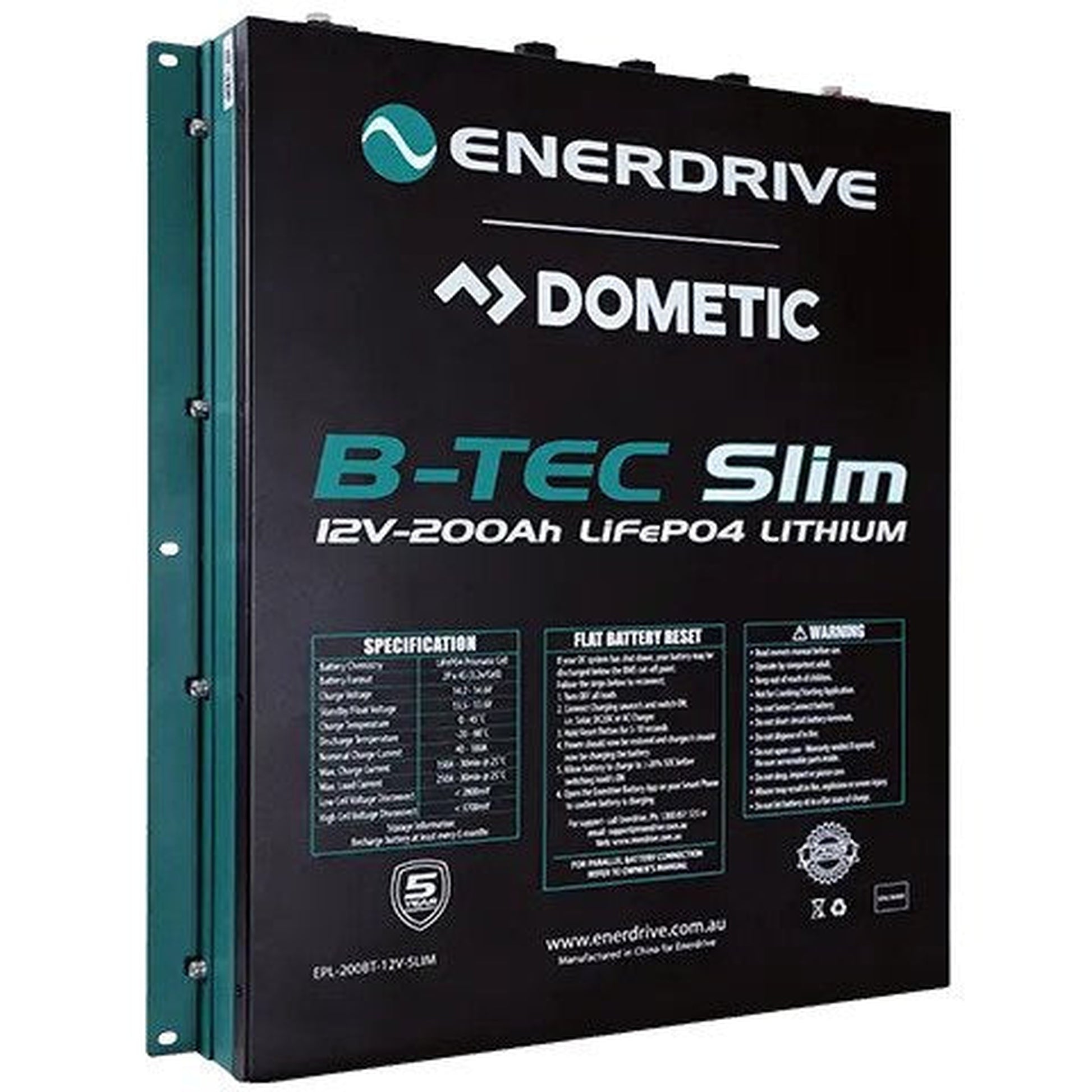

• 1 x Enerdrive B-TEC 200Ah Slim Metal Case Lithium Battery, EPL-200BT-12V-SLIM

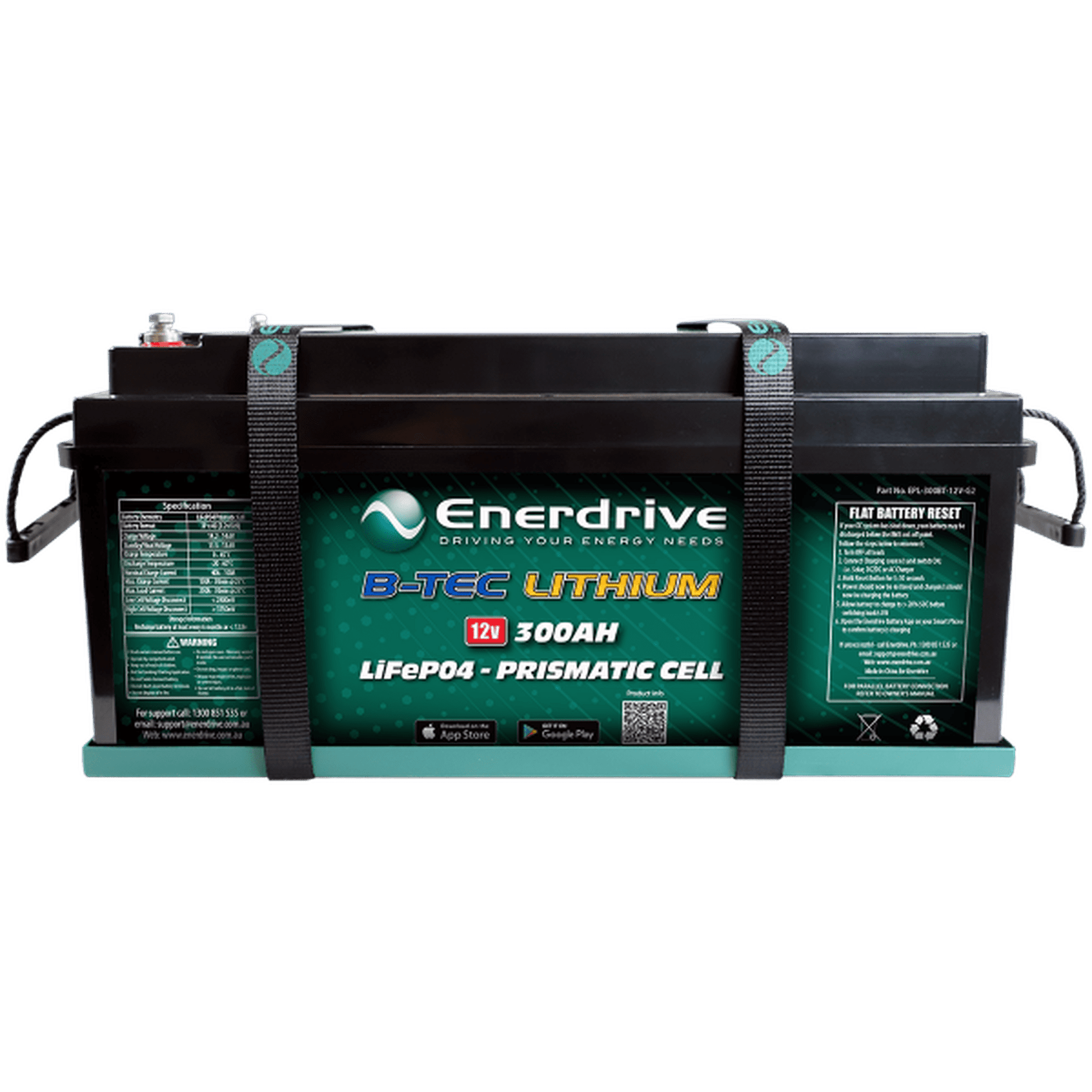

• 1 x Enerdrive ePOWER B-TEC 300Ah Lithium Battery, EPL-300BT-12V-G2

Specifications

SKU - eSYSTEM-C

Brand - Enerdrive

Product Category - Power Systems

Warranty Period - 5 Years

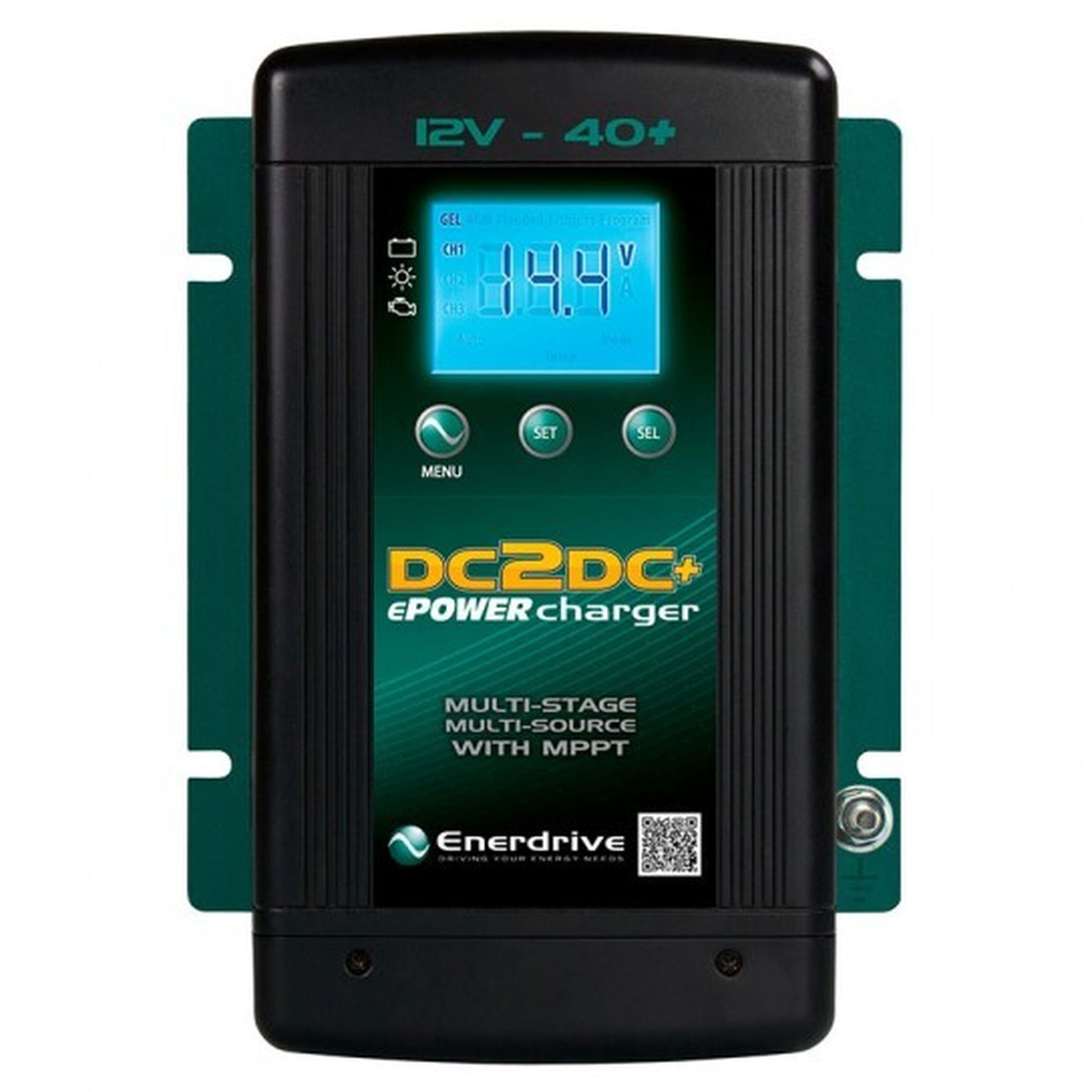

Model - EN3DC40+ (DC Battery Charger)

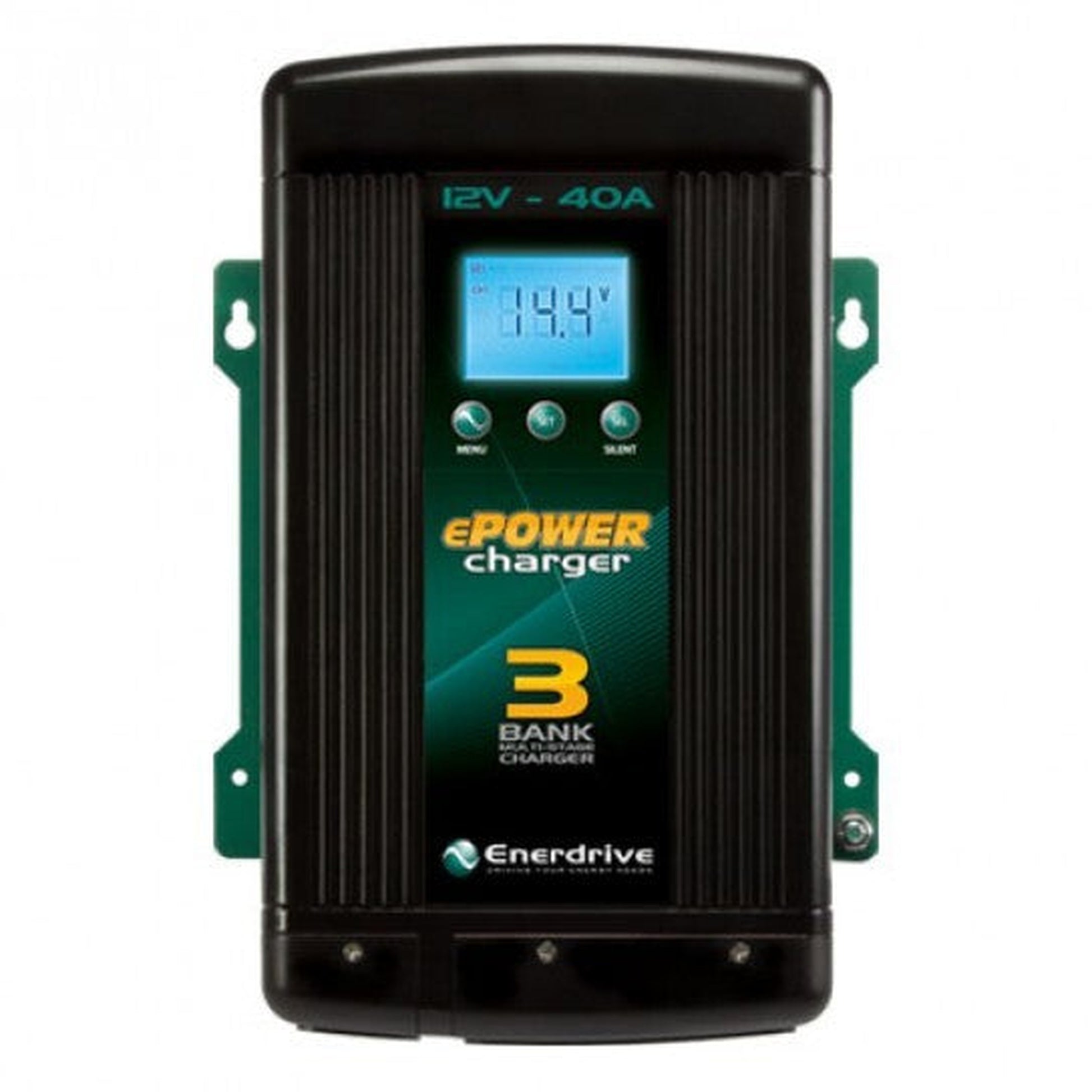

Model - EN31240 (AC Battery Charger)

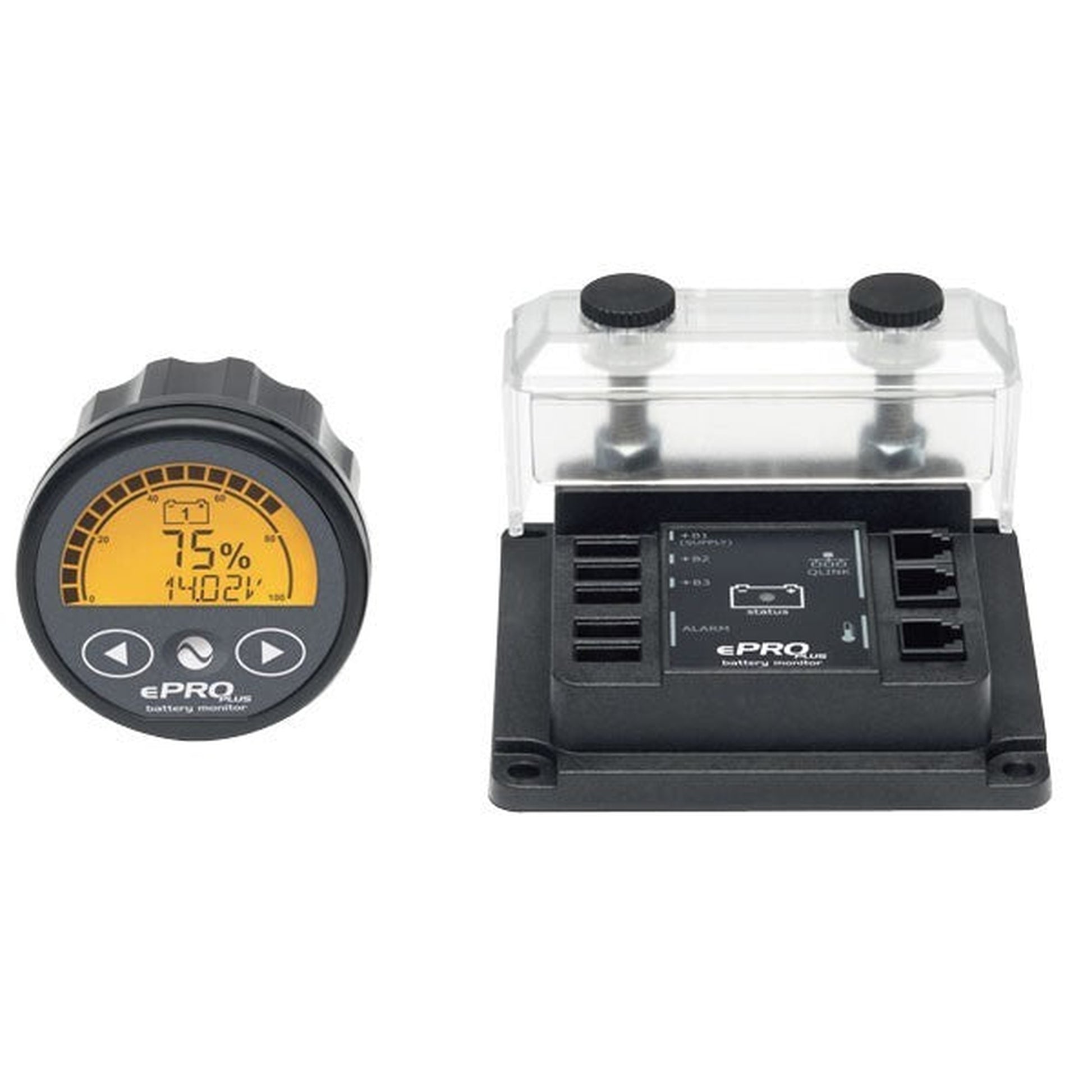

Model - EN55050 (Battery Monitor)

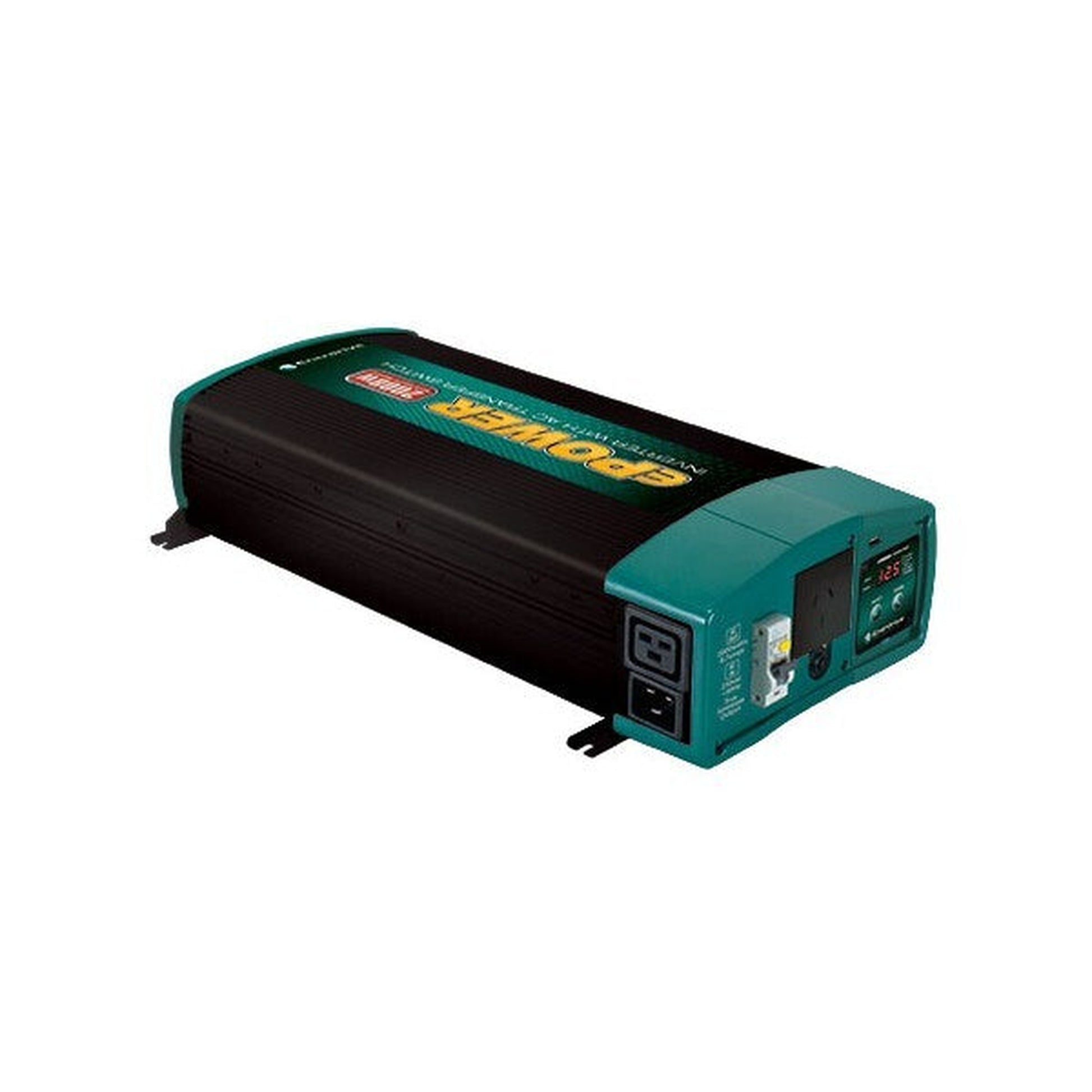

Model - EN1120S-X (Inverter)

Wattage (W) - 2000W (Inverter)

AC Input Operating Range - 207-265 Vac (3.8 A Max) 90 - 125 Vac (7.7 A Max) (AC Battery Charger)

Standby Current - < 2 mA (AC Battery Charger)

AC Input Voltage90 to 265 VAC (AC Battery Charger)

Regulatory Compliance - Complies with AS/NZS 60335.2.29 Including Australian deviations.

AC Input Connection - IEC with Supplied 1.2M Power Lead (AC Battery Charger)

DC Output - Single (DC Battery Charger)

DC Output - Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)

Over Charge - Yes, unit shutdown (AC Battery Charger)

AC Input Frequency Range - 47 - 63 Hz (AC Battery Charger)

Temperature Setting - Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger)

Temperature Setting - Hot, Normal, Cold (no sensor connected) (AC Battery Charger)

Charger Mode Output Voltage - 13.8V - 15.5V (DC Battery Charger)

Charger Mode Output Voltage - 14.2 - 15.5 V (AC Battery Charger)

Under Voltage Shutdown - 10.5 / 11.8 VDC (Inverter)

Storage Range (temp) - -40° to 70° C (AC Battery Charger)

Cooling - Forced air ventilation (thermo controlled fan) (AC Battery Charger)

Ingress Protection - IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)

Float - 13.0V - 13.8V (DC Battery Charger)

Float - 13.4 - 13.8 V (AC Battery Charger)

Operating Range (temp) - -20° to 60° C (AC Battery Charger)

Operating Range (temp) - 0°C to 40°C (Inverter)

DC Output Ground - Single Heavy Duty Common Ground Stud (AC Battery Charger)

Humidity - 5-95%, relative humidity non-condensing (AC to DC Battery Charger)

Humidity - 5-90% noncondensing (Inverter)

Battery Temp Sensor Port - RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)

Reverse Polarity - Yes, (with user replaceable fuse/s) (AC Battery Charger)

Over Temperature Protection - Yes, unit de-rated and shutdown (AC Battery Charger)

Selectable Battery Type - Gel, AGM, Flooded, Lithium, Program (DC and AC Battery Charger)

Over Voltage Shutdown - 15.5 VDC (Inverter)

USB Socket Output - 5V, 750 mA (Inverter)

Charger Efficiency - 95% (DC Battery Charger)

Charger Efficiency - > 82% (AC Battery Charger)

Power consumption (DC 12V) - 700W (Full Load) (AC Battery Charger)

Charging Control - Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setting), Priority Battery Bank Charging

LCD Display - Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)

Net Weight (kg) - 23

Input Voltage - 12.5 VDC (Inverter)

DC Output Connection - Heavy Duty Terminal (3 banks) - Pan Heads 6mm Thread (AC Battery Charger)

Dimensions - 1185 x 380 x 130 mm (L x W x D)

Output Short Circuit - Yes, (with user replaceable fuse/s) (AC Battery Charger)

Power Factor Correction - Yes (AC Battery Charger)

Under Voltage Alarm Recovery - 11.3 / 12.3 VDC (Inverter)

Equalize - 15.5V (DC Battery Charger)

Equalize - 16.0 V (AC Battery Charger)

Under Voltage Shutdown Recovery - 12.0 / 12.6 VDC (Inverter)

Under Voltage Alarm - 11.0 / 12.1 VDC (Inverter)
