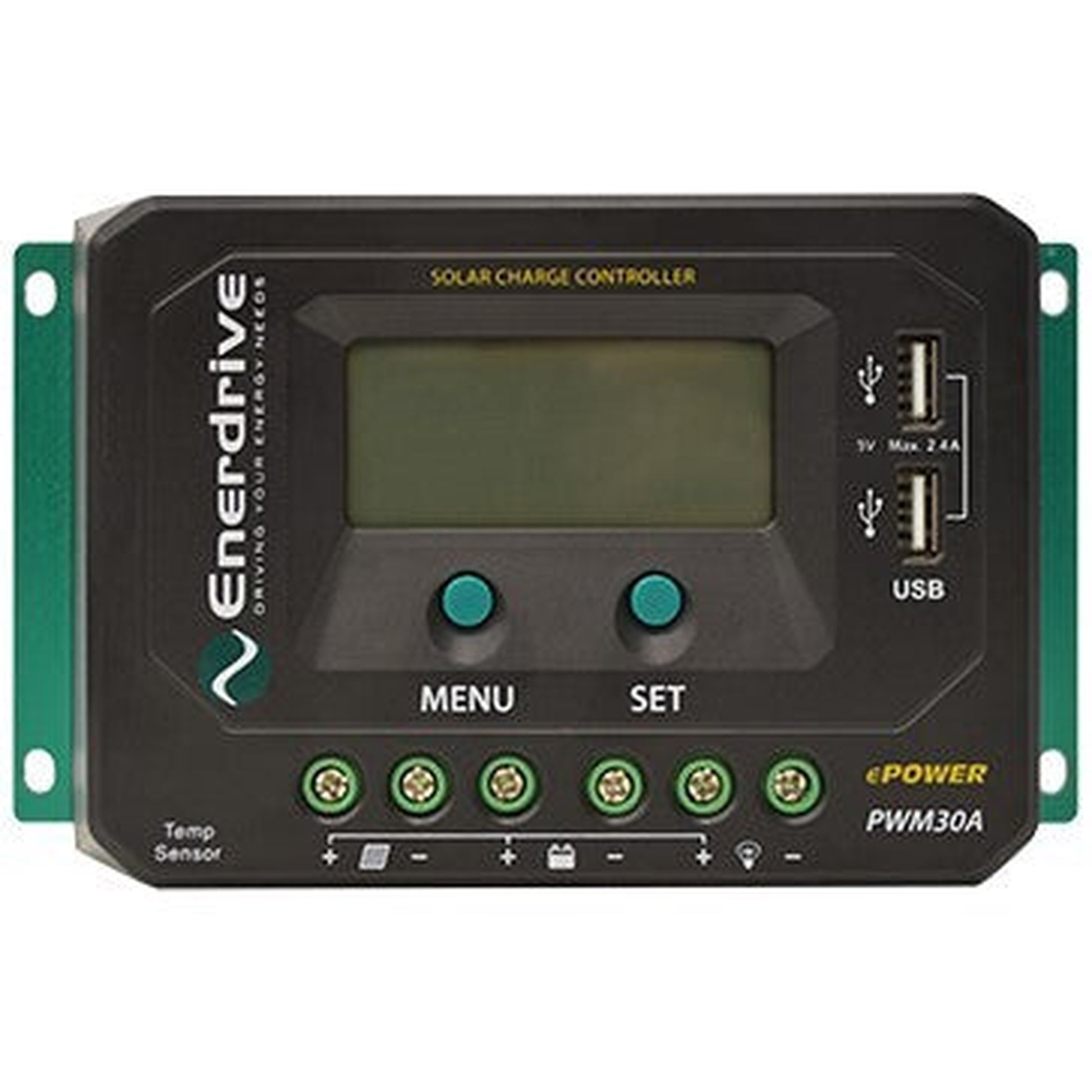

Enerdrive ePOWER PWM 30A Solar Charge Controller
Enerdrive ePOWER PWM 30A Solar Charge Controller
SKU:EN43030
Share
Enerdrive ePOWER PWM 30A Solar Charge Controller, 5 Year Warranty. For maintenance free protection of your batteries and solar panels the controllers regulated output will prevent batteries overcharging.
Load Disconnect (LD) feature will protect batteries from being over discharged.
Enerdrive PWM 30A Solar Charge Controller benefits include:
- Protects battery from overcharge and discharge
- 12/24V auto detect
- Handles up to 30 Amps of Array Current
- Handles up to 450 Watts of solar power
- Maintenance free protection of your solar panel and batteries
- Maintains battery voltage
- Maintain 12/24V batteries in a fully charged state
Features:
- Informative backlight LCD display indicates solar charge input, charge/load output Volatage/Amps
- Selectable battery type Sealed, Flooded & Gel
- 2 x USB Outputs 2.4A
- Full output operation up to 55oC
- Temperature compensation
- High precision on voltage set point
- Wall mountable
Specifications
SKU - EN43030
Brand - Enerdrive
GTIN - 9342616000342
Product Category - Solar Charge Controllers
Warranty Period - 5 Years
Product Type - Solar Charge Controller
Enclosure Class - IP30
Nominal Voltage - 12/24VDC
Input Voltage - 9V-32V
Battery Types - Sealed (Default) / Gel / Flooded
Dimensions - 181 x 101 x 60mm
Charge Voltage Float - Gel/AGM (25 degrees)** - 13.8V (Sealed / Gel / Flooded)
Operating Range (temp) - -25˚C+55˚C | -20˚C+70˚C (LCD)
Open Circuit Voltage Voc(V) - 12V - 25VOC / 24V - 50VOC
Humidity - 95% N.C.
Charge Voltage Absorption (25 degrees)** - Sealed: 14.4V / Gel:14.2V / Flooded 14.6V
Output - 5VDC/2.4A (USB, Total)
Amps - 30
