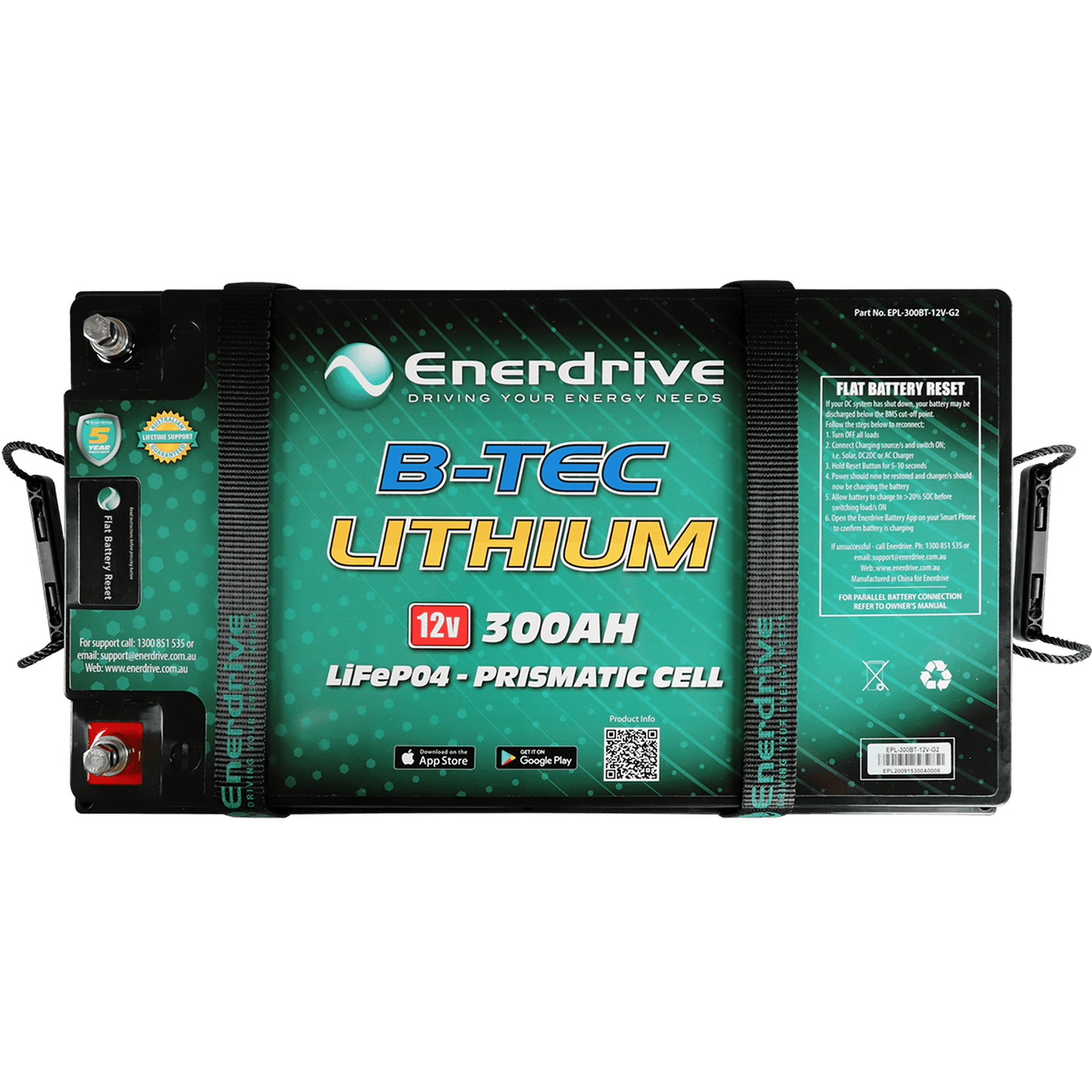

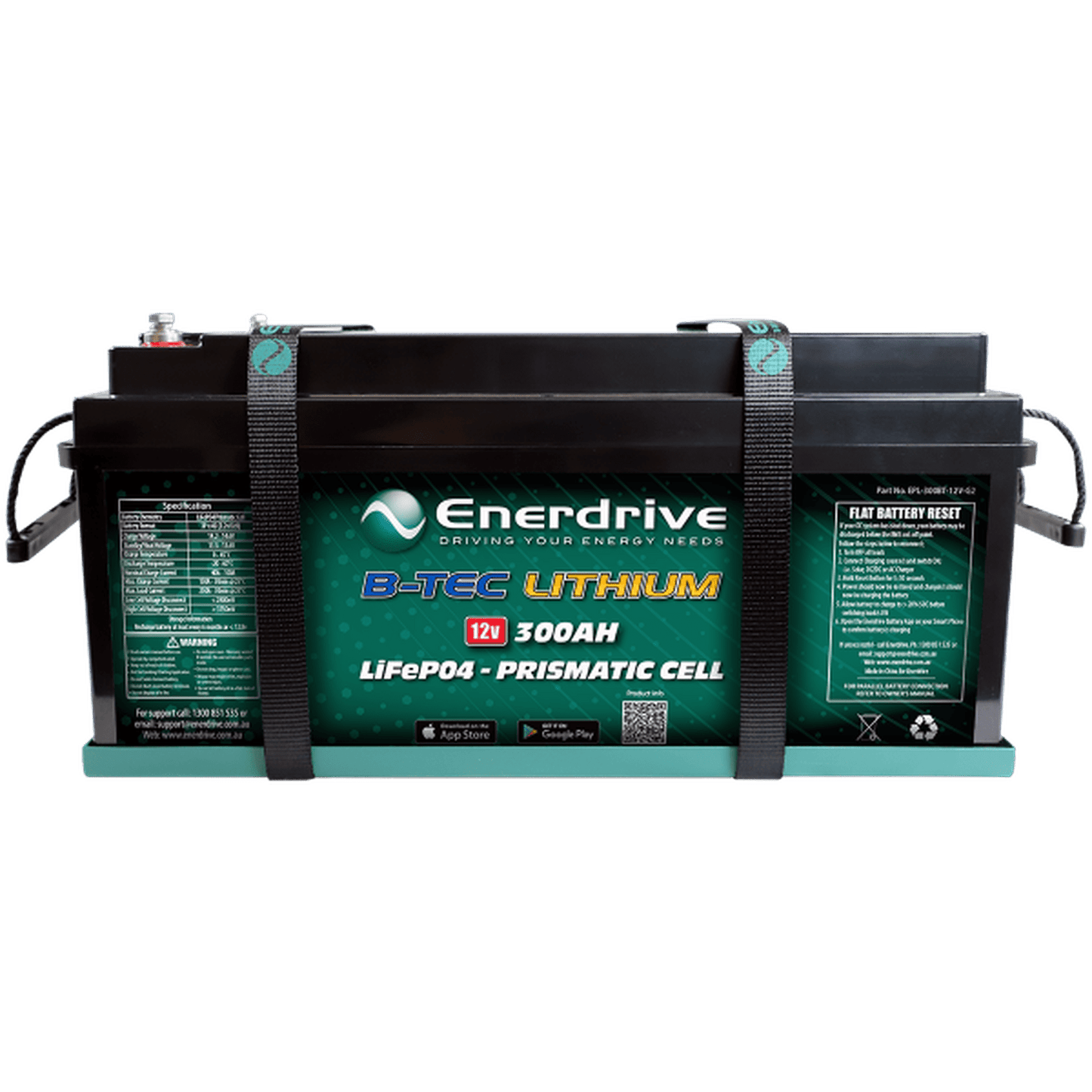

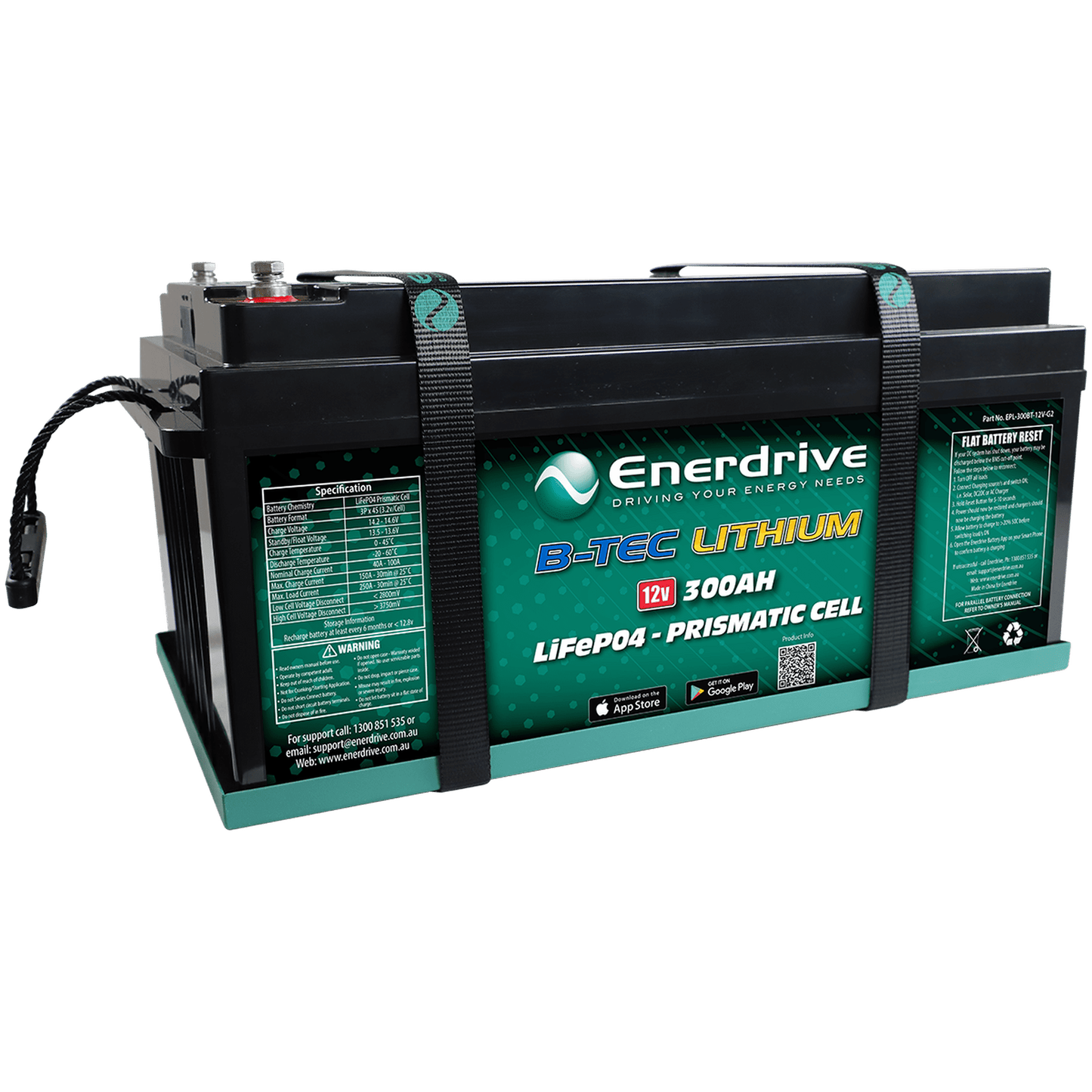

Enerdrive ePOWER B-TEC 300Ah Lithium Battery - Sale ends 2.6.24 or when stock runs out!

Enerdrive ePOWER B-TEC 300Ah Lithium Battery, 5 Year Warranty. Available in 12v 300Ah capacity, the Enerdrive B-TEC G2 lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

Key Features:

• New design BMS
• Max discharge current 250A (15mins) - 200A continuous
• Max charge current 190A (30mins)
• Can be connected in parallel (up to 4 batteries)
• Built in flat battery reset button
• Includes mounting tray and 2 straps
• Communication ports (RS485) for future integration
• 5 year warranty & lifetime tech support

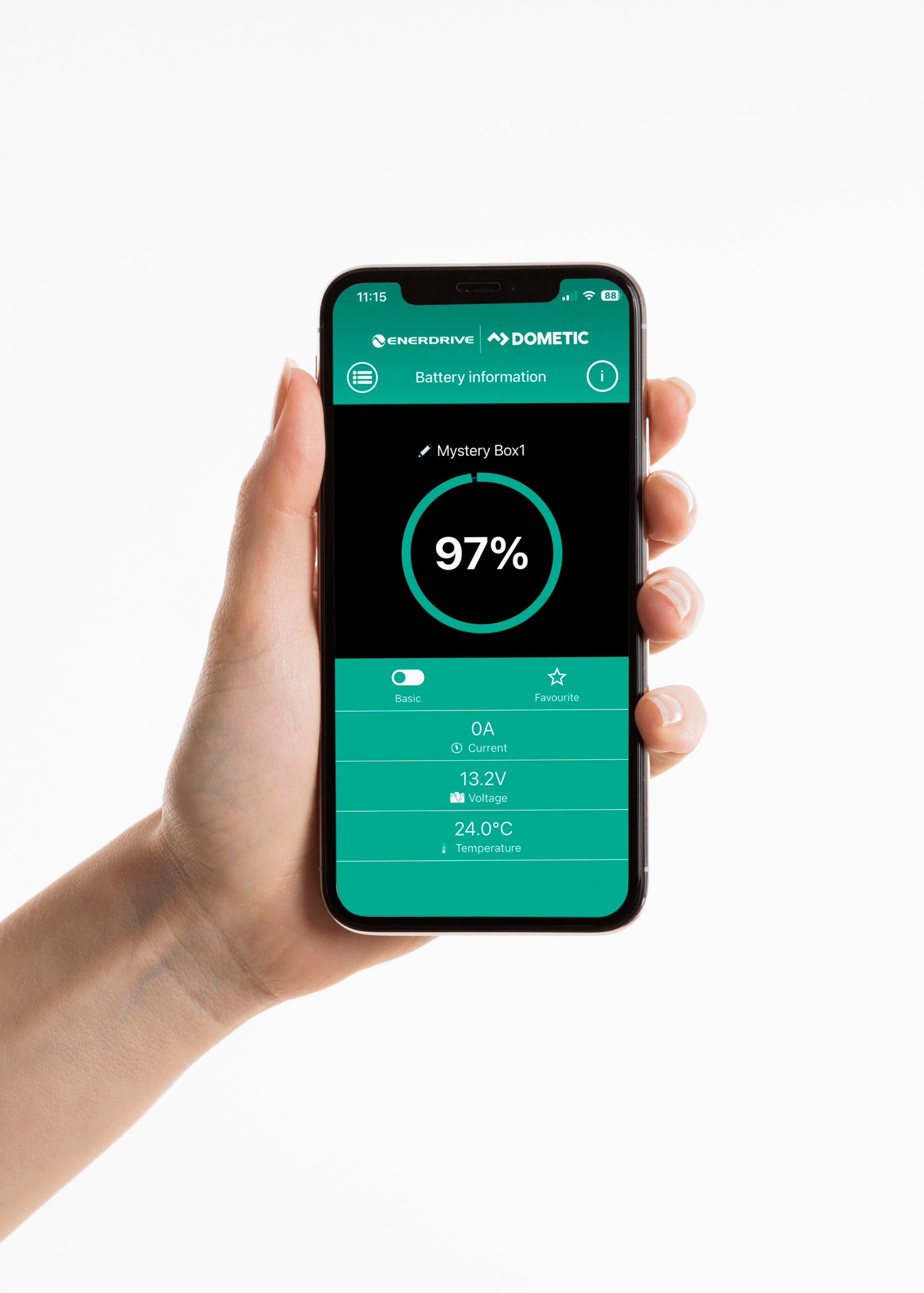

Smart Phone Monitoring System

The Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

• Battery Capacity
• Battery Voltage
• Battery Current (Amps)
• Battery State of Charge (SOC)
• Battery State of Health (SOH)
• Battery Status
• Individual Cell Voltage
• Battery Temperature
• Battery Cycles
• Battery Alarms
• Battery Event Information

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Size & Weight Savings

Lithium v AGM Capacities:

• 100Ah Lithium = 160Ah AGM
• 125Ah Lithium = 200Ah AGM
• 200Ah Lithium G2 = 320Ah AGM
• 300Ah Lithium G2 = 480Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The Enerdrive B-TEC G2 battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

The New Generation 2 B-TEC

So, How does the New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery measure up against it original predecessor? Let’s have a look.

Dimension Original Generation 2

Length	519mm	521mm
Width	273mm	280mm
Height	222mm	238mm

Also included for free is a metal battery tray and hold down strap to complete the installation process.

The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.

The new G2 also includes a RS485 communications port located on the top of the battery. This port allows for integration onto other CanBus systems for data monitoring and recording.

The New Enerdrive Generation 2 (G2) B-TEC 300Ah Lithium Battery now comes with a 5 year warranty, giving you peace of mind that this product will keep you covered.

With over 8 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.

With over 4000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.

Please Note: The G2 battery is capable to be paralleled to a second G2 battery. For maximum performance and lifespan of your G2 battery, no more than 4 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

The G2 300Ah battery is able to accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

If you are requiring a battery system larger than the Enerdrive B-TEC G2 battery, please look at the Enerdrive Pro Series Power Pack Systems which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.

Specifications

SKU - EPL-300BT-12V-G2

Brand - Enerdrive

GTIN - 9342616019924

Product Category - Batteries

Warranty Period - 5 Years

Model - EPL-300BT-12V

Battery Voltage - 12V

Amp Hours (ah) - 300

Max. Continuous Discharge - 200A Continous @ 25°C ± 5°C

Recommended Charge Current for Maximum Life - 80 ~ 120A

Nominal Capacity - 300Ah

Dimensions (LxWxH mm) - 521 x 280 x 238

Battery Output Voltage Range - 11.00 ̴ 14.60V

Short circuit protection - Auto release after 5s

Battery Charge Temperature - 0 ̴ 45°C

Maximum Discharge Current - 250A @ 25˚C ±5˚C for 15 mins

Discharge Cut-off Voltage - ≤ 11.20V

Maximum Charge Current - 190A @ 25°C for 30mins

Nominal Voltage - 12.8V

Standby (Float) Voltage - 13.50 ̴ 13.80V

Total Charge Current - Max 190A @ 25°C for 30mins

Temperature range - ≤ 30 days -20°C ̴ 35°C, 45 ̴ 75% RH

Float - 13.50 - 13.80V

Pulse Discharge Current - 450A for 1.0s

Cycle Life (DOD – 80% under controlled conditions) - ≥ 2000 Cycles

Net Weight (kg) - 38.2

Normal Charge Voltage CV/CC* - 14.40 ̴ 14.60V

Battery Discharge Temperature - -20 ̴ 60°C
