Enerdrive 4WD Canopy Traveller System with 40A DC2DC + 40A AC Charger, With Lithium Battery Add On Option
Enerdrive 4WD Canopy Traveller System with 40A DC2DC + 40A AC Charger, With Lithium Battery Add On Option
SKU:K-TRAVELLER-01-R
Share

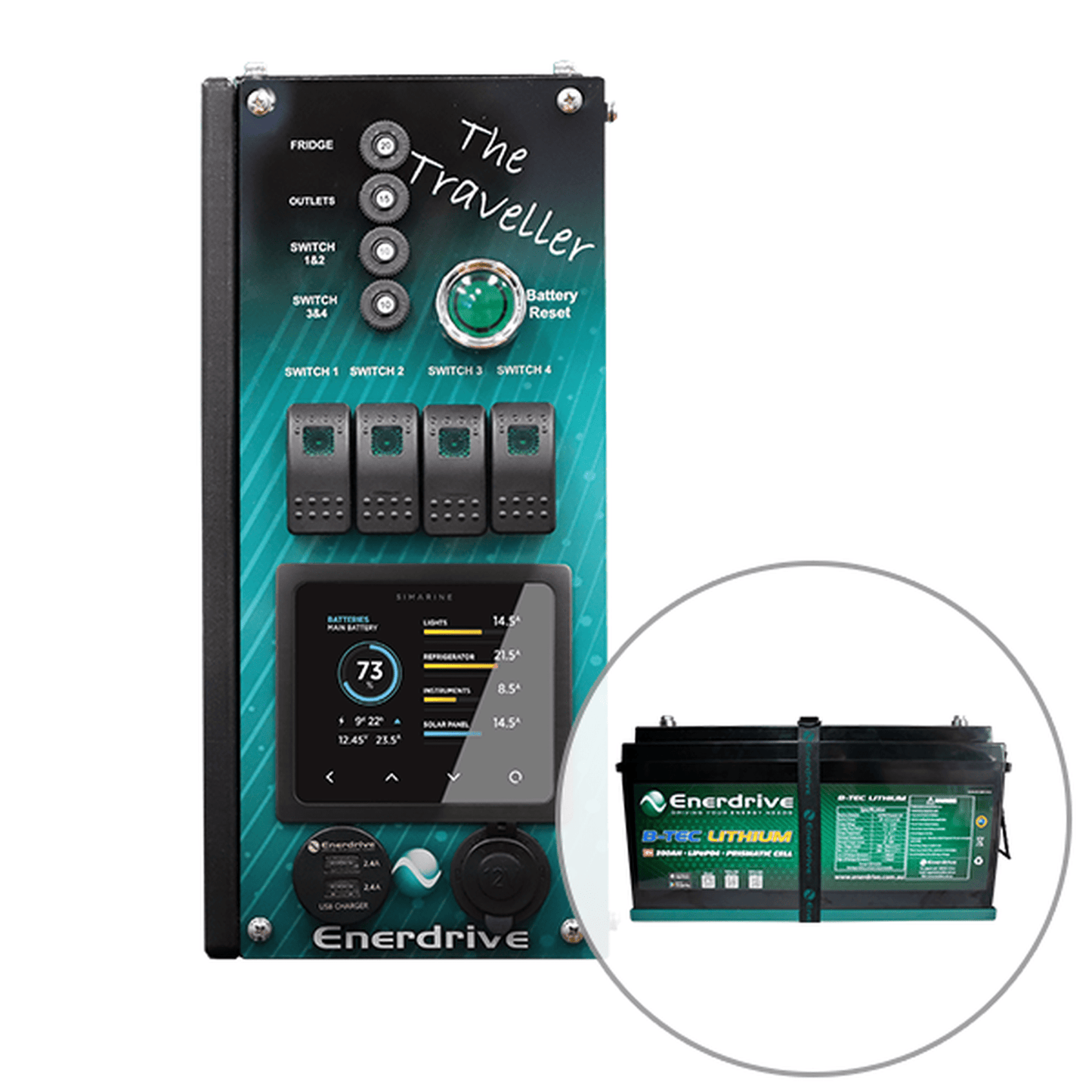

Enerdrive 4WD Canopy Traveller System with 40A DC2DC + 40A AC Charger, With Lithium Battery Add On Option, 5 Year Warranty.Enerdrive have created three compact power solutions to operate all of the electrical equipment that is located in 4WD canopies, including a simple fridge or lights setup to a full on power station. There are three models in this range: The Explorer, The Traveller and The Adventurer, all of which can be paired with any brand or model of battery including Wet Sealed, AGM, Gel and Lithium!

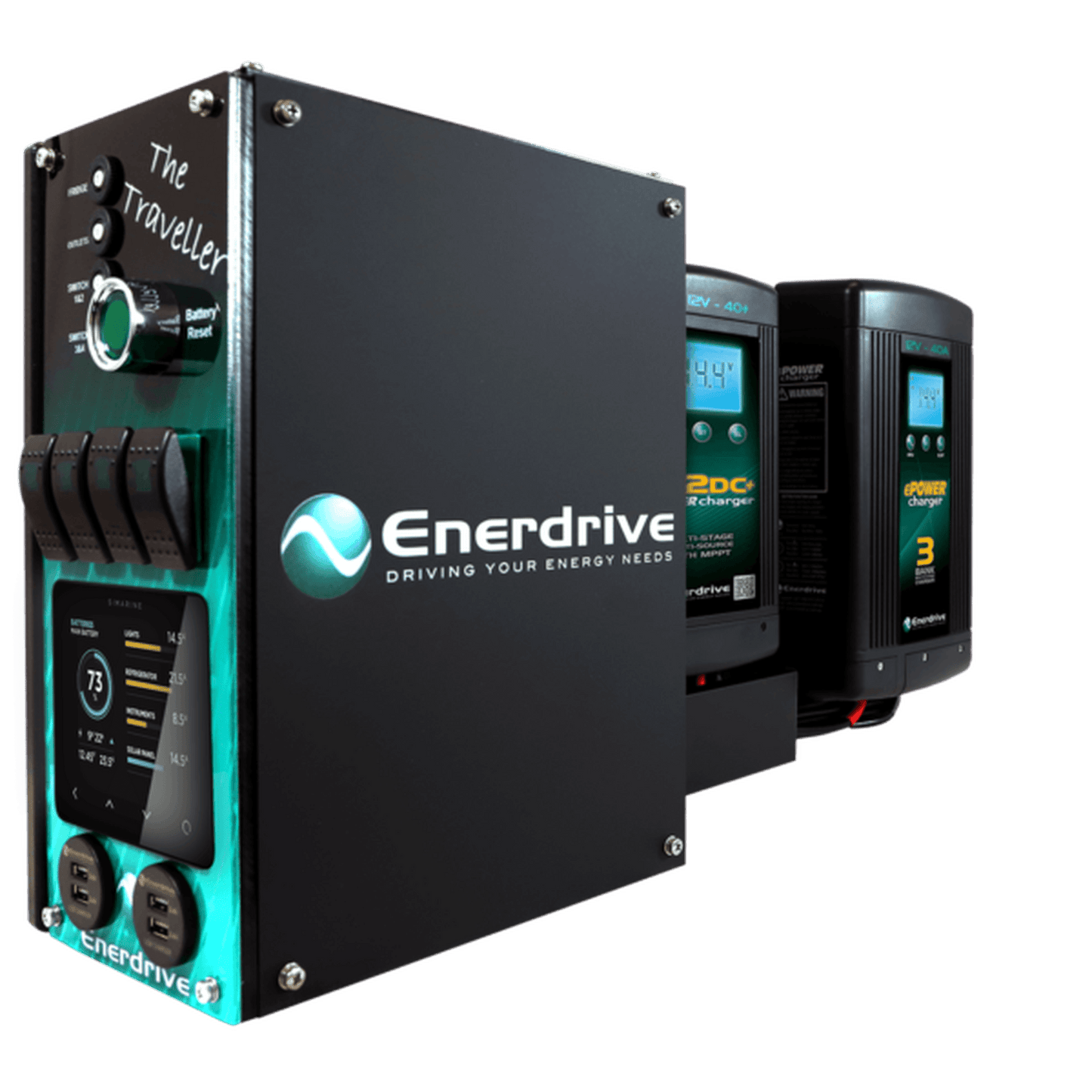

This system is designed for the end user requiring a higher level of power requirements along with AC charging ability. The Traveller consists of the following items
- Enerdrive ePOWER DC2DC40+ Vehicle/Solar Charger
- Enerdrive ePOWER 40A AC charger
- 1 x Battery Monitor (customer has the choice between a ePRO Plus battery monitor, Simarine battery monitor or Simarine Battery Monitor & Quad Shunt Module)
- 4x Pre-wired Circuit Breakers for main power equipment
- 4 x Contura switches for Lights & Auxiliary loads
- Pre-wired 35mm2 Main Battery Cable Connection with Main DC Fuse
- 1 x Fridge 50A Anderson Plug connection
- 1 x 12v CIG & 1 x Dual 2.4A USB sockets come standard. You can choose a mixture of Twin USB 2.4A Hi Amp sockets to charge your mobile devices or mix it up with 2 x 12v Output Socket. The choice is yours at time of order.
- Customers can choose between two colours for the front switch panel of the system. Green or Black. Please specify this special instruction at time of your order.
- Battery Reset button for kick starting your flat battery from the DC2DC Charger
- Optional Water/Fuel Tank module also available. (K-TRAVELLER-02 & 03)

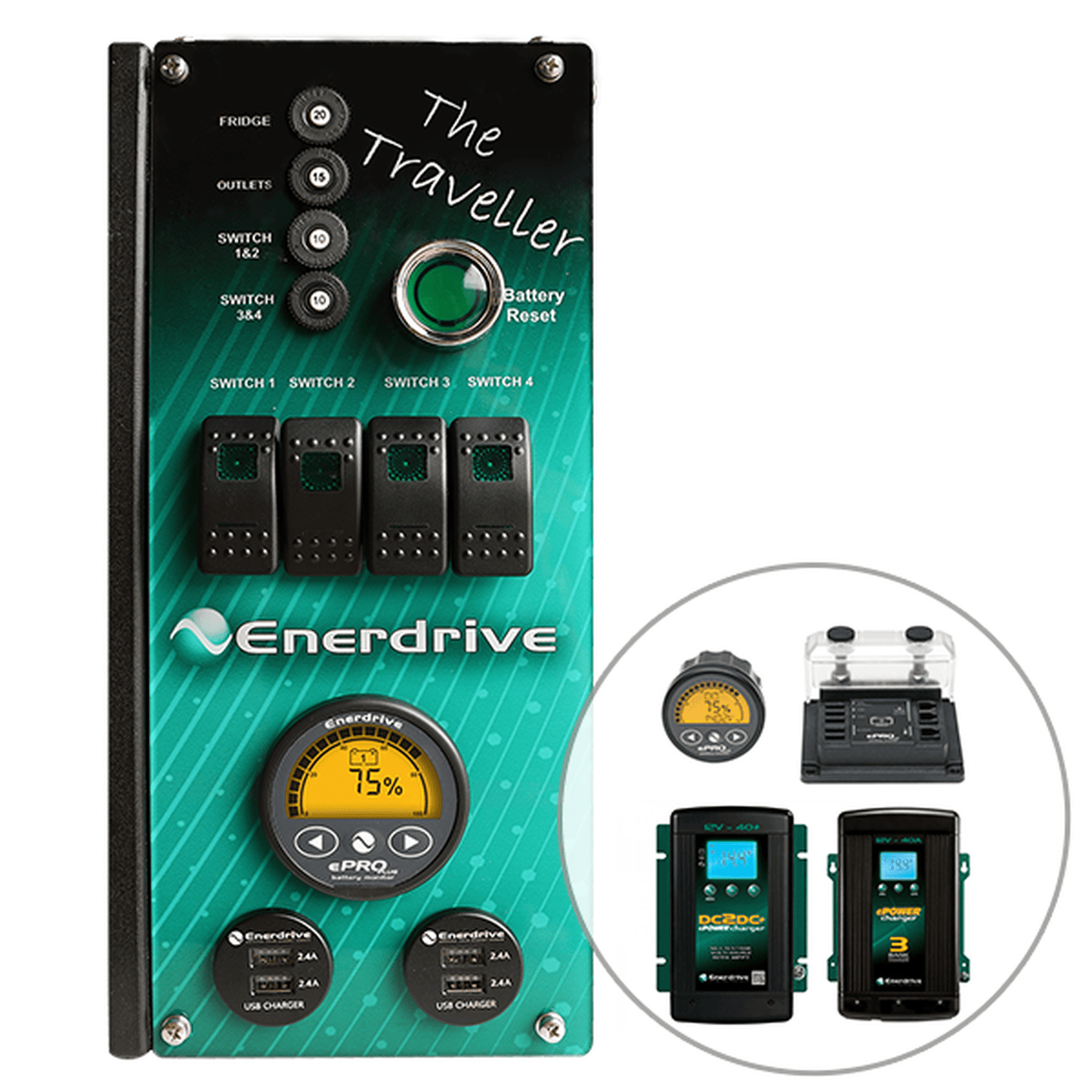

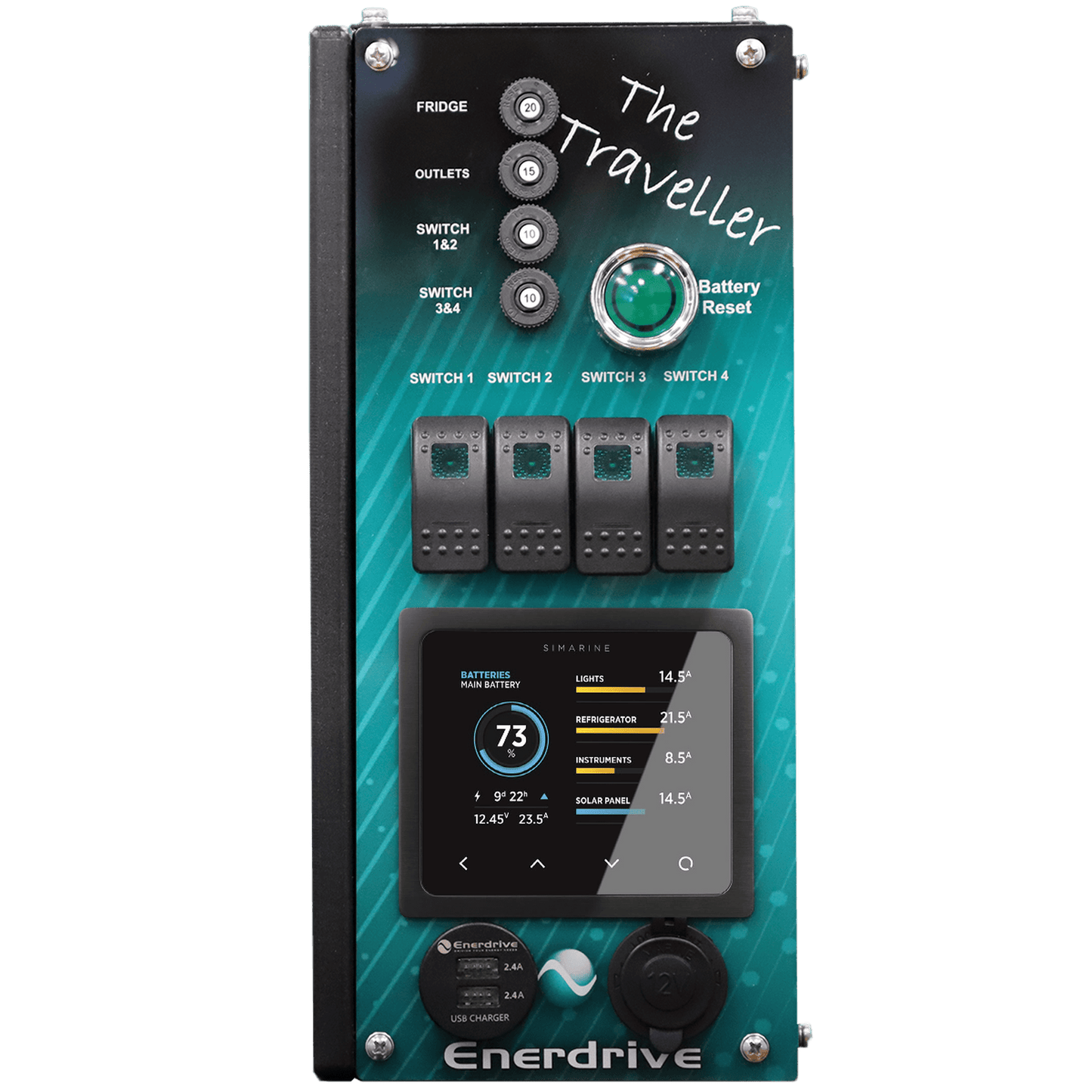

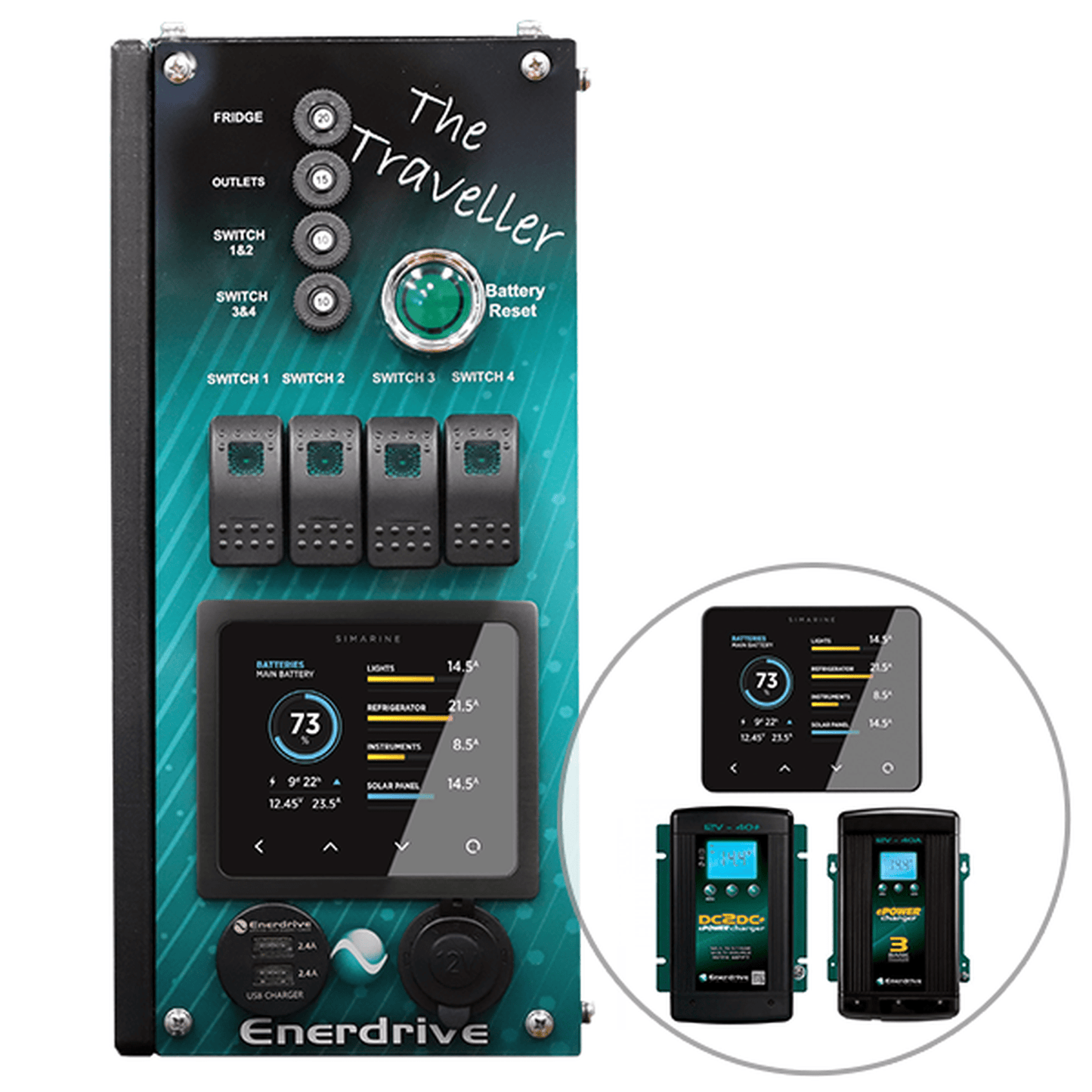

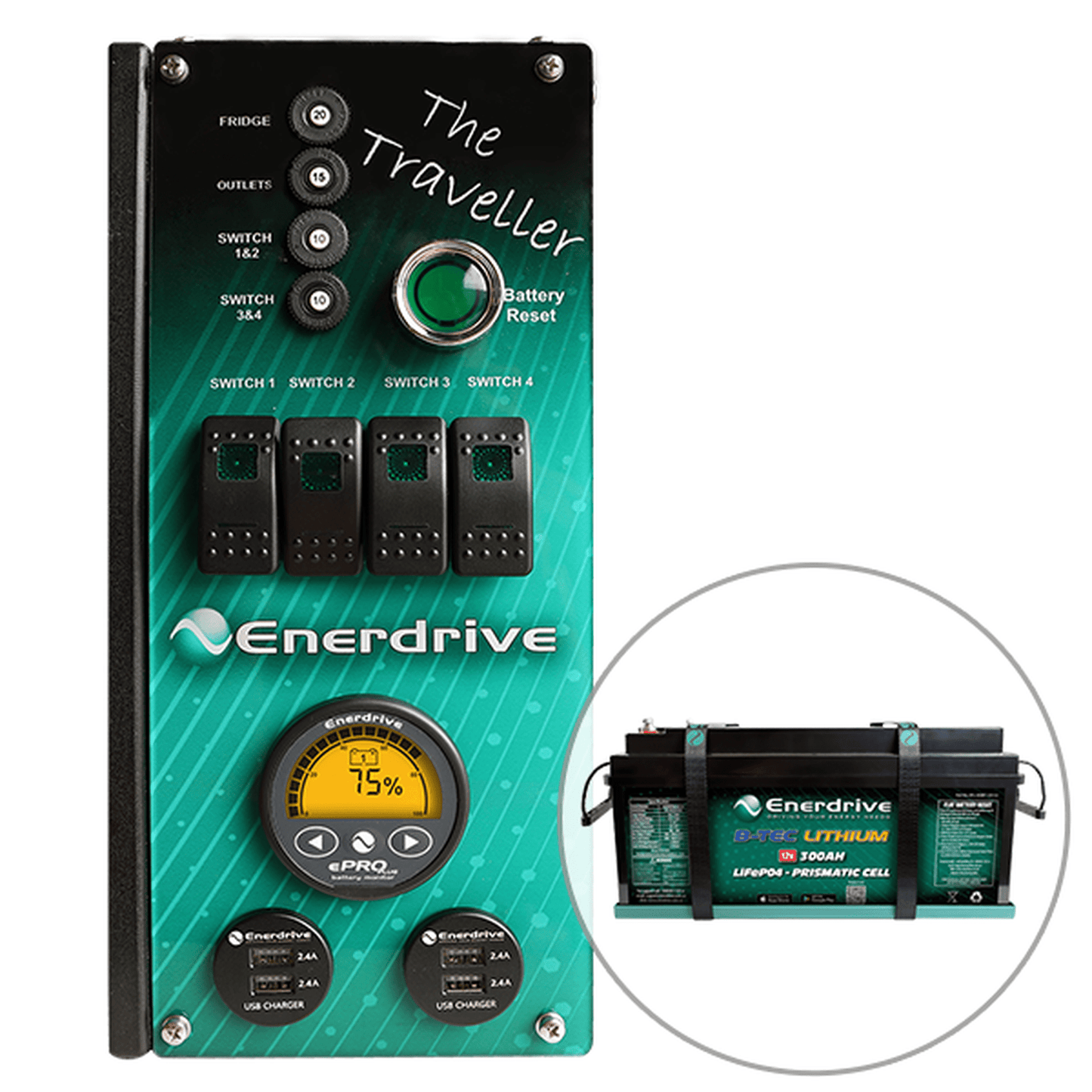

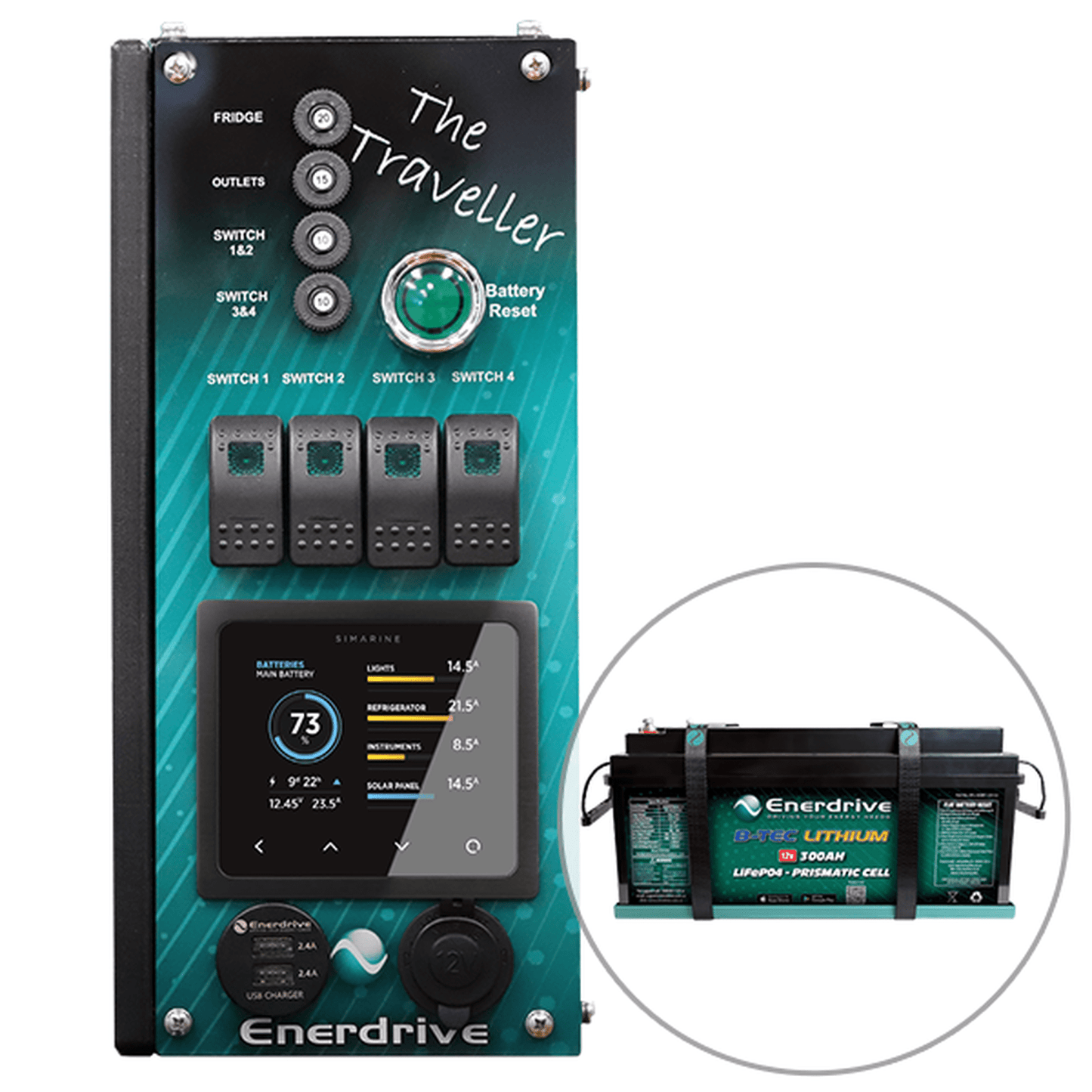

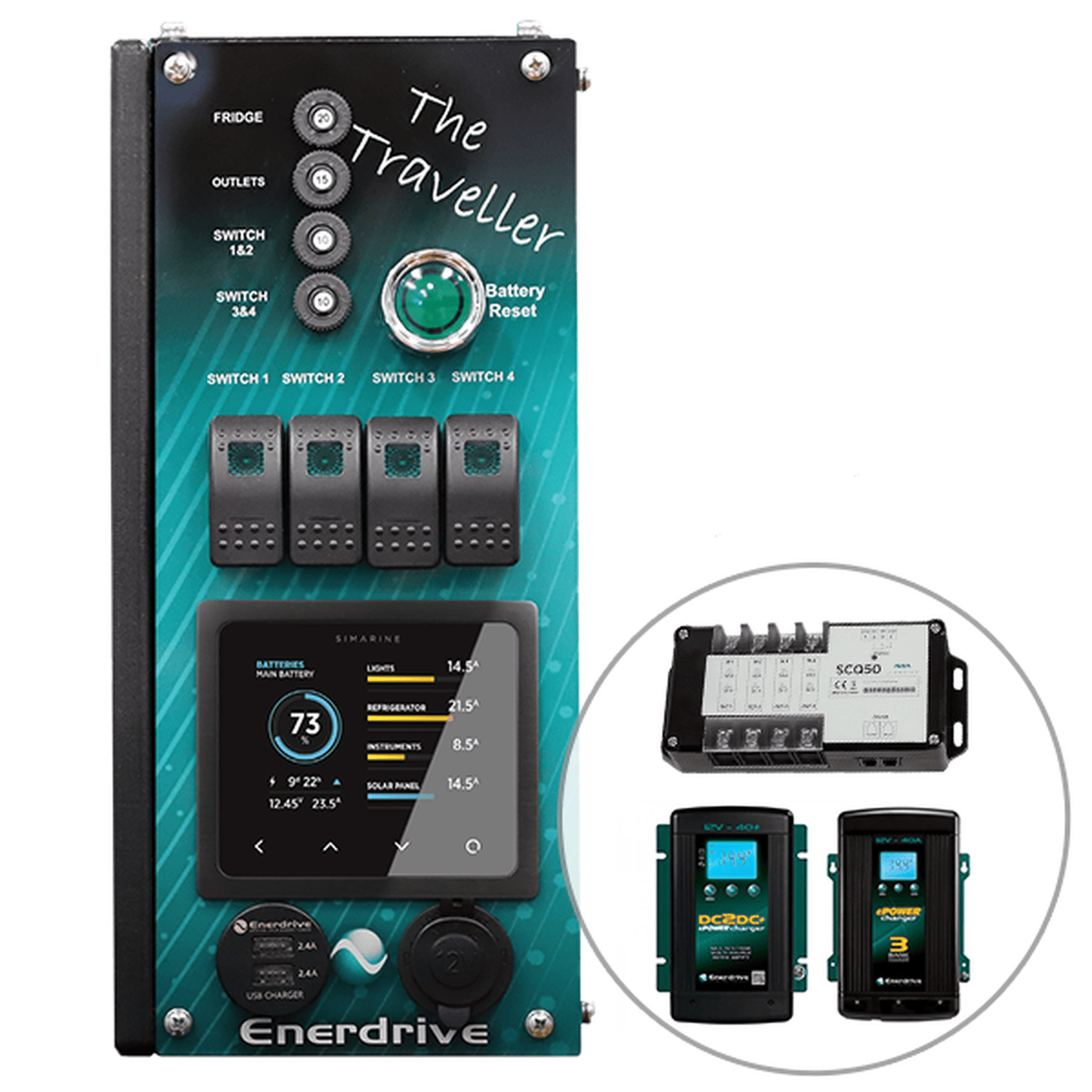

Please note, each system either comes standard with a ePRO Plus battery monitor (as shown in images), Simarine Battery Monitor (as shown in images), or upgrade to a Simarine Battery Monitor & Quad Shunt Module for an additional cost (you can make this selection above before adding product to cart).
All systems are pre-wired by Enerdrive where possible so the only cabling required at installation time is load outputs, battery connection, & vehicle/solar/tank inputs
All systems are built into a unique compact box arrangement and designed to mount on either the front or rear bulkheads of the vehicles canopy. The systems are available in either passenger side, drivers side or roofmount installation. Any brand of battery is suitable from Wet Sealed, AGM, Gel and Lithium.
Enerdrive are proud to bring to market this innovative design that can be installed by the canopy manufacturer or end user in a neat one piece installation.
The Enerdrive power systems now come with a Battery Cable with in line fuse for easy connection to your battery. This cable will be hardwired to the system as part of production.
Power system included Battery Cable Specifications
- Explorer and Traveller System - 1m positive and negative cable (35mm2) with 100A in line fuse and fuse holder. Terminated with 8mm lugs for battery connection.
- Adventurer System - 1m positive and negative cable (70mm2) with 250A in line fuse and fuse holder. Terminated with 8mm lugs for battery connection.

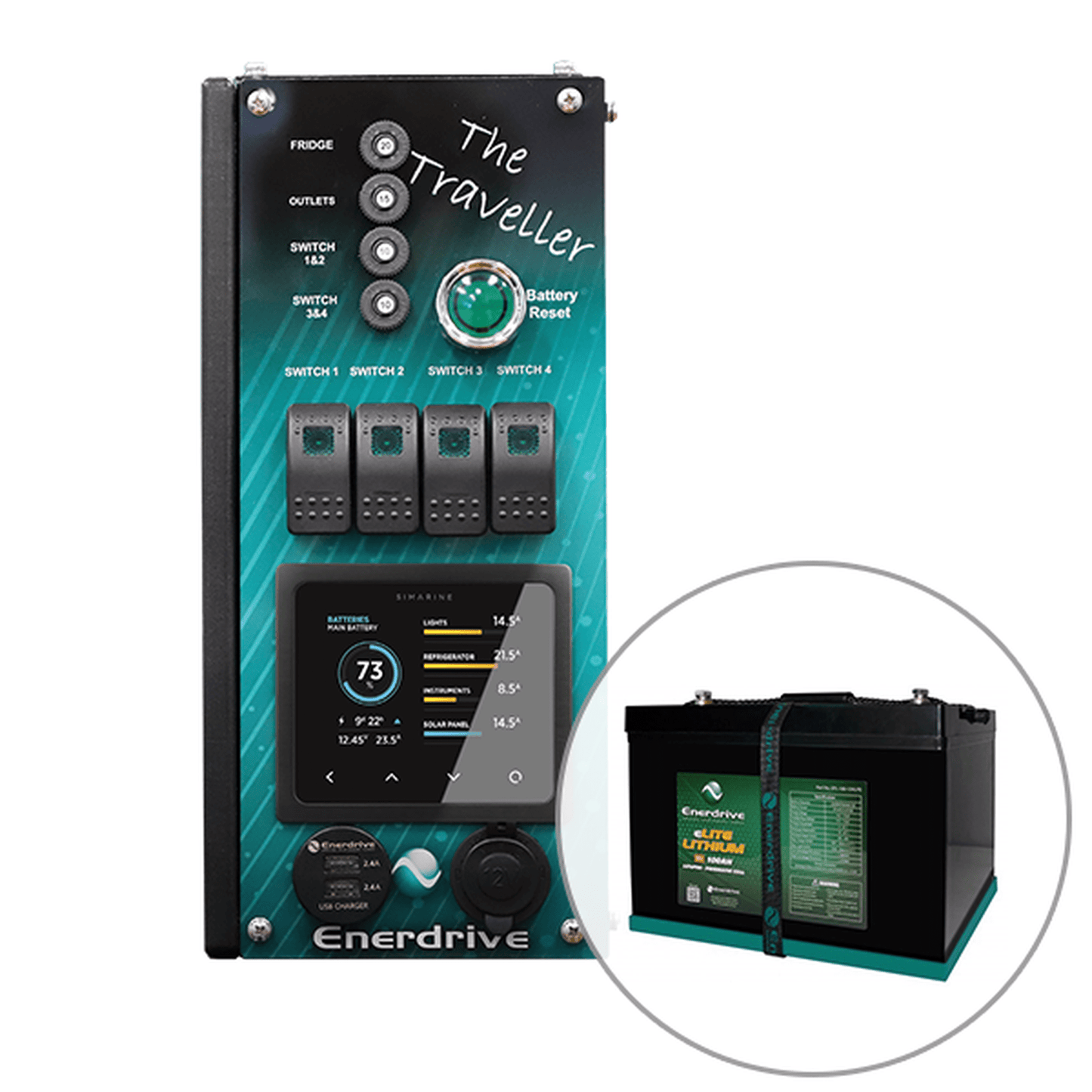

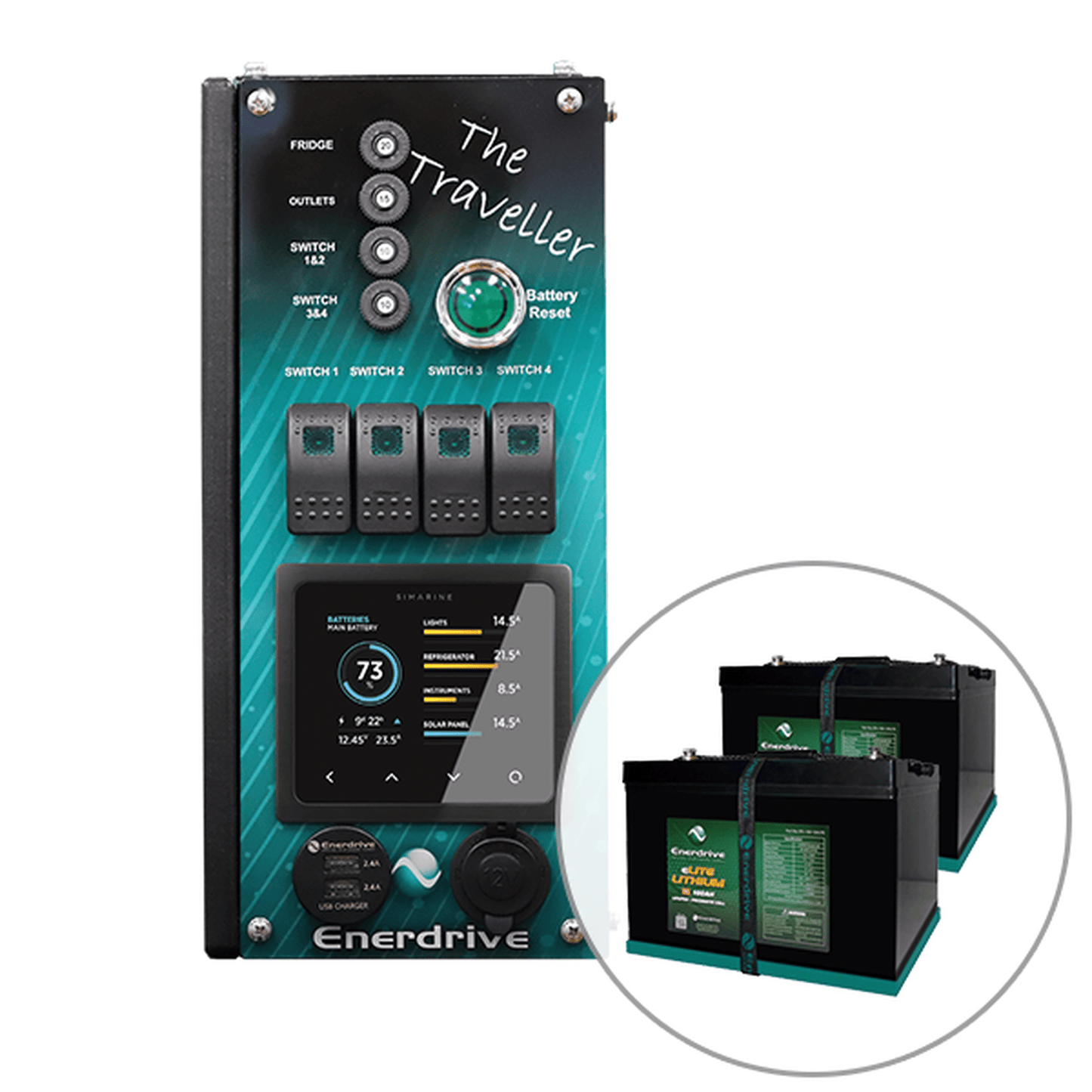

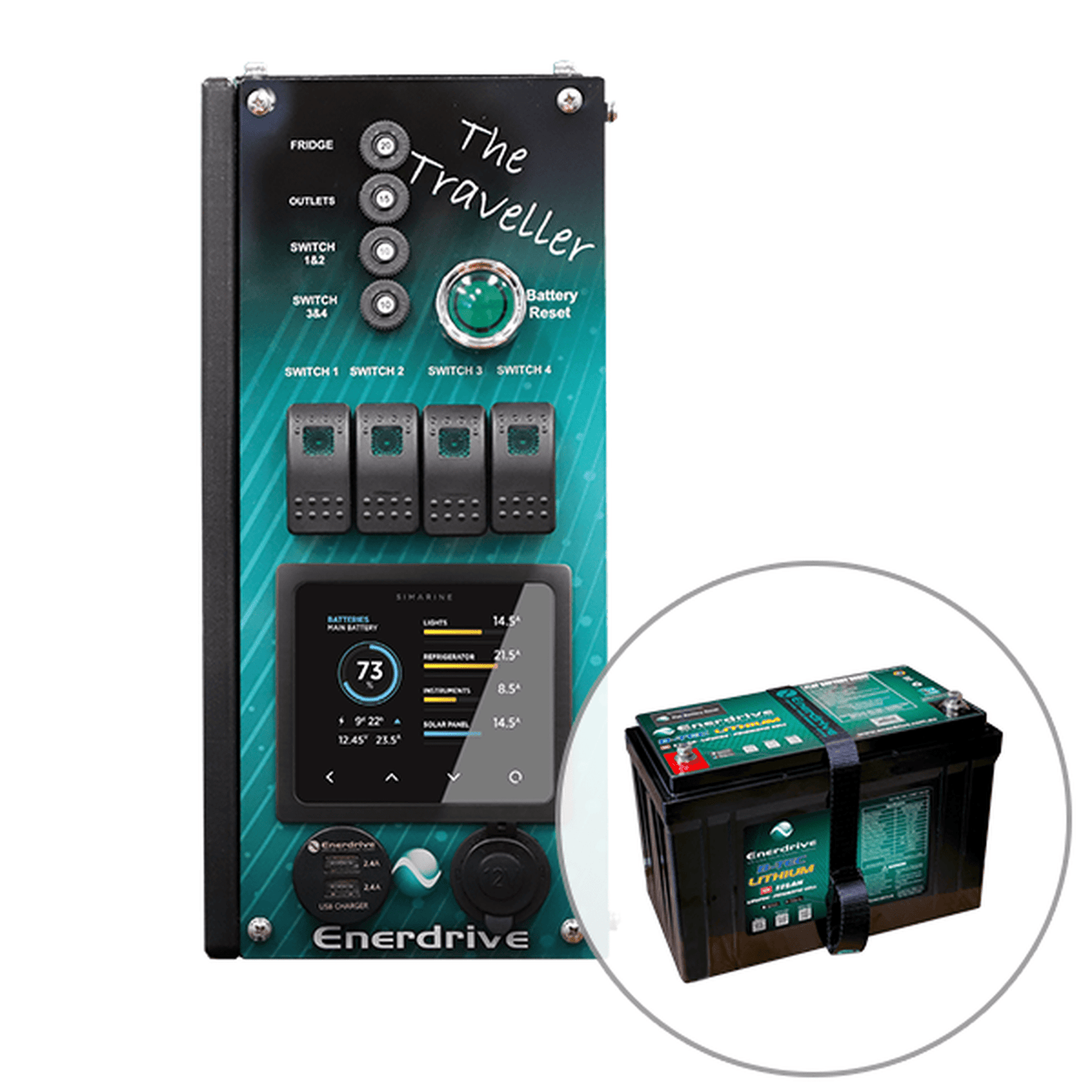

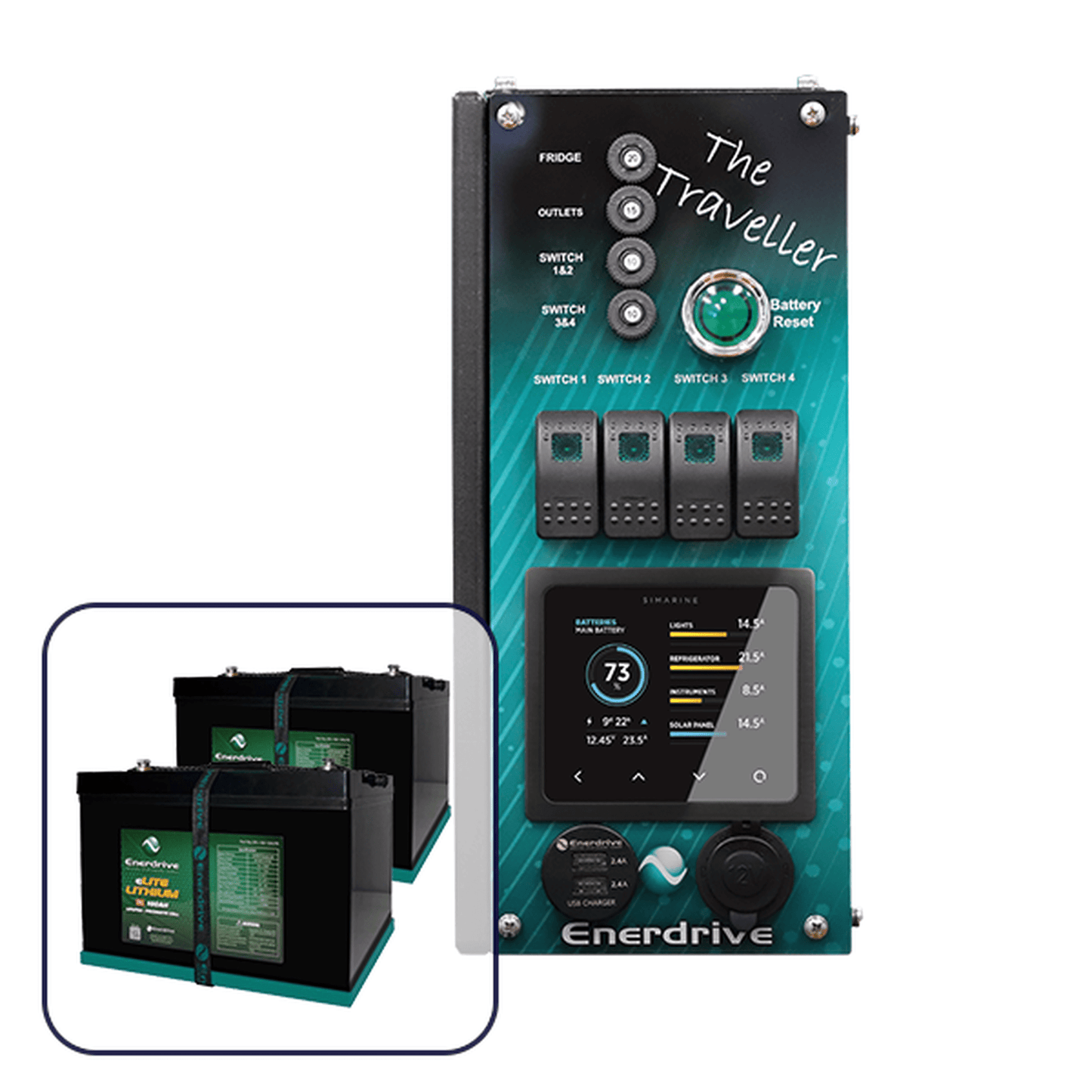

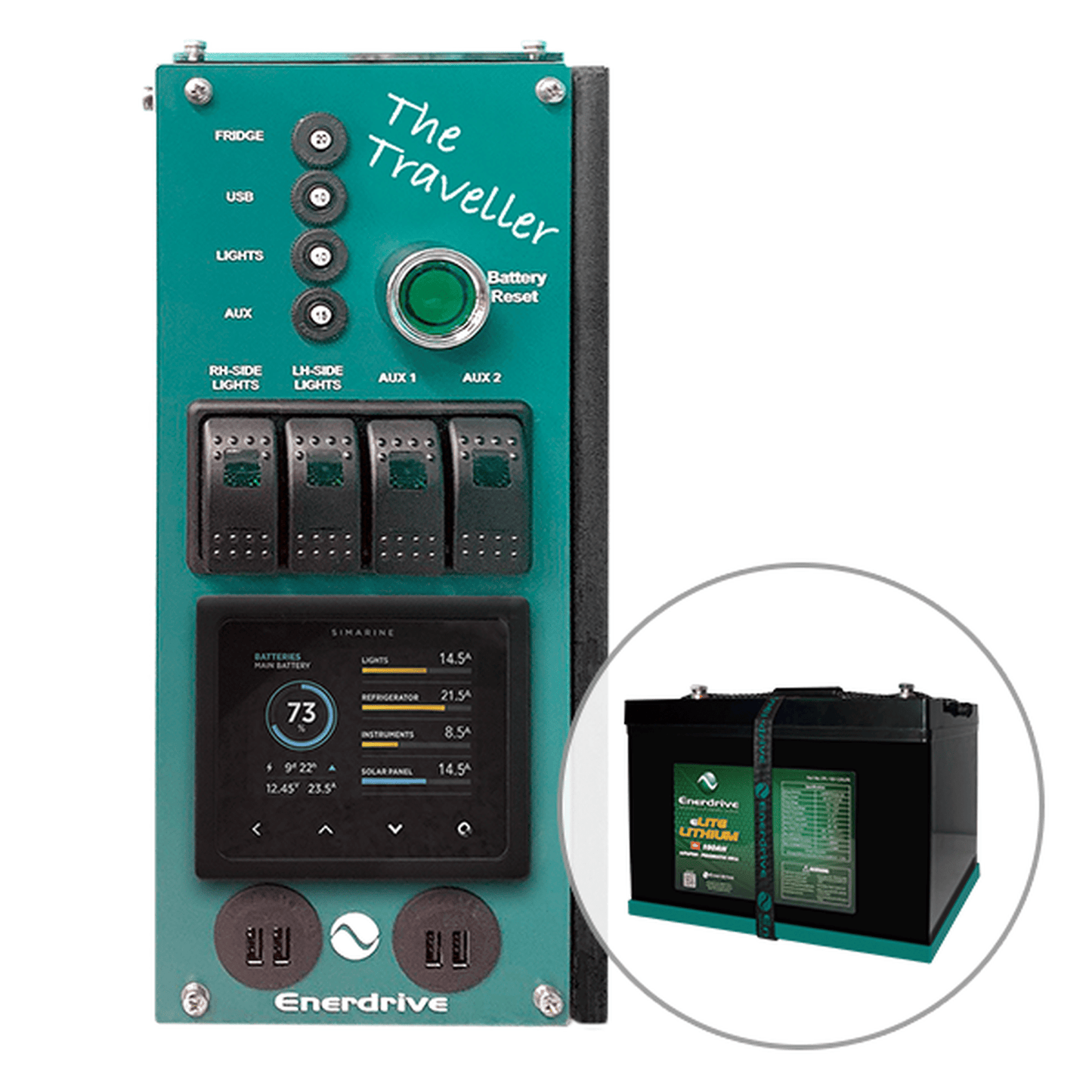

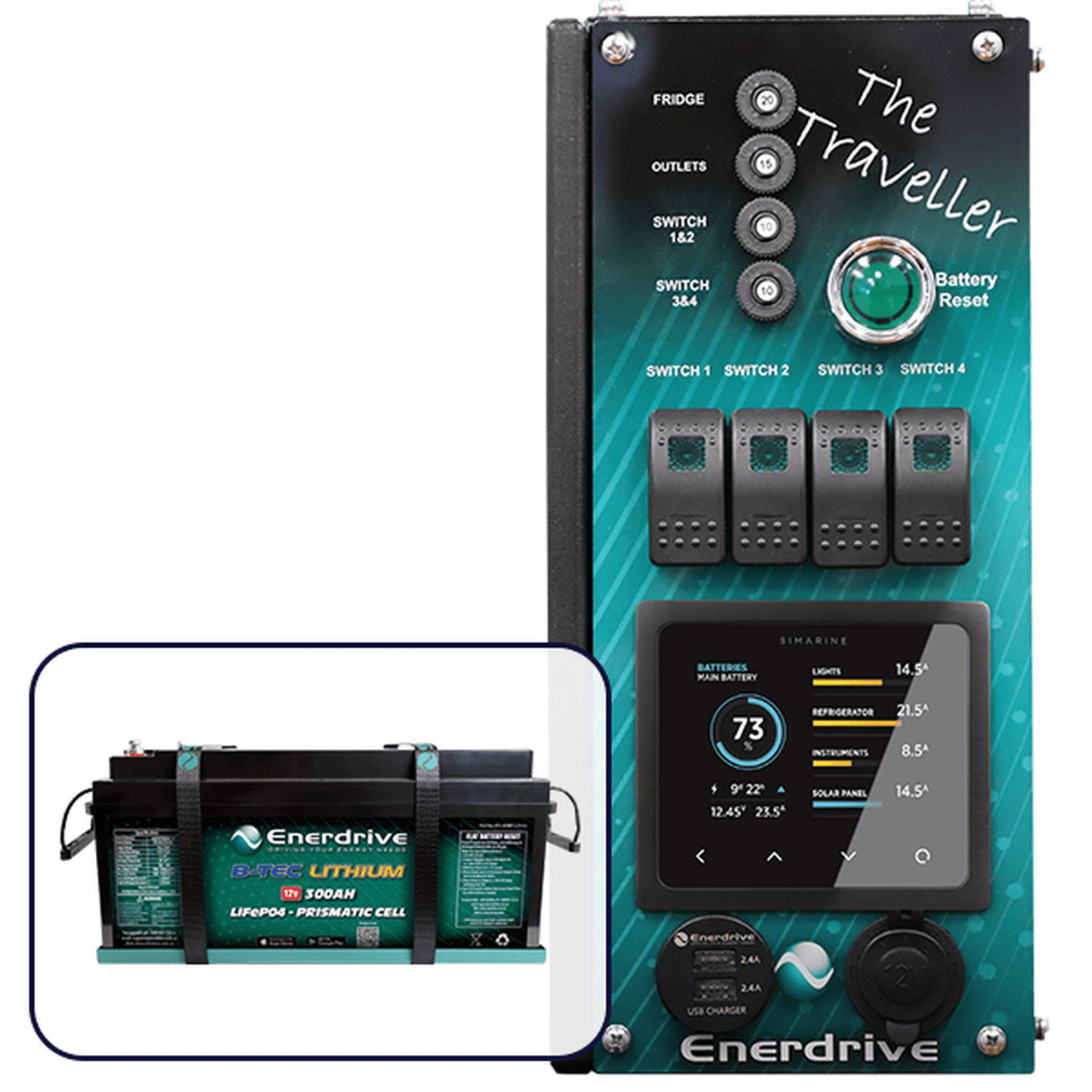

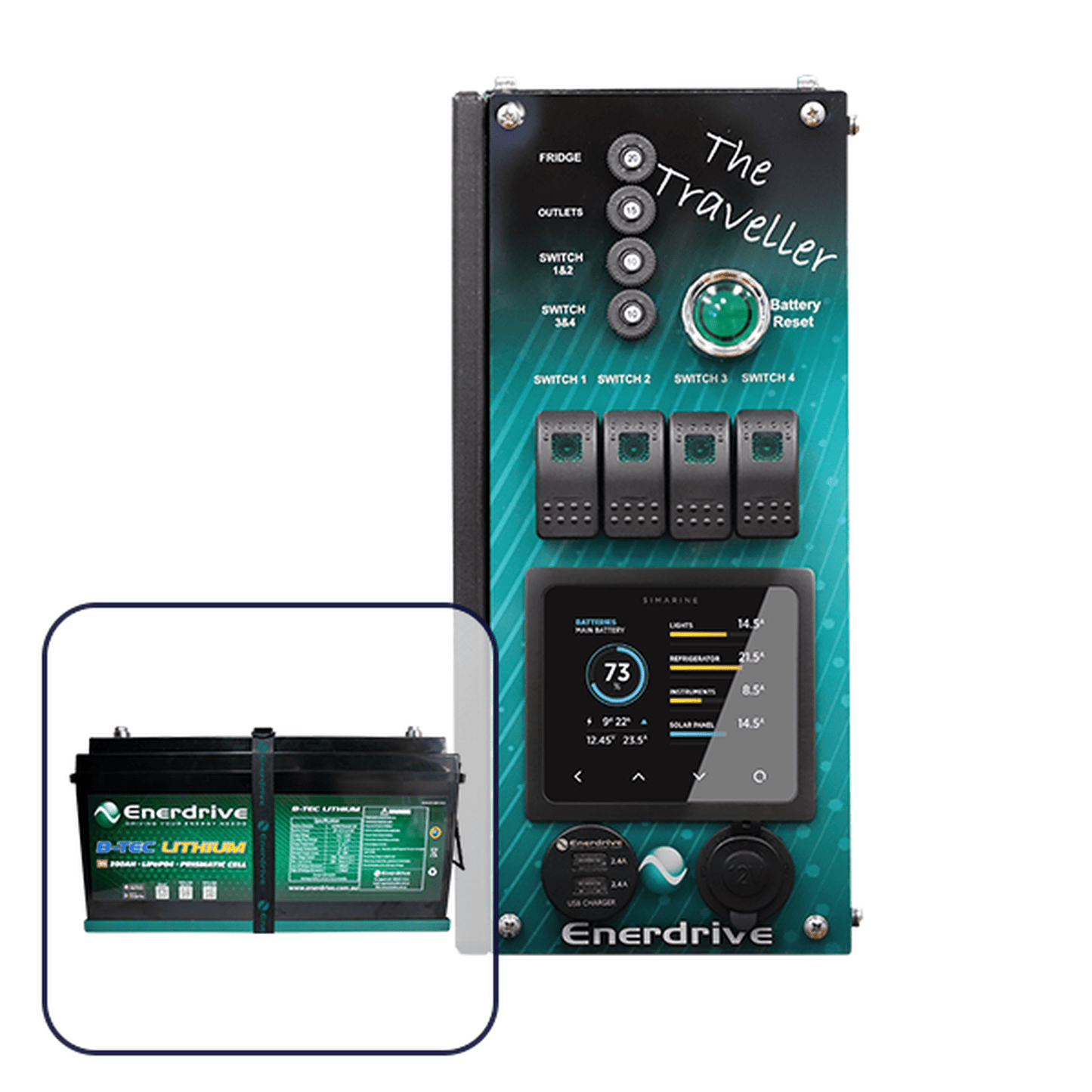

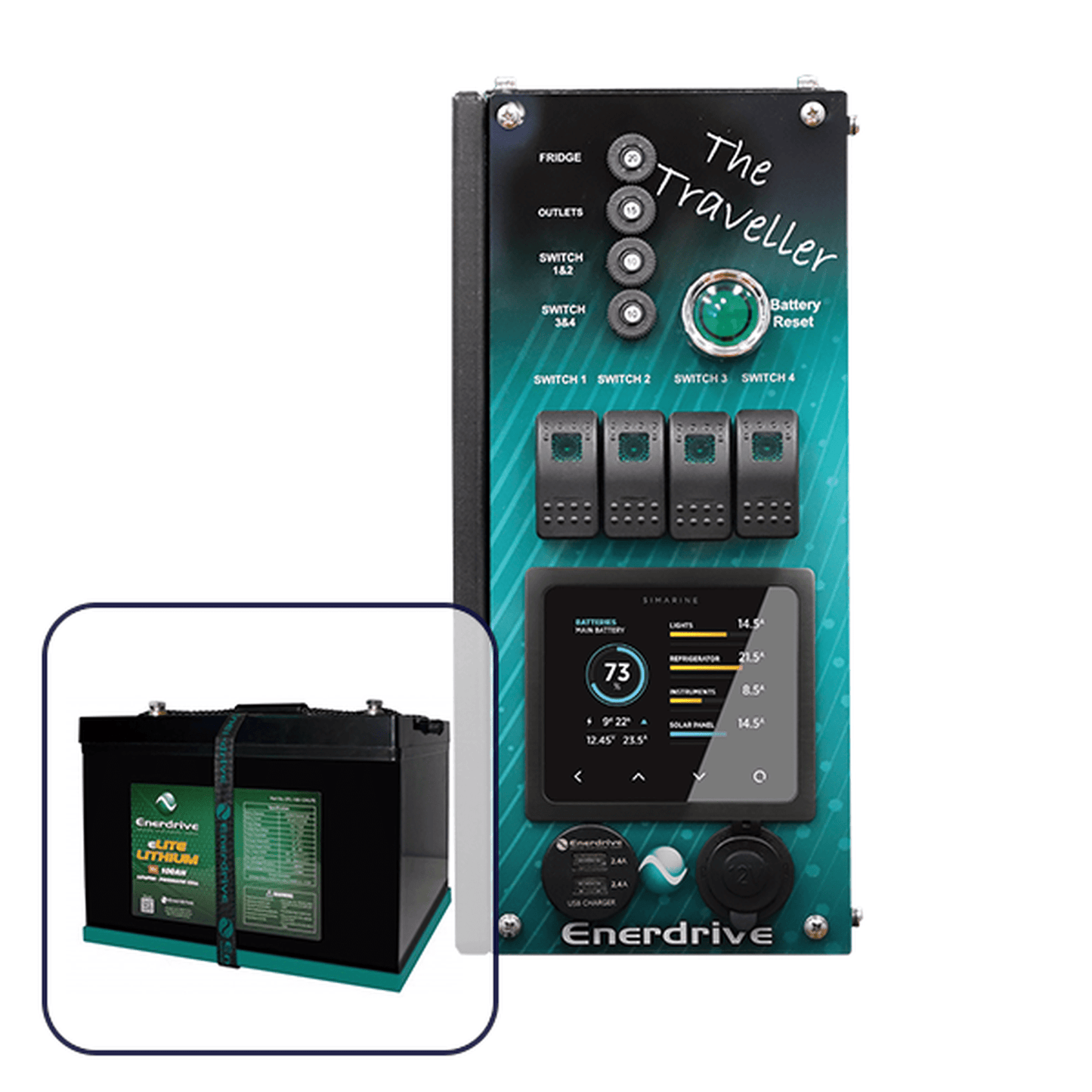

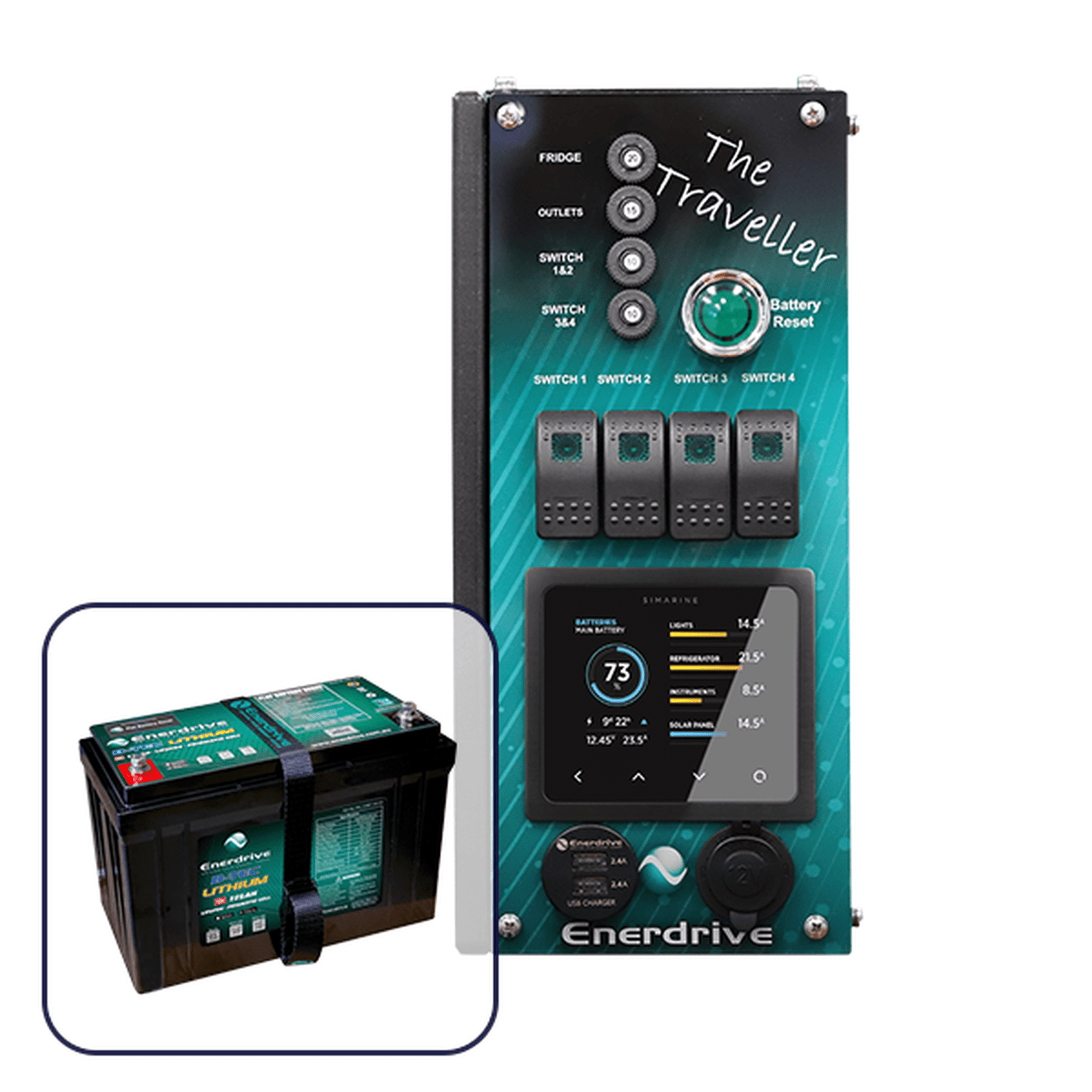

Please also note, a 100Ah, 2x 100Ah, 125Ah, 200Ah, 200Ah Slimeline or 300Ah lithium battery can also be added to this bundle for an additional cost.
Installation option: Passenger side, Driver Side or Roof Mount (NOTE: These are demonstration models ONLY)
Items Included |
The Traveller |
---|---|
ePOWER DC2DC 40+ Charger (Vehicle/Solar) |
* |
ePOWER 40A AC Charger |
* |
ePRO Plus Battery Monitor |
K-TRAVELLER-01 |
Simarine LCD Battery WIFI Monitoring System |
K-TRAVELLER-02 K-TRAVELLER-03 |
4x Pre-Wired Circuit Breakers for Main Power Equipment |
* |
4 x Contura Switches |
* |
Pre-wired 35mm2 Main Battery Cable Connection with Main DC Fuse |
* |
Pre-wired Fridge 50A Anderson Plug connection |
* |
Twin USB 2.4A Hi Amp Sockets |
* |
Cig Socket to Replace One or Both USB Sockets. (Please Request at Time of Order) |
Optional |
Battery Reset Button |
* |
Individual Load/Charge Module for Simarine. (#SI-SCQ50) |
K-TRAVELLER-03 |
Water/Fuel Tank Module for Simarine. (#SI-ST107) |
K-TRAVELLER-02 (Optional) K-TRAVELLER-03 (Optional) |
Dimensions |
685L x 155W x 330Hmm |
Weight |
10.5kg |
(*) Indicates Standard Fitment
Specifications
SKU - K-TRAVELLER
Brand - Enerdrive
Product Category - Power Systems
Warranty Period - 5 Years
Discharge Cut-off Voltage - ≤11.20V (100Ah, 125Ah, 200Ah & 300Ah Battery)
Normal Charge Voltage CV/CC* - 14.20 ̴ 14.60V (100Ah Battery) | 14.40 ̴ 14.60V (125Ah & 200Ah & 300Ah Battery)
Maximum Charge Current - 80A @ 25°C for 30mins (100Ah Battery) | 60A @ 25°C for 30mins (125Ah Battery) | 150A @ 25°C for 30mins (200Ah Battery) | 190A @ 25°C for 30mins (300Ah
DC Output Connection - Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Battery Charger)
Nominal Voltage - 12.8V (100Ah, 125Ah, 200Ah & 300Ah Battery)
Output Short Circuit - Yes, (with user replaceable fuse/s) (AC Battery Charger)
Dimensions - 685 x 155 x 330mm (Traveller System Overall) | 242 x 172 x 74mm (DC Battery Charger) | 295mm x 206mm x 90mm (AC Battery Charger) | 310 x 170 x 225 mm
Power Factor Correction - Yes (AC Battery Charger)
Voltage - 12V (100Ah, 125Ah, 200Ah & 300Ah Battery)
Battery Discharge Temperature - -20 ̴ 60°C (100Ah, 125Ah, 200Ah & 300Ah Battery)
Selectable Battery Type - Gel, AGM, Flooded, Lithium, Program (DC & AC Battery Charger) (AC Battery Charger)
Storage Range (temp) - -40° to 70° C (AC Battery Charger)
Power consumption (DC 12V) - 700W (Full Load) (AC Battery Charger)
Efficiency - 95% (DC Battery Charger)
Standby Current - < 2 mA (AC Battery Charger)
LCD Display - Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)
Battery Output Voltage Range - 11.00 ̴ 14.60V (100Ah, 125Ah, 200Ah & 300Ah Battery)
Pulse Discharge Current - 450A for 1.0s (100Ah, 125Ah, 200Ah & 300Ah Battery)
Regulatory Compliance - Complies with AS/NZS 60335.2.29 Including Australian deviations (AC Battery Charger)
Cycle Life (DOD – 80% under controlled conditions) - ≥ 2000 Cycles (100Ah, 125Ah, 200Ah & 300Ah Battery)
AC Input Connection - IEC with Supplied 1.2M Power Lead (AC Battery Charger)
Operating Range (temp) - -20° to 60° C (AC Battery Charger)
Over Charge - Yes, unit shutdown (AC Battery Charger)
NOTE - You must specify if you want a lithium battery with the system or not. Please also note, weight below is just for the canopy system,
AC Input Frequency Range - 47 – 63 Hz (AC Battery Charger)
Battery Charge Temperature - 0 ̴ 45°C (100Ah, 125Ah, 200Ah & 300Ah Battery)
Equalize - 15.5V (DC Battery Charger) | 16.0 V (AC Battery Charger)
Charger Efficiency - > 82% (AC Battery Charger)
AC Input Operating Range - 207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max) (AC Battery Charger)
Ingress Protection - IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)
Float - 13.0V - 13.8V (DC Battery Charger) | 13.4 – 13.8 V (AC Battery Charger)
AC Input Voltage - 90 to 265 VAC (AC Battery Charger)
Standby (Float) Voltage - 13.50 ̴ 13.80V (100Ah, 125Ah, 200Ah & 300Ah Battery)
Recommended Charge Current for Maximum Life - ≤ 33A (100Ah Battery) | ≤ 40A (125Ah & 200Ah Battery) | 80 ~ 120A(300Ah Battery)
DC Output Ground - Single Heavy Duty Common Ground Stud (AC Battery Charger)
Nominal Capacity - 100Ah, 125Ah, 200Ah or 300Ah(Batteries)
Battery Temp Sensor Port - RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)
Humidity - 5-95%, relative humidity non-condensing (AC Battery Charger)
Reverse Polarity - Yes, (with user replaceable fuse/s) (AC Battery Charger)
DC Output - Single (DC Battery Charger) | Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)
Over Temperature Protection - Yes, unit de-rated and shutdown (AC Battery Charger)
Temperature Setting - Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger) | Hot, Normal, Cold (no sensor connected) (AC Battery Charger)
Charger Mode Output Voltage - 13.8V - 15.5V (DC Battery Charger) | 14.2 – 15.5 V (AC Battery Charger)
Cooling - Forced air ventilation (thermo controlled fan) (AC Battery Charger)
Maximum Discharge Current - 100A @ 25°C ± 5°C for 30mins (100Ah & 125Ah Battery) | 200A @ 25°C ± 5°C for 30mins (200Ah Battery) | 250A @ 25˚C ±5˚C for 15 mins(300Ah Battery)
Charging Control - Three Stages (DC Battery Charger) | Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setti
Output System Voltage - 12V
Net Weight (kg) - 10.5
