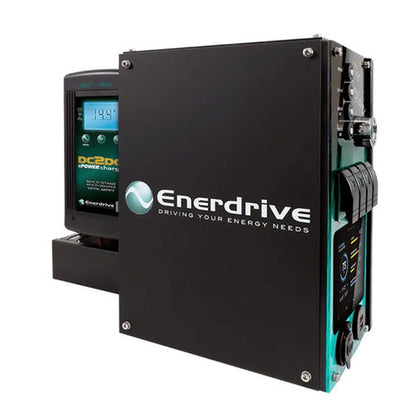

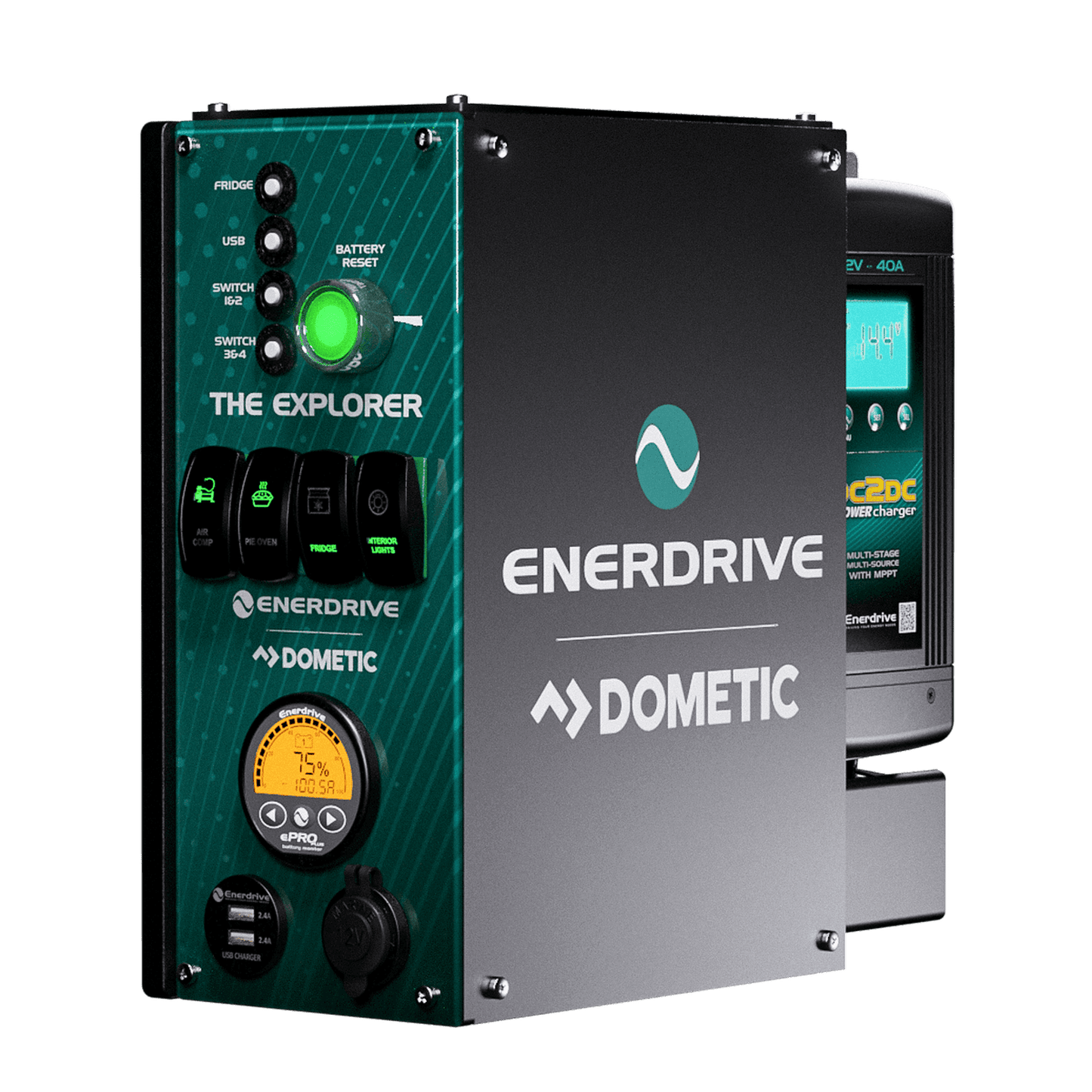

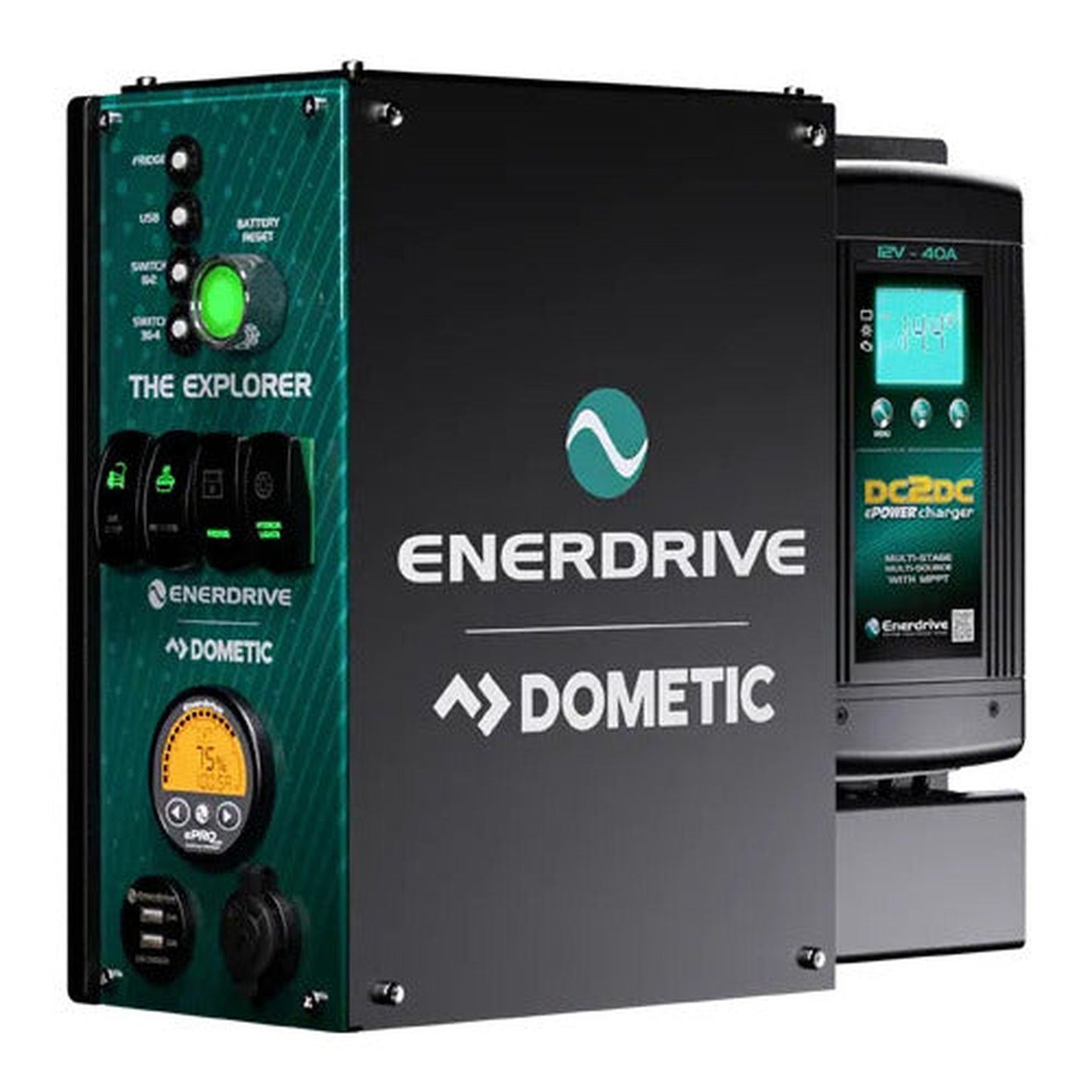

Enerdrive 4WD Canopy Explorer System with 40A DC2DC Charger, With Lithium Battery Add On Option, 5 Year Warranty. Enerdrive's compact canopy power systems (Explorer, Traveller and Adventurer) run everything in your 4WD canopy, from a simple fridge and lights setup to a full power station. The Explorer is the minimum power option in a neat package. Suits any brand of wet, sealed, AGM, gel or lithium battery.
What's included

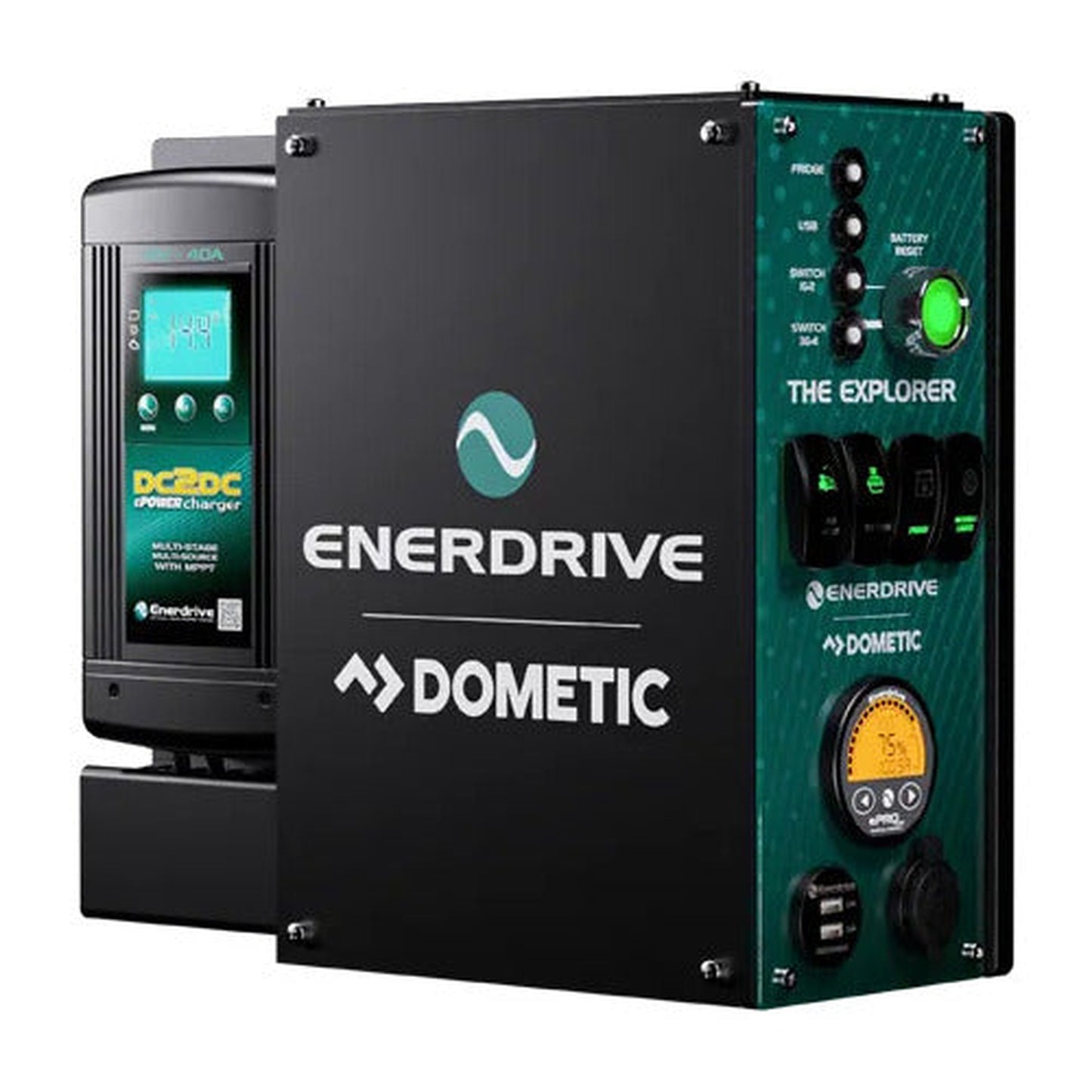

- Enerdrive ePOWER DC2DC40+ vehicle/solar charger

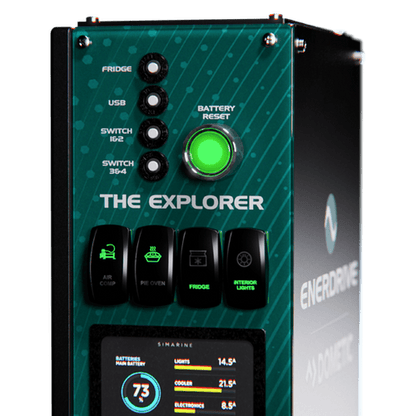

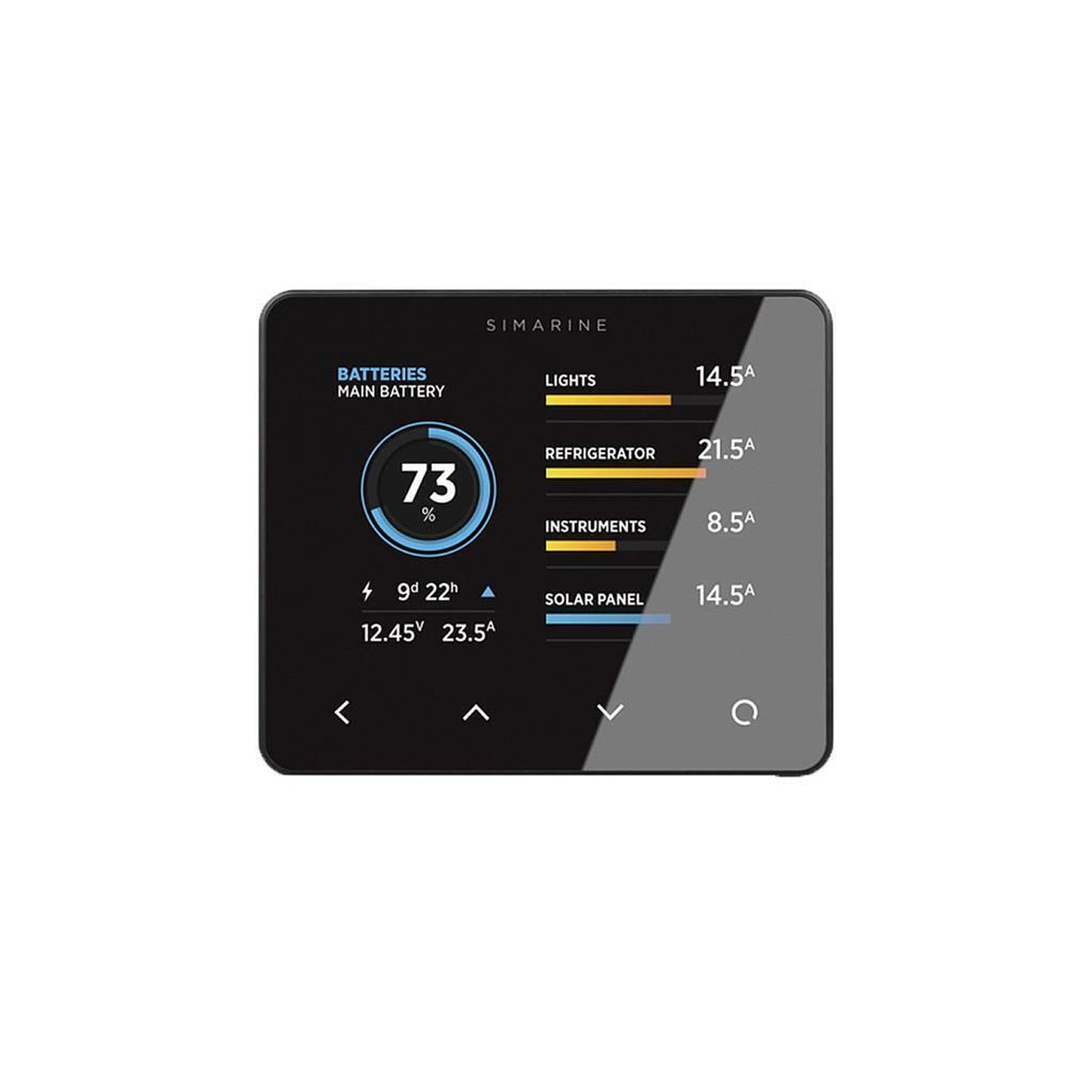

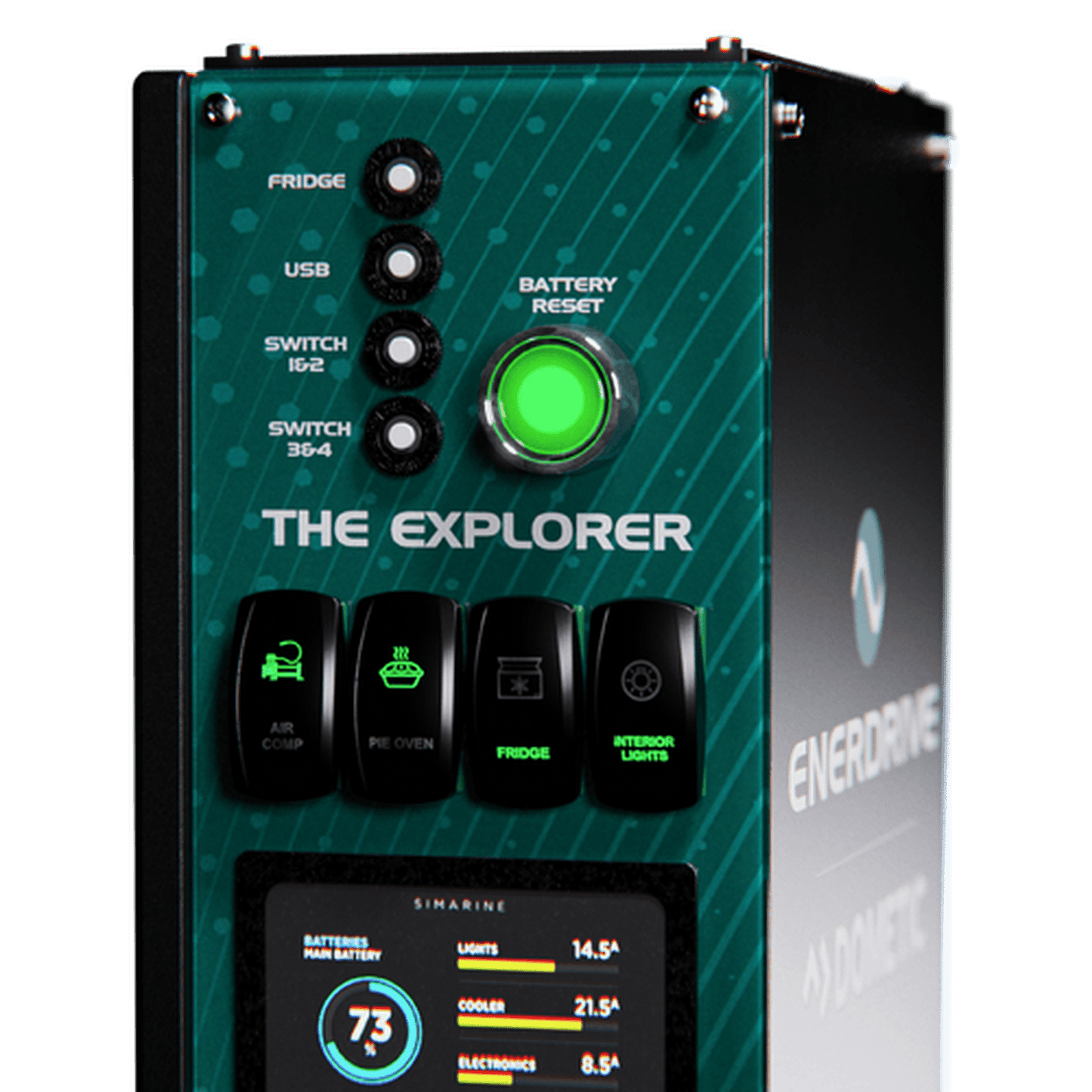

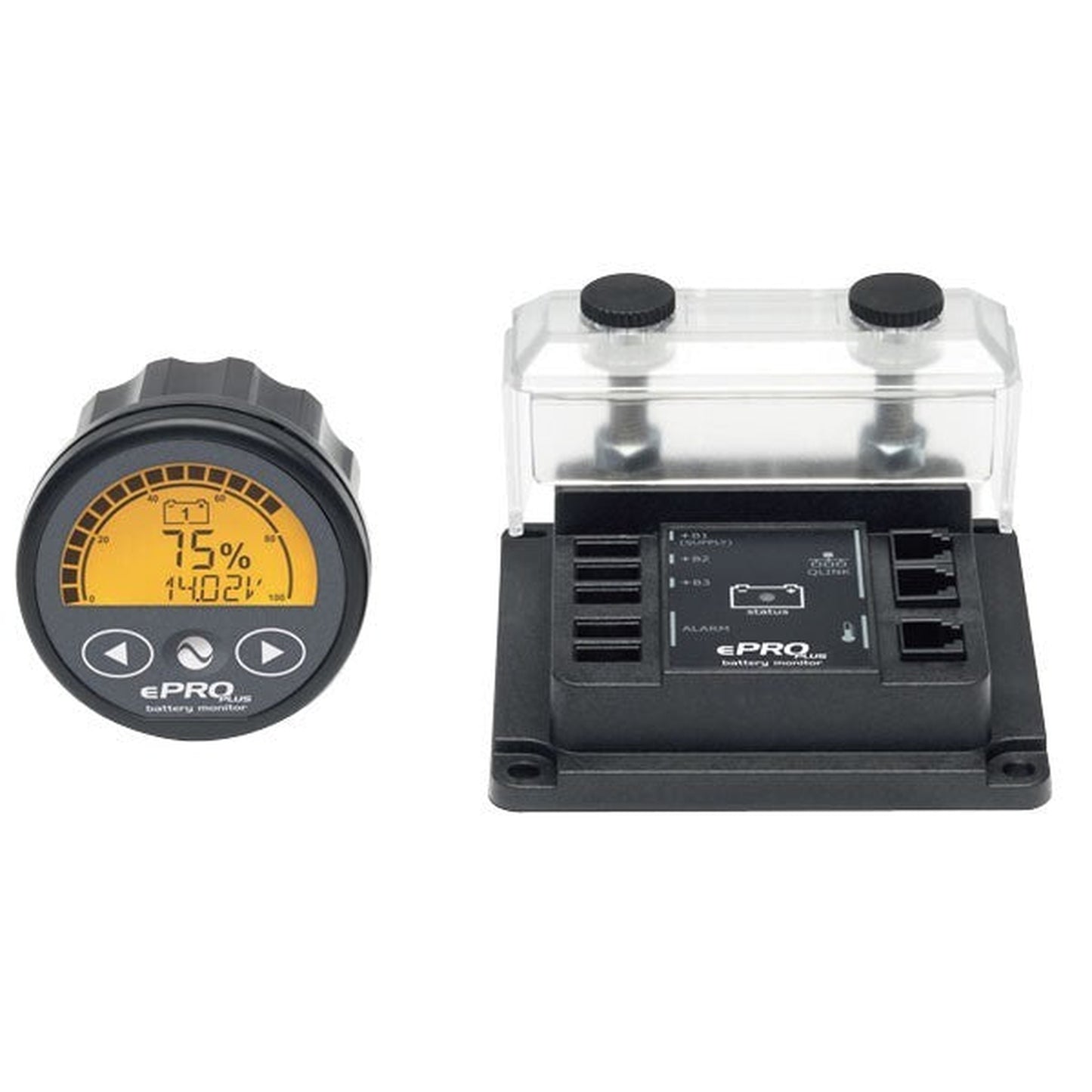

- 1 x battery monitor: ePRO Plus standard (K-EXPLORER-01), or upgrade to a Simarine LCD WiFi monitoring system (K-EXPLORER-02) or Simarine with quad shunt individual load/charge module SI-SCQ50 (K-EXPLORER-03) for an additional cost. Select before adding to cart.
- 4 x pre-wired circuit breakers for main power equipment
- 4 x Contura switches for lights and auxiliary loads
- Pre-wired 35mm² main battery cable connection with main DC fuse
- Pre-wired fridge 50A Anderson plug connection
- 1 x 12V cig and 1 x dual 2.4A USB socket standard. Choose twin USB 2.4A sockets or 2 x 12V sockets at time of order.
- Front switch panel in green or black (specify at time of order)
- Battery reset button for kick-starting a flat battery from the DC2DC charger
- Optional water/fuel tank module for Simarine, SI-ST107 (K-EXPLORER-02 & 03)
- Battery cable: 1m positive and negative 35mm² cable with 100A in-line fuse and holder, 8mm lugs, hardwired to the system

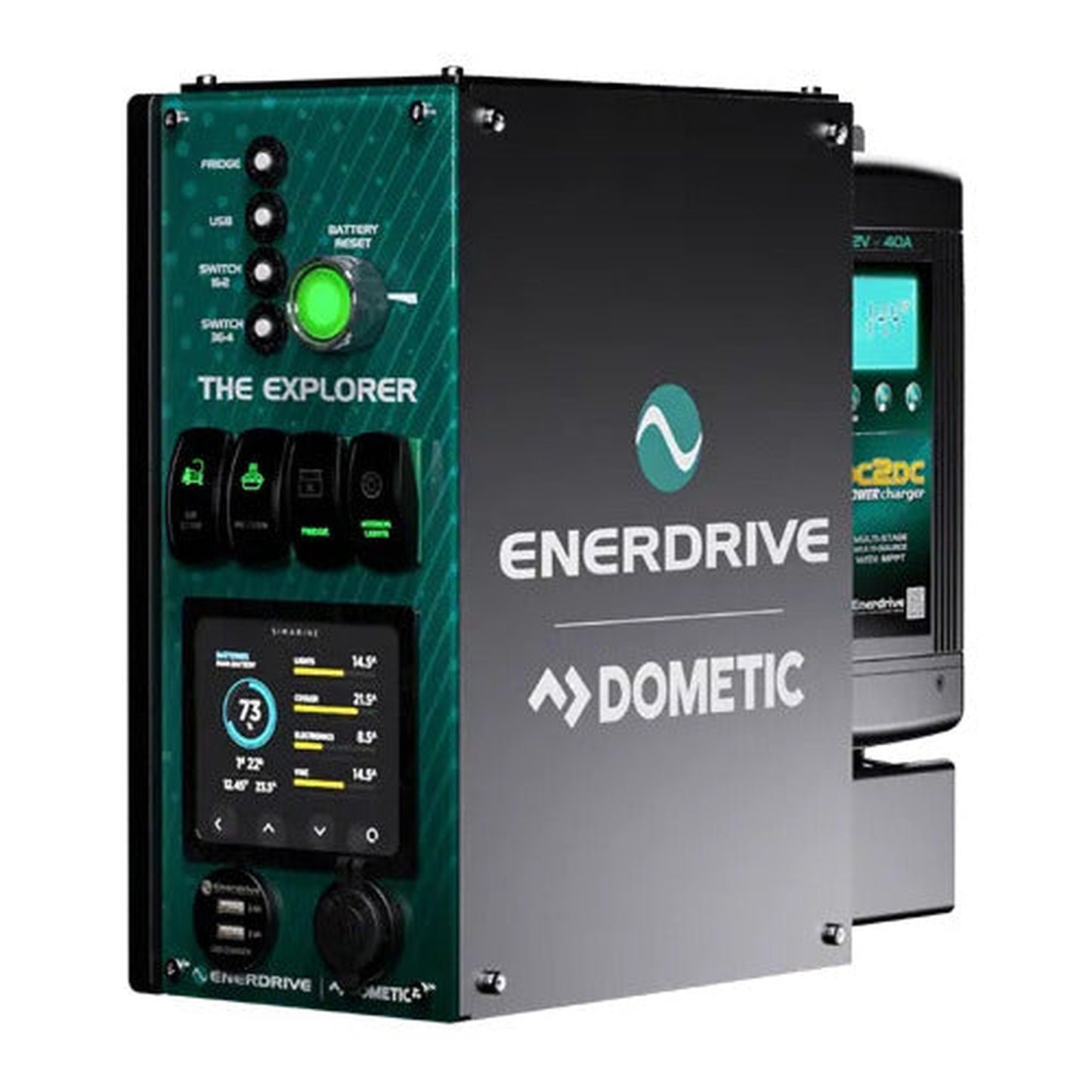

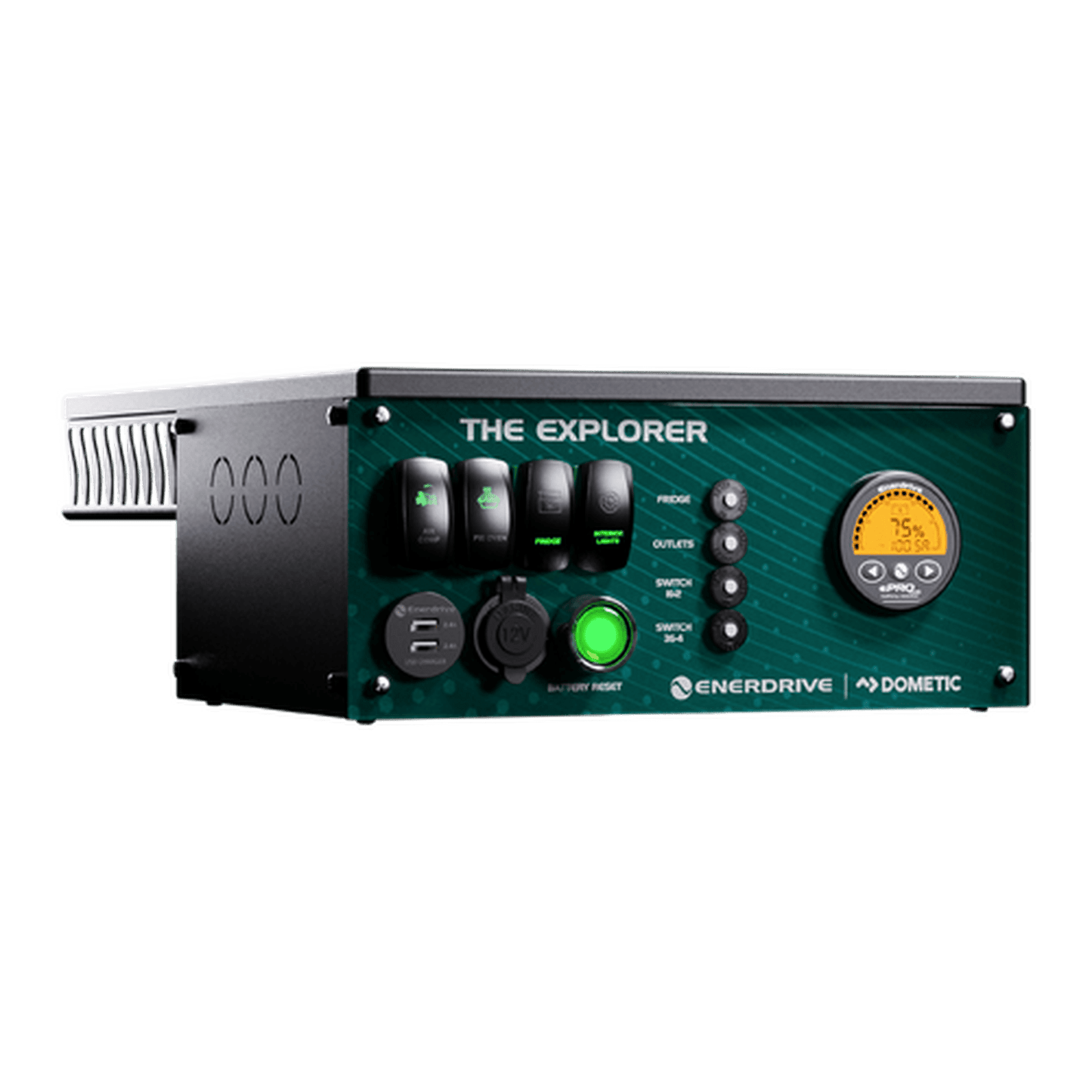

Systems are pre-wired by Enerdrive where possible, so the only cabling at installation is load outputs, battery connection and vehicle/solar/tank inputs. The compact box mounts on the front or rear canopy bulkhead and is available for passenger side, driver side or roof mount installation (images show demonstration models only). It can be installed by the canopy manufacturer or end user as a neat one-piece installation.

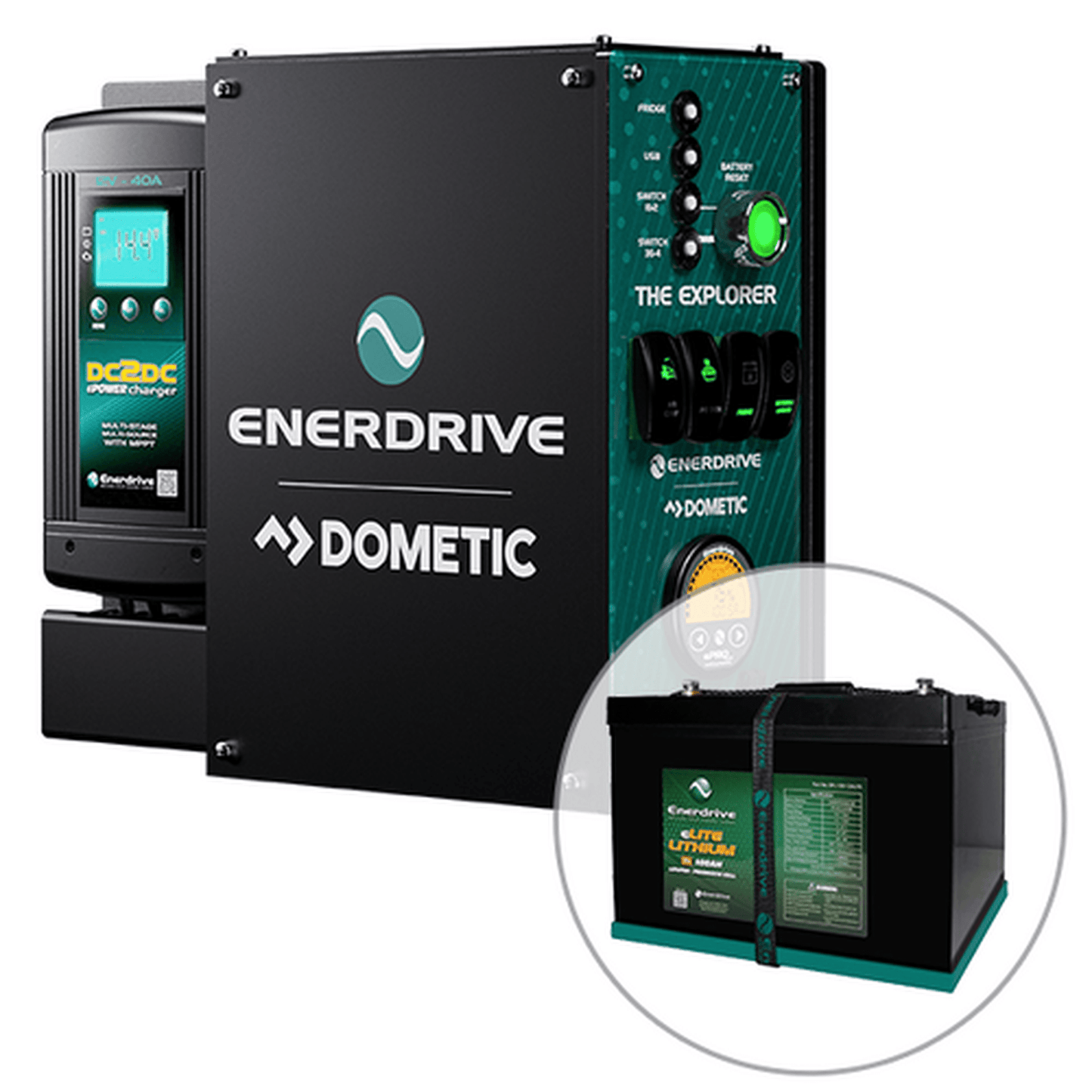

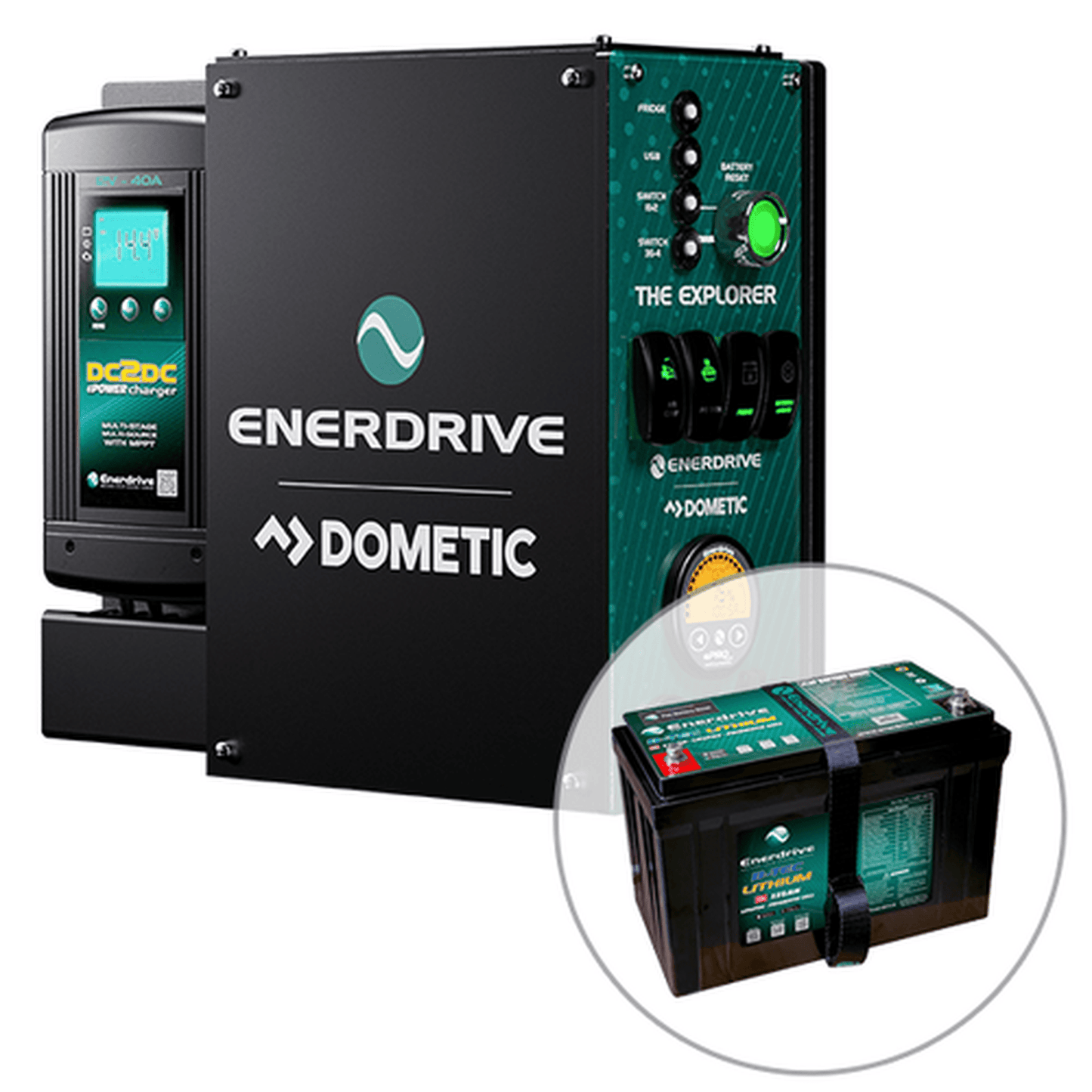

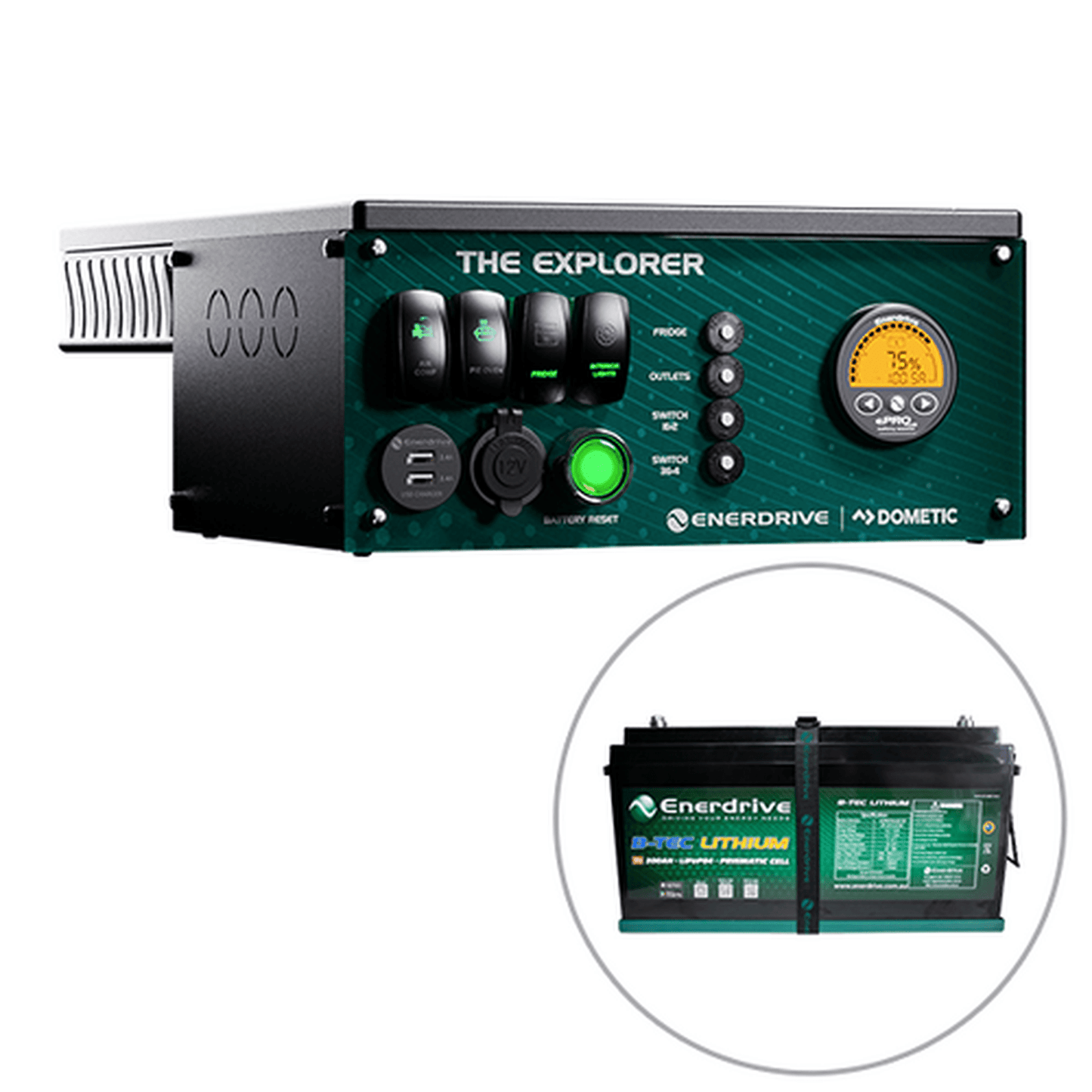

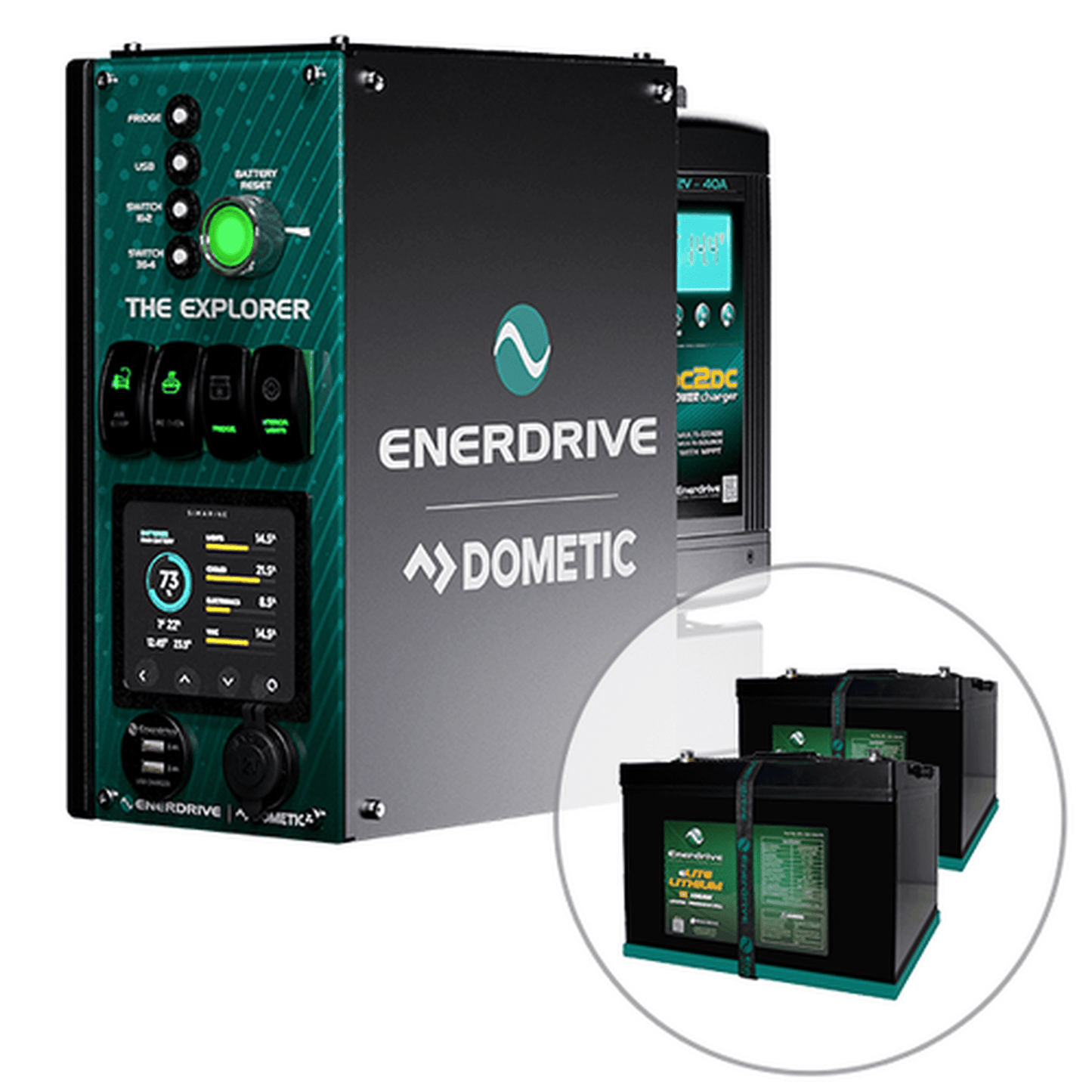

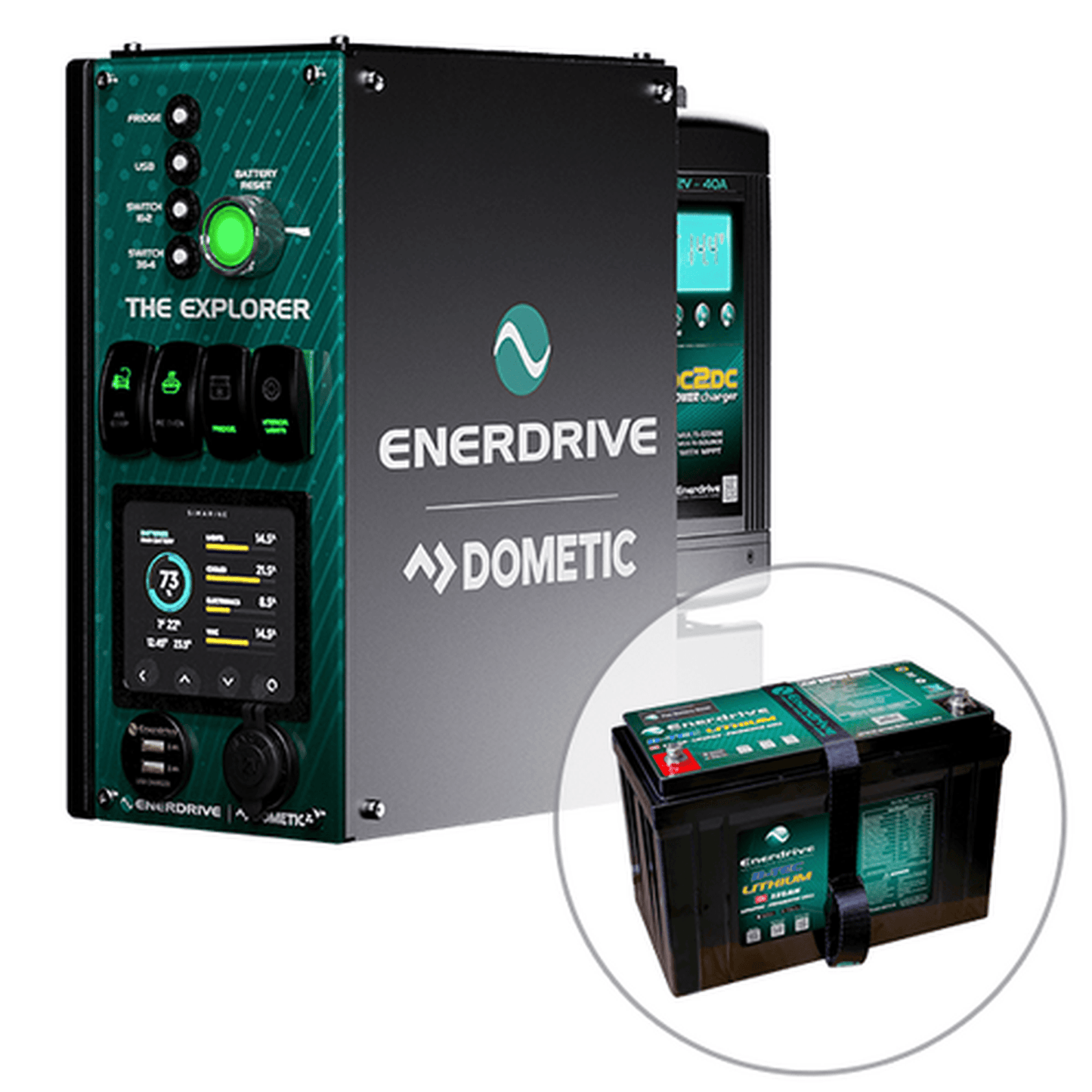

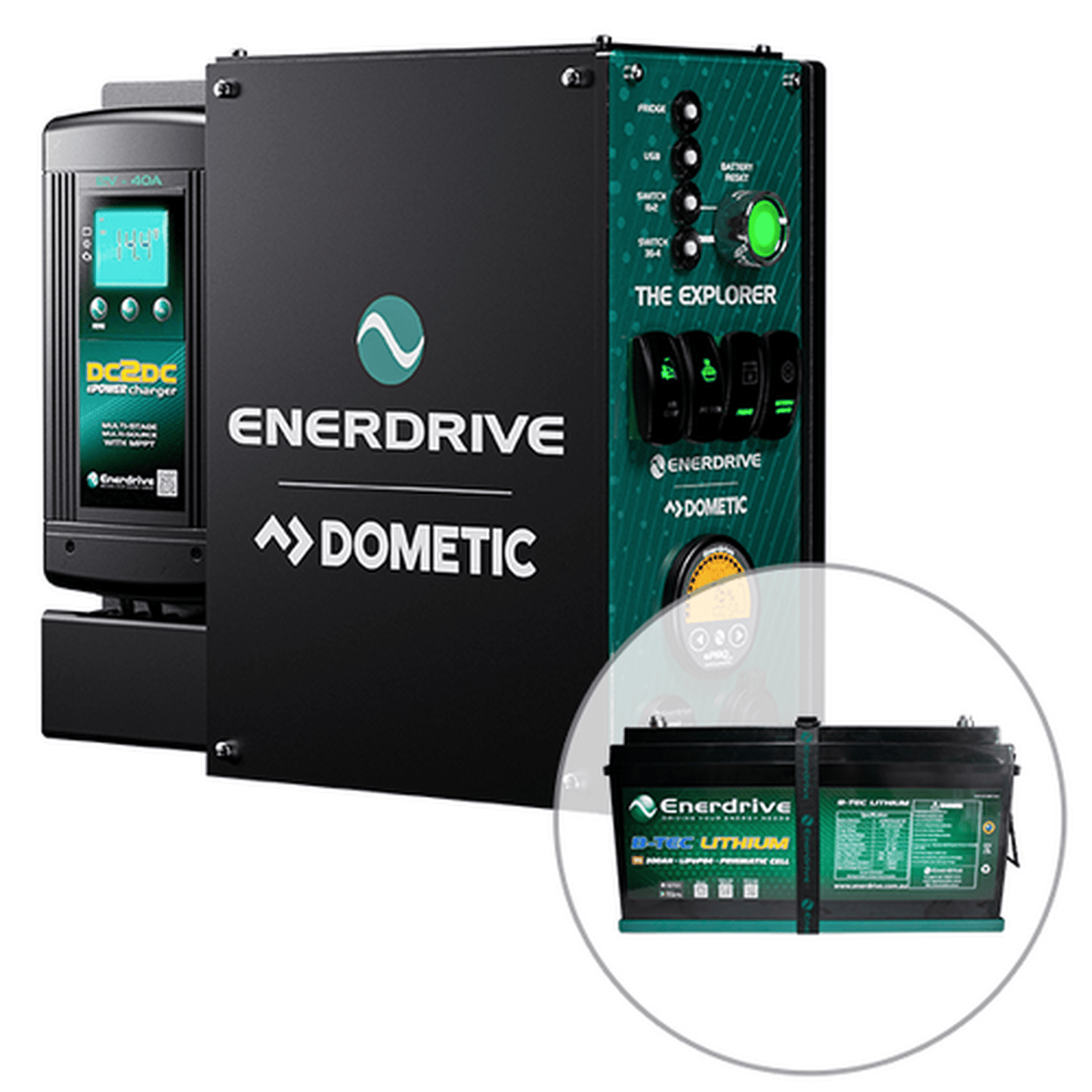

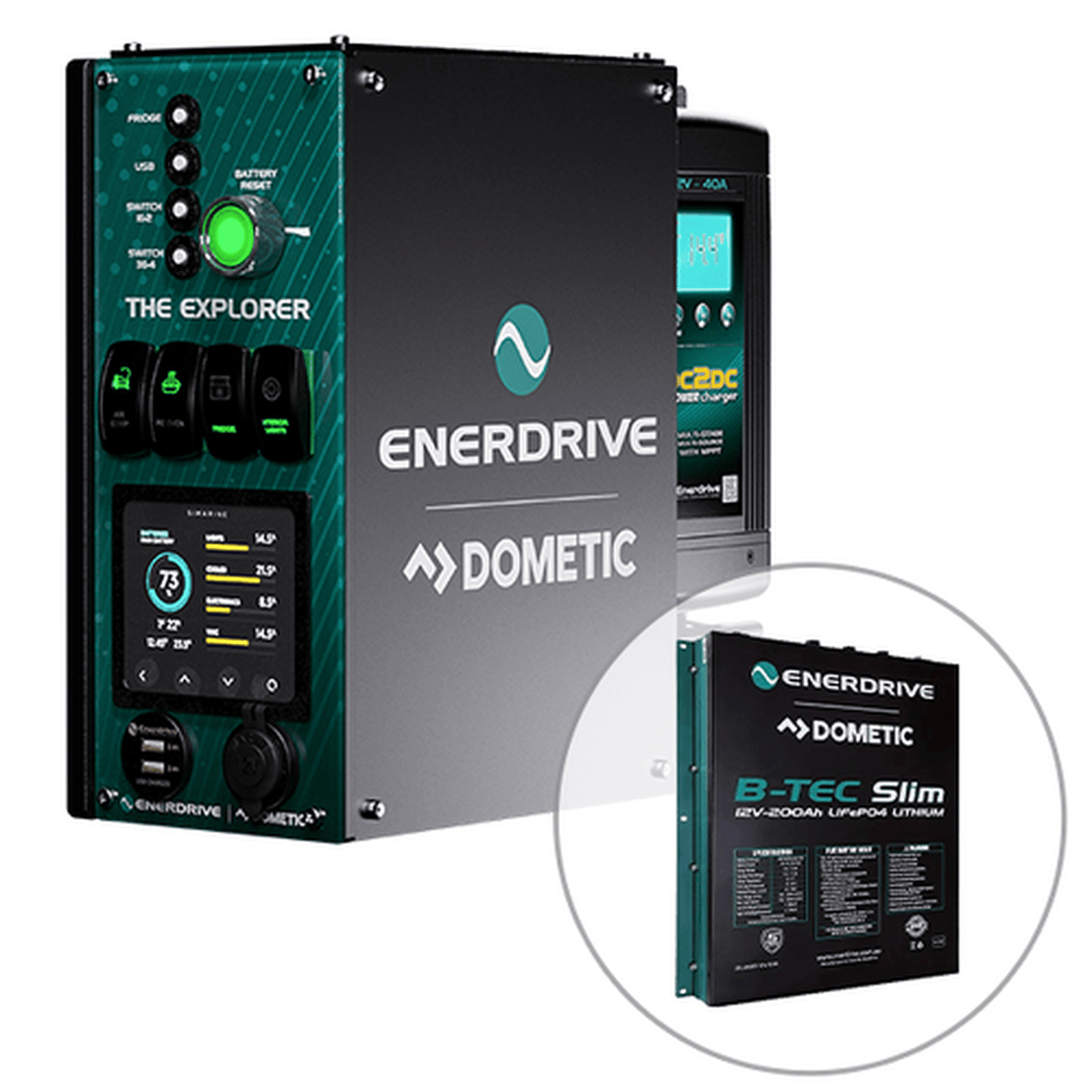

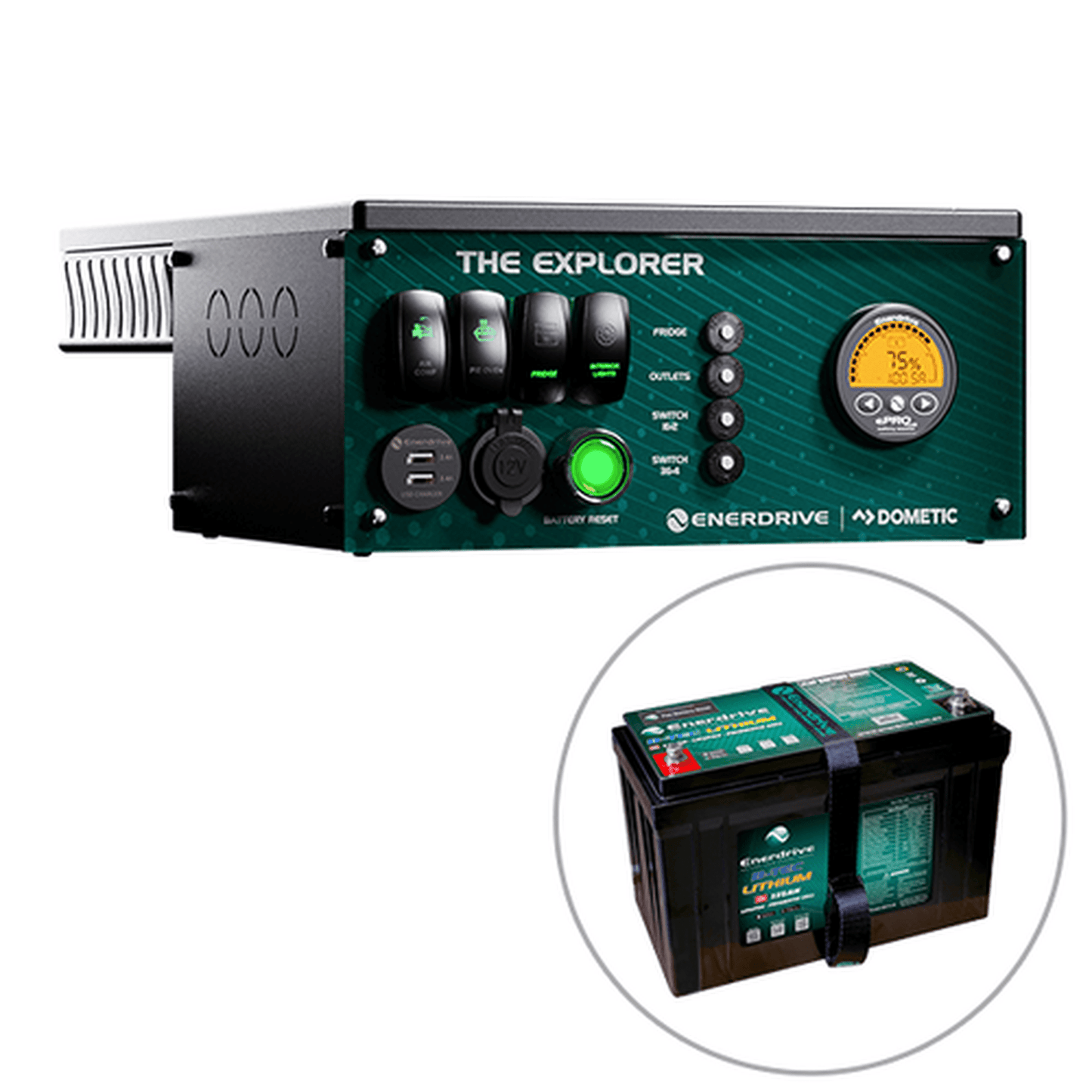

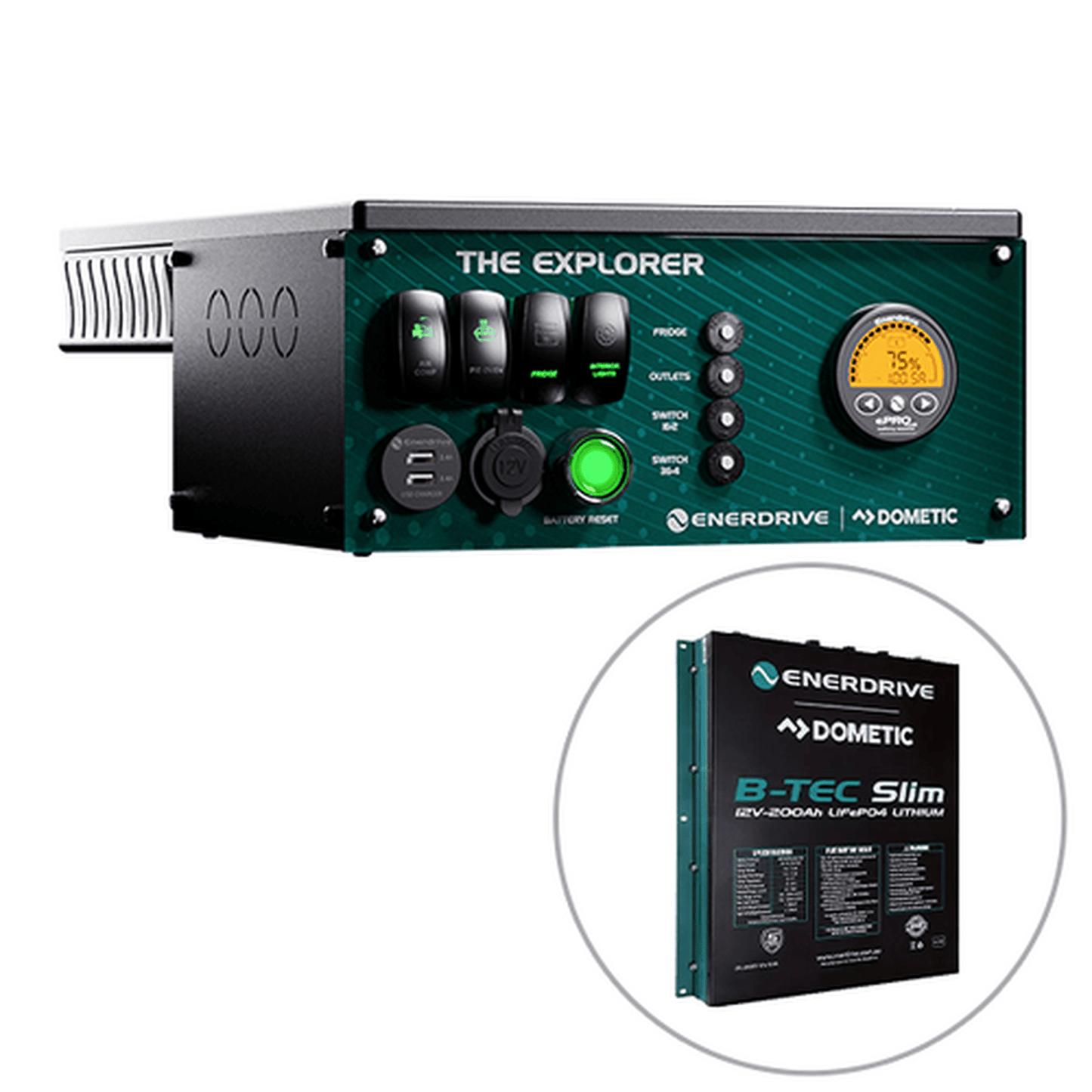

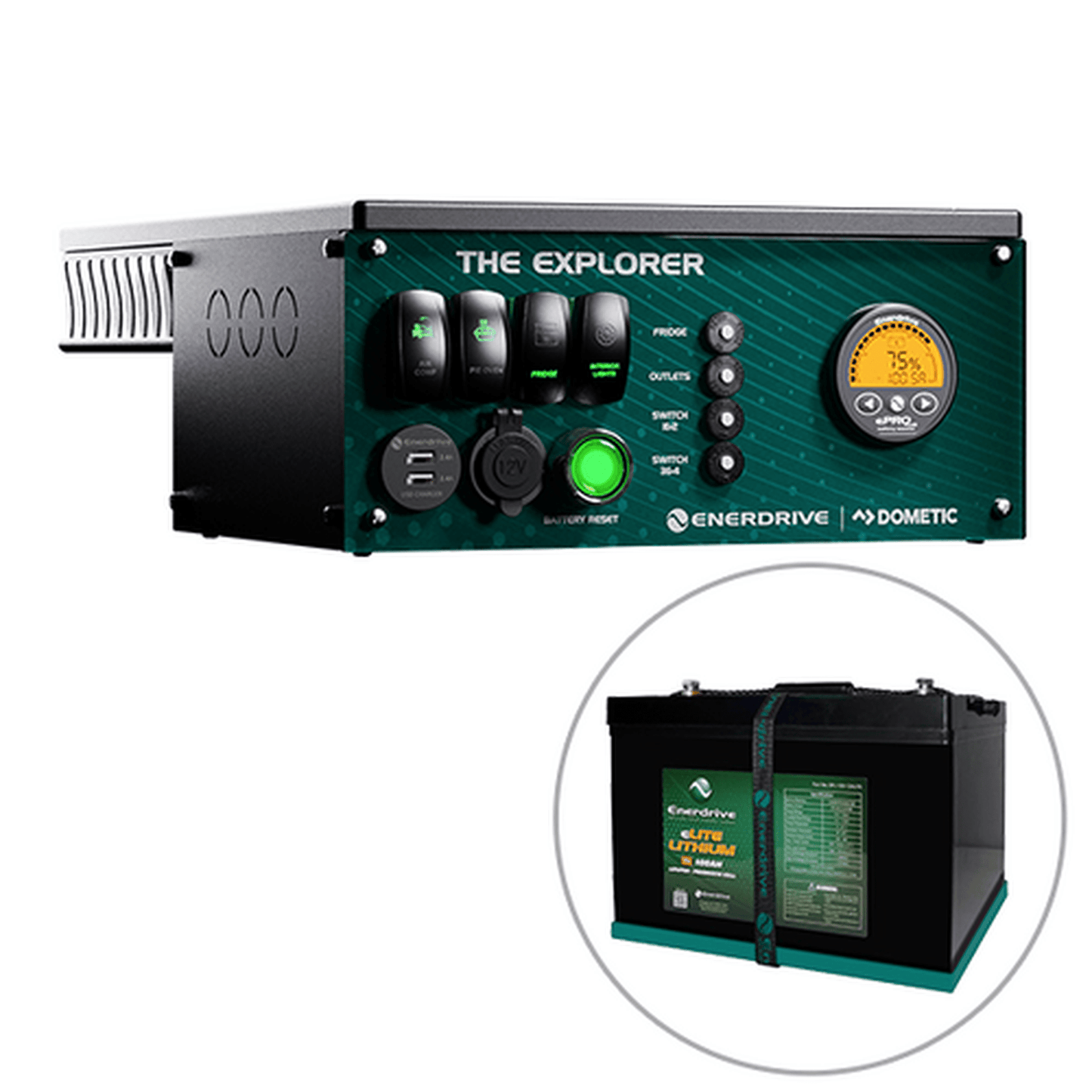

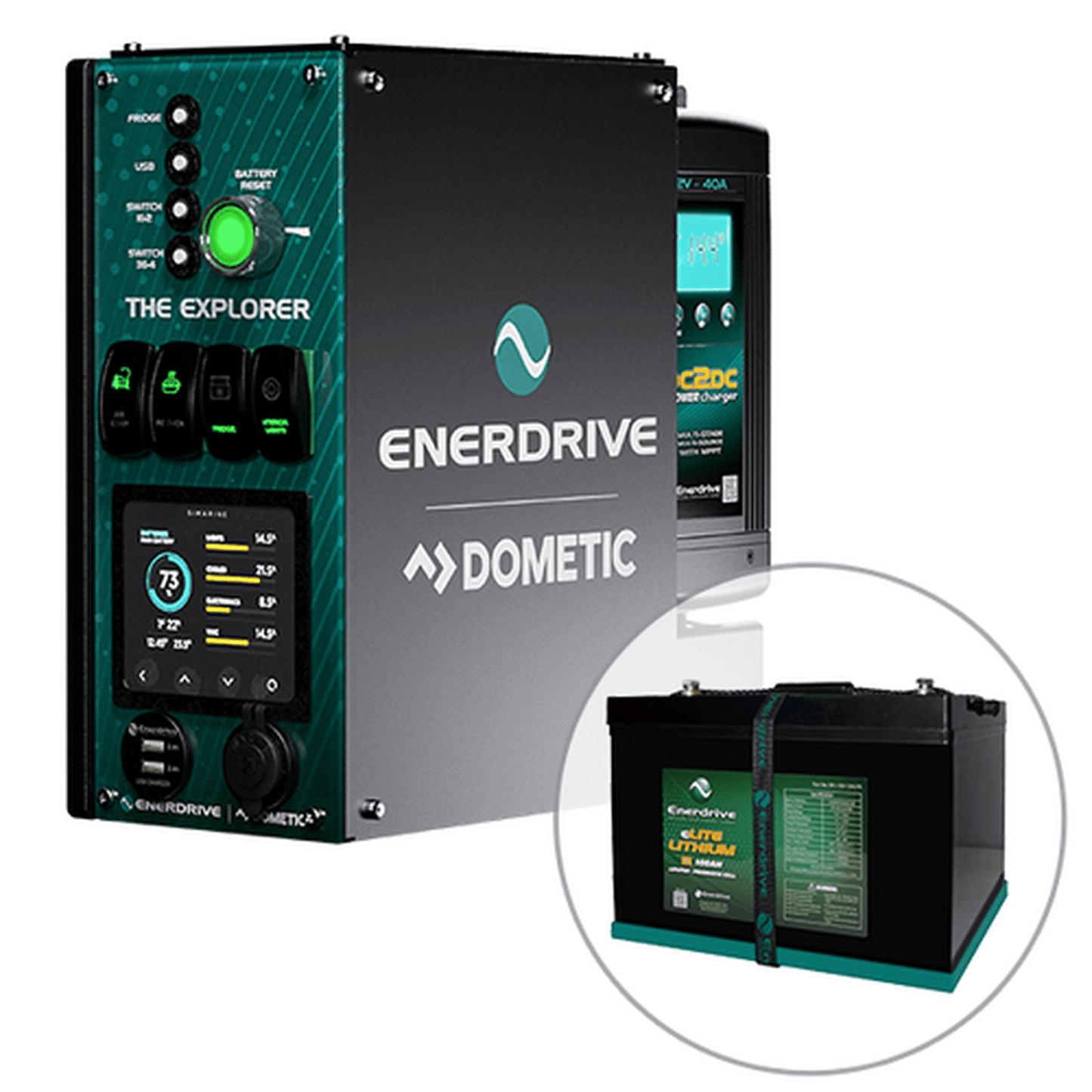

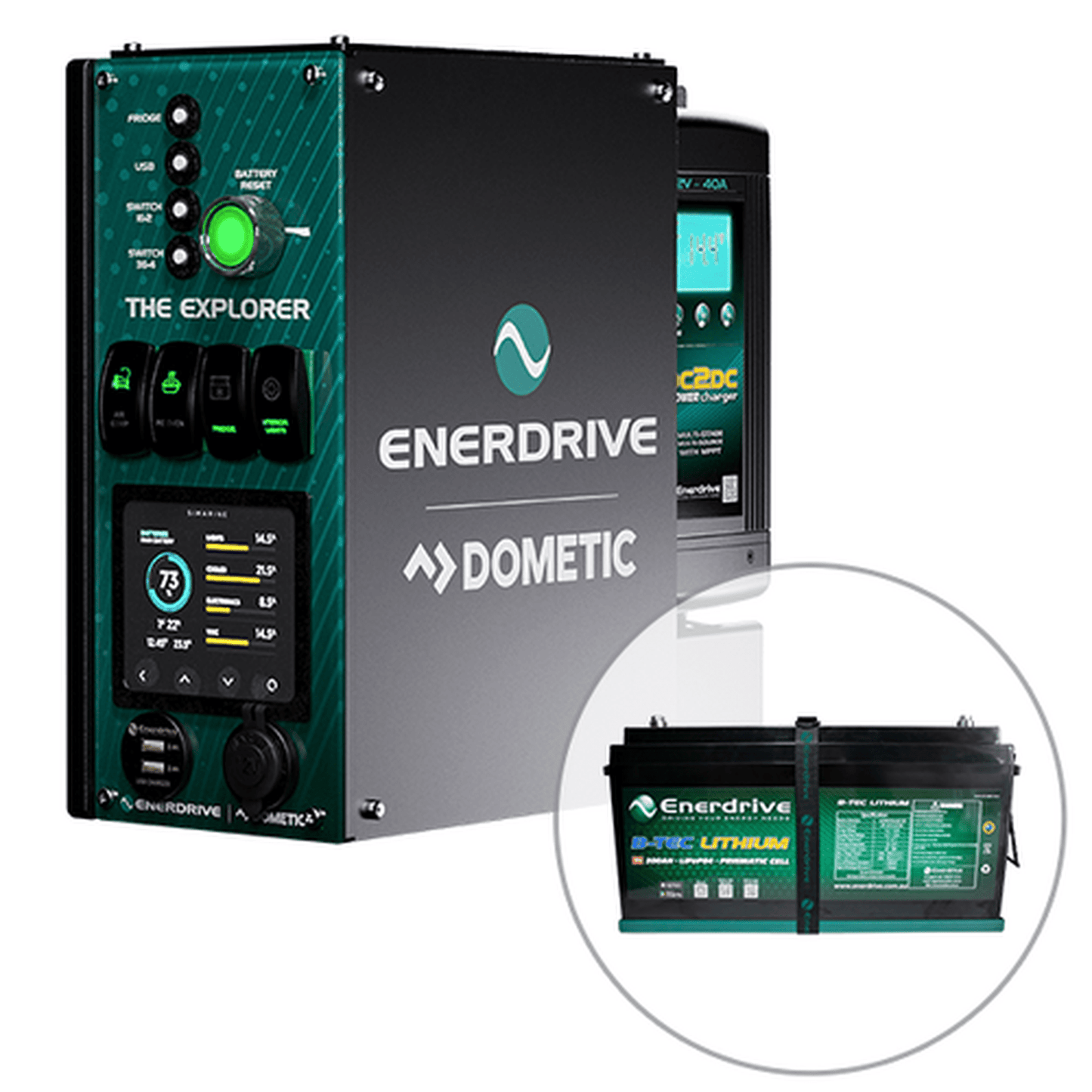

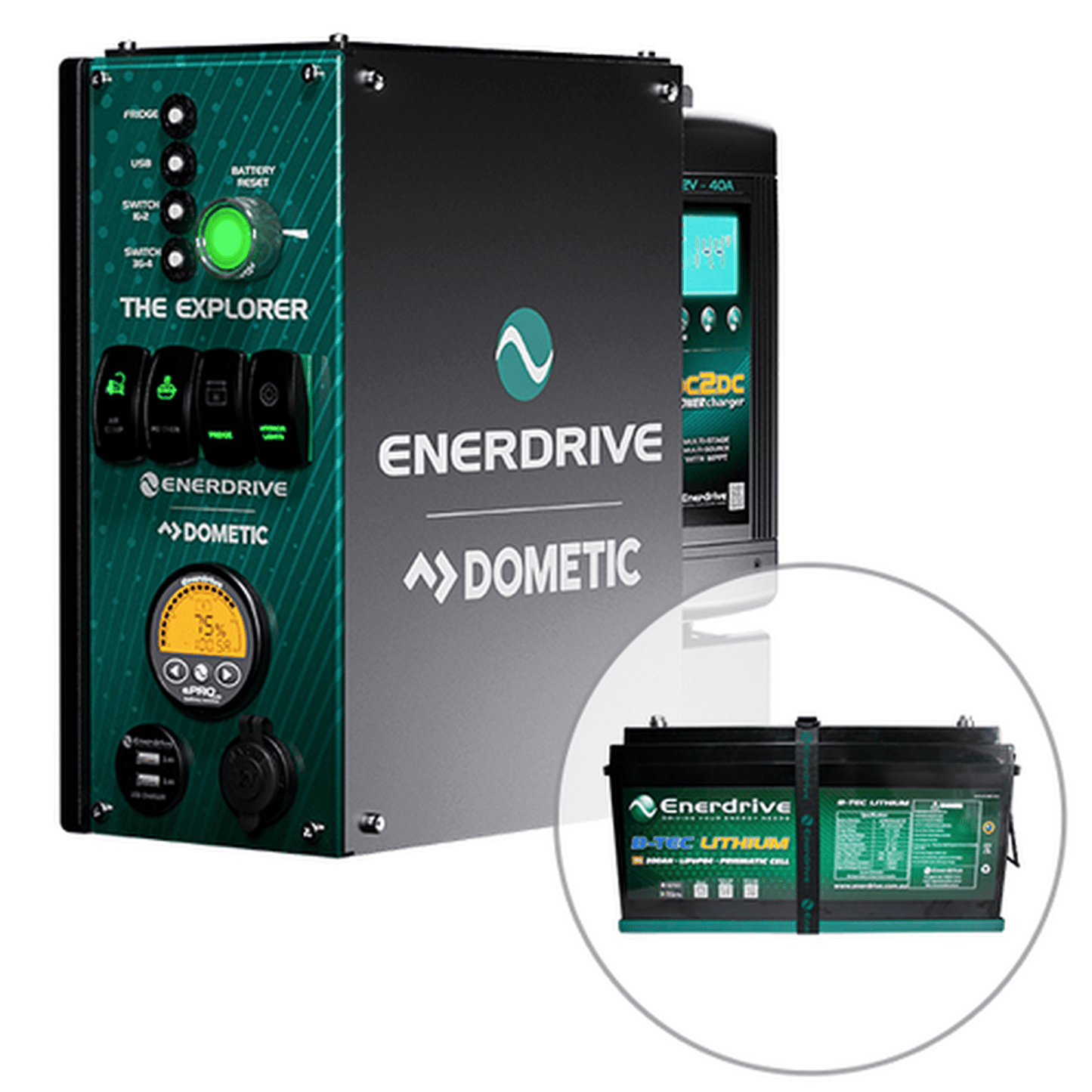

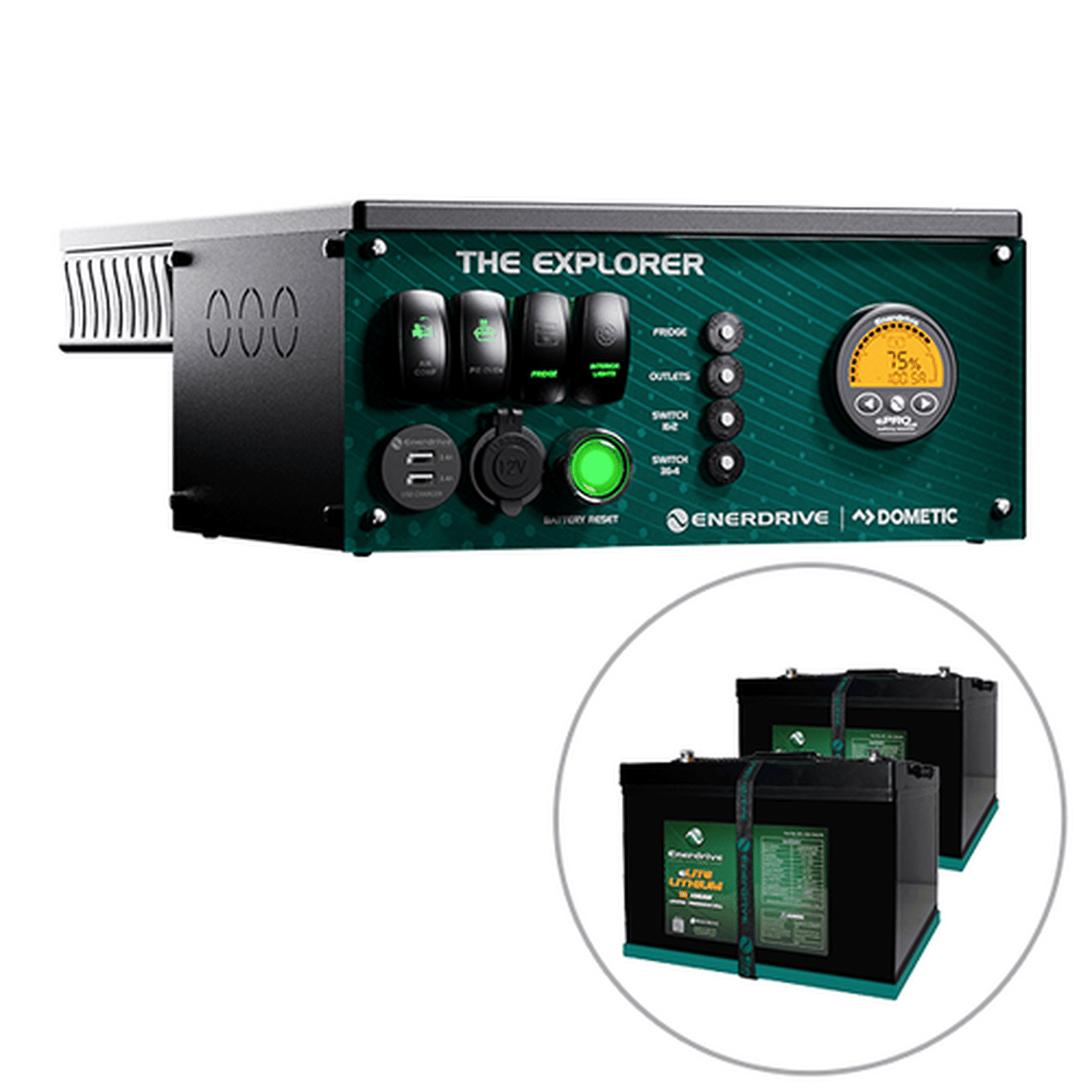

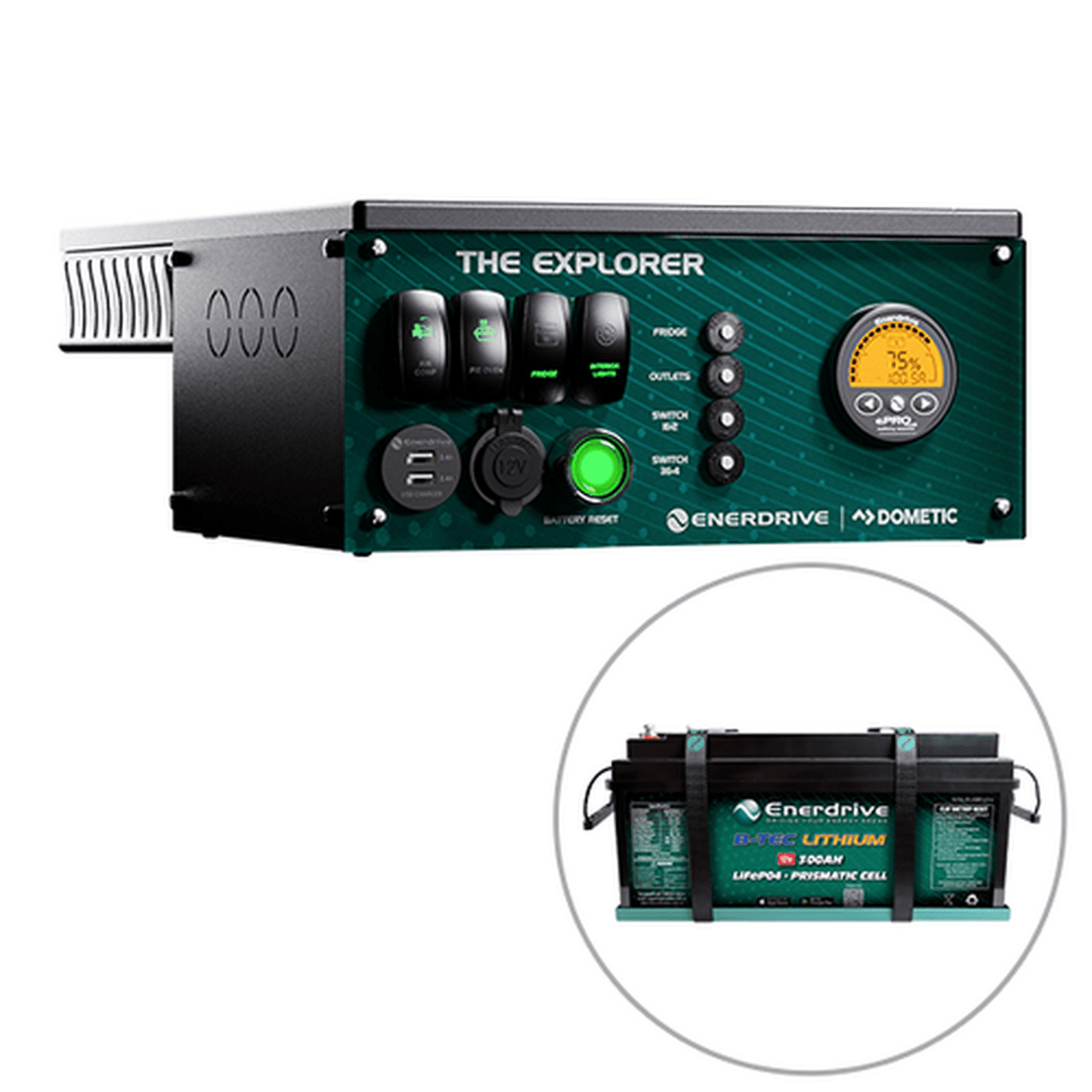

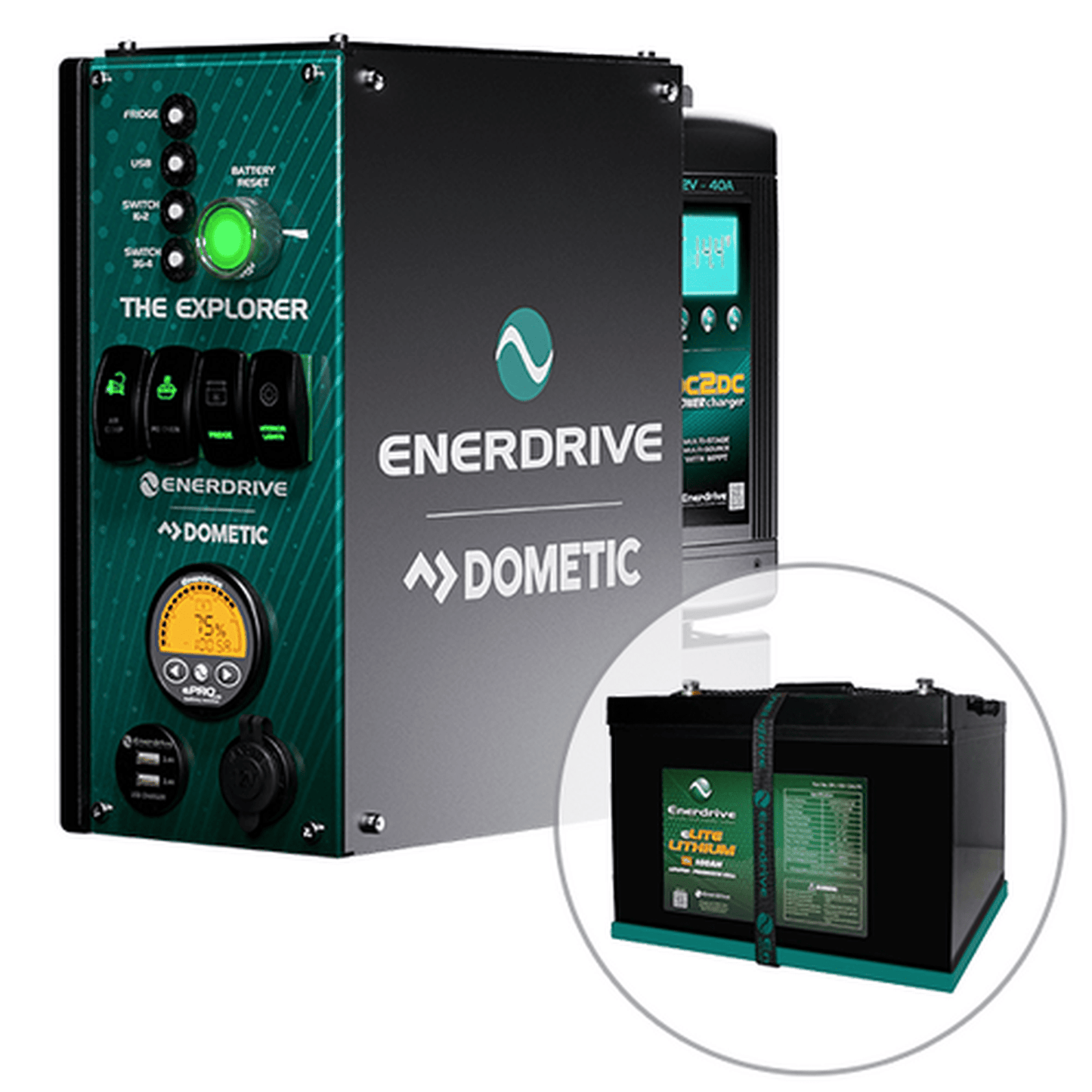

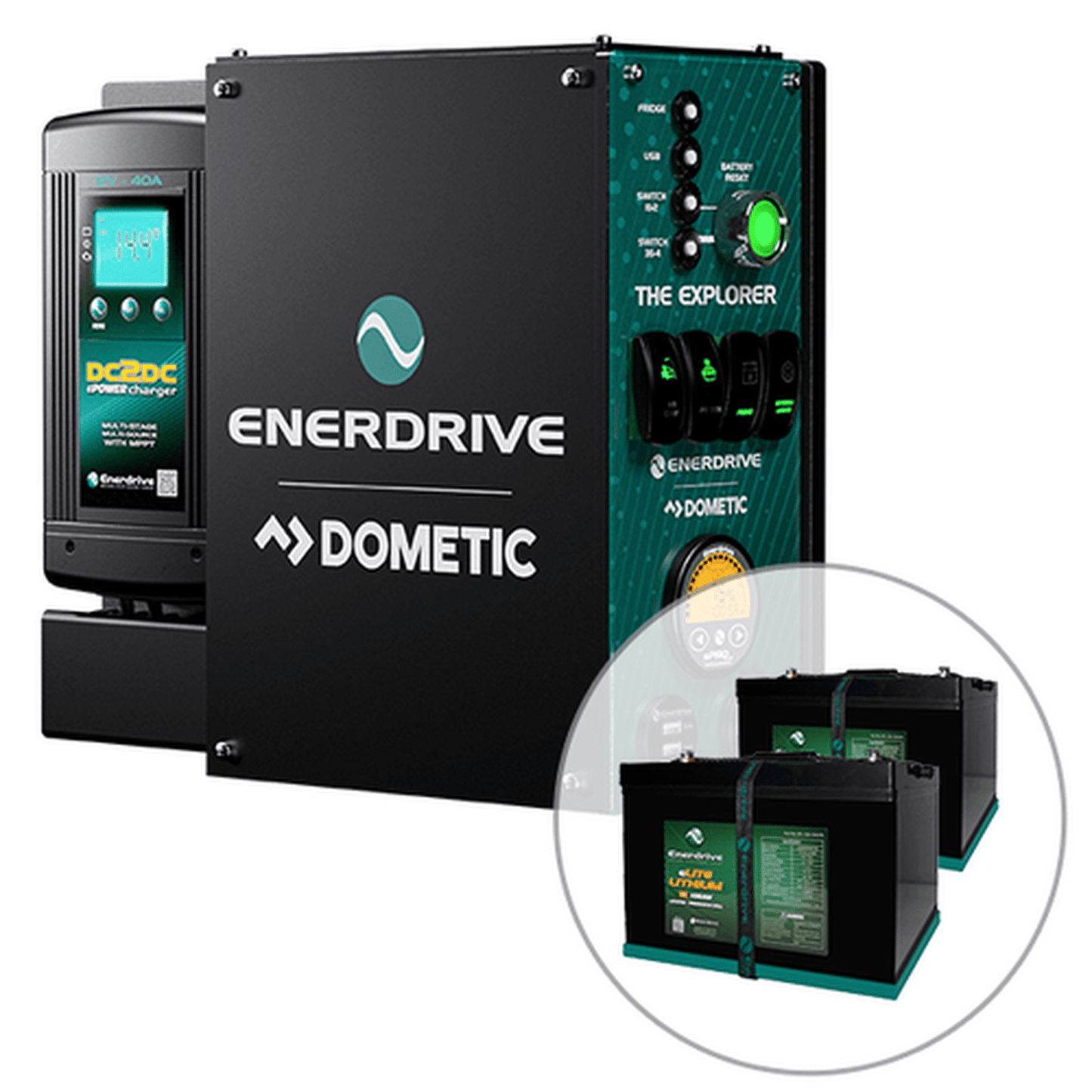

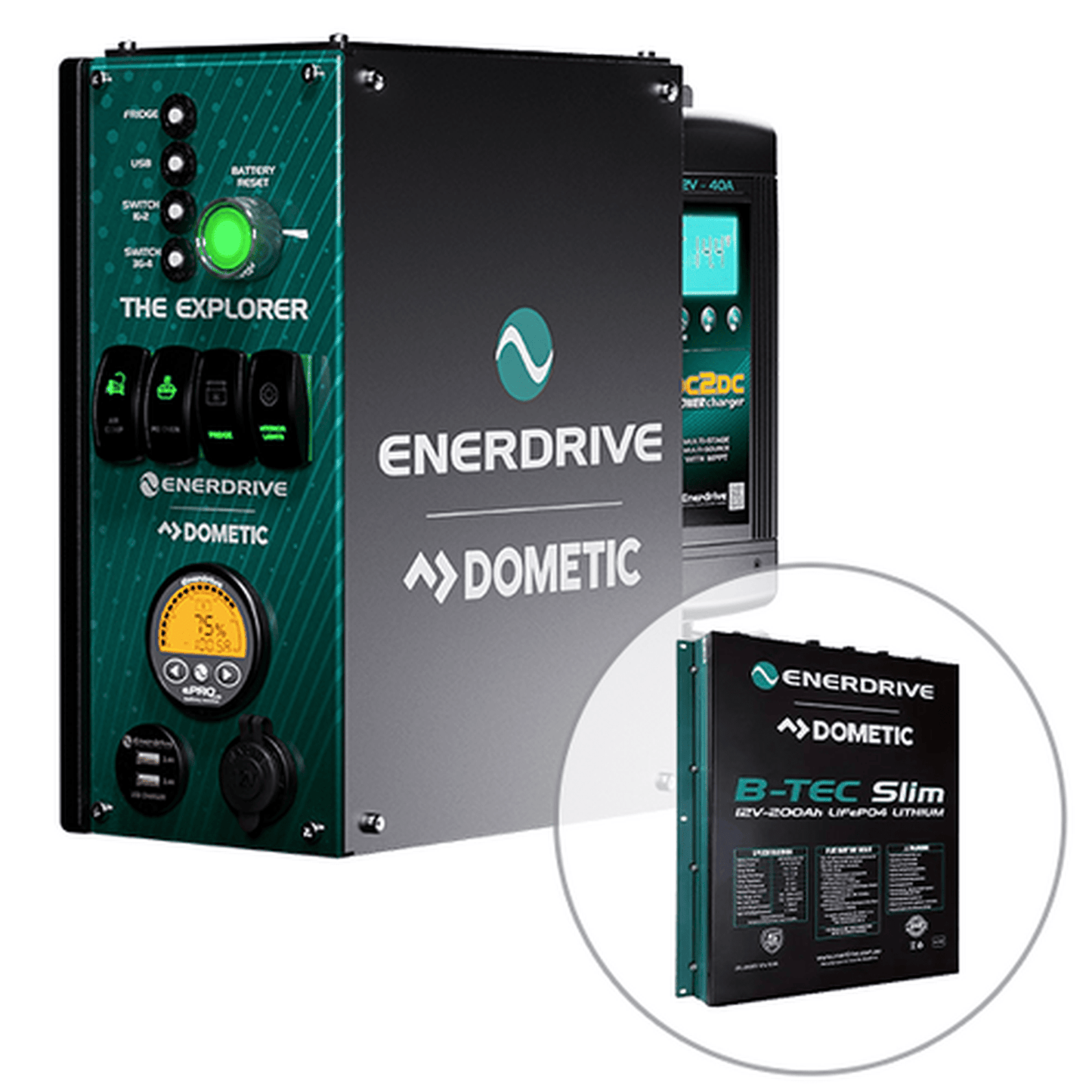

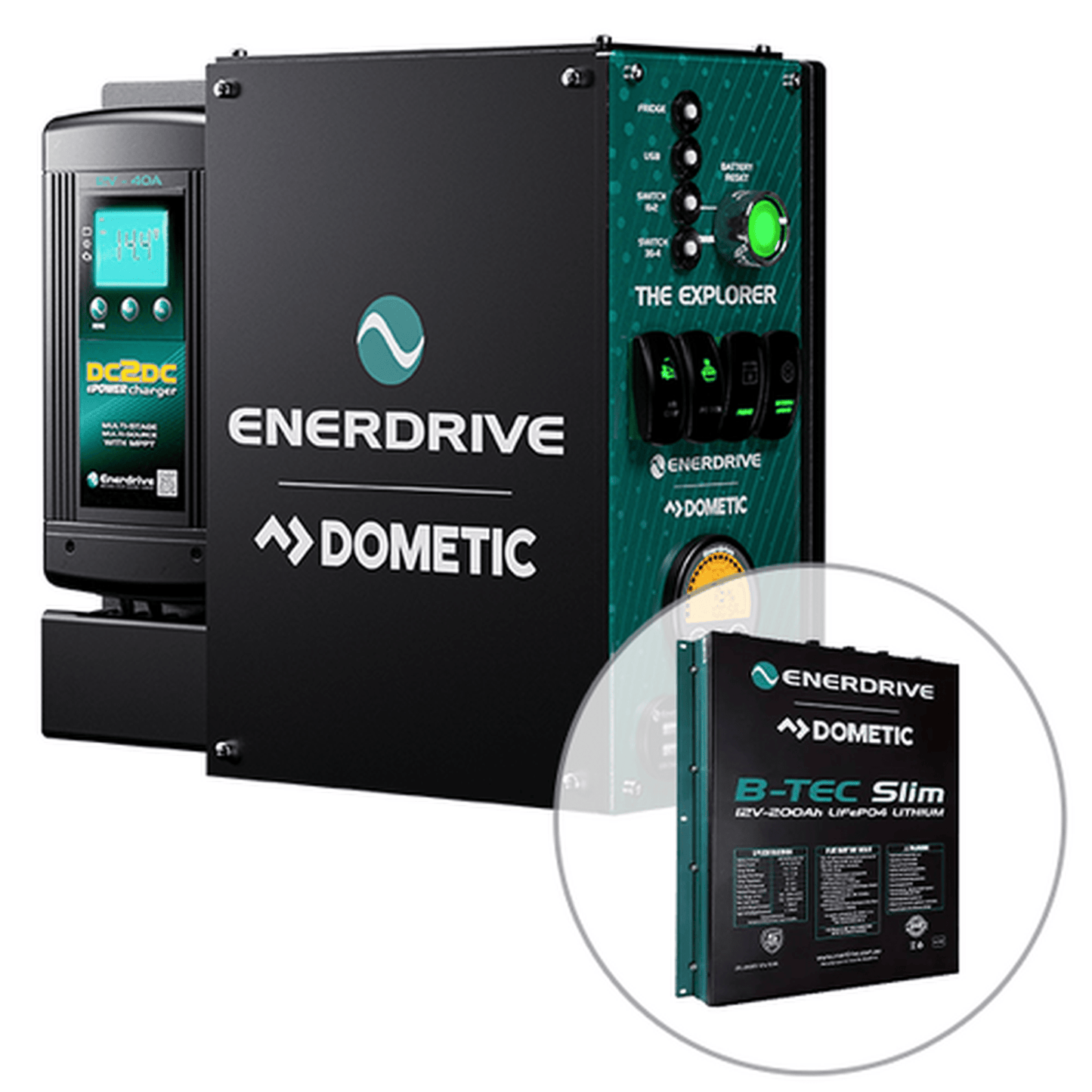

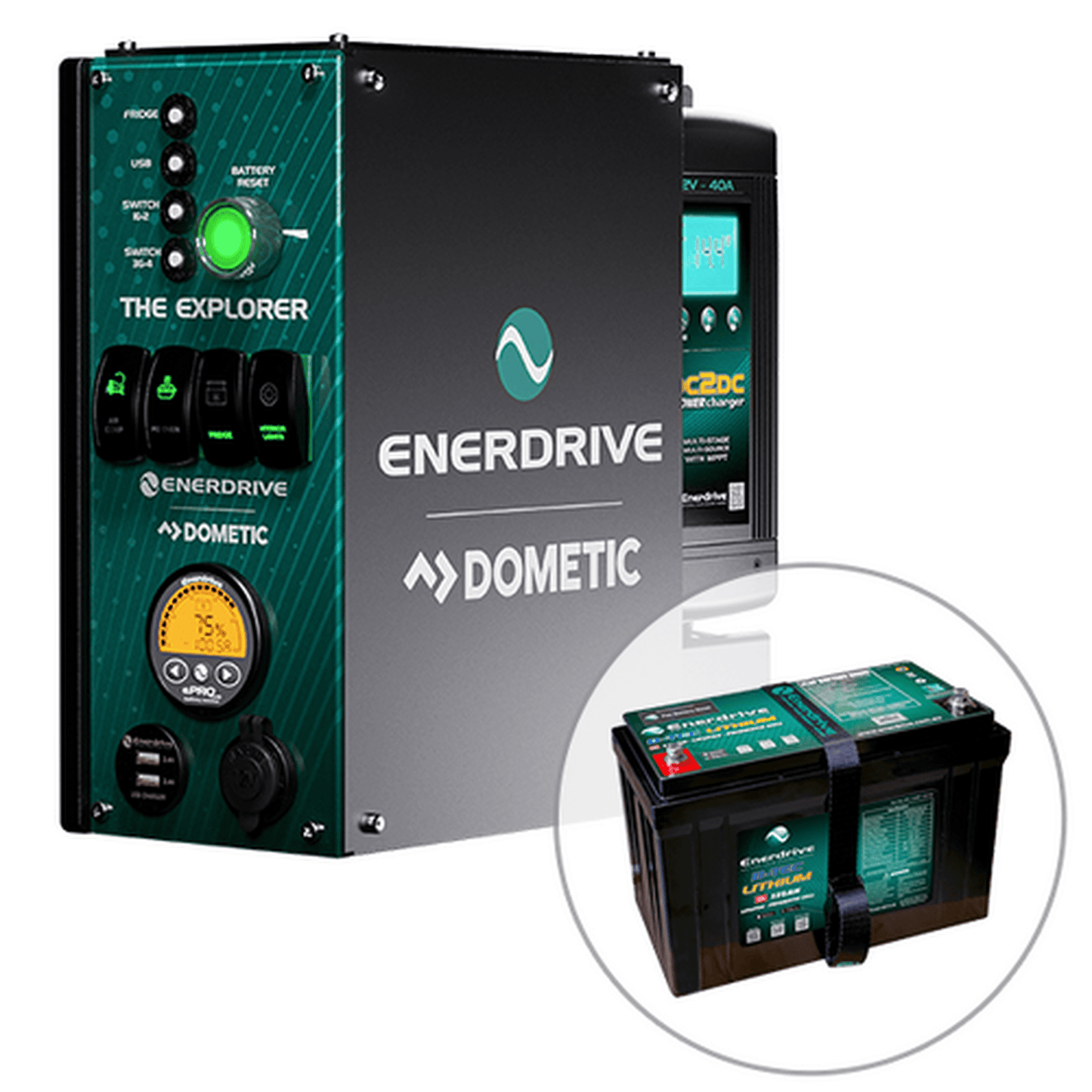

Lithium battery option: a 100Ah, 2 x 100Ah, 125Ah, 200Ah, 200Ah Slimline or 300Ah lithium battery can be added for an additional cost. You must specify whether you want a lithium battery with the system. Weight below is for the canopy system only.
Specifications
- SKU: K-EXPLORER | Brand: Enerdrive | Warranty: 5 years
- Explorer system: 440L x 155W x 330H mm, 7kg, 12V output system
- DC2DC charger: 242 x 172 x 74mm, three-stage charging, output 13.8–15.5V, float 13.0–13.8V, equalise 15.5V, 95% efficiency, single DC output, battery types Gel/AGM/Flooded/Lithium/Program, temperature setting Low/Normal/High (sensor standard)
- Optional lithium batteries (125/200/300Ah): 12.8V nominal, charge 14.4–14.6V, float 13.5–13.8V, output range 11.0–14.6V, discharge cut-off ≤11.2V, max charge 60A (125Ah) / 150A (200Ah) / 190A (300Ah) for 30 mins, recommended charge ≤40A (125 & 200Ah) / 80–120A (300Ah), max discharge 100A (125Ah) / 200A (200Ah) for 30 mins / 250A for 15 mins (300Ah), pulse 450A for 1s, ≥2000 cycles at 80% DOD, charge 0–45°C, discharge -20–60°C. Dimensions 318 x 165 x 215mm (125Ah), 505 x 172.5 x 265mm (200Ah).
