Enerdrive

Enerdrive 4WD Canopy Adventurer System with 40A DC2DC, 40A AC Charger & 2000W Inverter (AC Transfer), With Lithium Battery

Enerdrive 4WD Canopy Adventurer System with 40A DC2DC, 40A AC Charger & 2000W Inverter (AC Transfer), With Lithium Battery

SKU: K-ADVENTURER-01-R

$4,729.00 AUD
$5,390.00 AUD $4,729.00 AUD
Sale Sold out
Tax included.
Battery Monitor
Location of Installation
Battery Selection

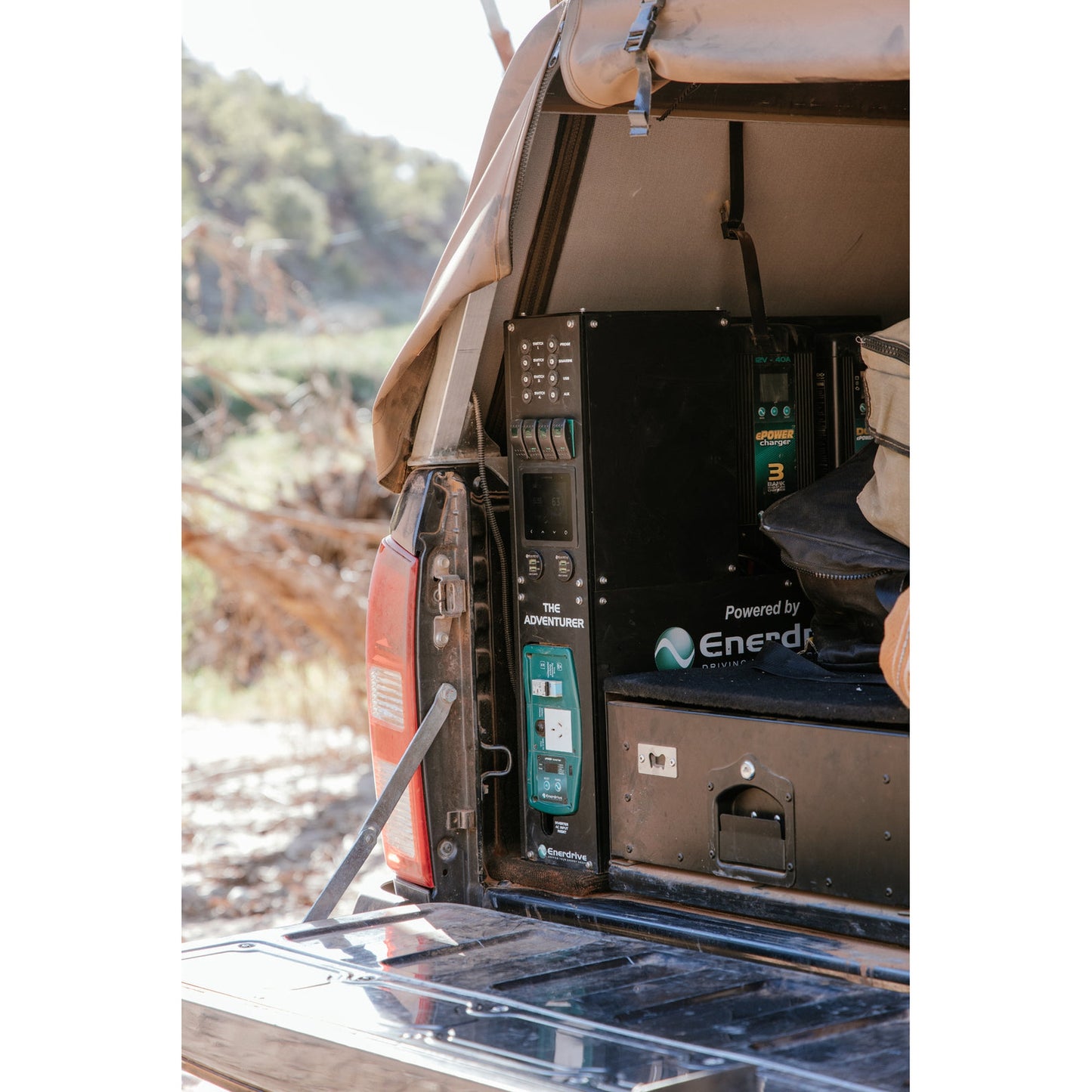

Enerdrive 4WD Canopy Adventurer System with 40A DC2DC, 40A AC Charger & 2000W Inverter (AC Transfer), With Lithium Battery Add On Option, 5 Year Warranty. Enerdrive have created three compact power solutions to operate all of the electrical equipment that is located in 4WD canopies, including a simple fridge or lights setup to a full on power station. There are three models in this range: The Explorer, The Traveller and The Adventurer, all of which can be paired with any brand or model of battery including Wet Sealed, AGM, Gel and Lithium!

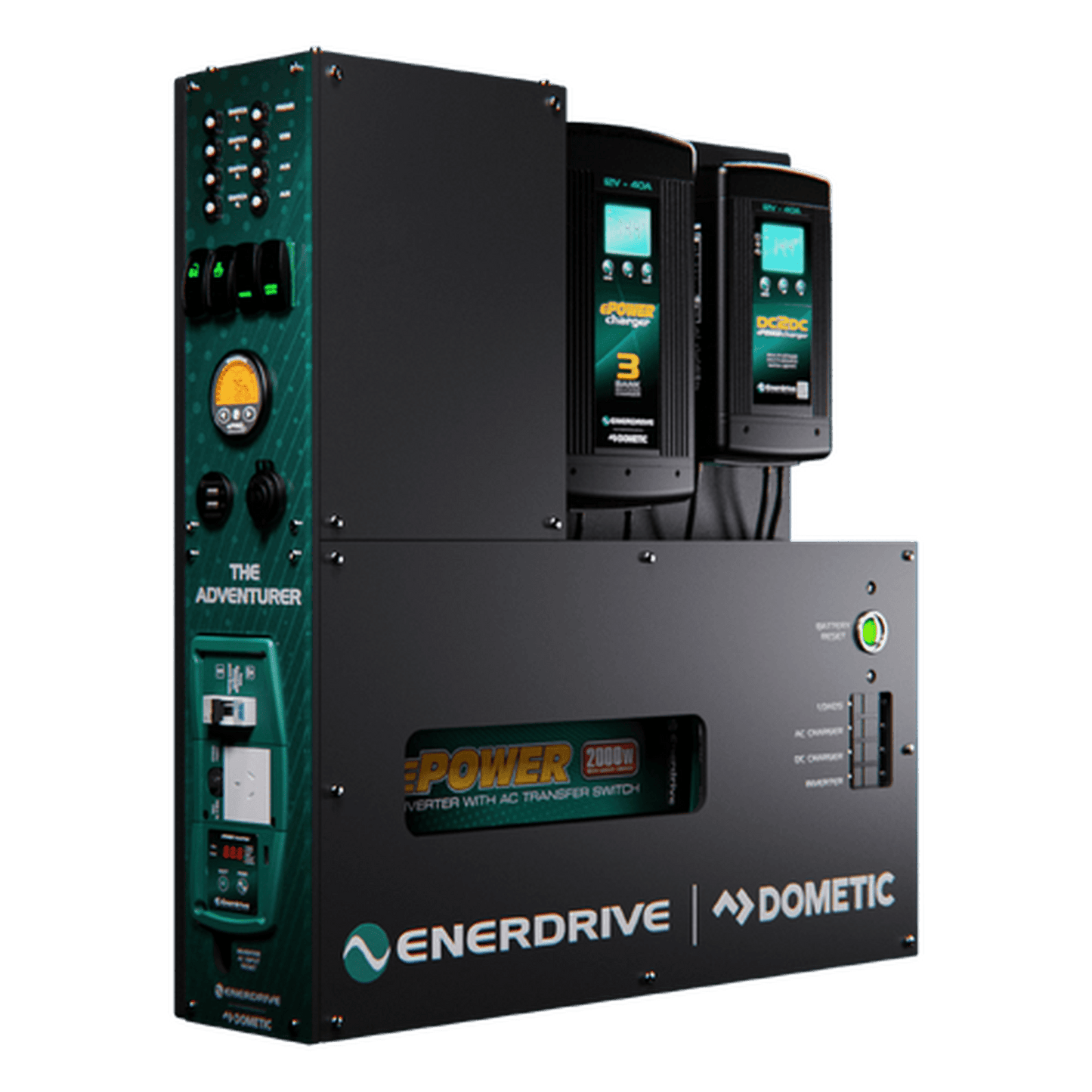

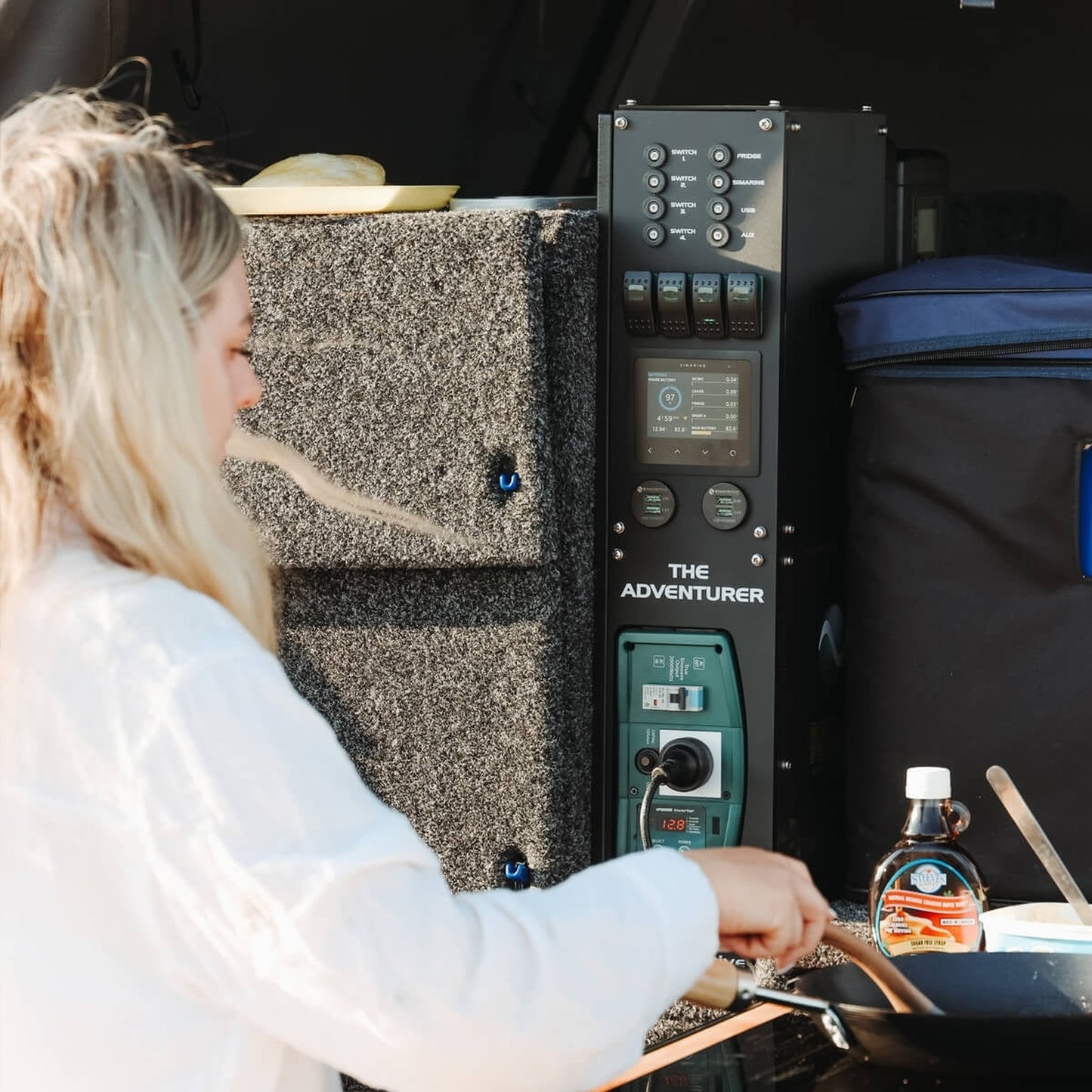

This system is designed for the end user requiring a higher level of power requirements along with AC charging ability. The Adventurer consists of the following items

  • Enerdrive ePOWER DC2DC40+ Vehicle/Solar Charger
  • Enerdrive ePOWER 40A AC charger
  • Enerdrive ePOWER 2000W AC Transfer Inverter

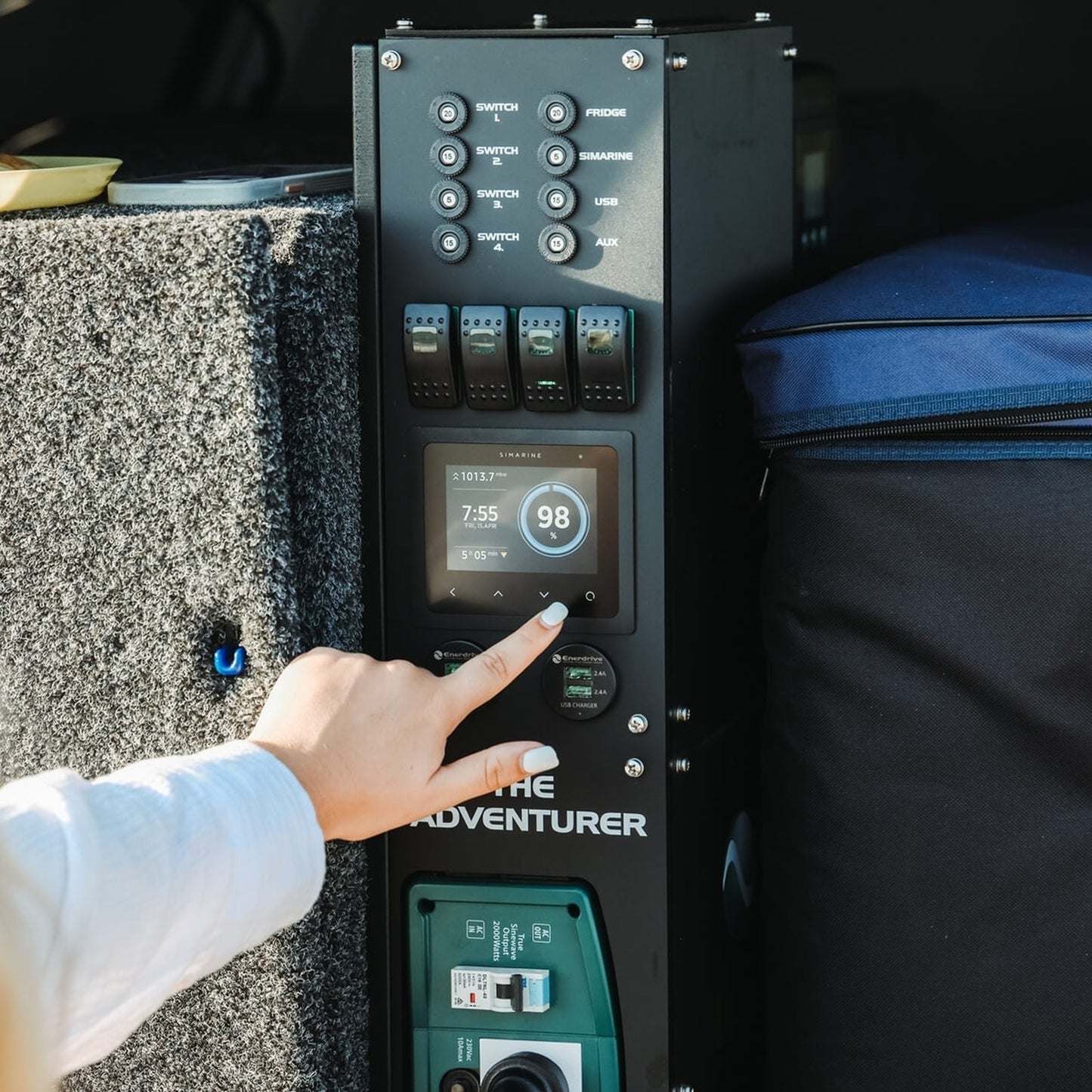

  • 1 x Battery Monitor (customer has the choice between a ePRO Plus battery monitor, Simarine battery monitor or Simarine Battery Monitor & Quad Shunt Module)
  • 1 x 1m 70mm2 Main Battery Cable Connection Kit inc Main fuse
  • 4x Pre-wired Circuit Breakers for main power equipment
  • 4 x Contura switches for Lights & Auxiliary loads
  • 4 x additional Circuits Breakers for Air/Water Pumps and more
  • Main System & Inverter Hi-Amp Circuit Breakers
  • 1 x 12v CIG & 1 x Dual 2.4A USB sockets come standard. You can choose a mixture of Twin USB 2.4A Hi Amp sockets to charge your mobile devices or mix it up with 2 x 12v Output Socket. The choice is yours at time of order.
  • Customers can choose between two colours for the front switch panel of the system. Green or Black. Please specify this special instruction at time of your order.
  • Battery Reset button for kick starting your flat battery from the DC2DC Charger
  • Optional Water/Fuel Tank module also available. (K-ADVENTURER-02 & 03)
  • Explorer and Traveller System - 1m positive and negative cable (35mm2) with 100A in line fuse and fuse holder. Terminated with 8mm lugs for battery connection.
  • Adventurer System - 1m positive and negative cable (70mm2) with 250A in line fuse and fuse holder. Terminated with 8mm lugs for battery connection.

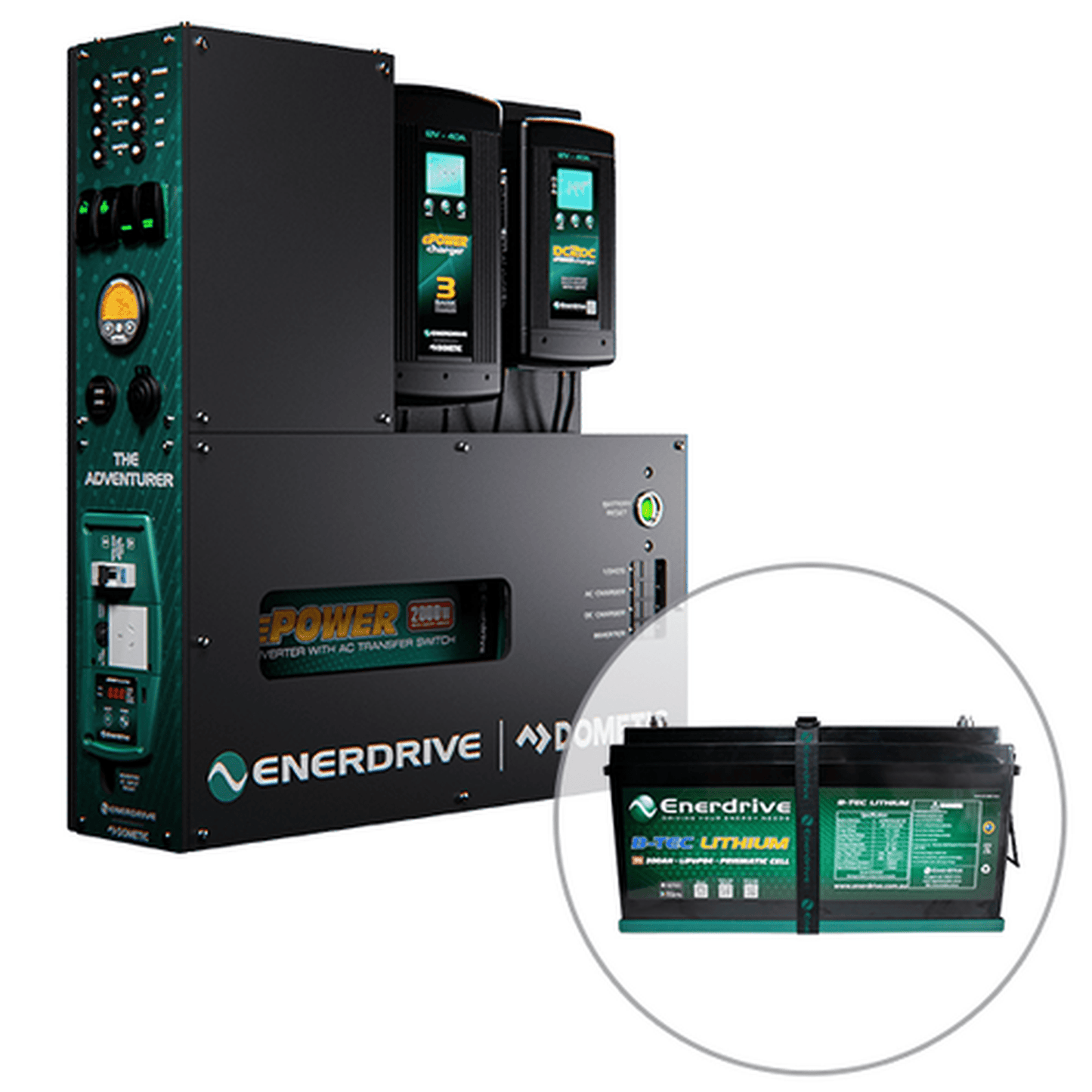

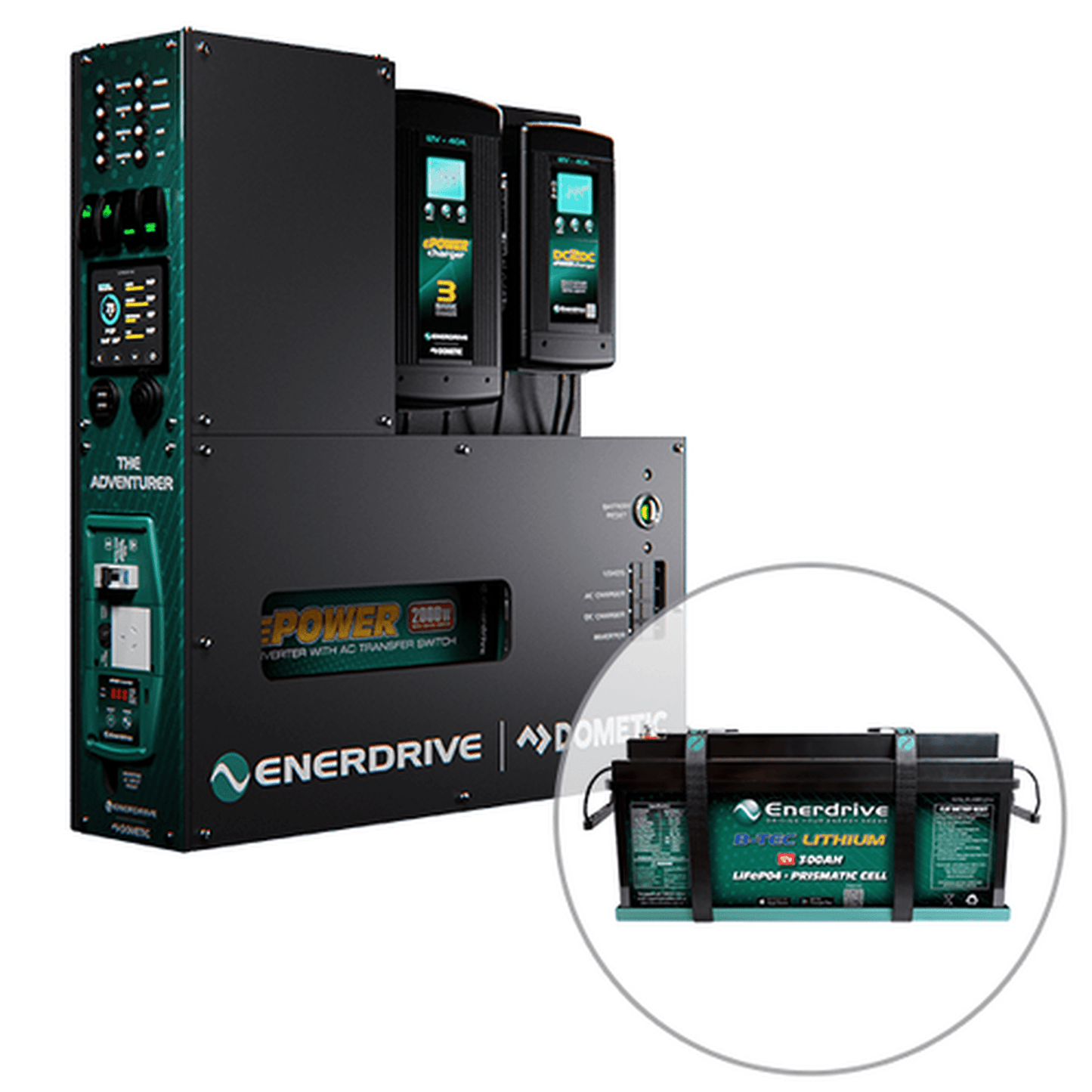

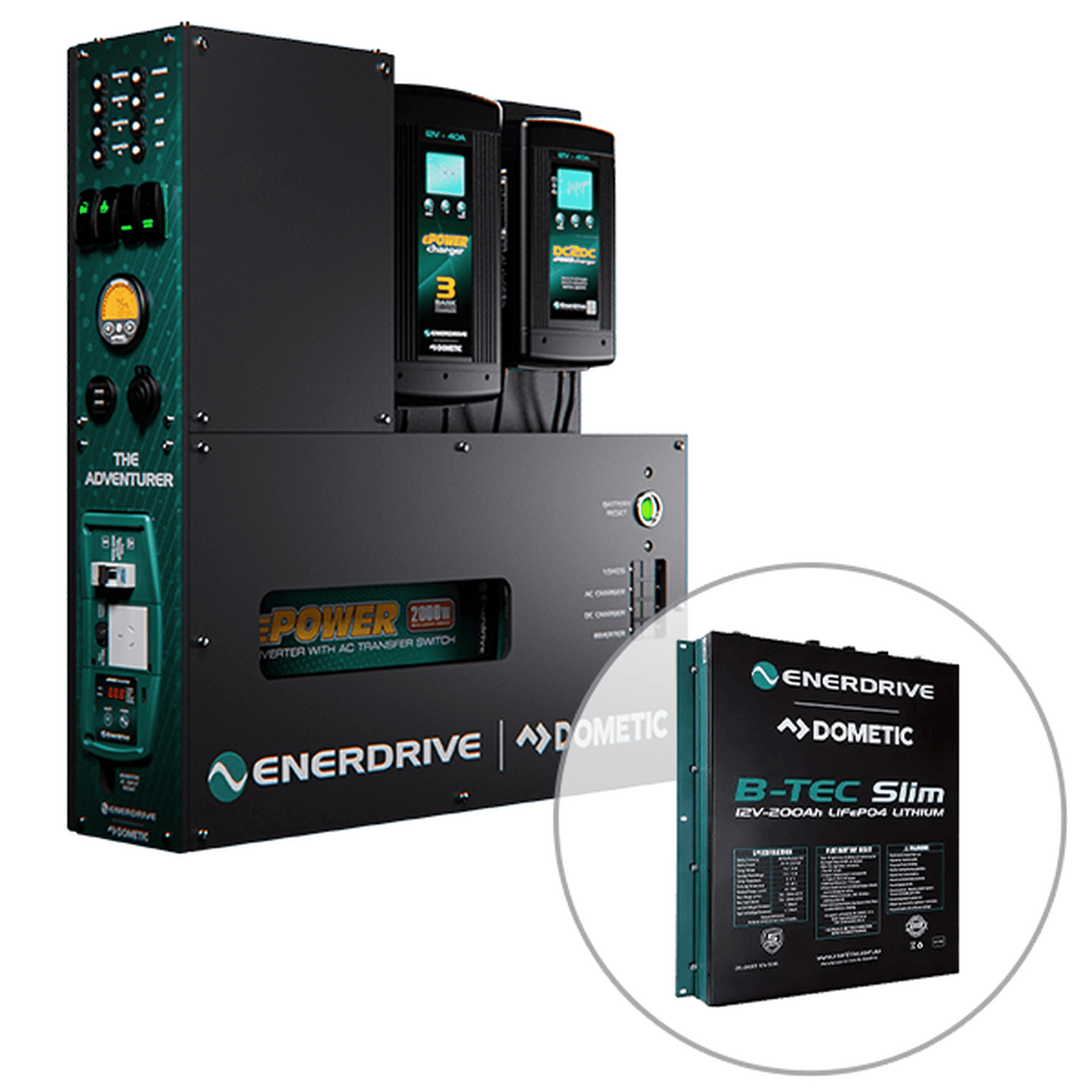

Please also note, a 200Ah, 200Ah Slimline or 300Ah lithium battery can also be added to this bundle for an additional cost.

Items Included

 The Adventurer

ePOWER DC2DC 40+ Charger (Vehicle/Solar)

 *

ePOWER 40A AC Charger

 *

ePOWER 2000W AC Transfer Inverter

 *

ePRO Plus Battery Monitor

 K-ADVENTURER-01

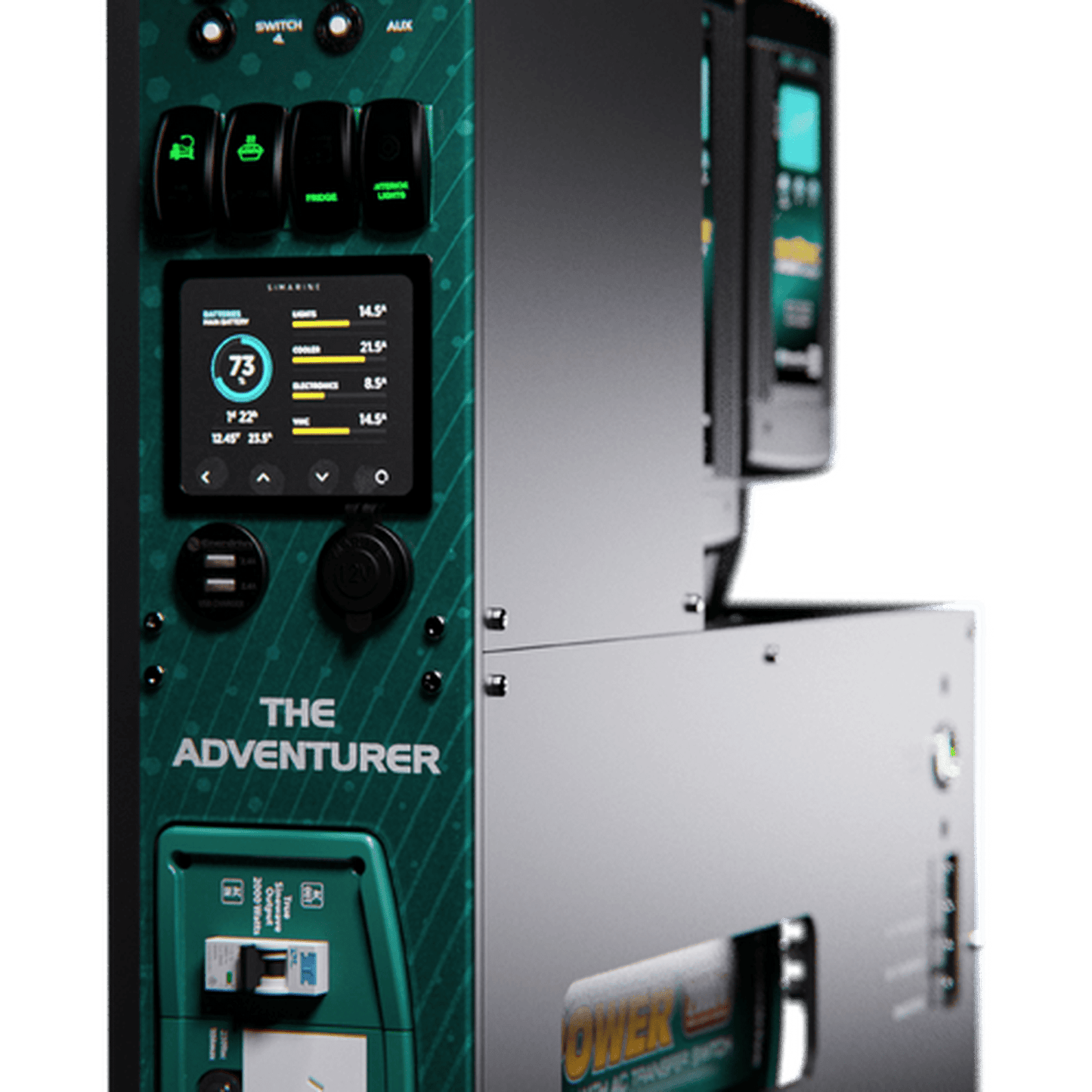

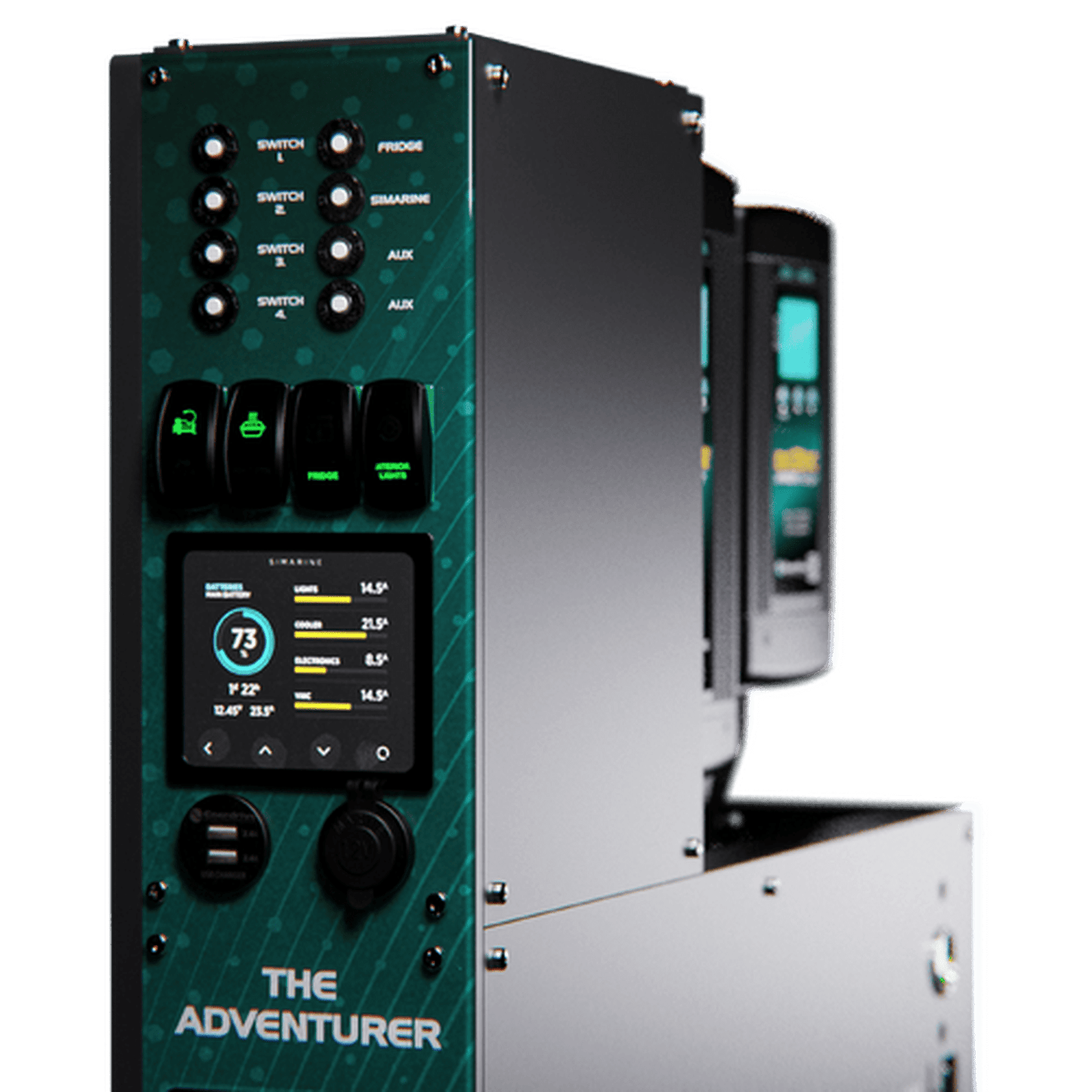

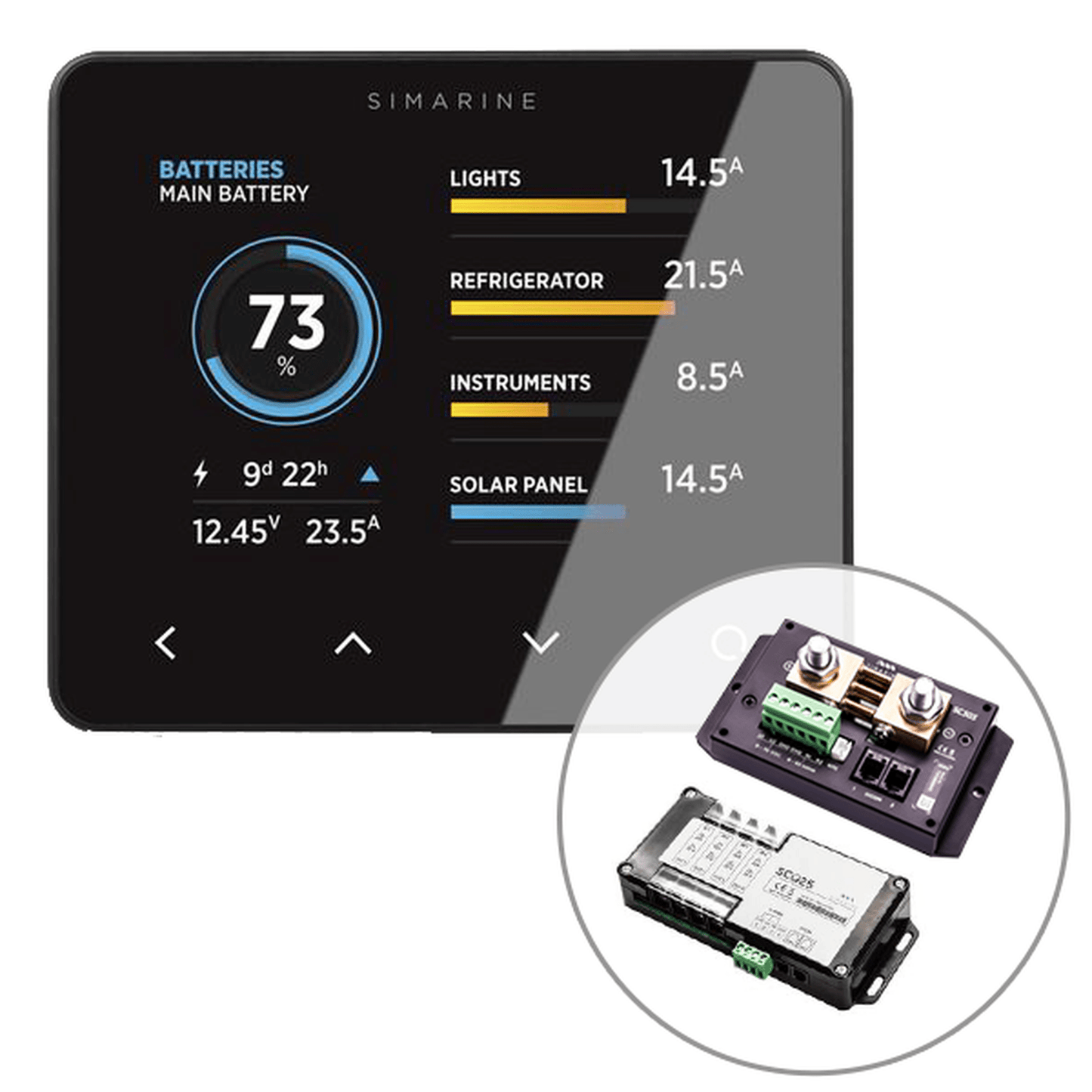

Simarine LCD Battery WIFI Monitoring System

 K-ADVENTURER-02
K-ADVENTURER-03

1 x 1m 70mm2 Main Battery Cable Connection Kit inc Main fuse

 *

4x Pre-Wired Circuit Breakers for Main Power Equipment

 *

4 x Additional Circuit Breakers

 *

4 x Contura Switches

 *

Twin USB 2.4A Hi Amp Sockets

 *

Cig Socket to Replace One or Both USB Sockets. (Please Request at Time of Order)

 Optional

Battery Reset Button

 *

Main System & Inverter Circuit Breakers

 *

Individual Load/Charge Module for Simarine. (#SI-SCQ50)

 K-ADVENTURER-03

Water/Fuel Tank Module for Simarine. (#SI-ST107)

   K-ADVENTURER-02 (Optional)
   K-ADVENTURER-03 (Optional)

Dimensions

 630L x 155W x 665Hmm

Weight

 18kg

 (*) Indicates Standard Fitment

Specifications

SKU - K-ADVENTURER

Brand - Enerdrive

Product Category - Power Systems

Warranty Period - 5 Years

Wattage (W) - 2000 (Inverter)

Pulse Discharge Current - 450A for 1.0s (200Ah & 300Ah Battery)

Reverse Polarity - Yes, (with user replaceable fuse/s) (AC Battery Charger)

Cycle Life (DOD – 80% under controlled conditions) - ≥ 2000 Cycles (200Ah & 300Ah Battery)

Over Temperature Protection - Yes, unit de-rated and shutdown (AC Battery Charger)

Operating Range (temp) - -20° to 60° C (AC Battery Charger)

Battery Charge Temperature - 0 ̴ 45°C (200Ah & 300Ah Battery)

Humidity - 5-95%, relative humidity non-condensing (AC Battery Charger) | 5-90% noncondensing (Inverter)

Equalize - 15.5V (DC Battery Charger) | 16.0 V (AC Battery Charger)

Voltage - 12V (200Ah & 300Ah Battery)

Under Voltage Shutdown Recovery - 12.0 / 12.6 VDC (Inverter)

Under Voltage Alarm - 11.0 / 12.1 VDC (Inverter)

AC Input Operating Range - 207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max) (AC Battery Charger)

Net Weight (kg) - 18

Ingress Protection - IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)

Normal Charge Voltage CV/CC* - 14.40 ̴ 14.60V (200Ah & 300Ah Battery)

Float - 13.0V - 13.8V (DC Battery Charger) | 13.4 – 13.8 V (AC Battery Charger)

DC Output Connection - Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Battery Charger)

AC Input Voltage - 90 to 265 VAC (AC Battery Charger)

Output Short Circuit - Yes, (with user replaceable fuse/s) (AC Battery Charger)

Recommended Charge Current for Maximum Life - ≤ 40A (200Ah Battery) | ≤120A (300Ah Battery)

Power Factor Correction - Yes (AC Battery Charger)

Nominal Capacity - 200Ah or 300Ah (Batteries)

Under Voltage Alarm Recovery - 11.3 / 12.3 VDC (Inverter)

Input Voltage - 12.5 VDC (Inverter)

Temperature Setting - Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger) | Hot, Normal, Cold (no sensor connected) (AC Battery Charger)

Dimensions - 630 x 155 x 665mm (Adventurer System Overall) | 242 x 172 x 74mm (DC Battery Charger) | 295 x 206 x 90mm (AC Battery Charger) | 230 x 435 x 115mm (Inv

Charger Mode Output Voltage - 13.8V - 15.5V (DC Battery Charger) | 14.2 – 15.5 V (AC Battery Charger)

Under Voltage Shutdown - 10.5 / 11.8 VDC (Inverter)

Storage Range (temp) - -40° to 70° C (AC Battery Charger) | -20°C to 60°C (Inverter)

Cooling - Forced air ventilation (thermo controlled fan) (AC Battery Charger)

Maximum Discharge Current - 250A @ 25°C ± 5°C for 15mins (200Ah & 300Ah Battery)

Battery Output Voltage Range - 11.00 ̴ 14.60V (200Ah & 300Ah Battery)

Charging Control - Three Stages (DC Battery Charger) | Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setti

Regulatory Compliance - Complies with AS/NZS 60335.2.29 Including Australian deviations (AC Battery Charger)

Output System Voltage - 12V

AC Input Connection - IEC with Supplied 1.2M Power Lead (AC Battery Charger)

Discharge Cut-off Voltage - ≤11.20V (200Ah & 300Ah Battery)

Over Charge - Yes, unit shutdown (AC Battery Charger)

Maximum Charge Current - 190A @ 25°C for 30mins (200Ah & 300Ah Battery)

AC Input Frequency Range - 47 – 63 Hz (AC Battery Charger)

Nominal Voltage - 12.8V (200Ah & 300Ah Battery)

Battery Discharge Temperature - -20 ̴ 60°C (200Ah & 300Ah Battery)

Operating Temperature Range - 0°C to 40°C (Inverter)

Selectable Battery Type - Gel, AGM, Flooded, Lithium, Program (DC & AC Battery Charger) (AC Battery Charger)

DC Output - Single (DC Battery Charger) | Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)

Over Voltage Shutdown - 15.5 VDC (Inverter)

USB Socket Output - 5V, 750 mA (Inverter)

Charger Efficiency - > 82% (AC Battery Charger)

Power consumption (DC 12V) - 700W (Full Load) (AC Battery Charger)

Efficiency - 95% (DC Battery Charger)

Standby (Float) Voltage - 13.50 ̴ 13.80V (200Ah & 300Ah Battery)

Standby Current - < 2 mA (AC Battery Charger)

DC Output Ground - Single Heavy Duty Common Ground Stud (AC Battery Charger)

LCD Display - Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)

Battery Temp Sensor Port - RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)
