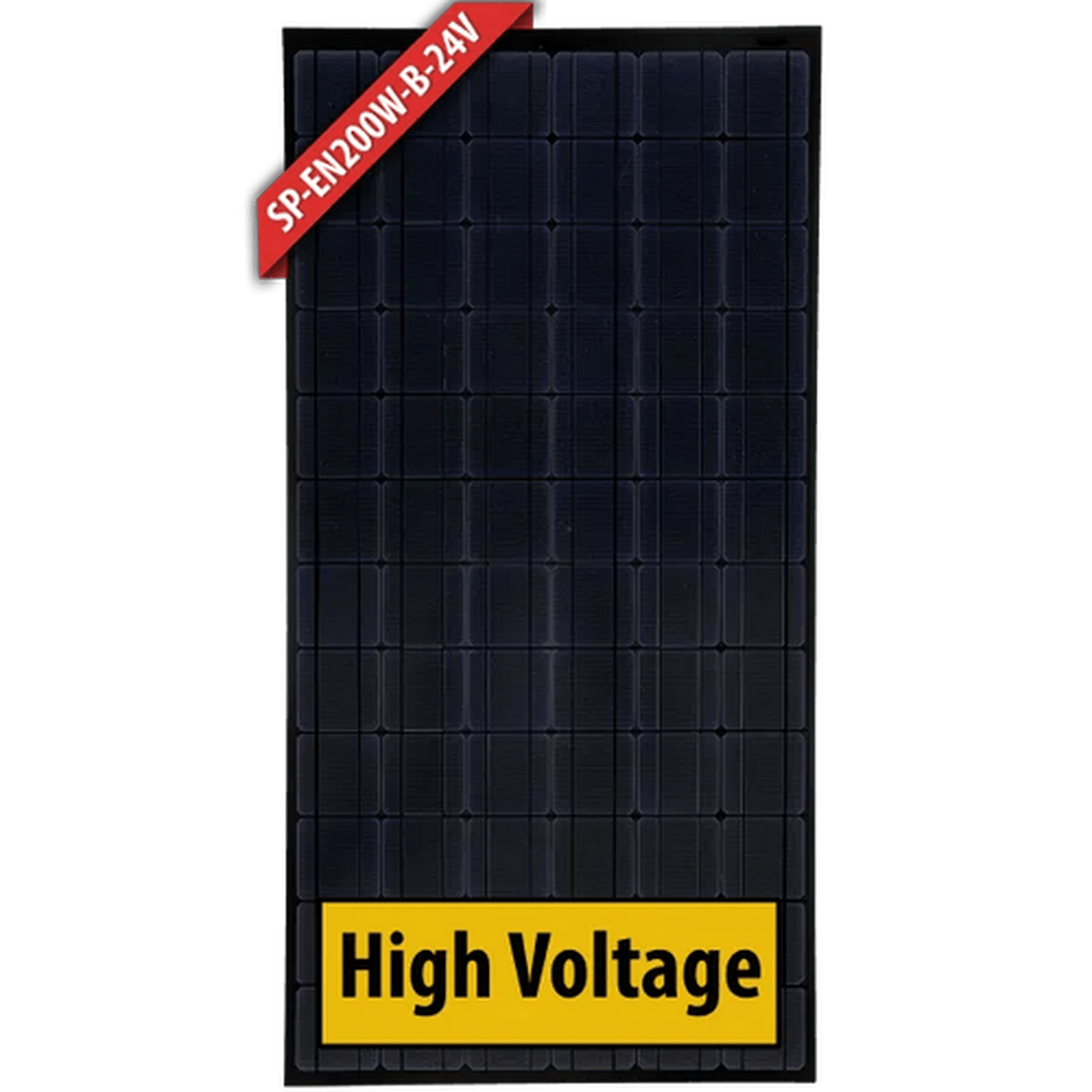

Enerdrive 200W Mono Crystalline Fixed Solar Panel, Black

Enerdrive 200W Mono Crystalline Fixed Solar Panel, Black, 5 Year Warranty. Enerdrive solar panels are typically around 20+vdc open circuit.

Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.

Key Features:

• High Conversion Efficiency. Module efficiency up to 15.67% achieved through advanced cell technology and manufacturing capabilities.
• Positive Tolerance. Positive tolerance of up to -1%+~3% delivers higher output reliability.
• High PID Resistant. Advanced cell technology and qualified materials lead to high PID resistant.
• Current Sorting Process. System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage.
• Extended Wind and Snow. Load tests Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal).
• Withstanding Harsh Environment. Reliable quality leads to a better sustainability even in harsh environments in the outdoors.

Specifications

SKU - SP-EN200W-B-24V

Brand - Enerdrive

Product Category - Portable Solar Panels

Warranty Period - 5 Years

Solar Panel Type - Fixed Solar Panels

Wattage - 200

Test Conditions - 1000W/m² , AM1.5 , 25°C

Max Power Current Im(A) - 5.37

Short Circuit Current Isc(A) - 6.05

Dimensions - 1580 x 808 x 40 (one panel)

Net Weight (kg) - 15

Max System Voltage (VDC) - 1000

Max Power Voltage Vm(V) - 37.3

Voltage DC (V) - 24V

Open Circuit Voltage Voc(V) - 43.7

Popular Product Applications - Caravan solar panels, 12V solar panels, caravan solar panel kit, campervan solar panel kit, 4WD solar panels, Enerdrive solar panels
