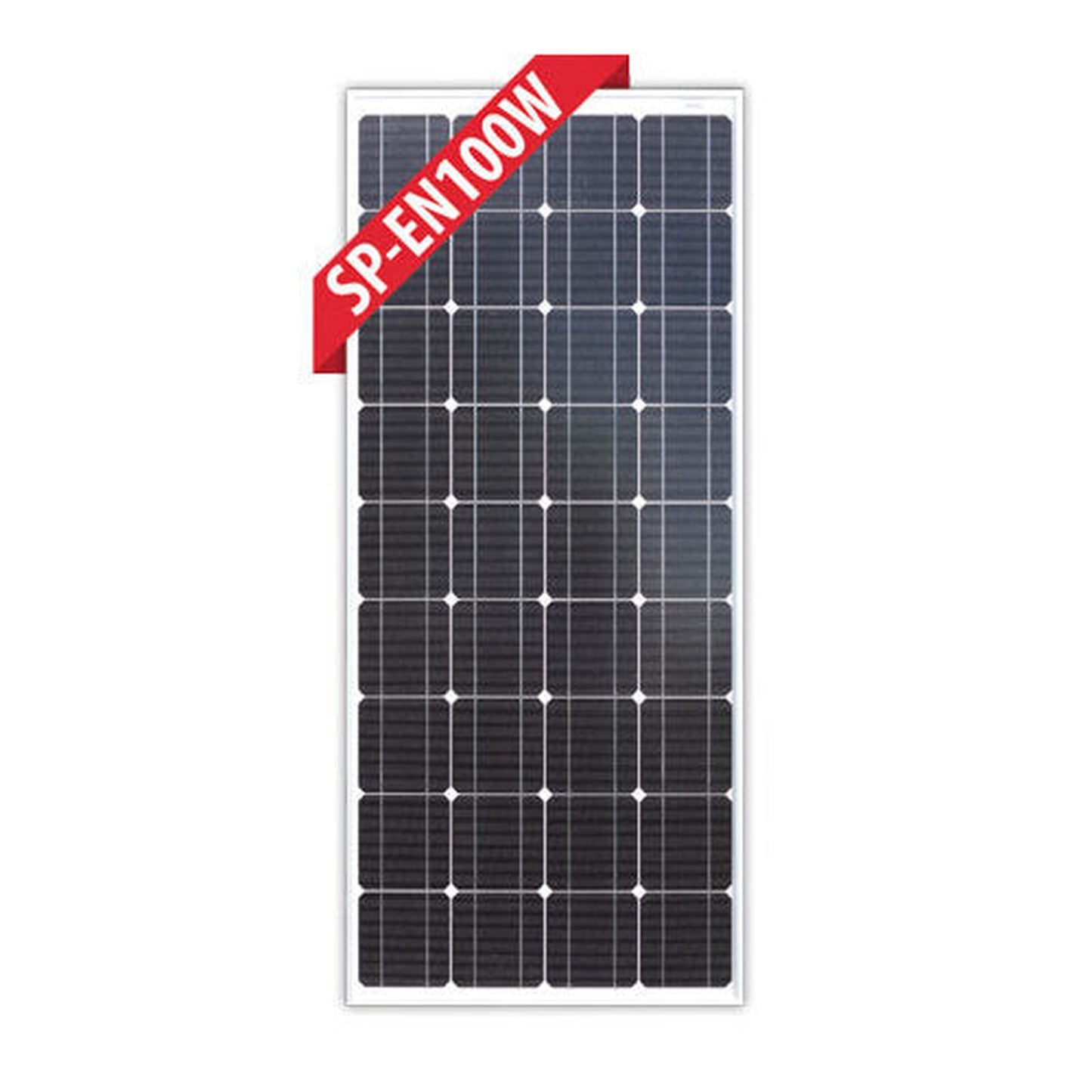

Enerdrive 100W 24V Fixed Solar Panel
Enerdrive 100W 24V Fixed Solar Panel
SKU:SP-EN100W-24V
Share
Enerdrive 100W 24V Fixed Solar Panel, 5 Year Warranty. Enerdrives 100W Fixed Solar Panels are 43+VDC open circuit and are well suited to 12/24v installations (or 48v by series connections of panels).
PLEASE NOTE: SP-EN100W-24V are suitable for Charging 24V Battery System when using a PWM Solar Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used.
A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Enerdrive stocks a full range of spare cables. With a mass of factories developing solar panels around the world, the biggest choice is ‘Where to buy” & even more importantly “What quality and support am I getting”. Enerdrive can become your single point contact for all things relating to solar products, warranty and importantly that same level of support that we have provided
for many years with all Enerdrive products.
Features:
- 20+vdc open circuit
- Suited to 12v installations (or 24v by series connections of panels)
- A fly lead cable is provided for easy connection of the 10 & 20w panels
- The larger panels have MC4 compatible solar cable connectors included
Specifications
SKU - SP-EN100W-24V
Brand - Enerdrive
GTIN - 9342616026113
Product Category - Portable Solar Panels
Warranty Period - 5 Years
Solar Panel Type - Fixed Solar Panels
Wattage - 100
Cell Type - Monocrystalline - 72 Cells
Voltage DC (V) - 24V
Max System Voltage (VDC) - 1000
Short Circuit Current Isc(A) - 3.26
Dimensions - 1010 x 676 x 35
Test Conditions - Cell Temperature: 25 Deg | C,Irradiance: 1kW/㎡ | Air Mass: 1.5
Open Circuit Voltage Voc(V) - 40.5
Net Weight (kg) - 8.9
Popular Product Applications - Caravan solar panels, 12V solar panel, RV solar panels, campervan solar panel kit, 4WD solar panels, 100 watt solar panel
