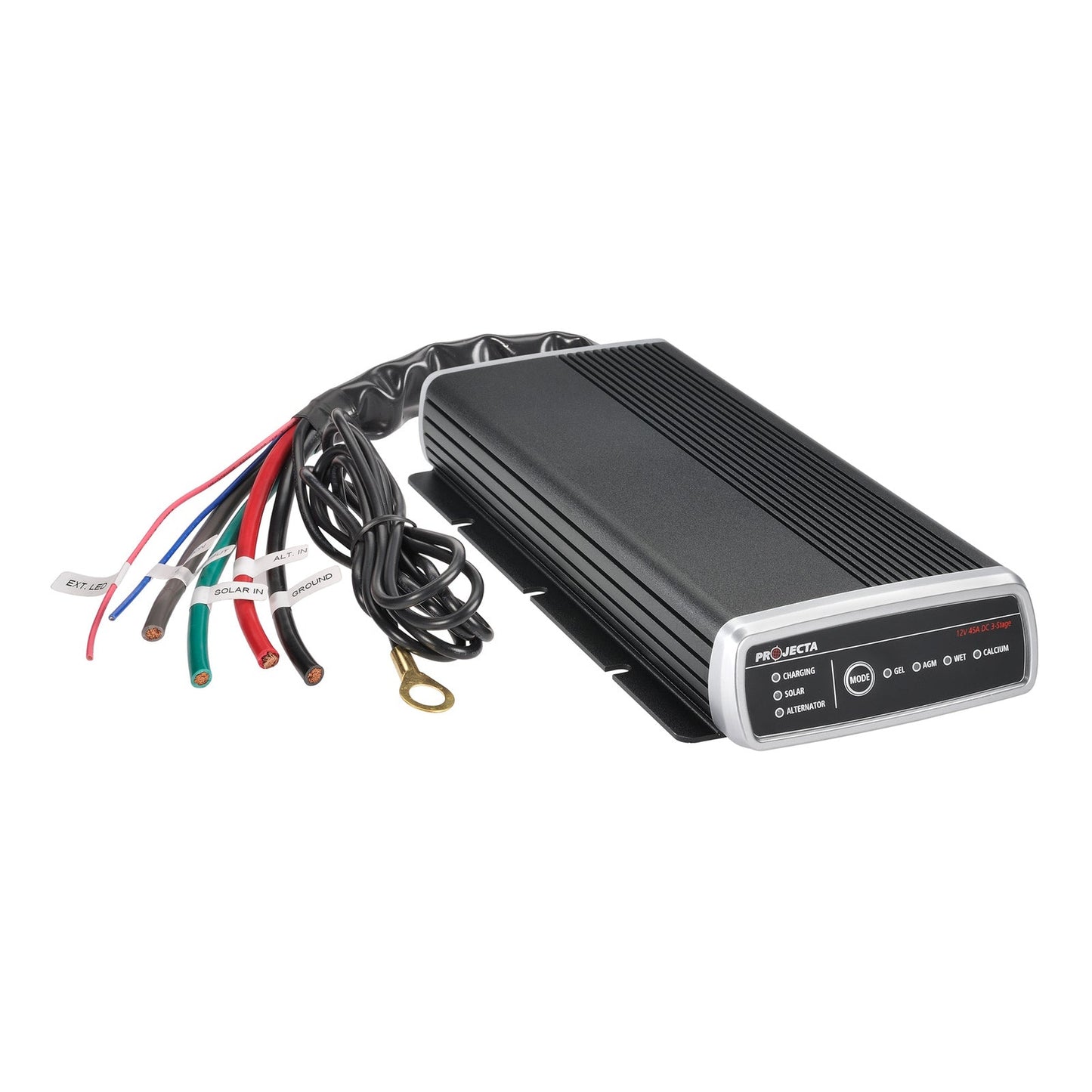

DCDC CHARGER IDC45 3 Stage Charger

Automatic 9-32V 45A 3 Stage DC/Solar Battery Charger

Allows you to charge your 12V second/auxiliary deep cycle battery on the go, simultaneously from solar and alternator (9-32V) inputs. Provides an advanced 3 stage charging process to produce a safe and comprehensive charge, a must for deep cycle batteries.

Dual Charging Modes / Dual Input Operation

• Simultaneous dual battery charging from both solar and alternator inputs.

Engine Bay Installation

• Sealed to IP67, the IDC is dust, splash and shockproof and can safely operate in extreme temperatures up to 80°C.

Multi-Chemistry

• Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel.

Caravan installation

• Combines your solar and vehicle’s power to deliver a comprehensive multi-stage charge ensuring longer battery life and performance

4WD installation

• A sophisticated dual battery charger engineered for in-vehicle or under bonnet installation on vehicles fitted with traditional or smart alternators.

Specifications:

PART NO	IDC45
CHARGE TYPE	3 Stage
ALTERNATOR INPUT VOLTAGE	9-32Vdc
MAX SOLAR INPUT	28Vdc, 693W
OUTPUT CURRENT	Input 9-11Vdc 37A, Input 11-32Vdc 45A
BACK DRAIN ON AUX BATTERY	<5mA
CHARGER CONTROL	Gel: 14.1V, AGM: 14.4V Wet: 14.7V, Calcium: 15.4V
BATTERY CAPACITY	150-600Ah
BATTERIES SUPPORTED	Gel, AGM, Wet & Calcium
SMART ALTERNATOR	12V: Turn On: 12.2-20V 24V: Turn On: 24.4-32V Turn Off: <11.9V Turn Off: <24V
CONVENTIONAL ALTERNATOR	12V: Turn On: 13.4-20V 24V: Turn On: 26.8-32V Turn Off: <12.8V Turn Off: <25.6V
OPERATING TEMPERATURE	-10°C to +80°C
