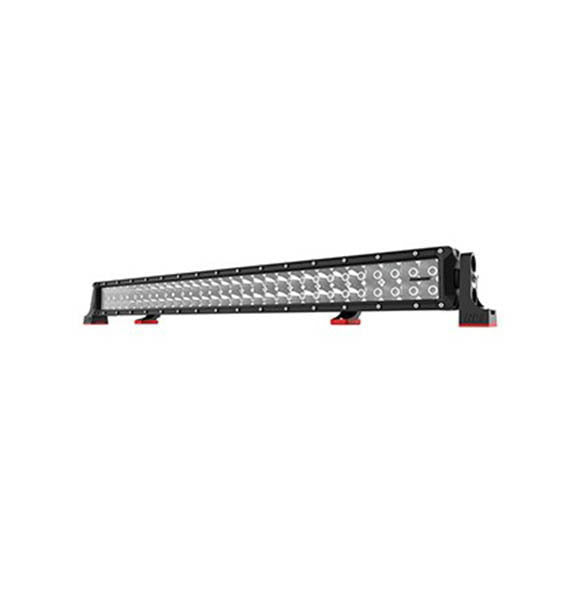

Roadvision DC2 32" Technical Specifications
| Feature | Specification |
| Brand | Roadvision |
| Series | DC2 Series |
| Bar Length | 32" (818mm) |
| Beam Type | Combo Beam |
| Light Source | 60 x 3W Osram Hi-Lux LEDs |
| Total Watts | 180W |
| Lumens Output (Effective) | 16,200lm |
| Max Lux @ 10m | 1,986 Lux |

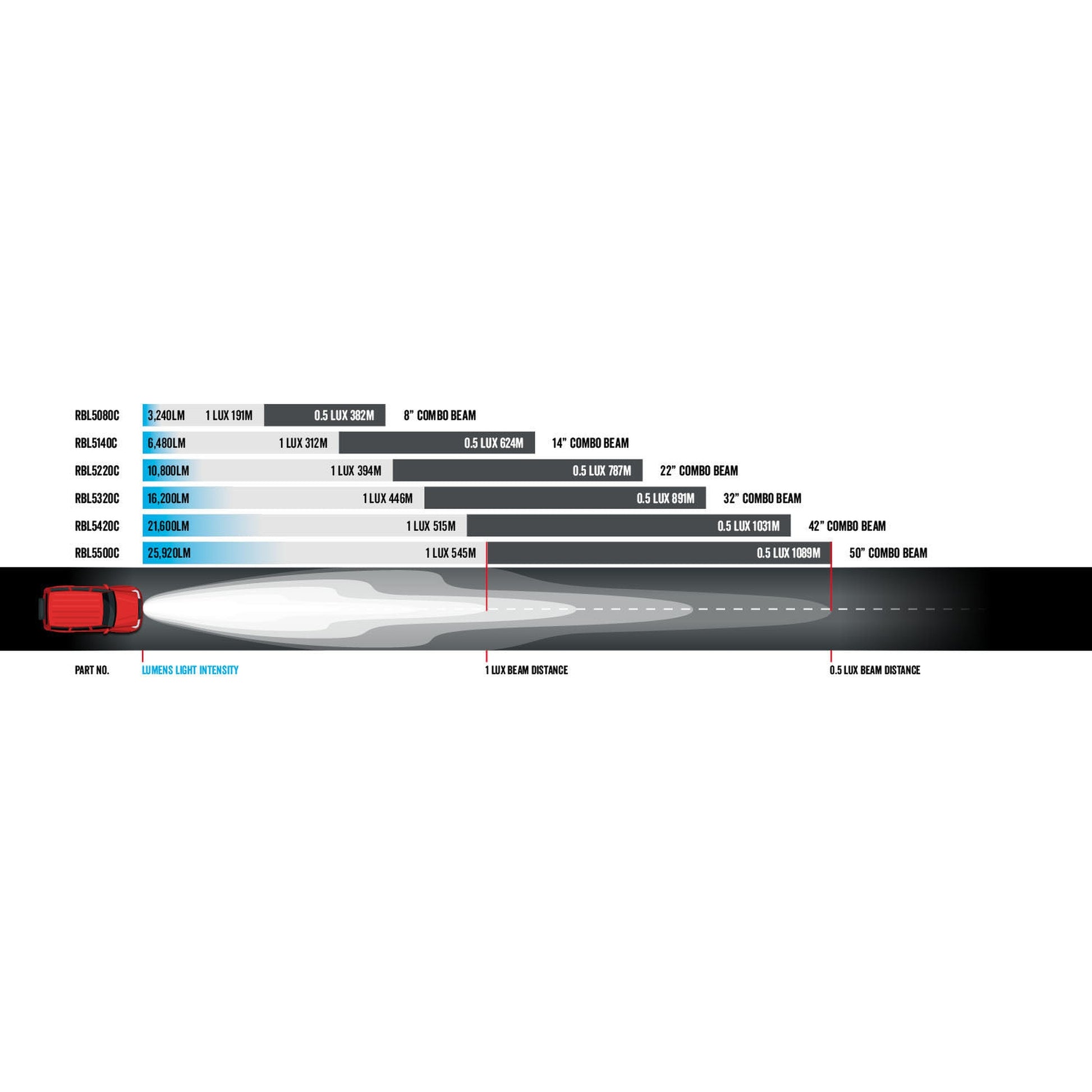

| Beam Distance @ 1 Lux | 446m |
| Beam Distance @ 0.5 Lux | 891m |
| Voltage Input | 10-30V DC (Multi-volt) |
| Current Draw | 10.0A @ 13.8V |
| IP Rating | IP67 (Water & Dust Proof) |
| Wiring Connection | 2 Pin ATP Plug |

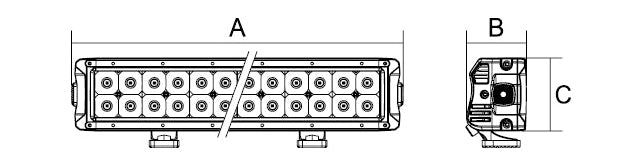

| Dimensions (L x D x H) | 818mm x 65mm x 78.5mm |
Frequently Asked Questions
1. Is the 32-inch size suitable for mounting on a standard 4WD bullbar?

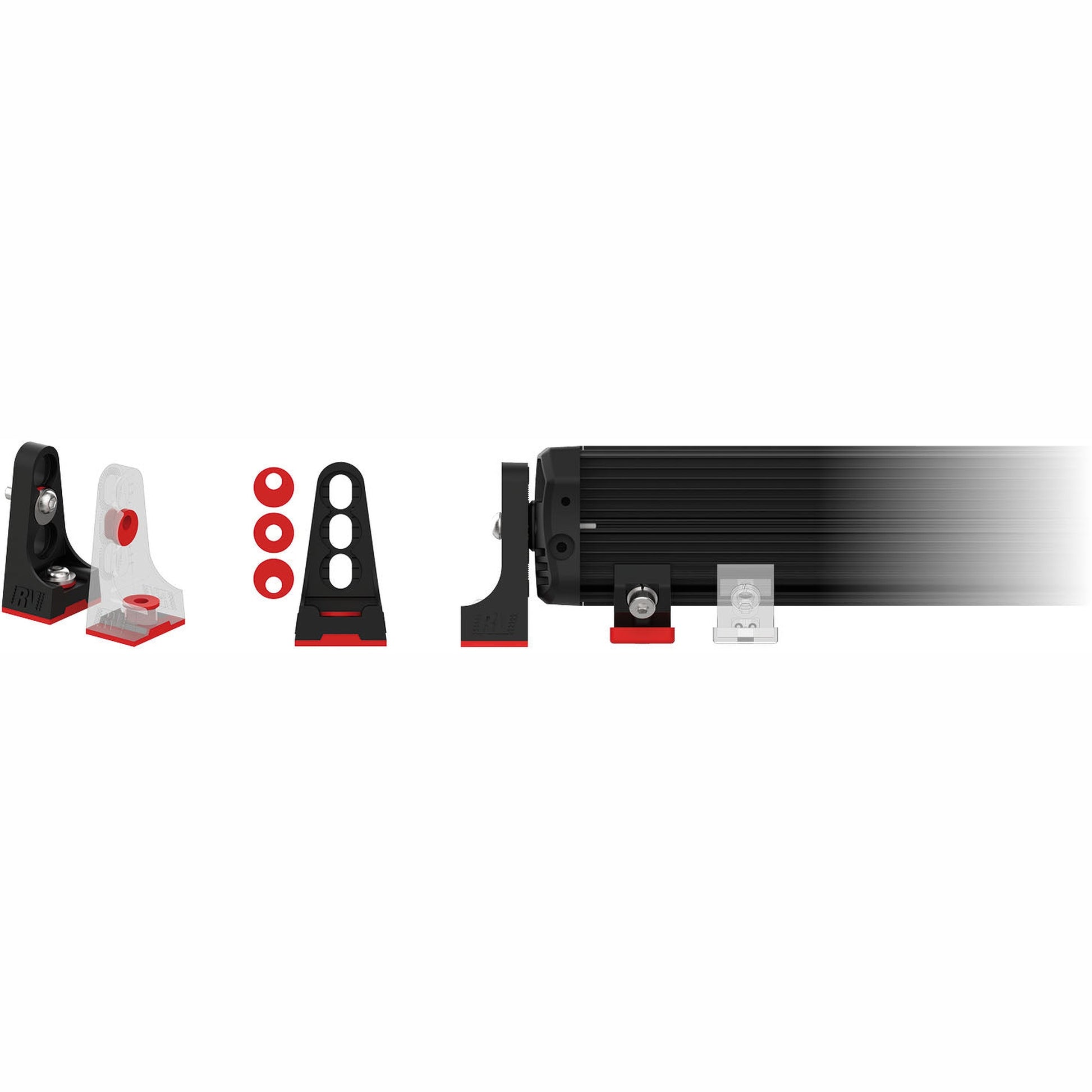

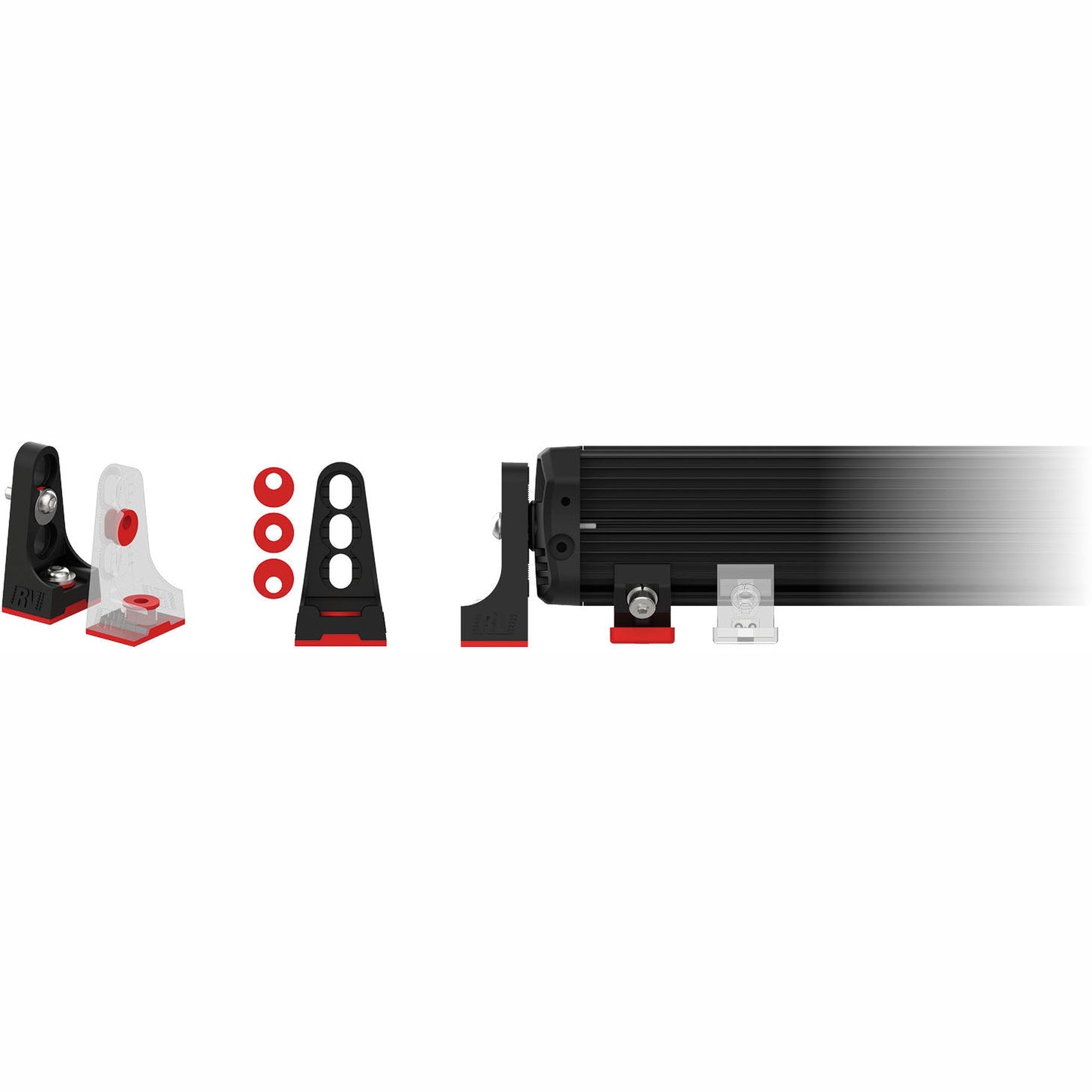

Yes, the 32-inch (818mm) length is highly popular for standard 4WD bullbars and compact roof racks. The included 9-position anti-vibration end mounts and low-profile slide mounts make dialing in the perfect fit incredibly easy.
2. Is the DC2 Series light bar suitable for a 24V truck?
Absolutely. Featuring a highly efficient 10-30V DC multi-volt input, it operates perfectly on standard 12V passenger vehicles and utes, as well as 24V heavy machinery and transport trucks.
3. Will this light bar cause static on my UHF radio?
No, the DC2 Series is fully EMC and EMI approved. This guarantees zero electromagnetic interference, ensuring your UHF radio communications remain crystal clear while you are out on the tracks.
4. How tough is the front lens against flying rocks?
The lens is crafted from high-impact polycarbonate, which is exceptionally durable and purposely engineered to resist the stone chips, branches, and debris commonly encountered on rough Aussie dirt roads.
5. Can it handle deep river crossings?
Yes. With its strict IP67 rating, the light bar is completely sealed against dust and water ingress, easily surviving deep river crossings, torrential downpours, and high-pressure worksite washdowns.
6. What does "PWM dimmable" mean?
Pulse Width Modulation (PWM) dimming allows you to seamlessly adjust the brightness of the light bar when paired with an optional plug-and-play dimming controller. This is highly beneficial when driving through highly reflective environments like dense fog or heavy bulldust.
