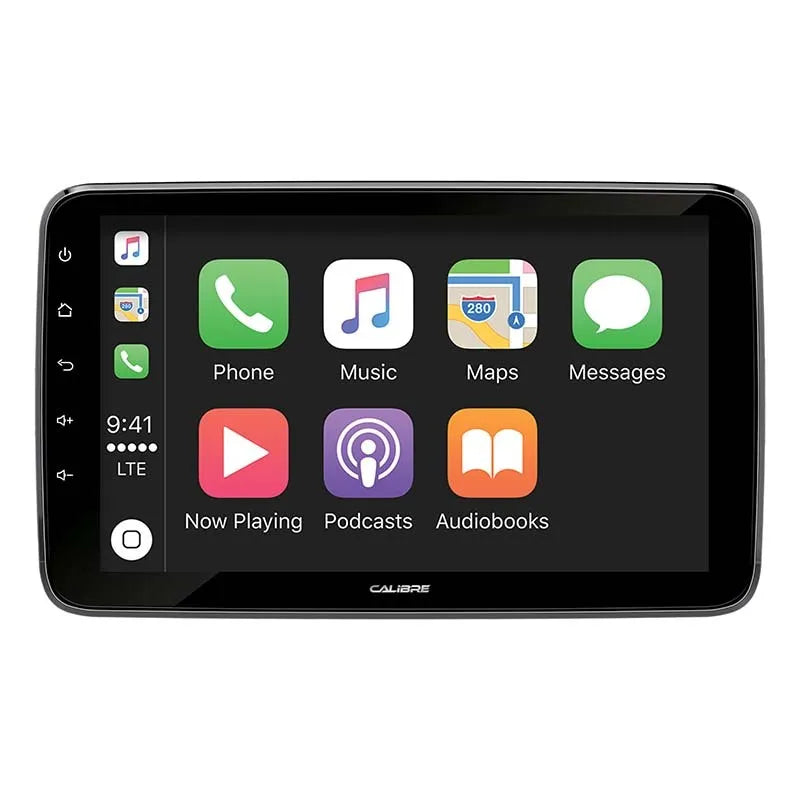

Calibre ELITE 9WL 9" Wireless Apple CarPlay & Android Auto DAB+ Receiver
Product Overview:
Upgrade your dash with a large 9-inch display and wireless smartphone connectivity.
The Calibre ELITE 9WL is a 9-inch floating multimedia receiver designed to bring modern entertainment, navigation and connectivity to your vehicle. Connect wirelessly or via cable with Apple CarPlay® and Android Auto™ for easy access to navigation, music, calls and compatible apps.
Featuring DAB+ digital radio, Bluetooth, built-in Wi-Fi and a high-resolution capacitive touchscreen, the ELITE 9WL provides a complete in-car entertainment upgrade. Dual camera inputs add front and rear camera flexibility, while simultaneous connection for two phones makes switching between devices easy.
Its ISO 1-DIN chassis and floating 9-inch display also make it a practical option for vehicles where a larger multimedia screen is wanted without a traditional double-DIN installation.
What's Included
- 2 × 1m USB leads
- 10cm USB lead
- DAB+ antenna
- GPS antenna
- Wi-Fi antenna
- ISO wiring harness
- Camera harness
- CANBUS wiring harness
- Front camera & microphone harness
- Surround frame
- Installation cage
- Removal keys
- External hands-free microphone
Key Features
- 9" 1024 × 600 capacitive touchscreen
- Wireless & wired Apple CarPlay®
- Wireless & wired Android Auto™
- DAB+ digital radio
- Built-in Wi-Fi
- Bluetooth hands-free calling & audio streaming
- Connect up to 2 phones simultaneously
- Navigation via Apple CarPlay or Android Auto
- Dual camera inputs
- Supports up to 1080p camera input
- 3 × rear USB 2.0 ports
- 16-band EQ
- Time alignment
- 4 × 45W maximum power output
- 5V RCA pre-outs
- Programmable steering wheel controls
- ISO 1-DIN mounting
- External microphone included
Specifications
| Specification | Details |
|---|---|
| Display | 9" 1024 × 600 Capacitive Touchscreen |
| Operating System | Android 9 |
| Mounting | ISO 1-DIN |
| Panel Size | 238 × 143mm |
| Body Size | 178 × 50mm |
| Operating Voltage | 10.8–16V DC |
| Max Power | 4 × 45W @ 4Ω |
| RMS Power | 4 × 20W @ 4Ω |
| Equaliser | 16-Band EQ |
| Pre-Outs | 4 × RCA 5V |
| Subwoofer Output | 1 × RCA 5V |
| Bluetooth | Hands-Free + A2DP Audio |
| Phone Connection | Up to 2 Simultaneously |
| Radio | DAB+ / AM / FM with RDS |
| USB | 3 × Rear USB 2.0 |
| Camera Inputs | 2 × PAL/NTSC/720p/1080p |
| A/V Input | 1 × Rear RCA |
| Operating Temperature | -20°C to +60°C |
