Product Description

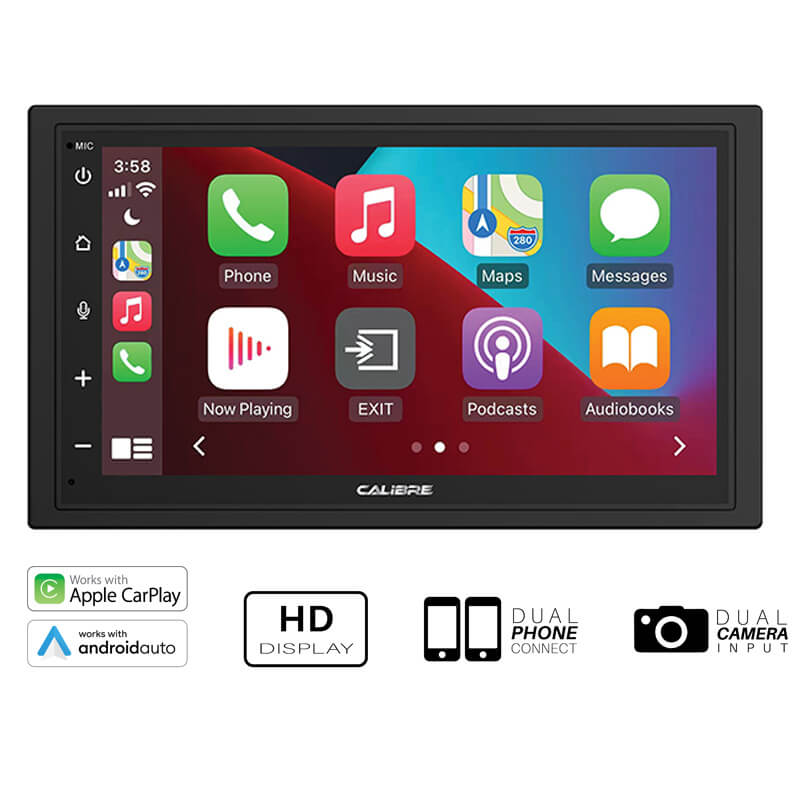

Calibre ELITE 7WL 6.8" Wireless Apple CarPlay & Android Auto Receiver
Product Overview:
Upgrade your factory stereo with wireless smartphone connectivity and powerful audio.
The Calibre ELITE 7WL is a 6.8-inch multimedia receiver featuring wireless or wired Apple CarPlay® and Android Auto™, giving you convenient access to navigation, music, calls and compatible apps from its high-resolution capacitive touchscreen.
Built-in Wi-Fi, Bluetooth and simultaneous two-phone connectivity make everyday driving easier, while front and rear camera inputs provide added flexibility for parking and vehicle visibility.
For an audio upgrade, the ELITE 7WL features a 2Ω-stable high-power amplifier, 10-band EQ, time alignment and multiple RCA pre-outs for expanding your vehicle's sound system.
Key Features
- 6.8" 1024 × 600 capacitive touchscreen
- Wireless & wired Apple CarPlay®
- Wireless & wired Android Auto™
- Navigation via CarPlay or Android Auto
- Built-in Wi-Fi
- Bluetooth hands-free calling & audio streaming
- Connect up to 2 phones simultaneously
- Front and rear camera inputs
- High-power 2Ω-stable amplification
- Up to 4 × 72W max output at 2Ω
- 10-band EQ
- Time alignment
- Front/rear high-pass filter
- Subwoofer low-pass filter
- 4 × RCA pre-outs
- 2 × subwoofer RCA pre-outs
- Programmable steering wheel controls
- ISO 2-DIN mounting
Specifications
| Specification | Details |
|---|---|
| Display | 6.8" 1024 × 600 Capacitive Touchscreen |
| Operating System | Linux |
| Mounting | ISO 2-DIN |
| Speaker Impedance | 2–8Ω |
| Operating Voltage | 10.8–16V DC |
| Max Power | 4 × 72W @ 2Ω / 4 × 48W @ 4Ω |
| RMS Power | 4 × 38W @ 2Ω / 4 × 22W @ 4Ω |
| Equaliser | 10-Band EQ |
| Pre-Outs | 4 × RCA 4V |
| Subwoofer Outputs | 2 × RCA 4V |
| Bluetooth | Hands-Free + A2DP Audio |
| Phone Connection | Up to 2 Simultaneously |
| Radio | AM/FM with RDS |
| USB | 2 × Rear USB 2.0 |
| Camera Inputs | 2 × Front/Rear, PAL & NTSC |
| A/V Input | 1 × Rear RCA |
| Face Panel | 170.5 × 97mm |
| Overall Size | 178 × 100mm |
| Operating Temperature | -20°C to +70°C |
