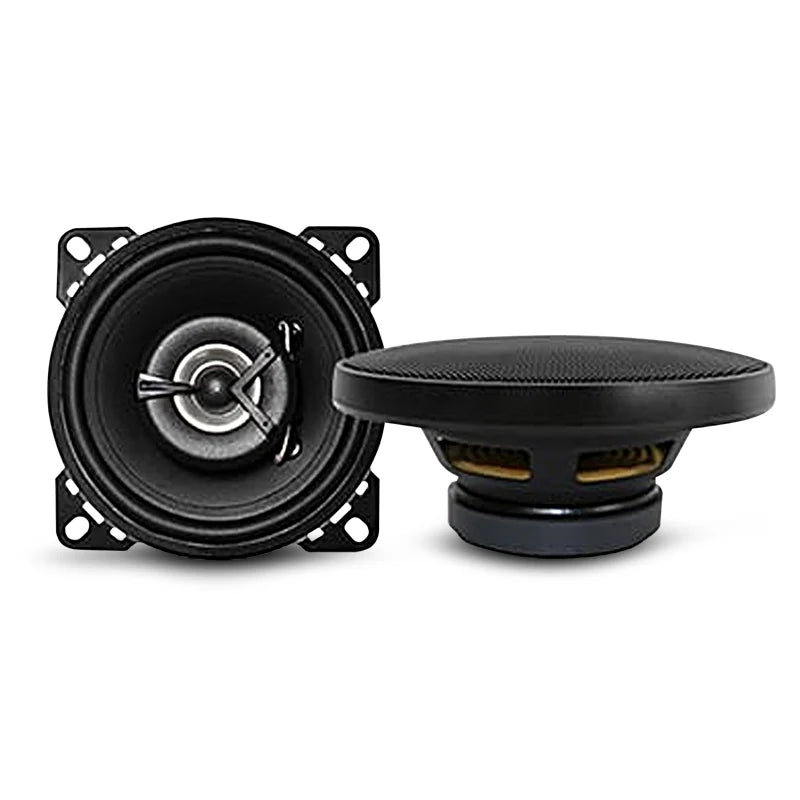

AUTOBACS 4 INCH 2-WAY COAXIAL

AUTOBACS 4 INCH 2-WAY COAXIAL

Product Overview:

AUTOBACS XR42 Features:

• 4” (100mm)
• 43.5mm Mounting Depth
• 90W Max Power

AUTOBACS XR42 Specifications:

• System: 2-Way Coaxial
• Driver Size: 4” (100mm)
• Driver Material: Black Polypropylene
• Surround Type: Rubber
• Voice Coil Size: 19.45mm
• Voice Coil Type: ASV
• Tweeter Type: Mylar
• Tweeter Size: 25mm
• Tweeter Voice Coil: 13mm
• Peak Power Handling: 90W
• Nominal Power Handling: 20W
• Frequency Response (+/-3dB): 60-20,0000Hz
• Resonant Frequency: 106Hz
• Sensitivity (1m/1w): 84dB
• Nominal Impedance: 3.6ohm
• Magnet Size: 70 x 10mm
• Magnet Weight: 5.3oz
• Construction: Pressed Steel
• Mounting Depth: 43.5mm
• Mounting Hole: 90.5mm
