PRODUCT DESCRIPTION

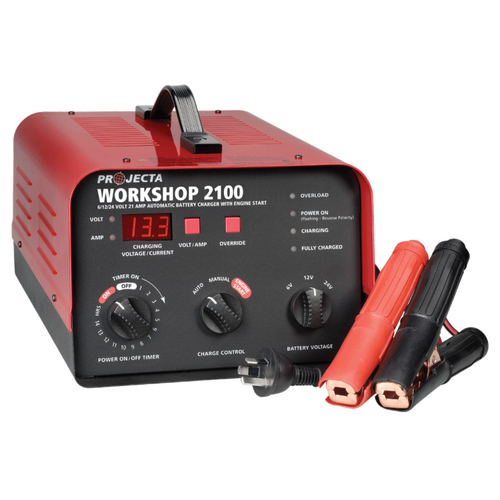

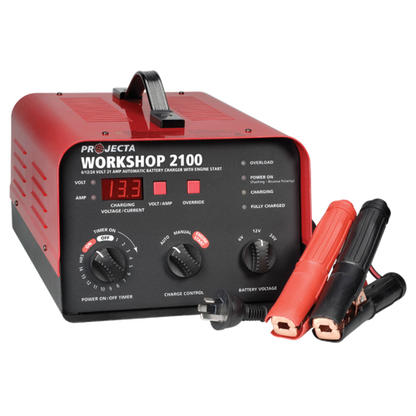

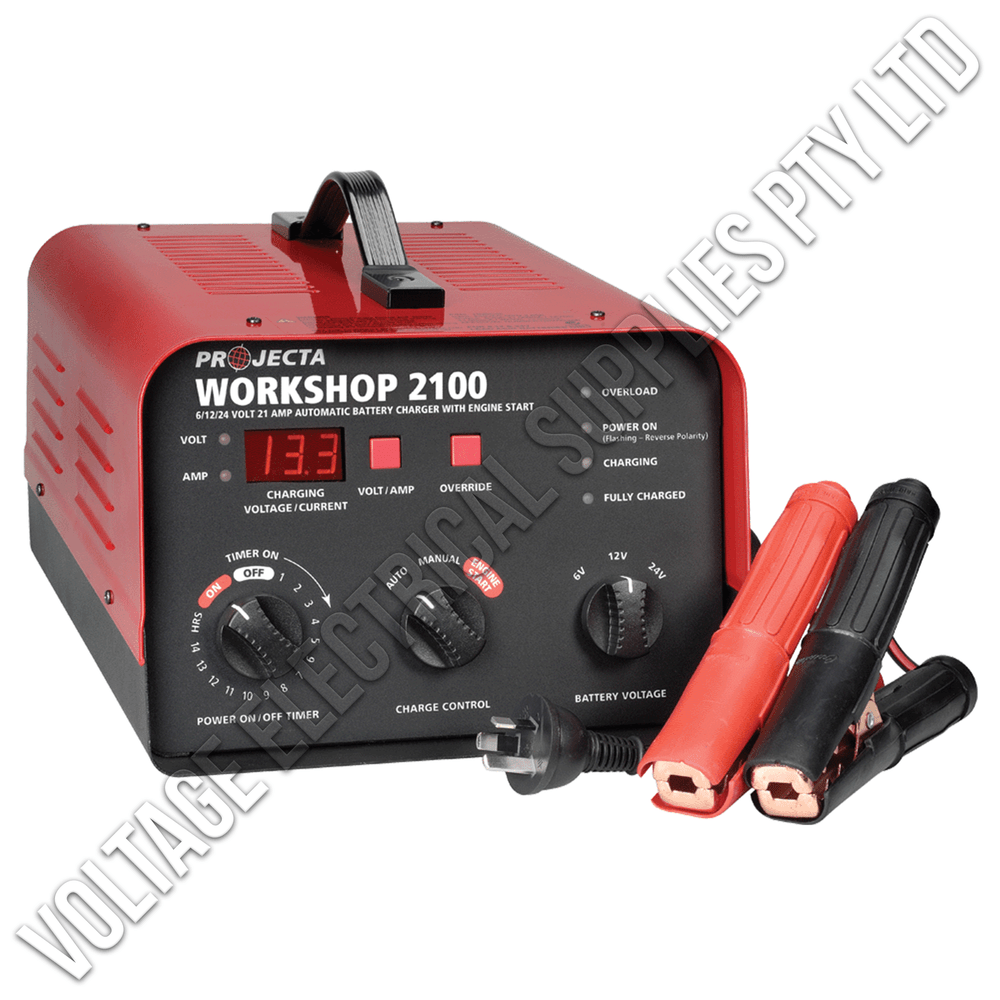

6/12/24V AUTOMATIC & MANUAL 21 AMP 2 STAGE BATTERY CHARGER HDBC35

Designed for the most demanding environments such as heavy-duty transport and agriculture. Delivers ample power, sturdy construction, and various charging options.

Features:

Multi-Voltage OperationMulti-Voltage Operation

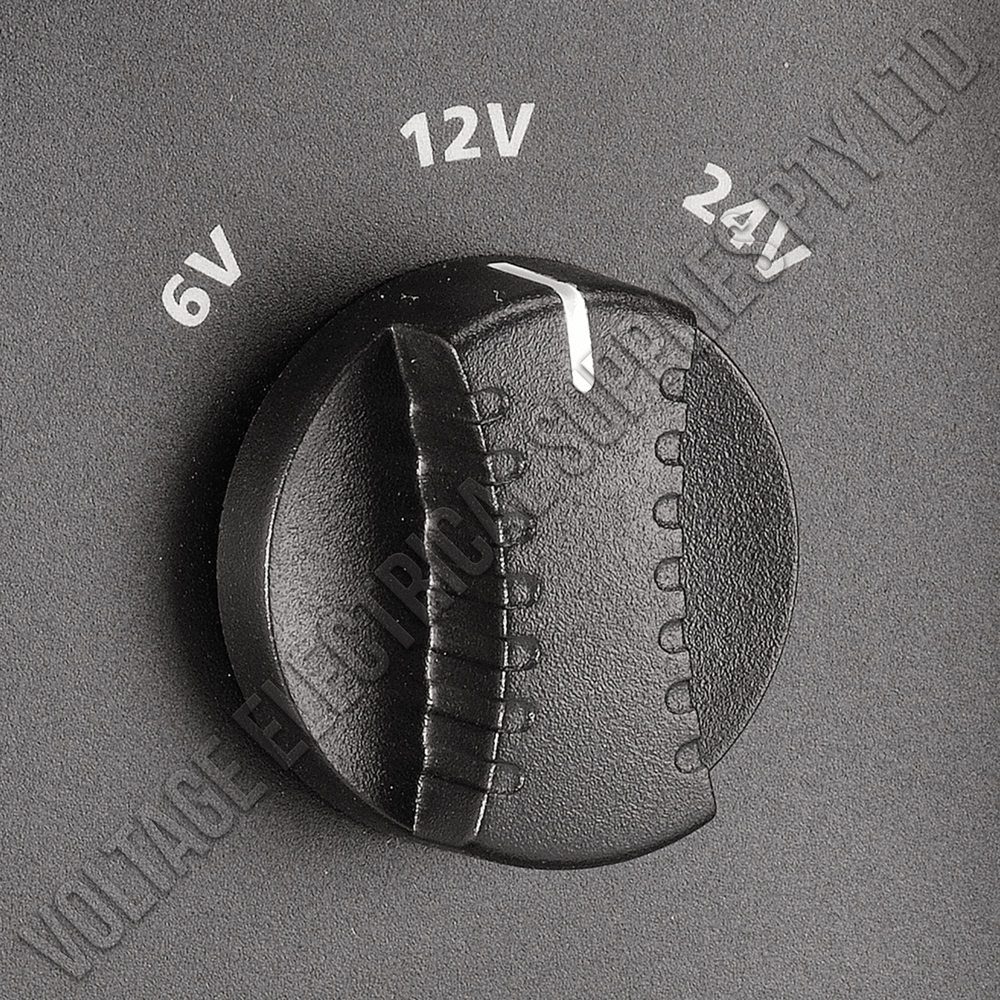

Adjustable to suit 6, 12, or 24 Volt operation.

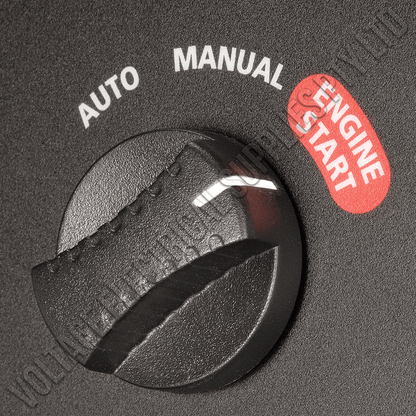

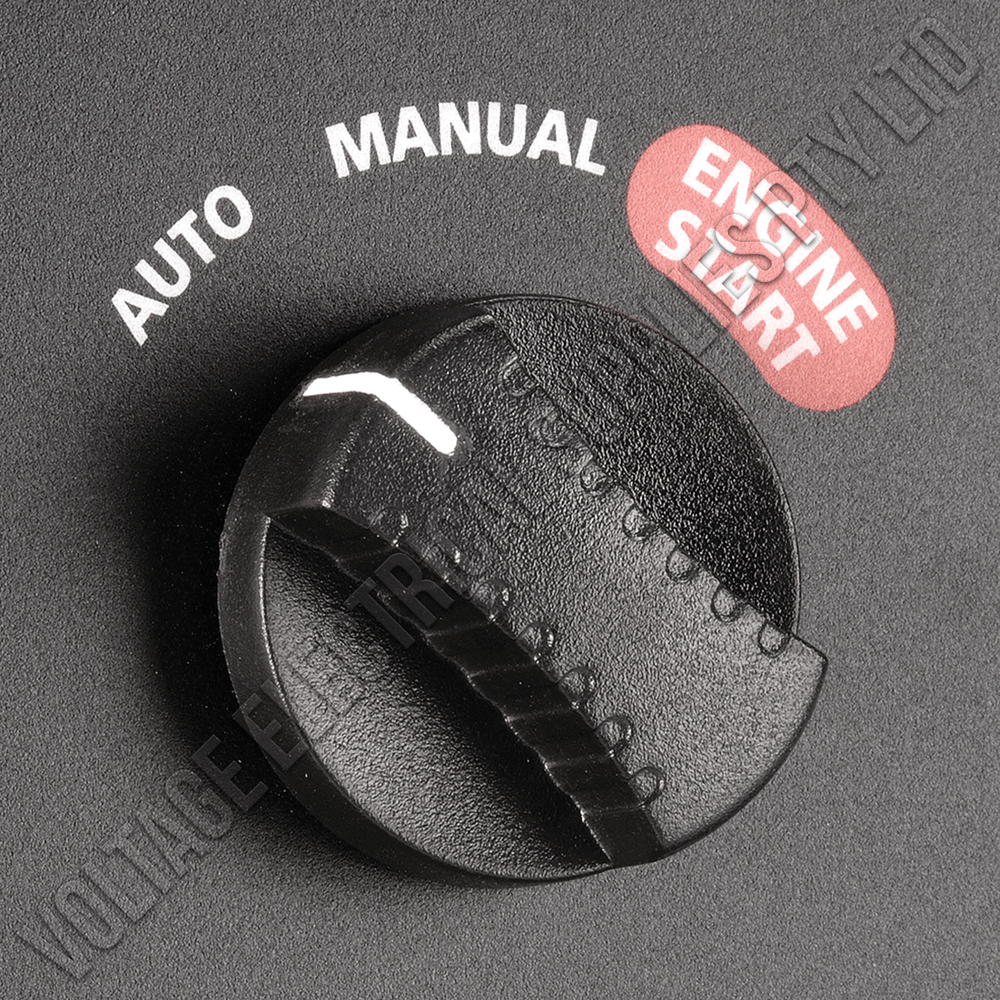

Automatic Or Manual
Charging options keep the operator in control.

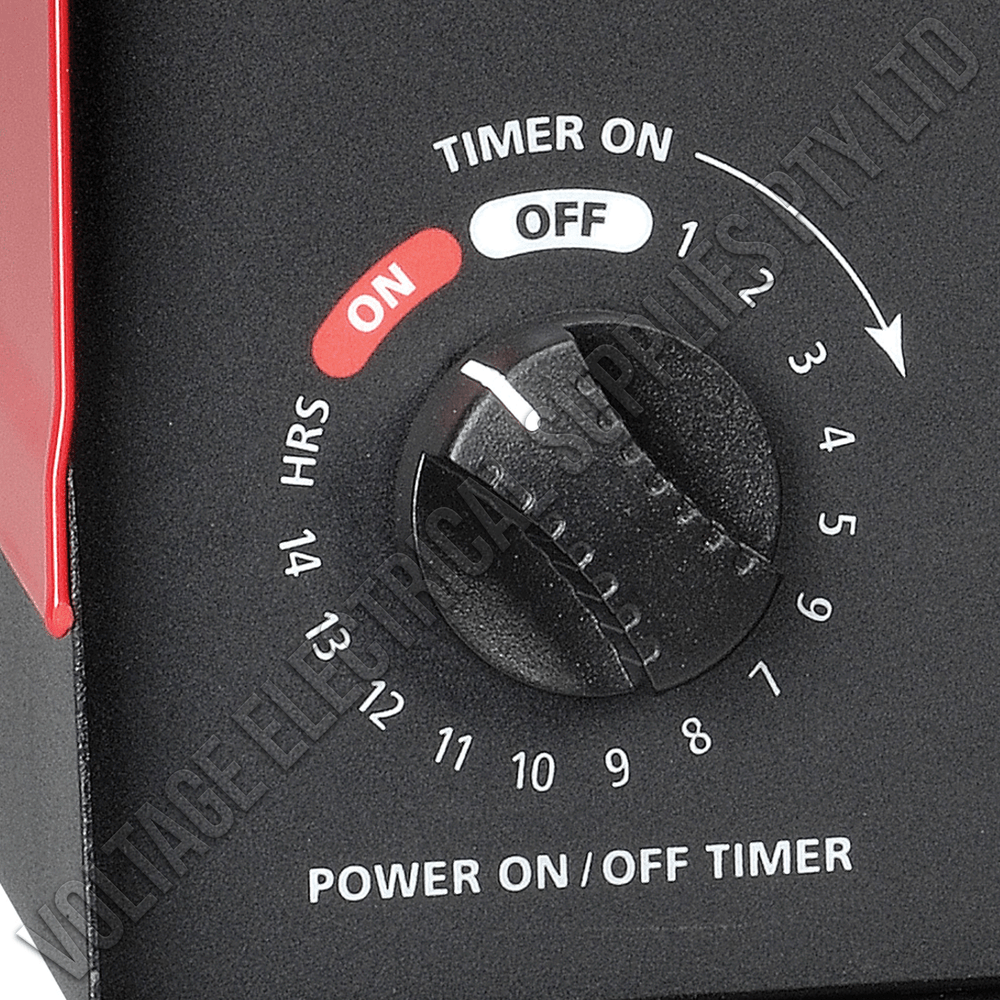

0–14 Hour Timer
Automatically turns the charger off at the set time.

Engine Start Function
Starts vehicle with a flat battery after a controlled 5-minute charge (subject to battery condition).

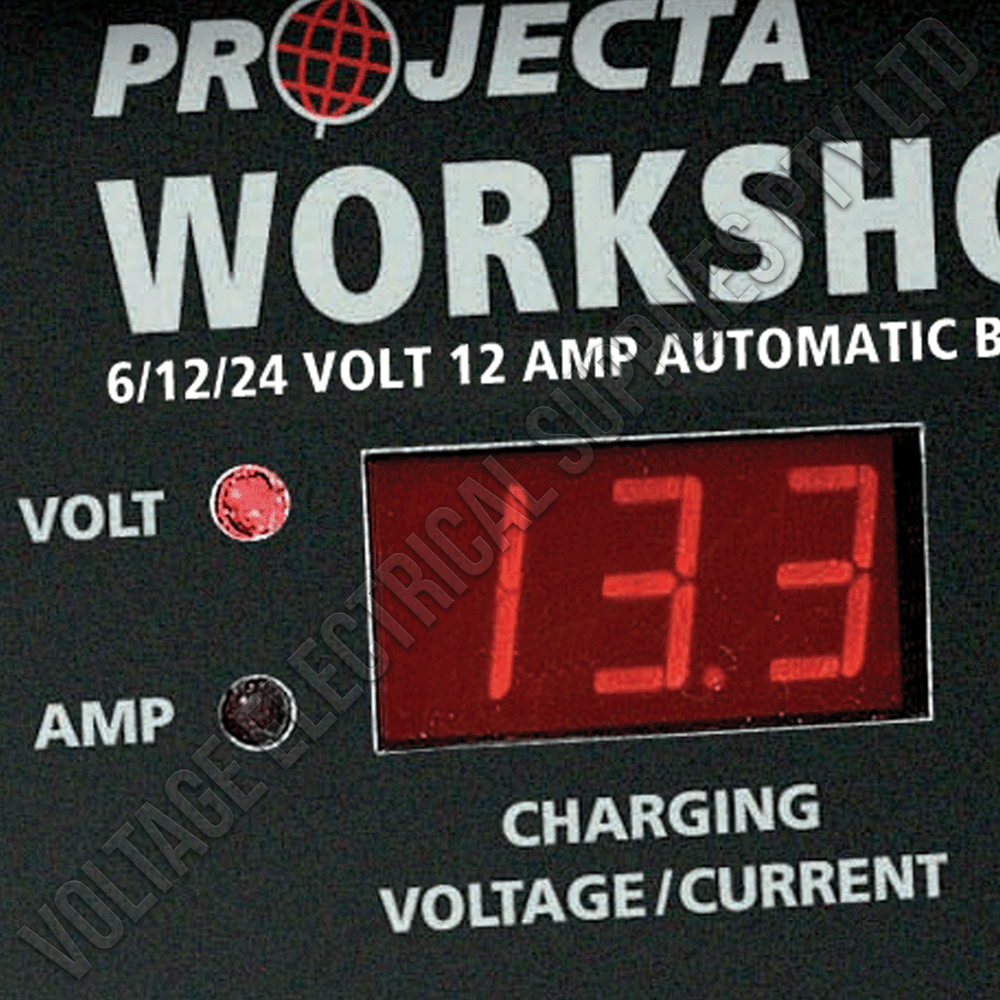

L.E.D Display
Displays Volt and Amp readings for accurate charge status.

Specification:

PART NO

HDBC35

TYPE

2 Stage Automatic & Manual

INPUT

240V, 50Hz, 636W

OUTPUT

12.0A at 6.3V
21.0A at 12.0V
13.5A at 26.0V

ENGINE START

5 cycles – 5 min on, 5 mins off
6V: 85A at 3.6V
12V: 85A at 7.2V
24V: 45A at 14.4V

CHARGE CONTROL

Cut out:
Cut in:
Start:

6V
7.1V
6.7V
0.0V

12V
14.2V
13.4V
0.0V

24V
28.4V
26.8V
0.0V

APPROVALS

Electrical Safety, EMC

L.E.D. Charge Indication

RED LIGHT ON FLASHING		Overload
SECOND RED LIGHT ON		Power on
SECOND RED LIGHT FLASHING		Reverse connection
AMBER LIGHT ON		Charging
GREENLIGHT ON		Fully charged
L.E.D SCREEN		Voltage / Current
