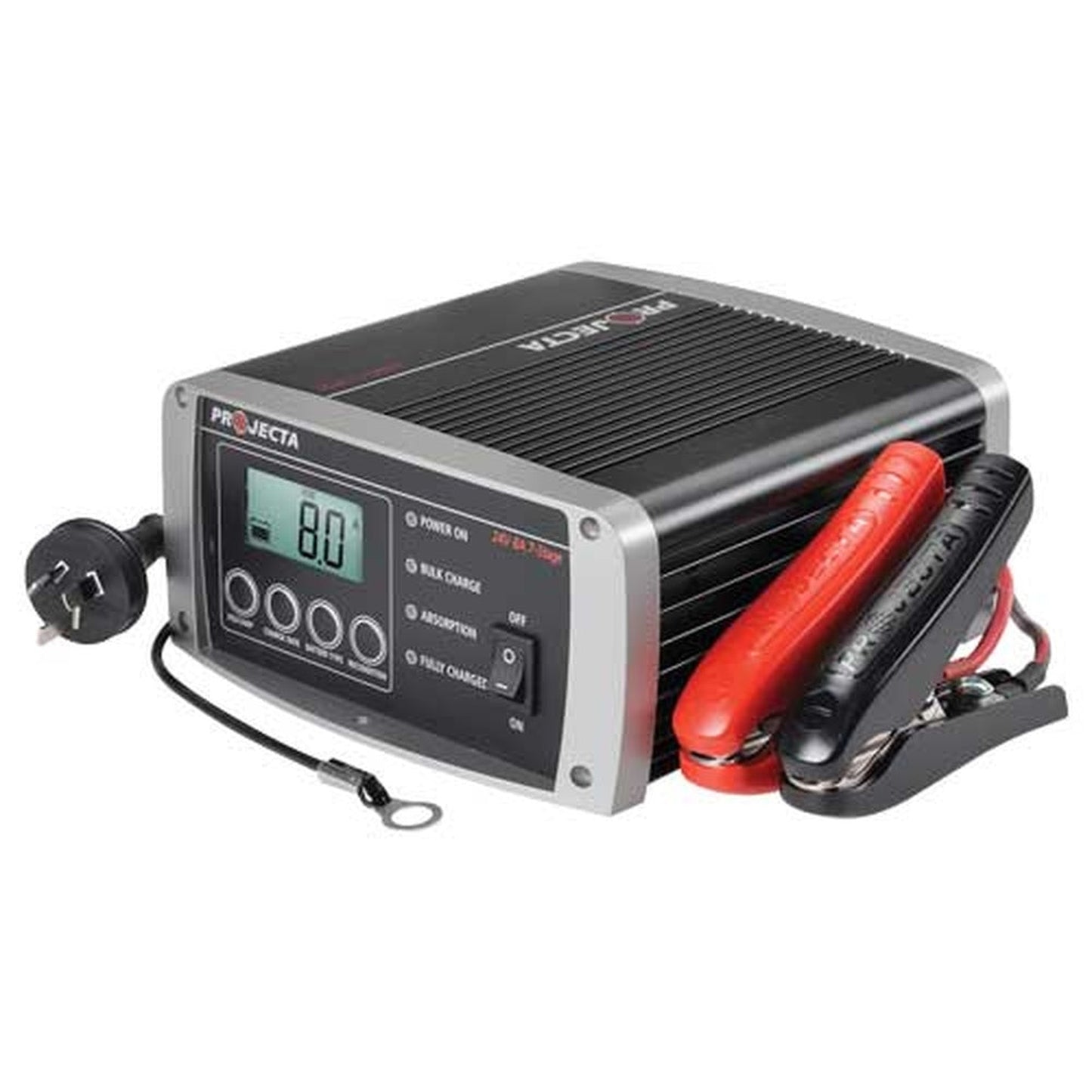

24V AUTOMATIC 8A 7 STAGE BATTERY CHARGER IC800-24
24V AUTOMATIC 8A 7 STAGE BATTERY CHARGER IC800-24
SKU:IC800-24
Share
A highly advanced charger for all your 24V battery requirements. Capable of being set to perfectly suit the specific battery chemistry type as well as offering an adjustable-charge rate feature to match a large range of battery sizes.
Features:
Multi-Chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM, or Gel.
Adjustable Output
Adjustable for different battery sizes & include 1.8m temperature compensation probe for precise charging.
Power Supply Mode
Retains vehicle computer settings when changing a battery or can run 24V appliances.

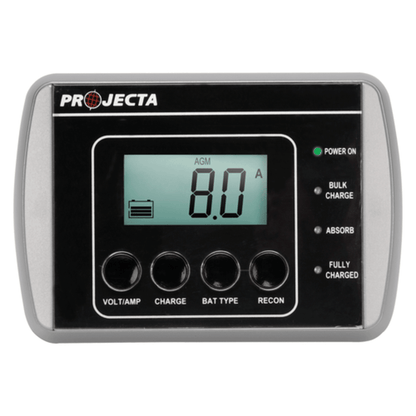

Wired Remote Control
Allows charger to be mounted out of sight yet retain total control, includes 4.5m lead.
Shock & Dust Proof
Durable construction and safer charging with spark-free and polarity protected connection.
Specification:
PART NO |
IC800-24 |
||
TYPE |
7 Stage Automatic |
||
INPUT |
240VAC, 50Hz, 480W |
||
OUTPUT |
24V |
||
OUTPUT CURRENT |
2, 4, 6, 8A |
||
MINIMUM START VOLTAGE |
4.5V |
||
BACK DRAIN |
Charger 3mA, with remote 4mA |
||
APPROVALS |
Electrical Safety, EMC |
||
CHARGE VOLTAGE |
28.2V (GEL), 28.8V (AGM), |

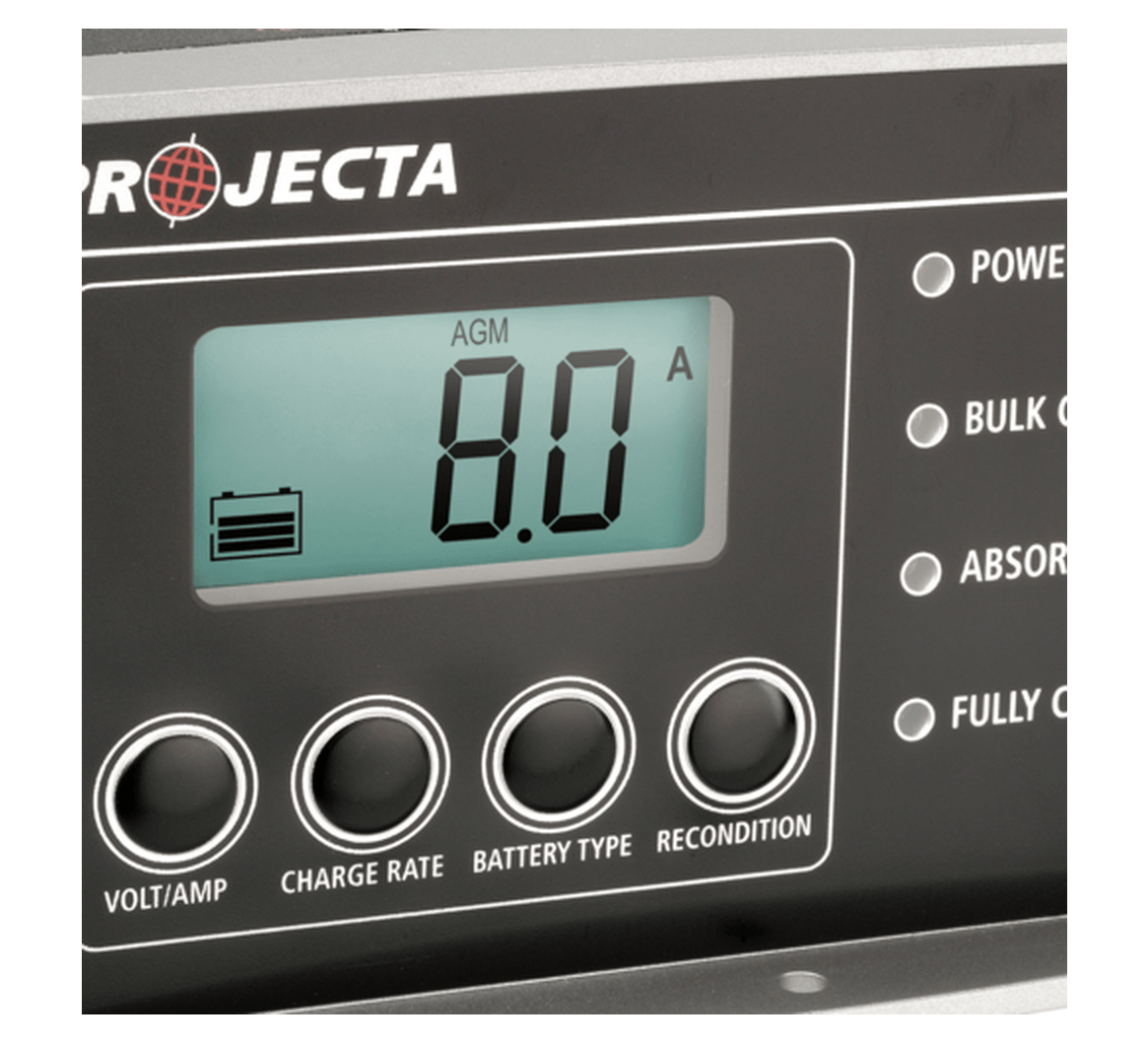

L.E.D. Charge Indication
SCREEN |
Backlit LCD screen |
||
RED LIGHT ON |
Power on |
||
BLUE LIGHT ON |
Charging |
||
GREENLIGHT ON |
Fully charged and maintaining, |
Battery Charge Times
IC800-24 |
VOLTAGE |
BATTERY SIZE |
CHARGE TIME |
AUTOMOTIVE |
24V |
80–1000CCA |
7–24 hrs |
MARINE |
24V |
110–1300MCA |
7–24 hrs |
DEEP CYCLE |
24V |
14–160Ah |
7–24 hrs |
