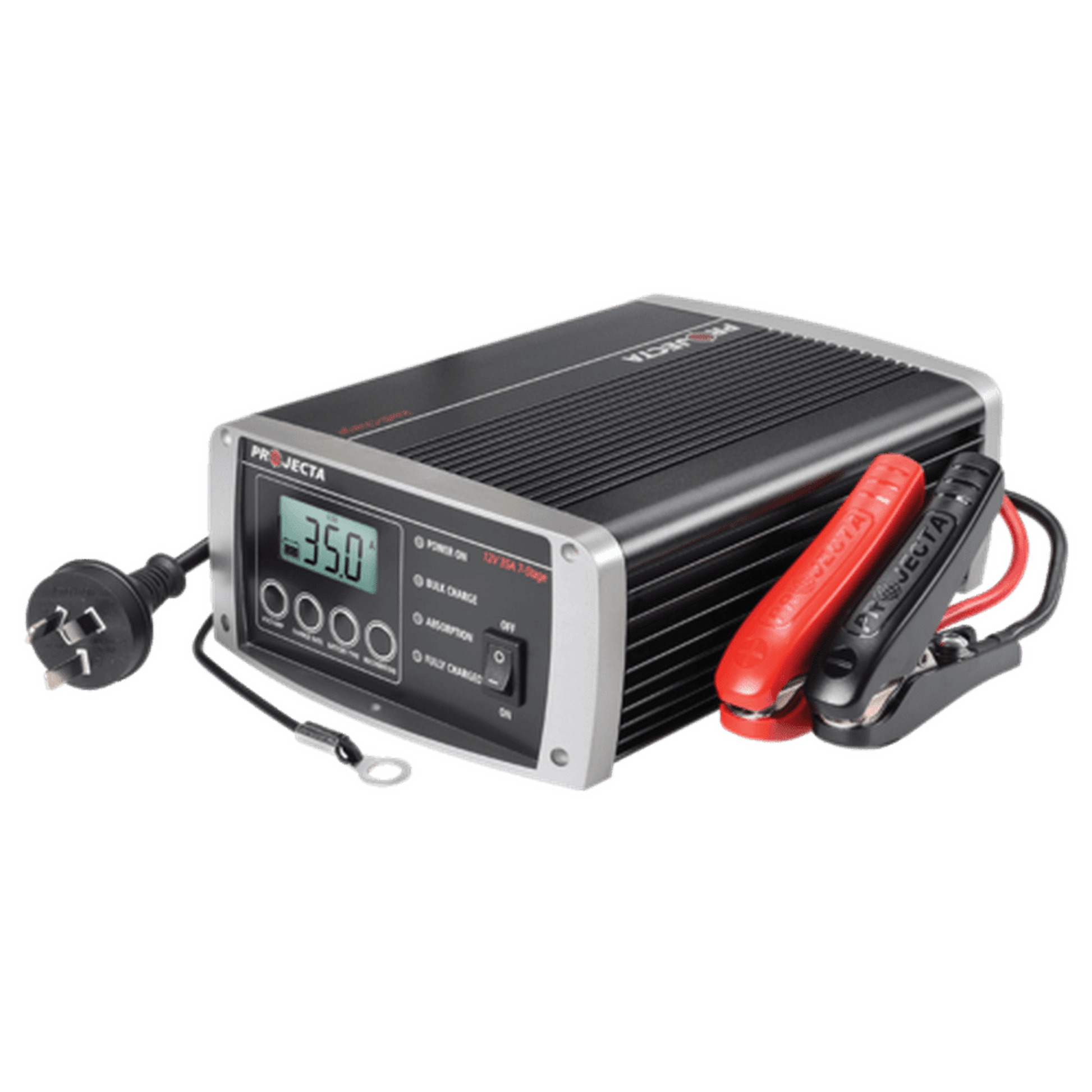

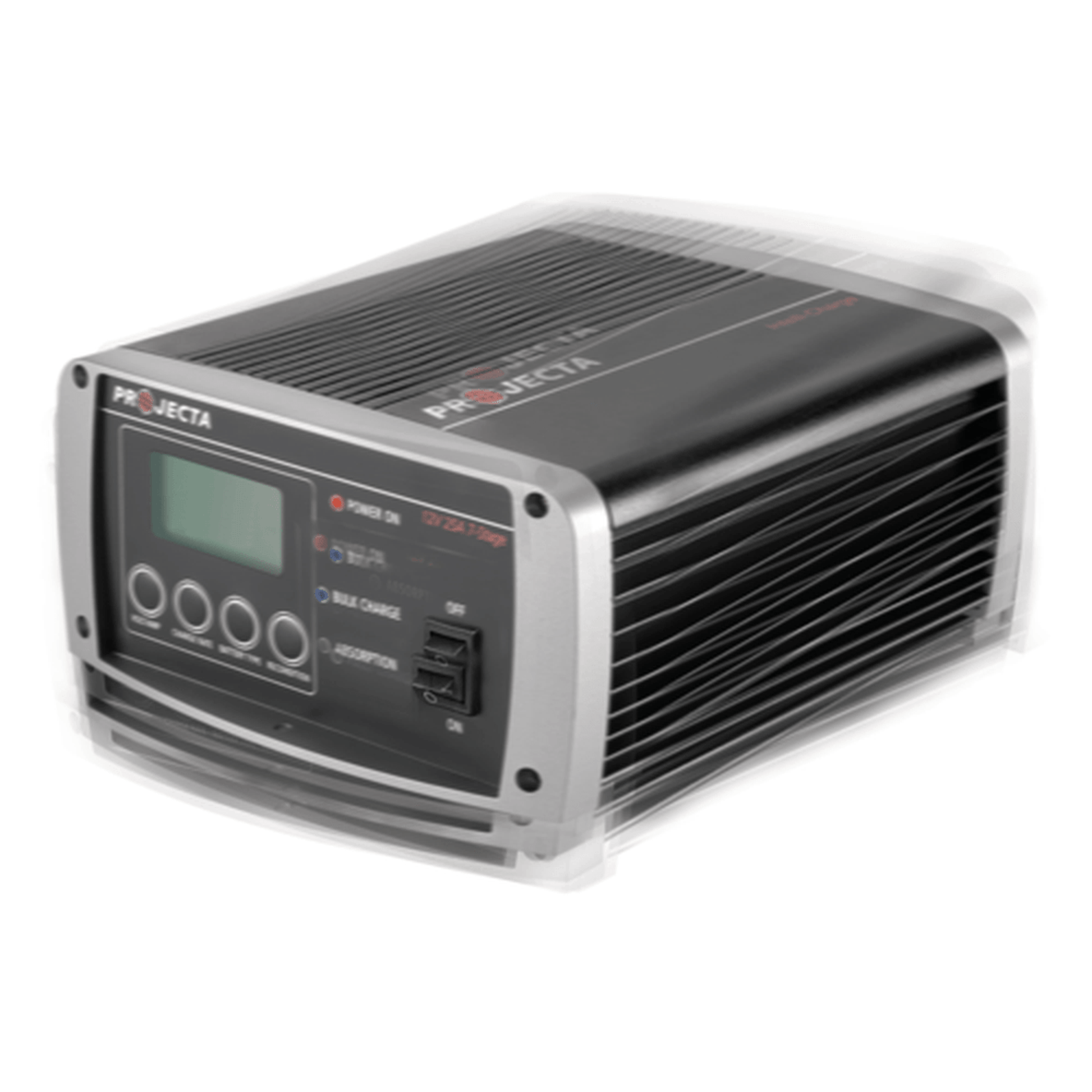

12V AUTOMATIC 35A 7 STAGE BATTERY CHARGER IC3500
12V AUTOMATIC 35A 7 STAGE BATTERY CHARGER IC3500
SKU:IC3500
Share
With world-class 7 stage technology this advanced automatic charger is ideal for the high power demands of caravans and motor homes delivering an extremely comprehensive and accurate charge that gives your batteries longer life and better performance.
Features:

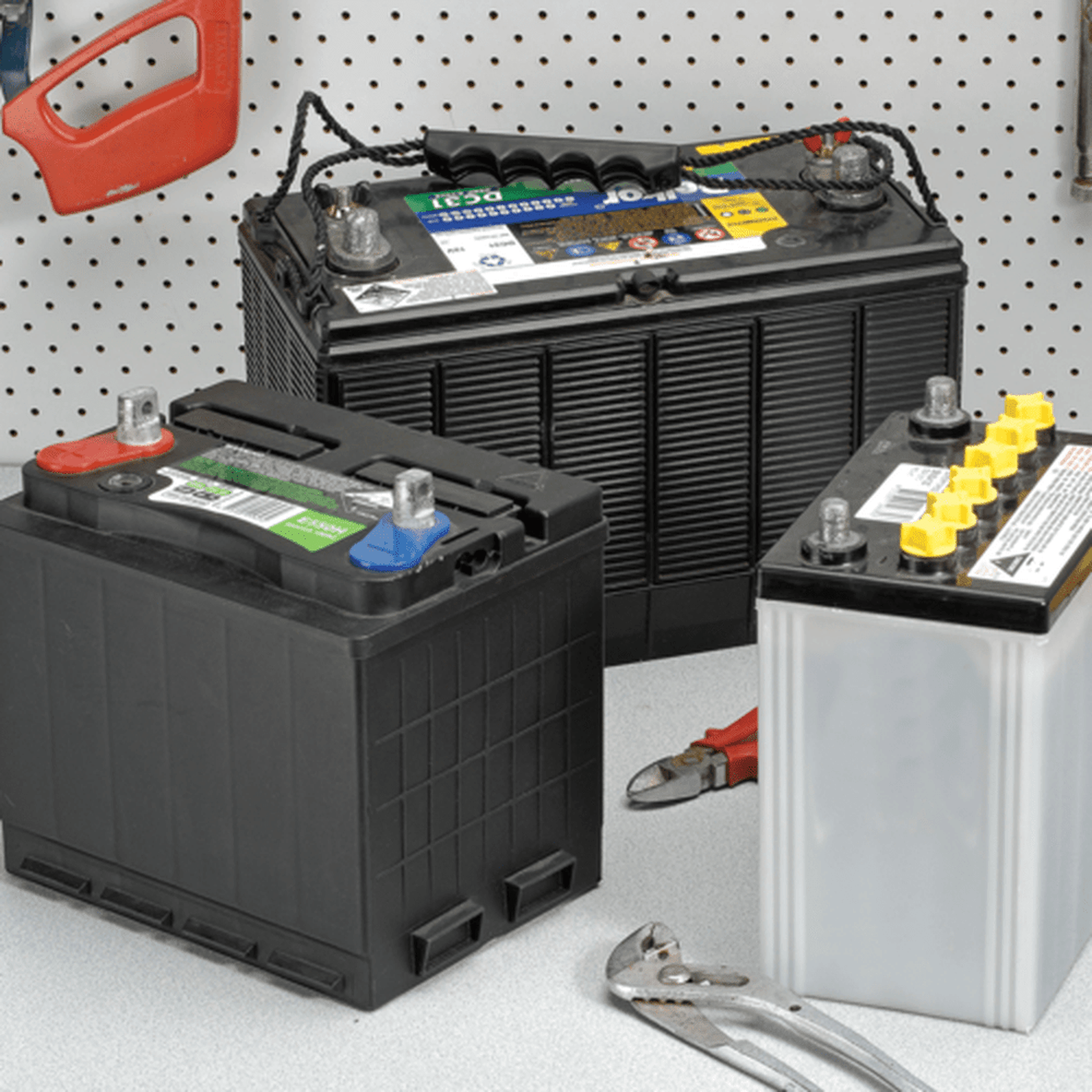

Multi-Chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM, or Gel.
Adjustable Output
Adjustable for different battery sizes & include 1.8m temperature compensation probe for precise charging.
Power Supply Mode
Retains vehicle computer settings when changing a battery or can run 12V appliances.

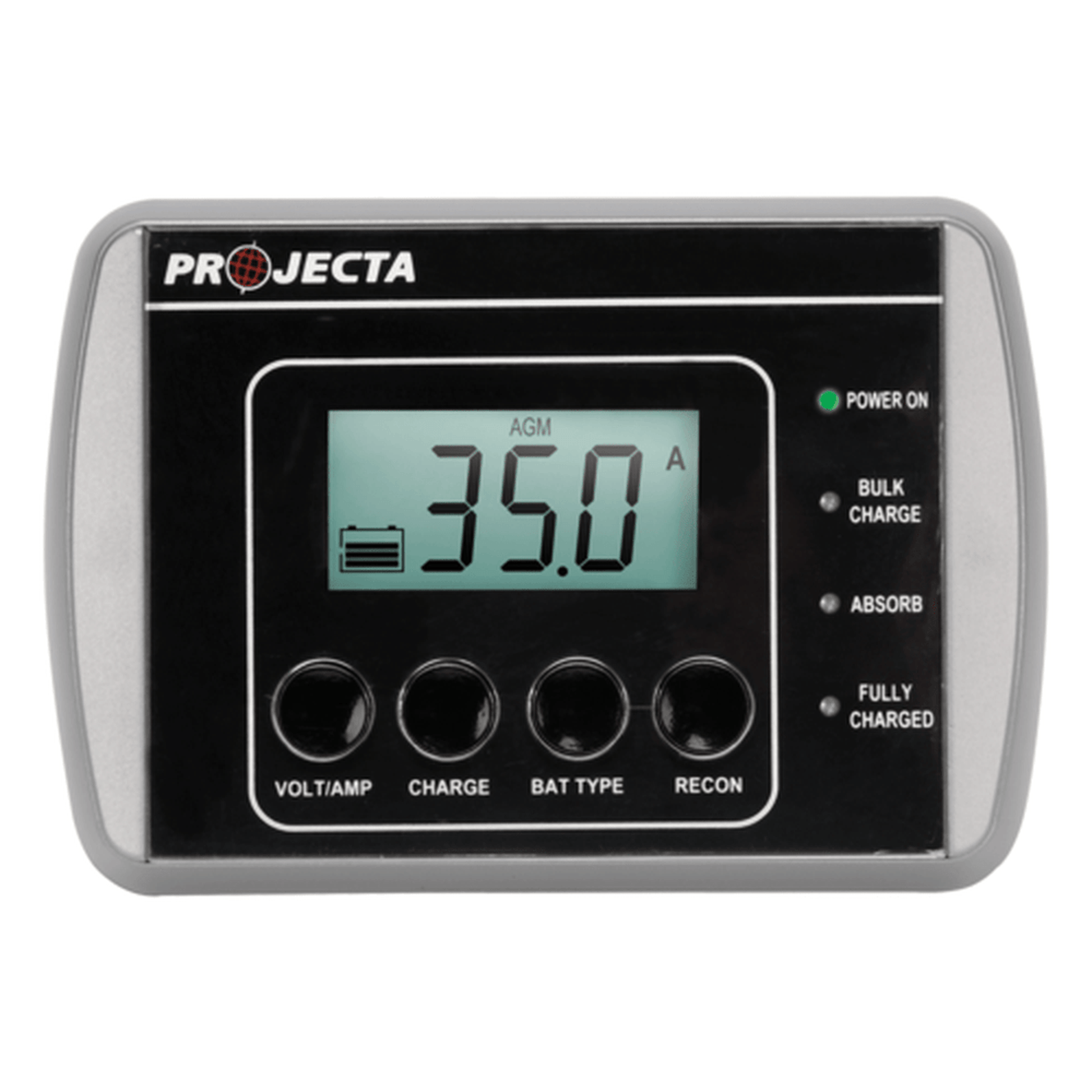

Wired Remote Control
Allows charger to be mounted out of sight yet retain total control, includes 4.5m lead.
Shock & Dust Proof
Durable construction and safer charging with spark-free and polarity protected connection.
Specification:
PART NO |
IC3500 |
||
TYPE |
7 Stage Automatic |
||
INPUT |
240VAC, 50Hz, 570W |
||
OUTPUT |
12V |
||
OUTPUT CURRENT |
2, 8, 16, 35A |
||
MINIMUM START VOLTAGE |
2.5V |
||
BACK DRAIN |
Charger 1mA, with remote 2mA |
||
APPROVALS |
Electrical Safety, EMC |
||
CHARGE VOLTAGE |
14.1V (GEL), 14.4V (AGM), |
L.E.D. Charge Indication

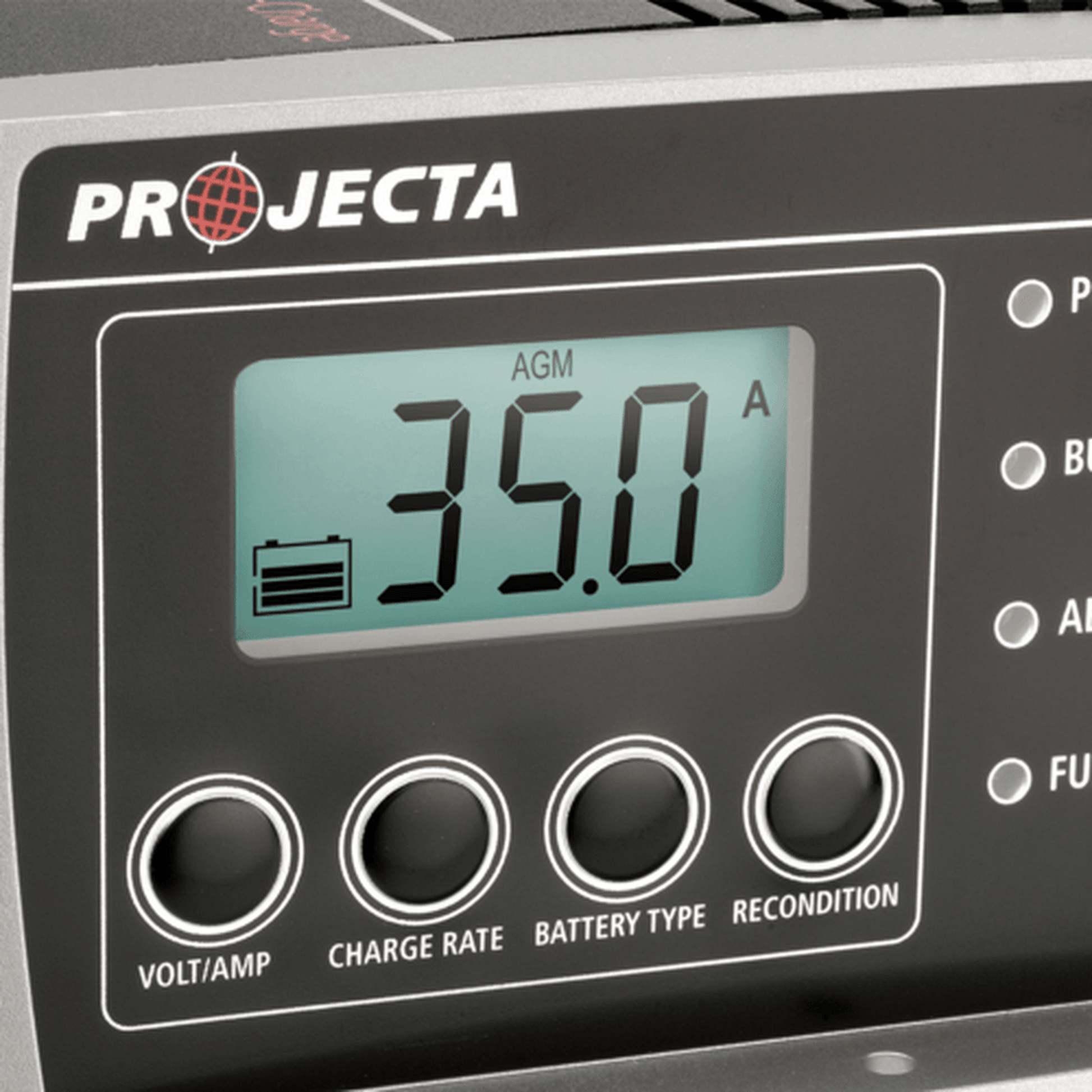

SCREEN |
Backlit LCD screen |
||
RED LIGHT ON |
Power on |
||
BLUE LIGHT ON |
Charging |
||
GREENLIGHT ON |
Fully charged and maintaining, |

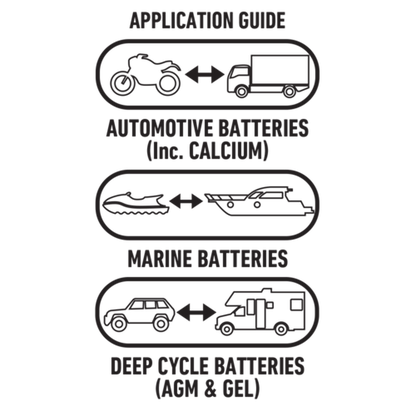

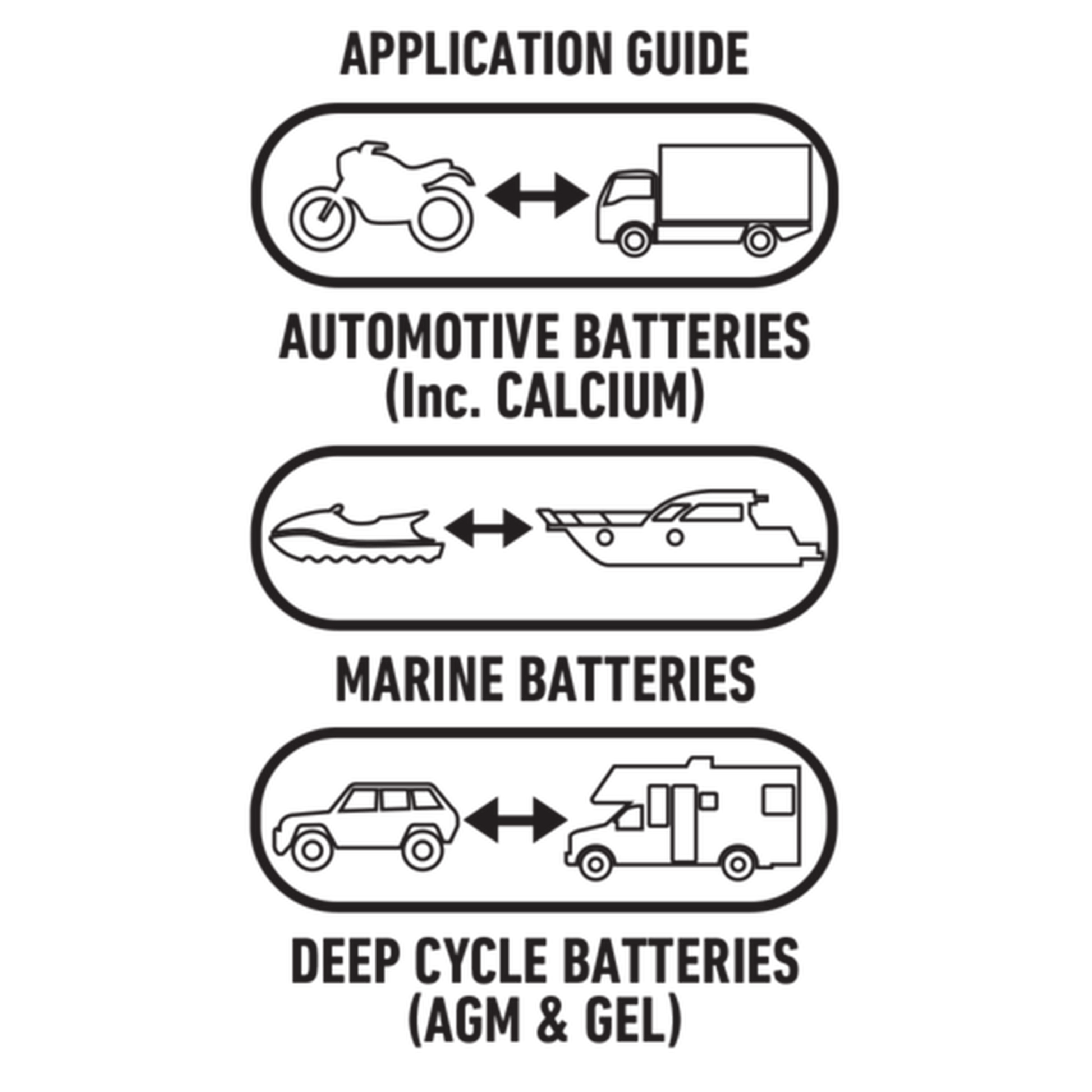

Battery Charge Times
IC3500 |
VOLTAGE |
BATTERY SIZE |
CHARGE TIME |
AUTOMOTIVE |
12V |
80–4200CCA |
7–24 hrs |
MARINE |
12V |
110–5800MCA |
7–24 hrs |
DEEP CYCLE |
12V |
14–700Ah |
7–24 hrs |
