Projecta

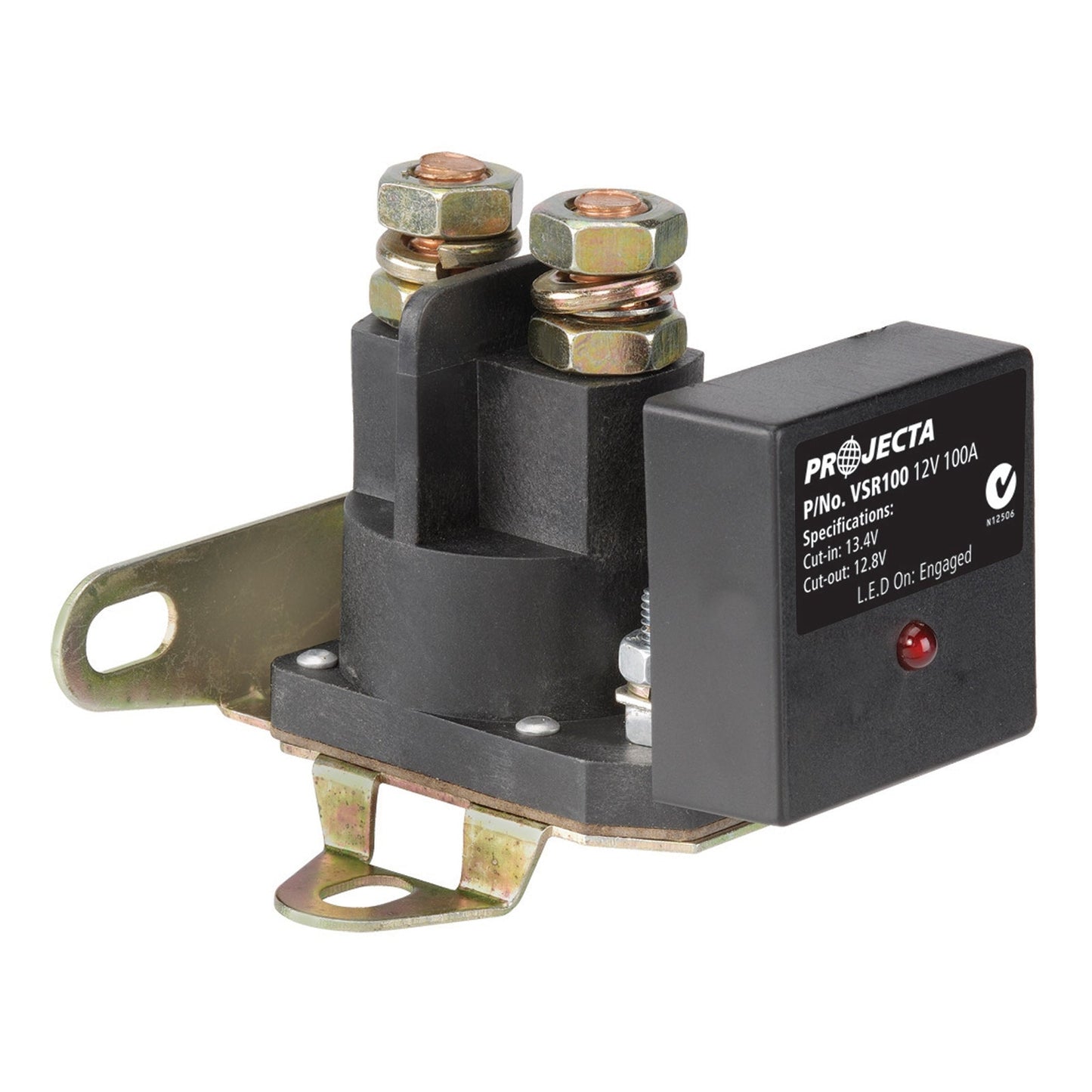

12V 100A VOLTAGE SENSITIVE RELAY VSR100
12V 100A VOLTAGE SENSITIVE RELAY VSR100
Regular price
$88.15 AUD
Regular price
Sale price
$88.15 AUD
Unit price
/
per
Tax included.
Couldn't load pickup availability
Share
The perfect ‘no-fuss’ power management controllers suitable for a wide variety of 12V DC applications, eg. winching etc.
Features:

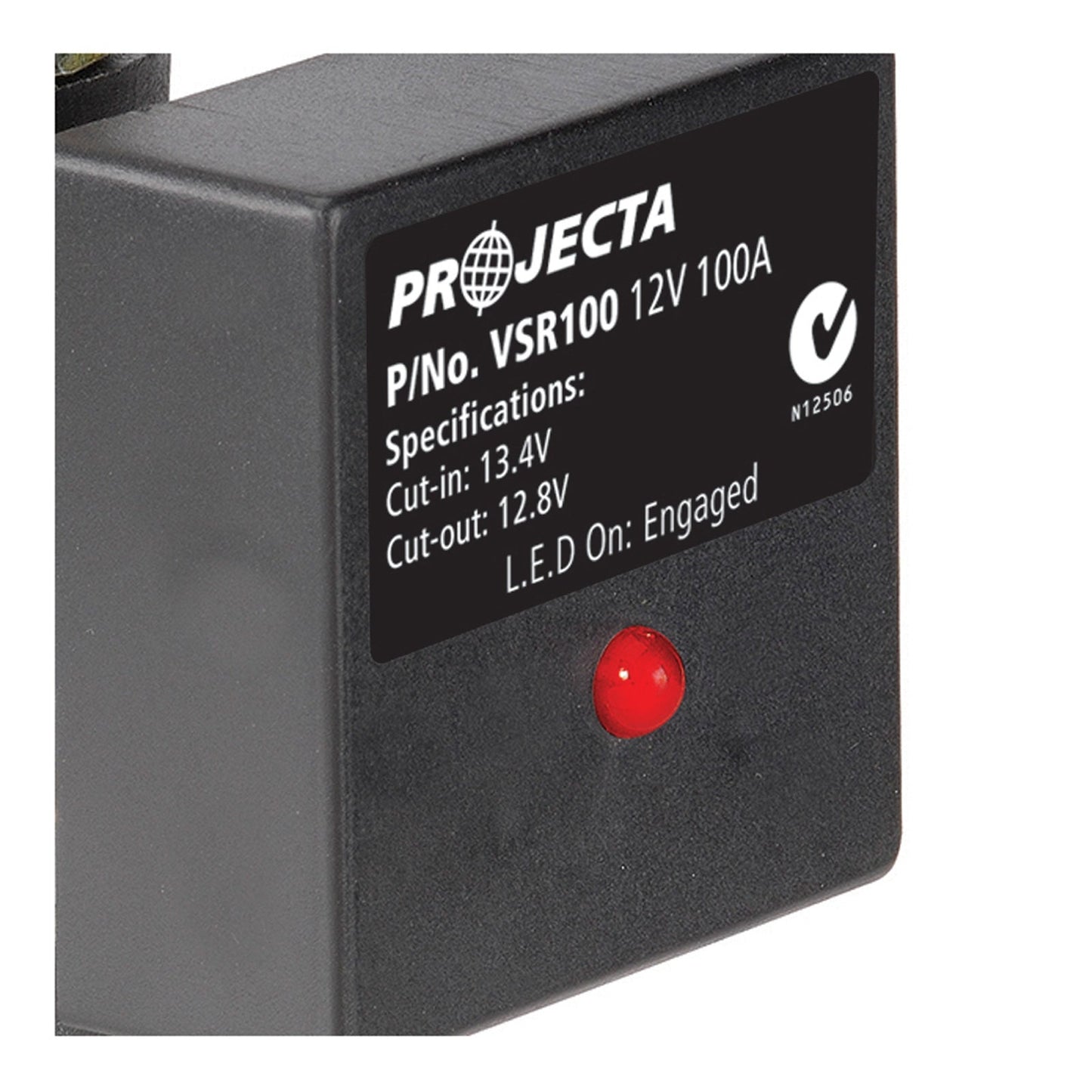

L.E.D indicator
- L.E.D illuminates when VSR is activated.
Sealed electronics
- Prevents dust and water ingress (IP66).
Surge protection
- Built-in protection guards vehicle against voltage spikes.
Manual override
- Bypasses automatic settings allowing the relay to engage below-set voltages.
Silvertip contacts
- Provide exceptional current transfer.
Specifications:
|
PART NO |
VSR100 |
||
|
VOLTAGE |
12V |
||
|
CHARGING CURRENT |
100A Continuous, 200A Peak |
||
|
CUT-IN VOLTAGE |
13.4V |
||
|
CUT-OUT VOLTAGE |
12.8V |
||
|
CUT-OUT DELAY |
8 seconds |
||
|
MINIMUM OPERATING VOLTAGE |
10V |
||
|
CHARGE TYPE |
Parallel |
||
|
CONTROL |
MCU |
||
|

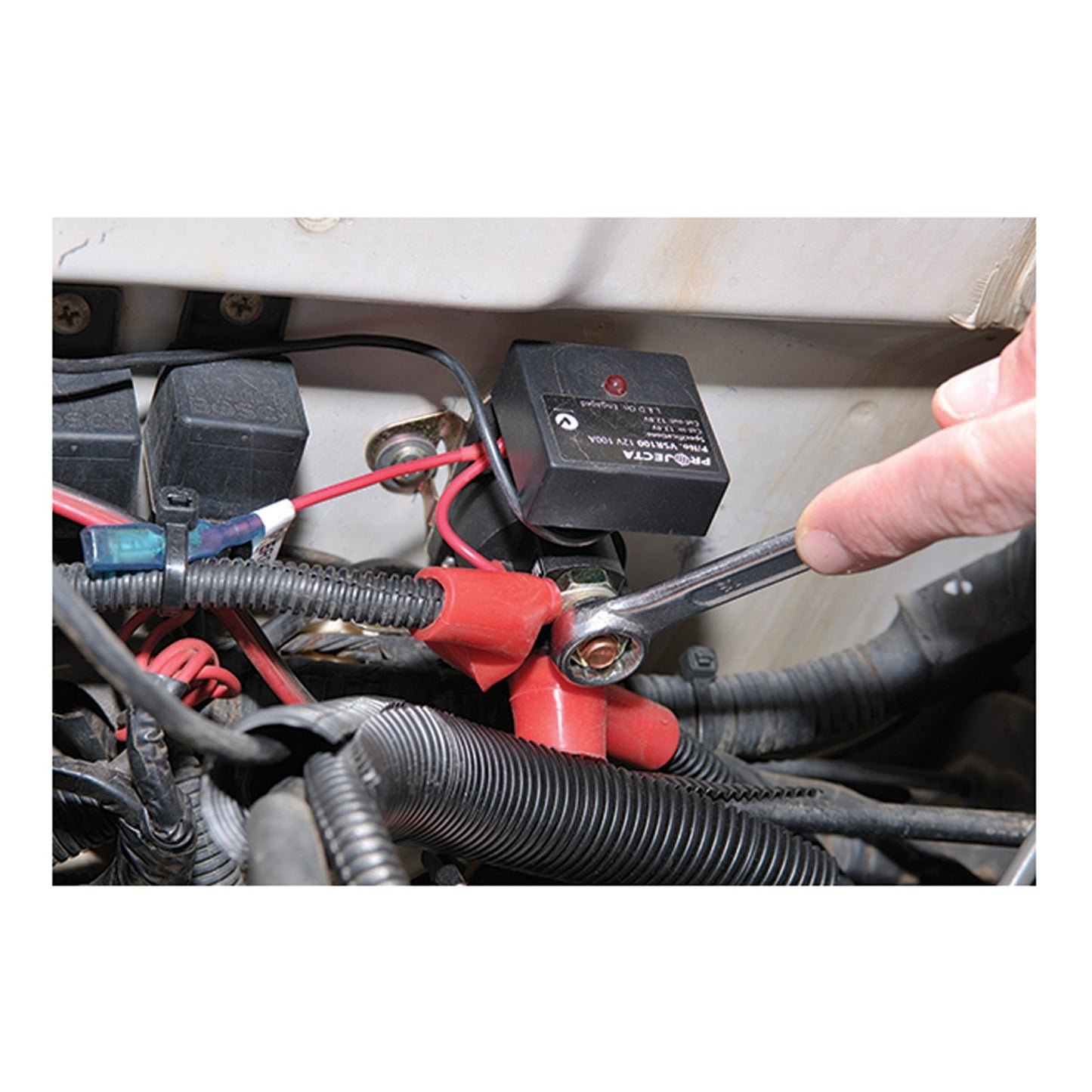

MOUNTING |
Surface/firewall |
||
|
CURRENT DRAW |
Charging 550mA (standby 10mA) |
||
|
SURGE PROTECTION |
Built-in |
||
|
INGRESS PROTECTION |
IP66 |
||
|
OVERRIDE |
Requires min. 10V |
||
|
RECOMMENDED FUSE |
150A |
||
|
MINIMUM CABLE SIZE |
14mm2 (6 B&S) |
||
|
APPROVALS |
EMC |
||
