12V 100A VOLTAGE SENSITIVE RELAY KIT VSR100K
12V 100A VOLTAGE SENSITIVE RELAY KIT VSR100K
Couldn't load pickup availability
Share
An affordable and reliable, easy to install dual battery management system that requires no modification to the vehicle’s original wiring.

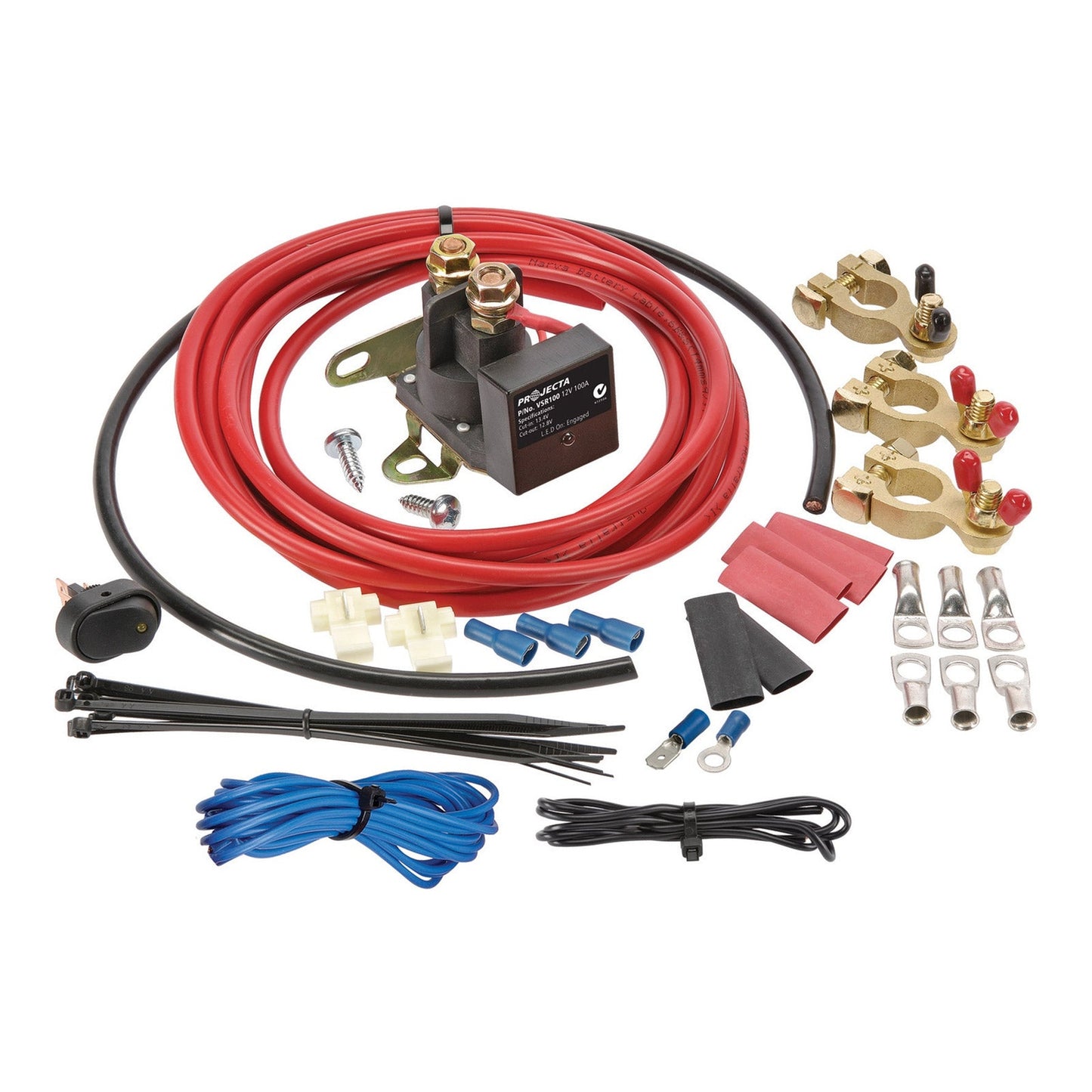

Kit comprises:

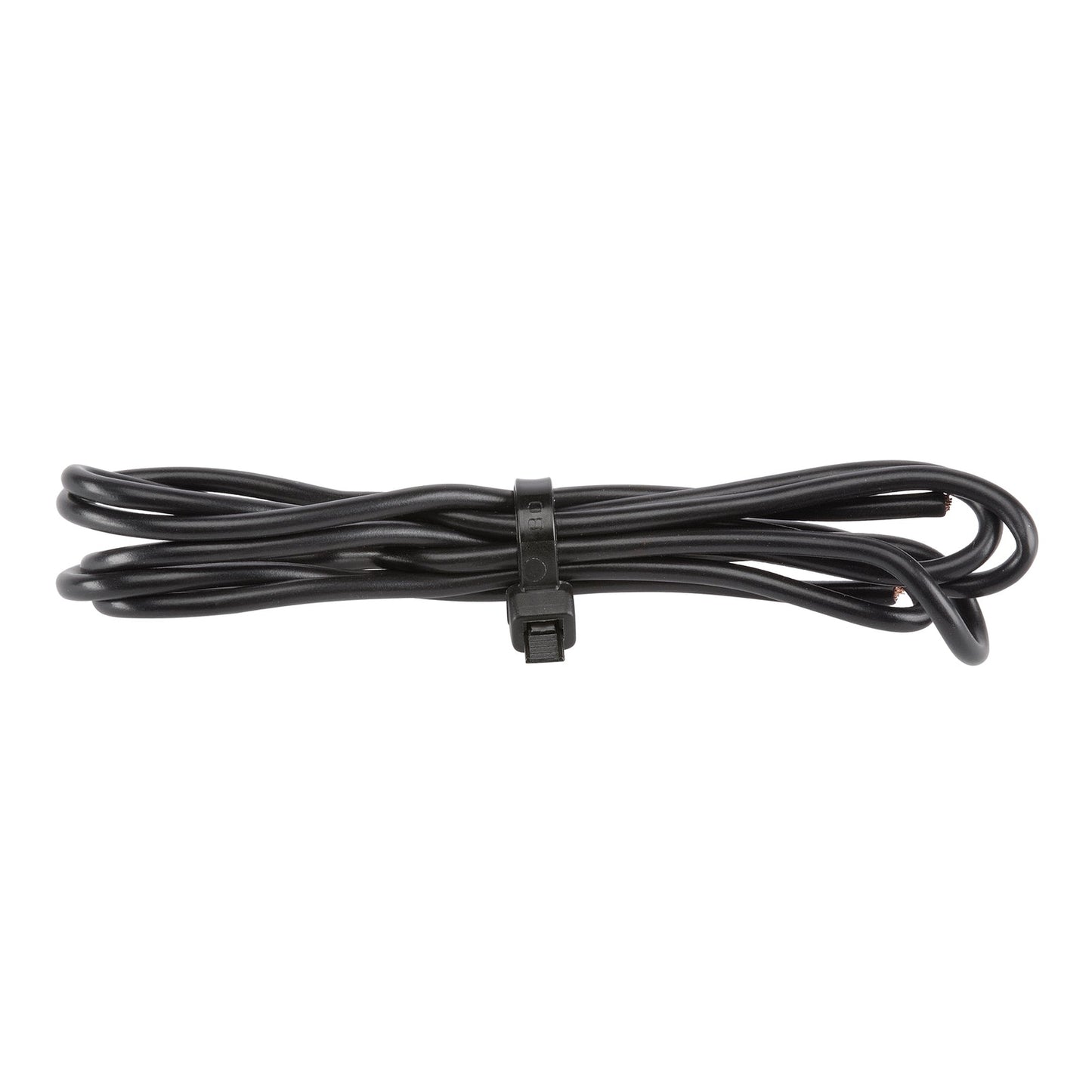

100A voltage sensitive relay (P/No. VSR100), rocker switch, lugs, terminals, heat shrink & cable ties, 4m main cable & 60cm aux earth cable (6 B&S), auxiliary battery terminals (2 x pos, 1 x neg).
Features:
Priority charging
- Ensures main battery is charged before connecting to the auxiliary.
Comprehensive kit
- Includes everything for an easy and professional installation.
Manual override
- Can be used to jumpstart your vehicle in the event of a flat starting battery.
Surge protection
- Built-in protection guards vehicle against voltage spikes.
L.E.D indicator
- L.E.D illuminates when VSR is activated.
Specifications:
|
PART NO |
VSR100K |
||
|
VOLTAGE |
12V |
||
|
CHARGING CURRENT |
100A Continuous, 200A Peak |
||
|
CUT-IN VOLTAGE |
13.4V |
||
|
CUT-OUT VOLTAGE |
12.8V |
||
|
CUT-OUT DELAY |
8 seconds |
||
|
MINIMUM OPERATING VOLTAGE |
10V |
||
|
CHARGE TYPE |
Parallel |
||
|
CONTROL |
MCU |
||
|
MOUNTING |
Surface/firewall |
||
|
CURRENT DRAW |
Charging 550mA (standby 10mA) |
||
|
SURGE PROTECTION |
Built-in |
||
|
ENVIRONMENTAL PROTECTION |
IP66 |
||
|
OVERRIDE |
Requires min. 10V |
||
|
RECOMMENDED FUSE |
150A |
||
|
APPROVALS |
EMC |
||
