Projecta

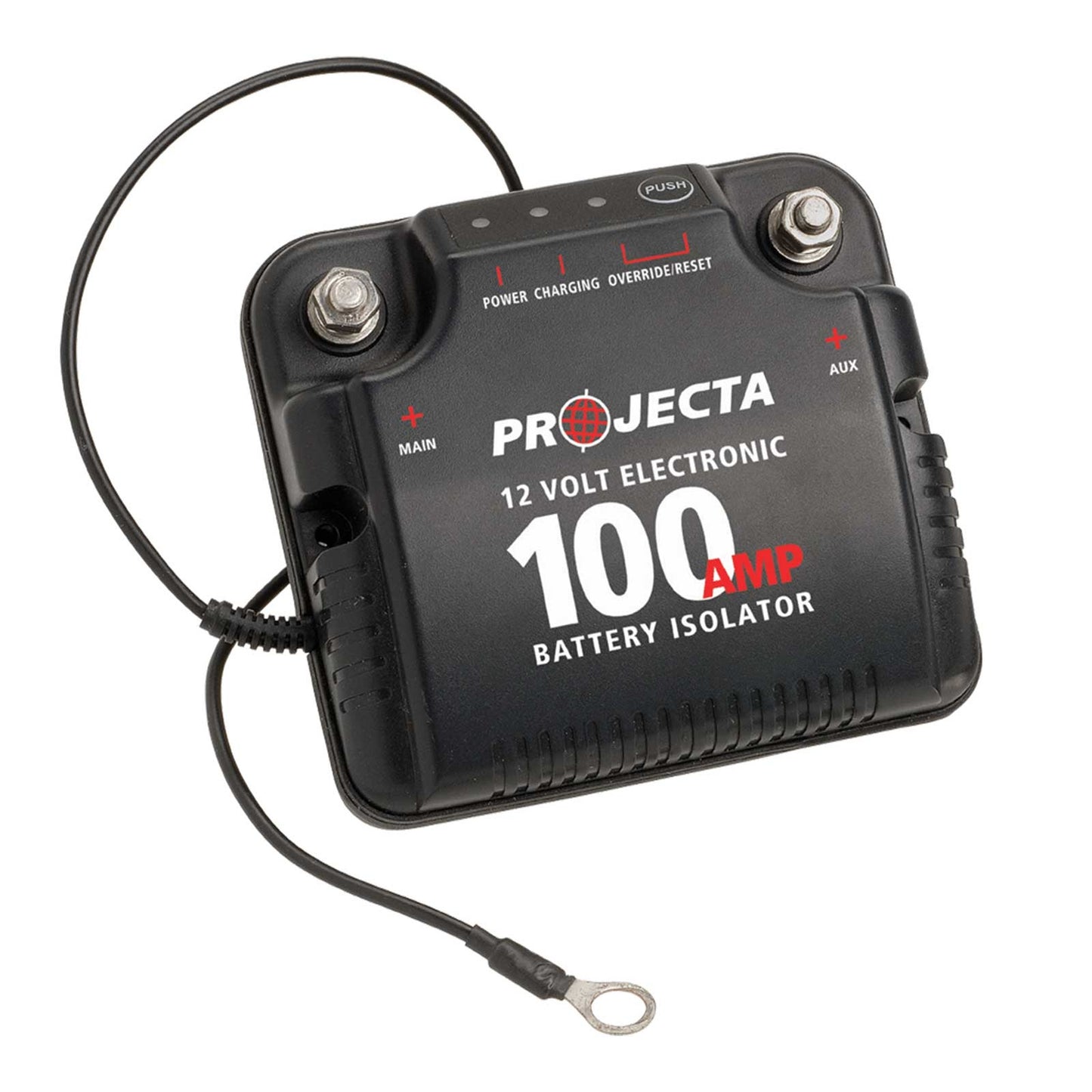

12V 100A ELECTRONIC ISOLATOR DBC100

12V 100A ELECTRONIC ISOLATOR DBC100

SKU:DBC100

Regular price $154.79 AUD
Regular price Sale price $154.79 AUD
Sale Sold out
Tax included.

A sophisticated electronic isolator that allows you to run powerful accessories such as fridges, lights and inverters without flattening your starting battery. This 100 Amp unit is ideal for use with mid-sized 4WDs through to SUVs.

Features:

Priority charging

  • Ensures main battery is charged before connecting to the auxiliary.

L.E.D indicator

  • L.E.D illuminates to highlight charge status.

Manual override

  • Allows batteries to be manually paralleled for jumpstarting.

Vehicle protection

  • Built-in overcurrent and surge protection.

Permanent fixture

  • Supplied bracket and screws for the mounting unit.

Specifications:

PART NO

DBC100

VOLTAGE

12V

CHARGING CURRENT

75A Continuous, 100A Peak

CUT-IN VOLTAGE

13.4V

CUT-OUT VOLTAGE

12.8V

CUT-OUT DELAY

60 seconds

MINIMUM OPERATING VOLTAGE

One battery above 7.5V

CHARGE TYPE

Parallel

CONTROL

MCU

MOUNTING

Surface/firewall battery side

CURRENT DRAW

Charging 500mA (standby 30mA)

SURGE PROTECTION

Built-in

APPROVALS

EMC
