12V 1000W INTELLI-WAVE PURE SINE WAVE INVERTER IP1000
12V 1000W INTELLI-WAVE PURE SINE WAVE INVERTER IP1000
SKU:IP1000
Couldn't load pickup availability
Share
With a peak power output of an astonishing 2000W, the IP1000 is the ideal inverter for powering all your electrical needs that require ultra-clean power. Ideal for permanent installation this sophisticated inverter is perfectly suited to caravans and trade requirements.
Features:
Approved output socket
AS/NZ approved 240V sockets. Inverter designed to Australian standard AS4763.

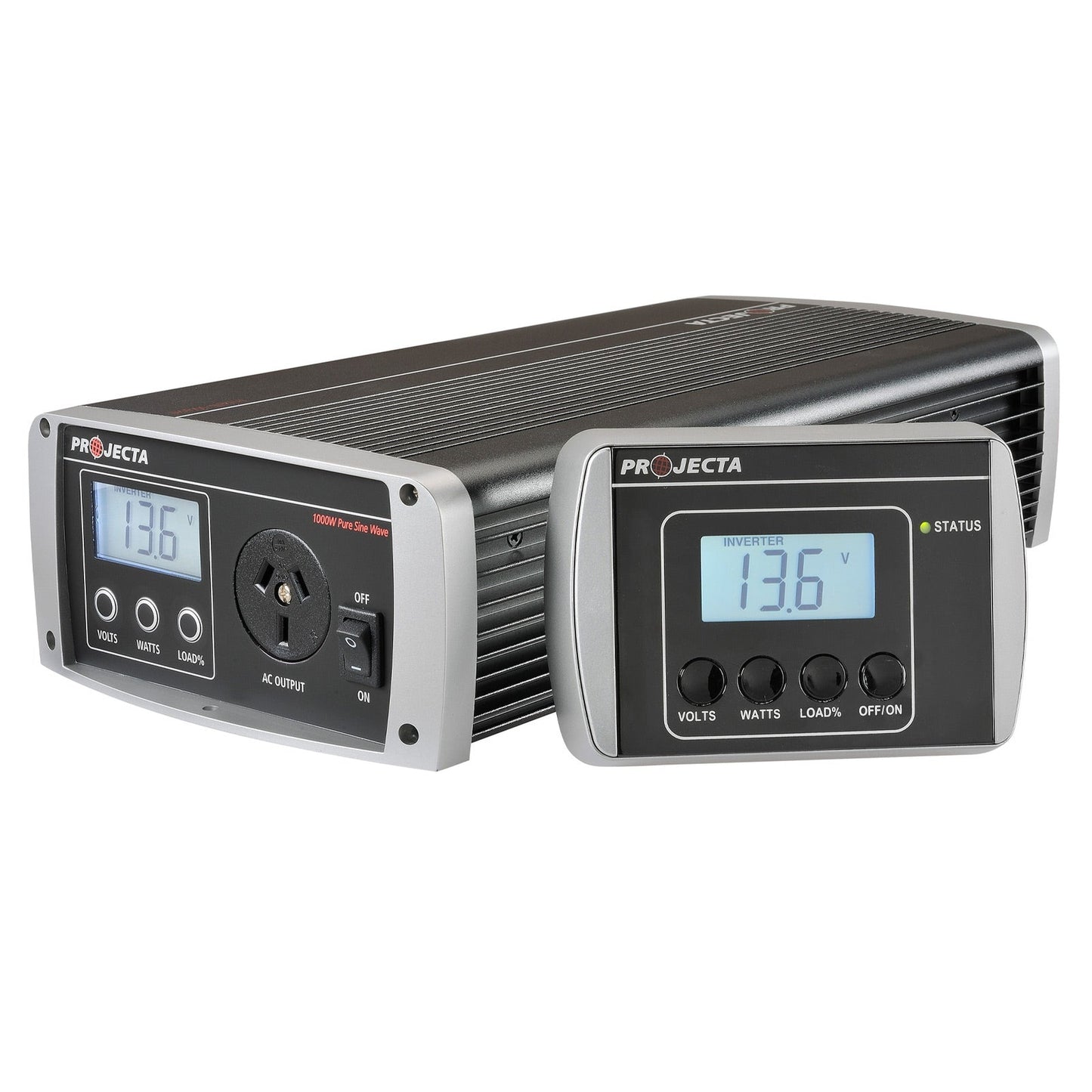

Remote control
LCD display and remote control unit provide information on battery voltage, power usage, and load capacity.
Wiring kit
Battery lugs with 1100mm 16mm2 battery cable.
Efficient design
Thermostatically controlled cooling fan.
Mounting flange
Convenient and robust mounting points.
Specification:
|
PART NO |
IP1000 |
||
|
INPUT |
12V DC, 100A Max |
||
|
NO LOAD CURRENT DRAW |
1.2A |
||
|
OUTPUT |
240VAC, 50Hz (Pure Sine Wave) |
||
|
OUTPUT POWER |
1000W Continuous (2000W Peak) |
||
|
INVERTER CLASSIFICATION |
Equipotentially Bonded (EPB) |
||
|
EFFICIENCY |
85–90% |
||
|
LOW BATTERY ALARM |
10.25 Volt |
||
|
SHUTDOWN |
9.75V (±0.2V) |
||
|
COOLING FAN |
Automatic temperature controlled |
||
|
THERMAL SHUTDOWN |
65°C (±5°C) |
||
|
FUSE |
220A (4 x 40A, 2 x 30A) |
||
|
IDEAL BATTERY SIZE |
75–250Ah |
||
|
MINIMUM BATTERY SIZE |
75Ah, 550CCA |
||
|
RUN TIME WITH 1000W ON 75Ah BATTERY |
15 minutes |
||
|
RUN TIME WITH 100W GLOBE ON 75Ah BATTERY |
6 hours |
||
|
APPROVALS |
Electrical Safety, EMC |
||
