Voltage Electrical Supplies

12/24V DUAL BATTERY VOLT METER DBM100

12/24V DUAL BATTERY VOLT METER DBM100

SKU:

Regular price $130.88 AUD
Regular price Sale price $130.88 AUD
Sale Sold out
Tax included.

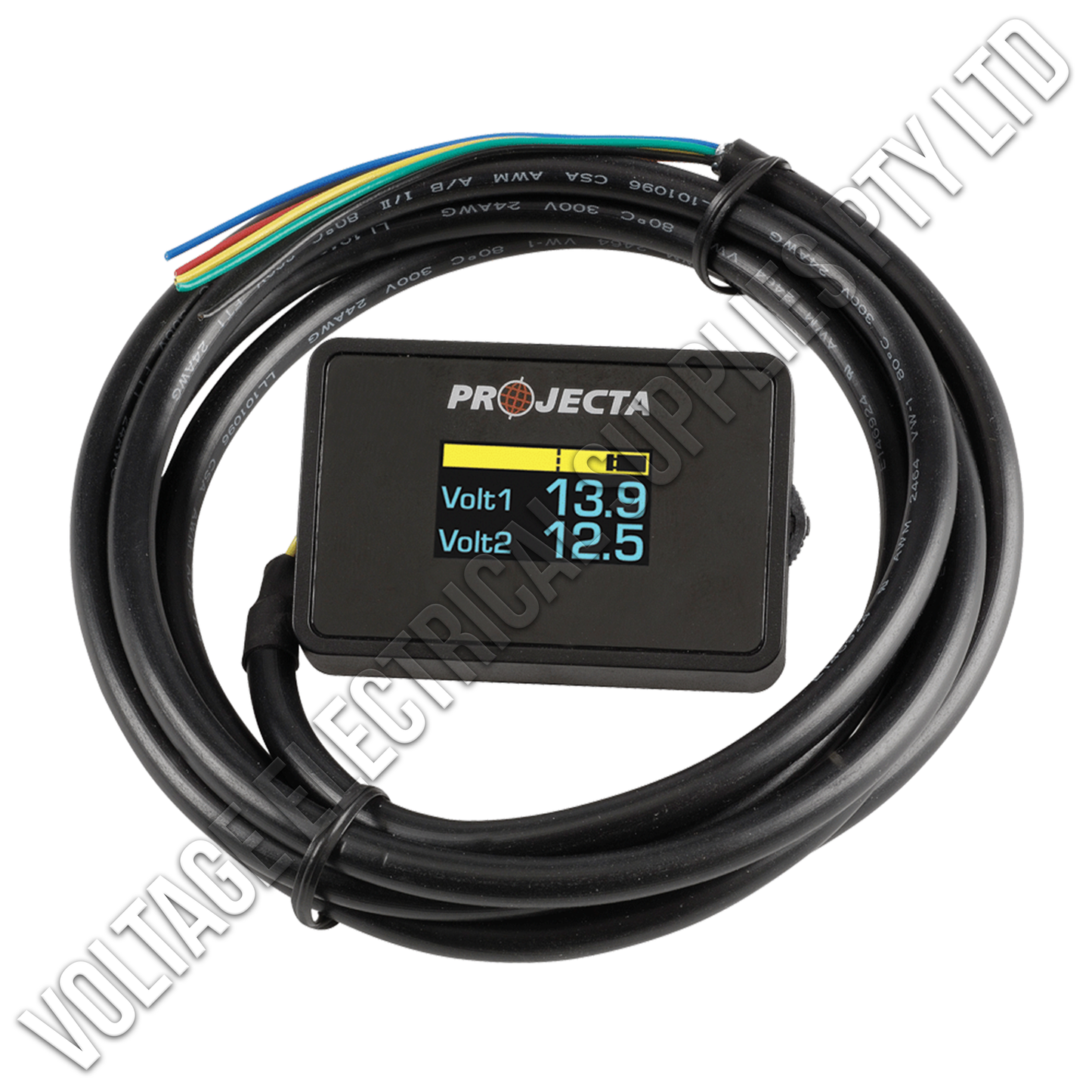

An intelligent and compact dual voltage meter ideal for monitoring twin battery installations often found in 4WD and caravan applications.

Features:

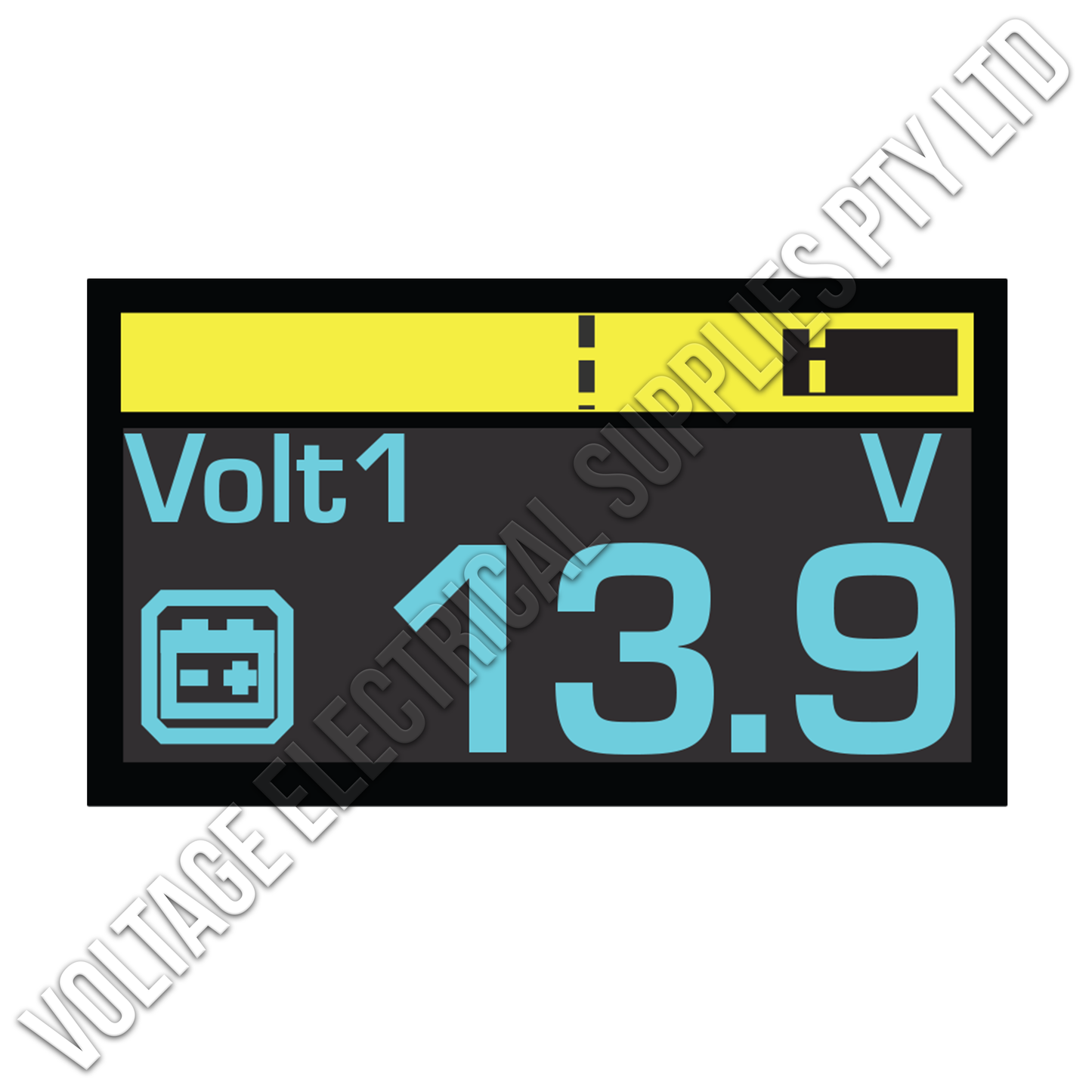

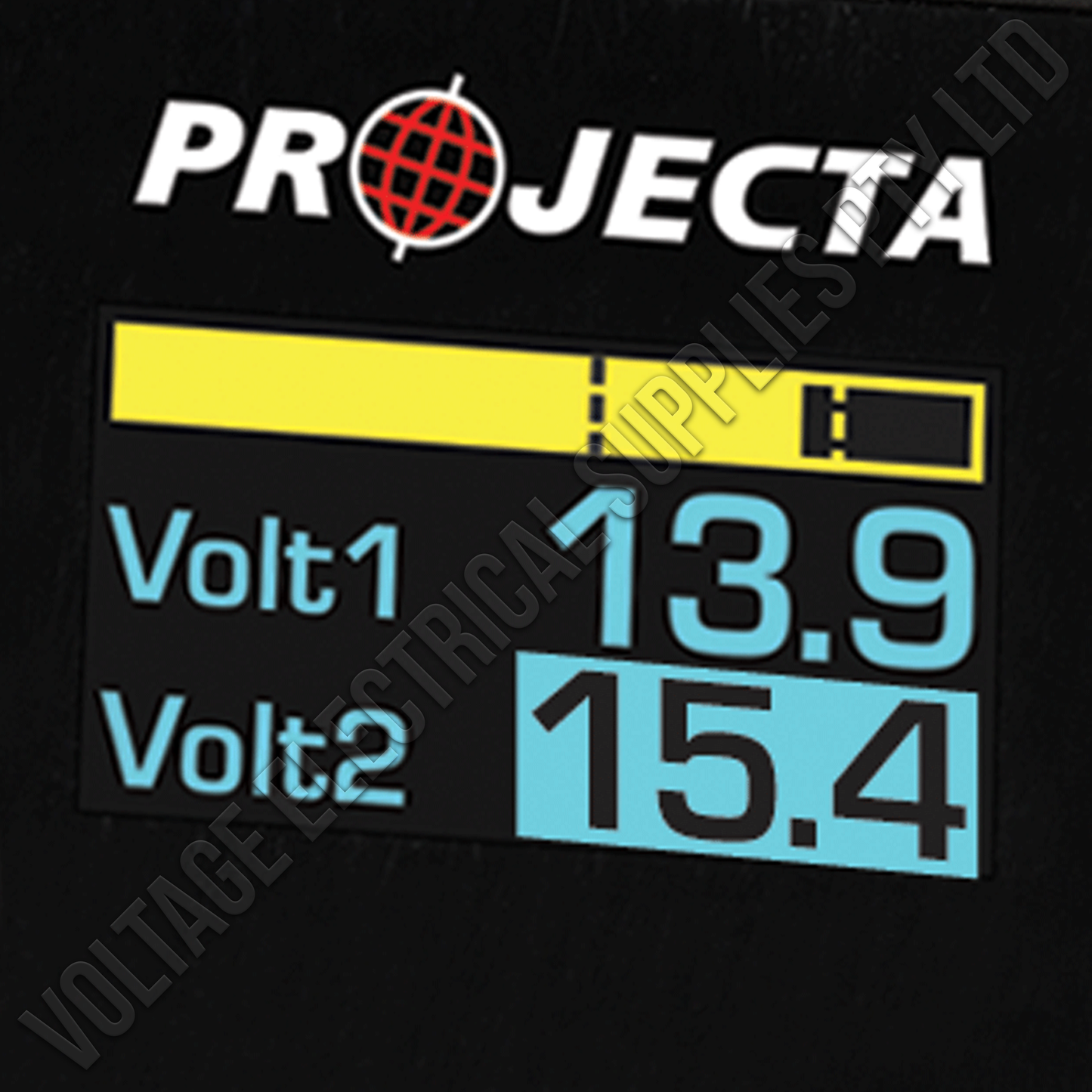

Voltage display

  • Displays battery volts and an easy to read level indicator.

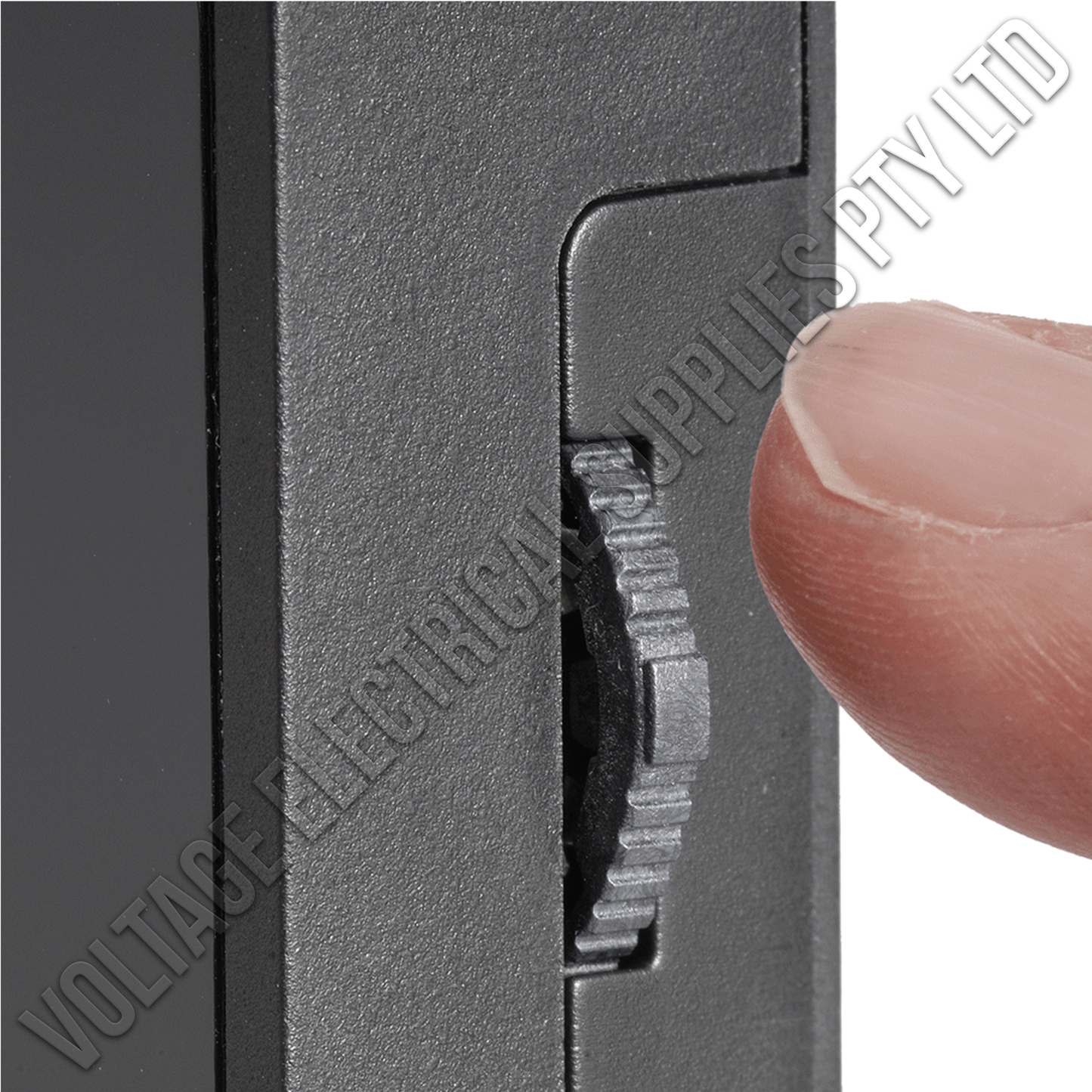

Scroll-through switch

  • Changes and sets modes to best suit the application.

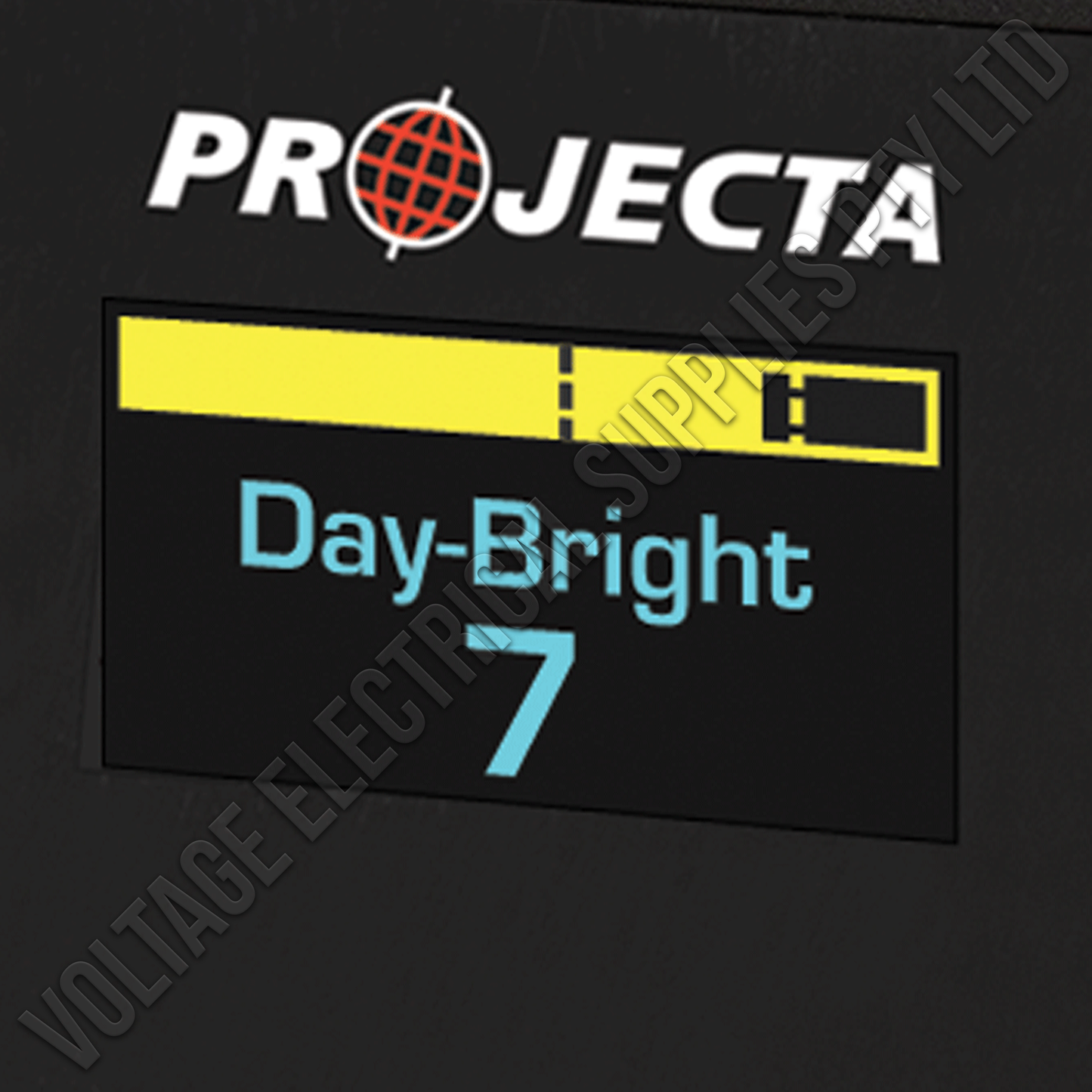

Adjustable brightness

  • High-intensity L.E.D screen with adjustable brightness for day and night.

Warning feature

  • High and low voltage warnings can be set by a user, signalled by flashing screen and audible beep.

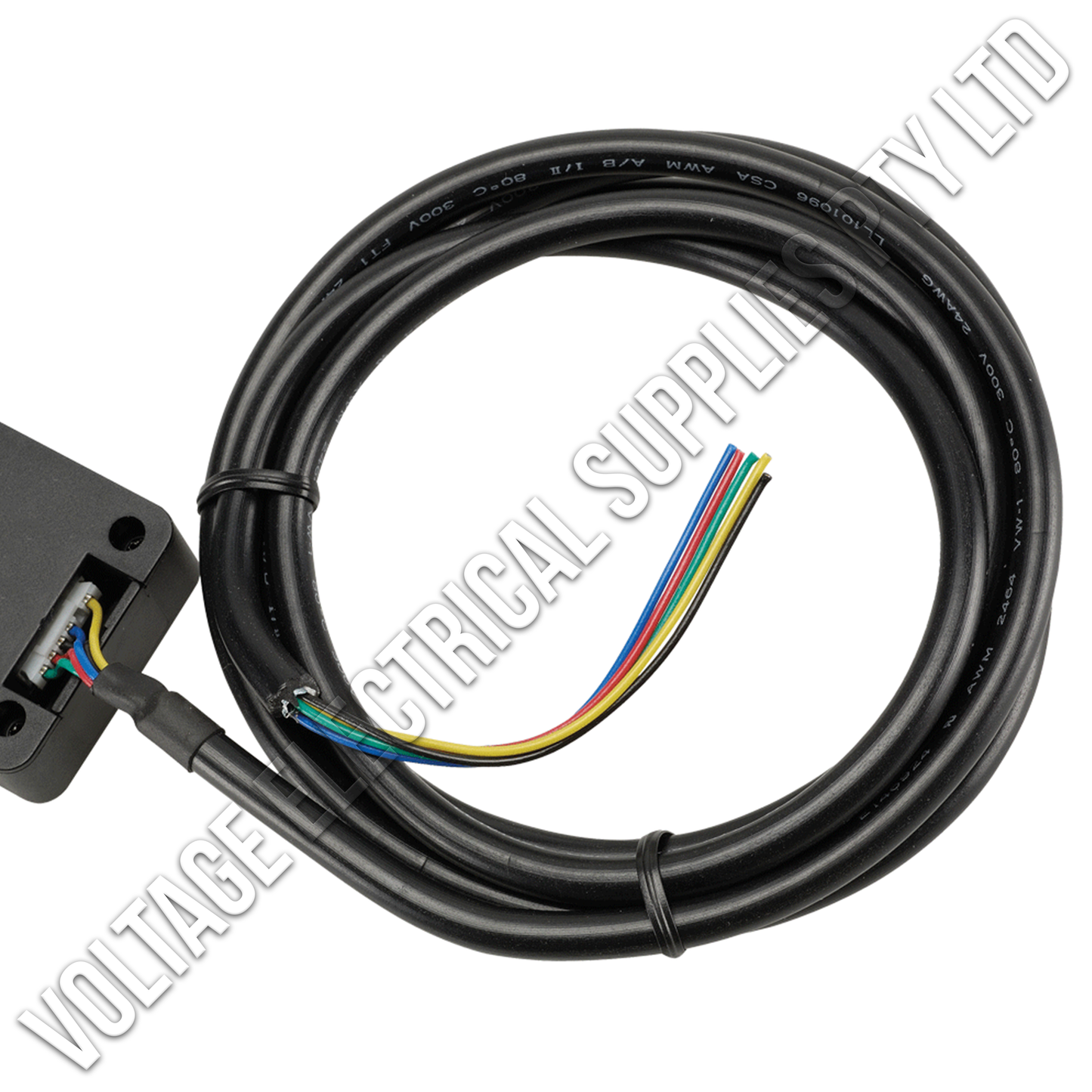

1.5M pre-wired harness

  • Supplied pre-wired with clearly marked instructions for ease of installation.

Specifications:

PART NO

DBM100

CURRENT DRAW – IGNITION ON

12V
16mA
24V
18mA

CURRENT DRAW – IGNITION OFF

6mA 7mA

OPERATING & DISPLAY RANGE BATTERY
1 & 2

0-36V
At least one of the two batteries needs to be above 5.0V for the display to operate

CABLE LENGTH

1.5m

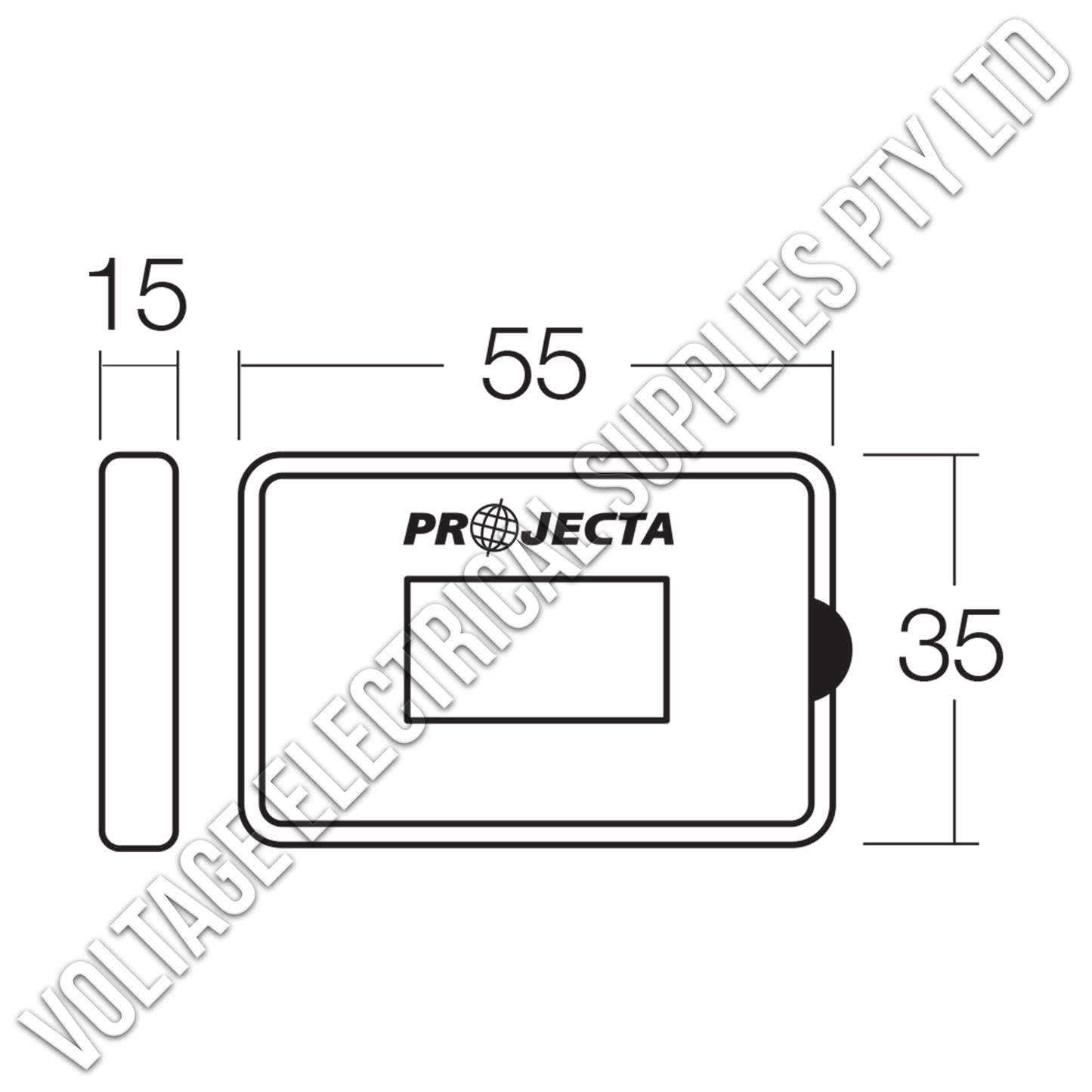

SIZE (mm)

55 x 35 x 15

View full details
