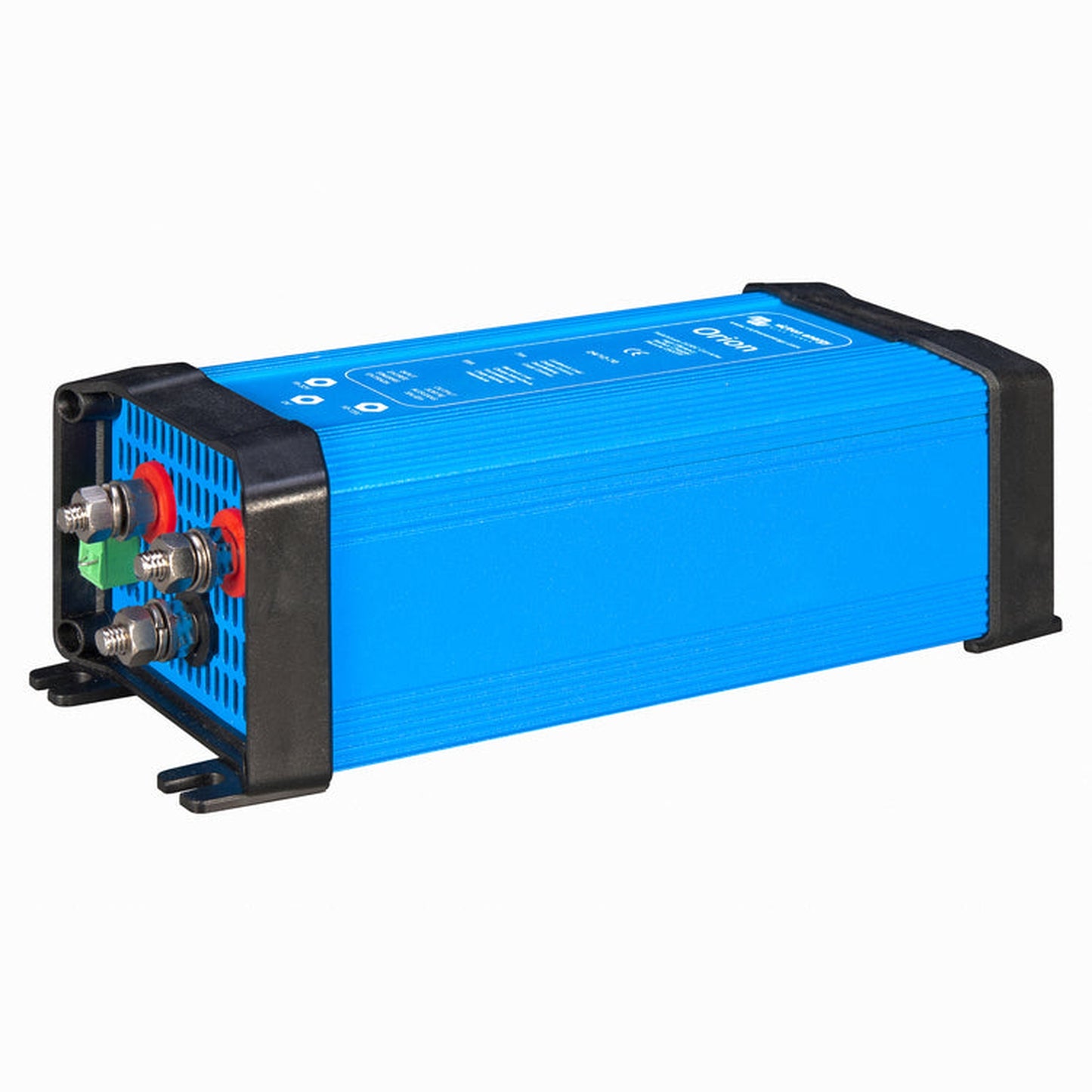

Victron Orion 24/12V 70A DC to DC Converter Non Isolated, High Power
Victron Orion 24/12V 70A DC to DC Converter Non Isolated, High Power
SKU:ORI241270020
Share
Victron Orion 24/12V 70A DC to DC Converter Non Isolated, High Power, 5 Year Warranty.

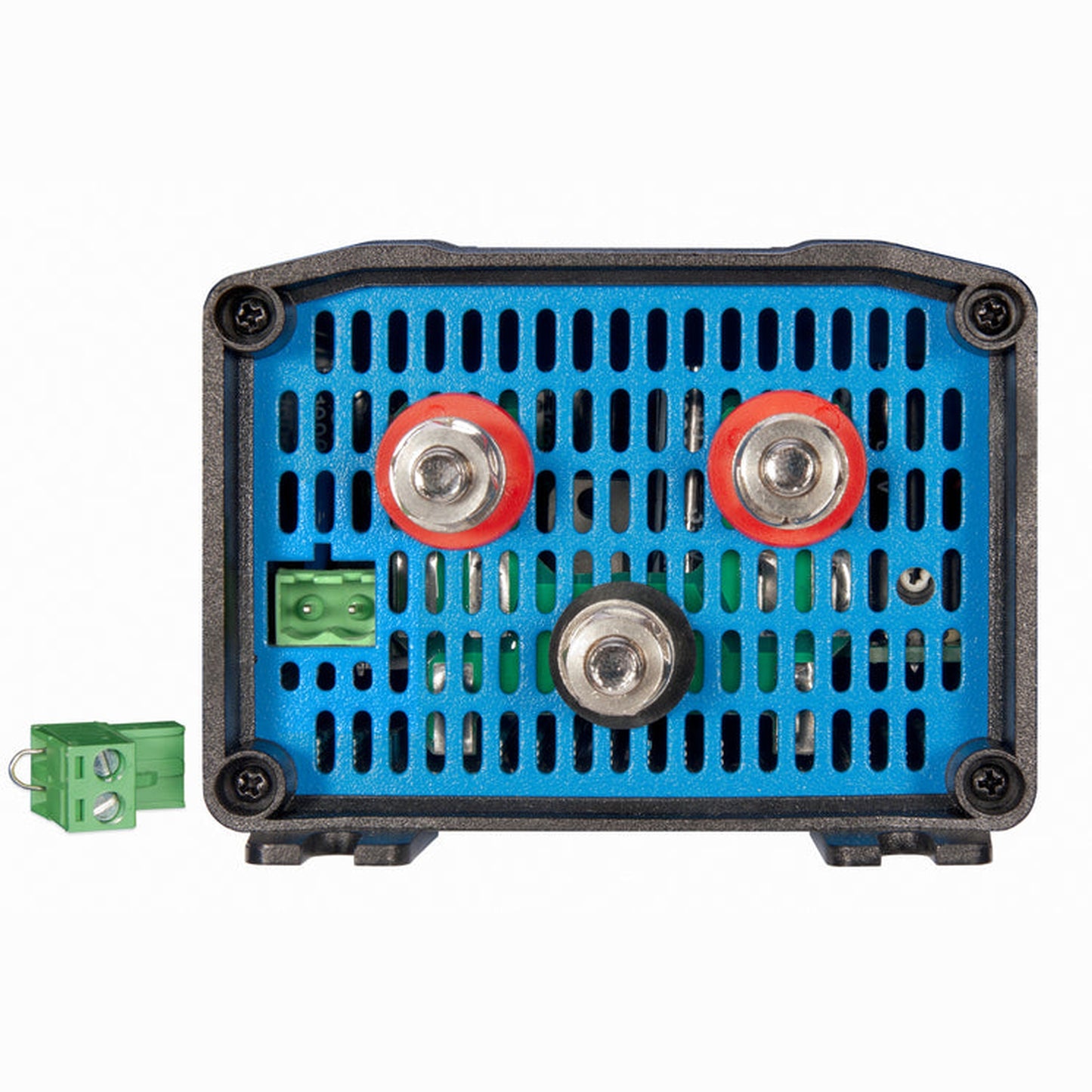

Remote on-off connector:
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).
All models with adjustable output can also be used as a battery charger:
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models with adjustable output can be paralleled to increase output current:
Up to five units can be connected in parallel.
Specifications
SKU - ORI241270020
Brand - Victron
GTIN - 8719076023043
Product Category - Converters
Warranty Period - 5 Years
Rating (A) - 70A
DC Input Voltage - 18-35V
Dimensions - 195 x 88 x 65
Efficiency - 92%
Operating Temperature Range - -20 to +55°C
Net Weight (kg) - 0.9
DC Output Voltage - Adjustable 10–15V F set 13,2V
Amps - 70
