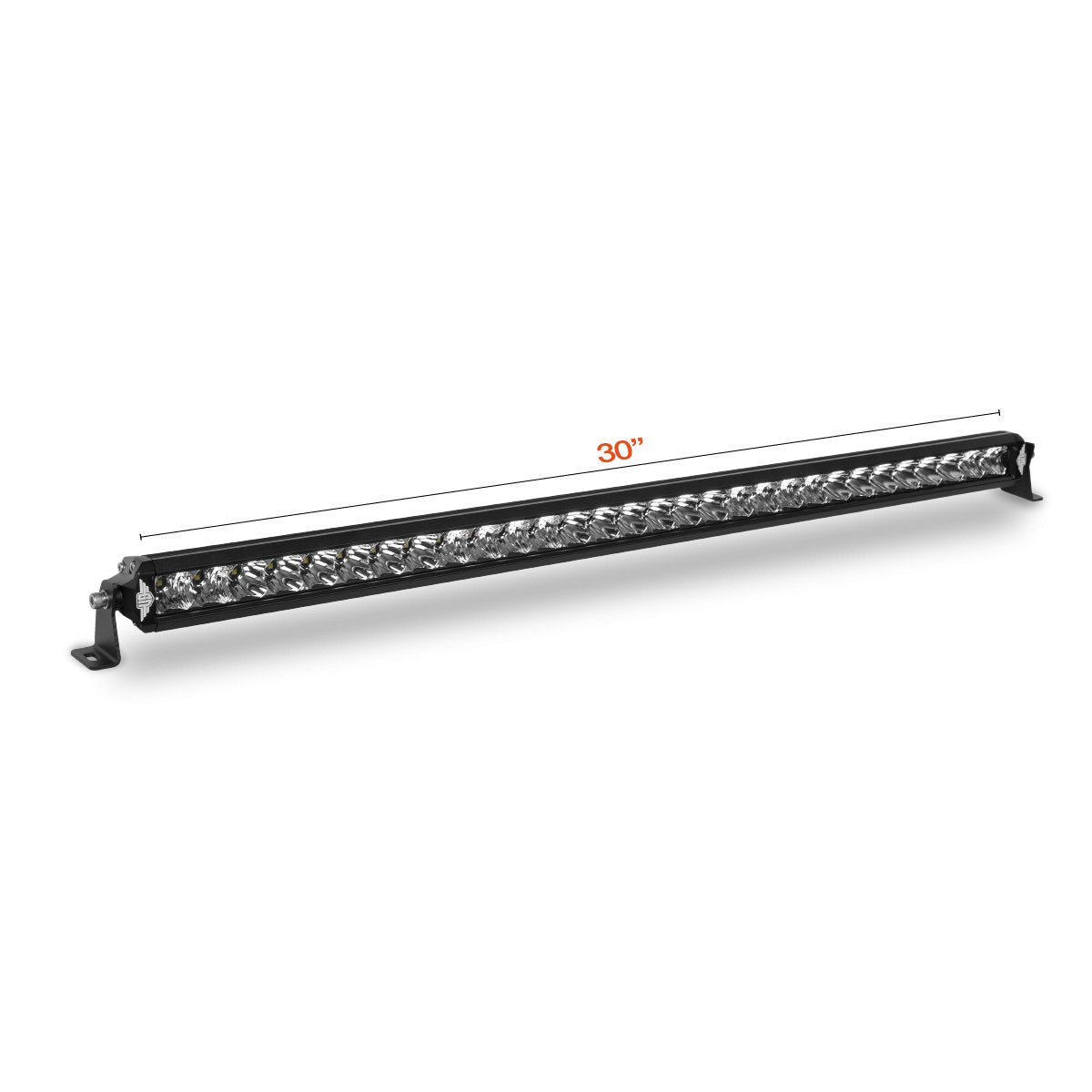

Ultimate9 LED Light Bar 30”
Ultimate9 LED Light Bar 30”
SKU:
Regular price
$239.95 AUD
Regular price
Sale price
$239.95 AUD
Unit price
/
per
Share
Description:
Face the challenges of the dark with the Ultimate9 LED Light Bars.
Our sleek, single row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore® PolyVents for ultimate housing ventilation.
Encased in high-grade aluminium and protected by impact-resistant Lexan® Polycarbonate lenses, their rugged construction will last for years to come.
Features:
- 20, 26, 30, 40, & 50" Size Range
- 50,000 Hour Lifespan
-
Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
IP68 for term long submersion and total dust ingress.

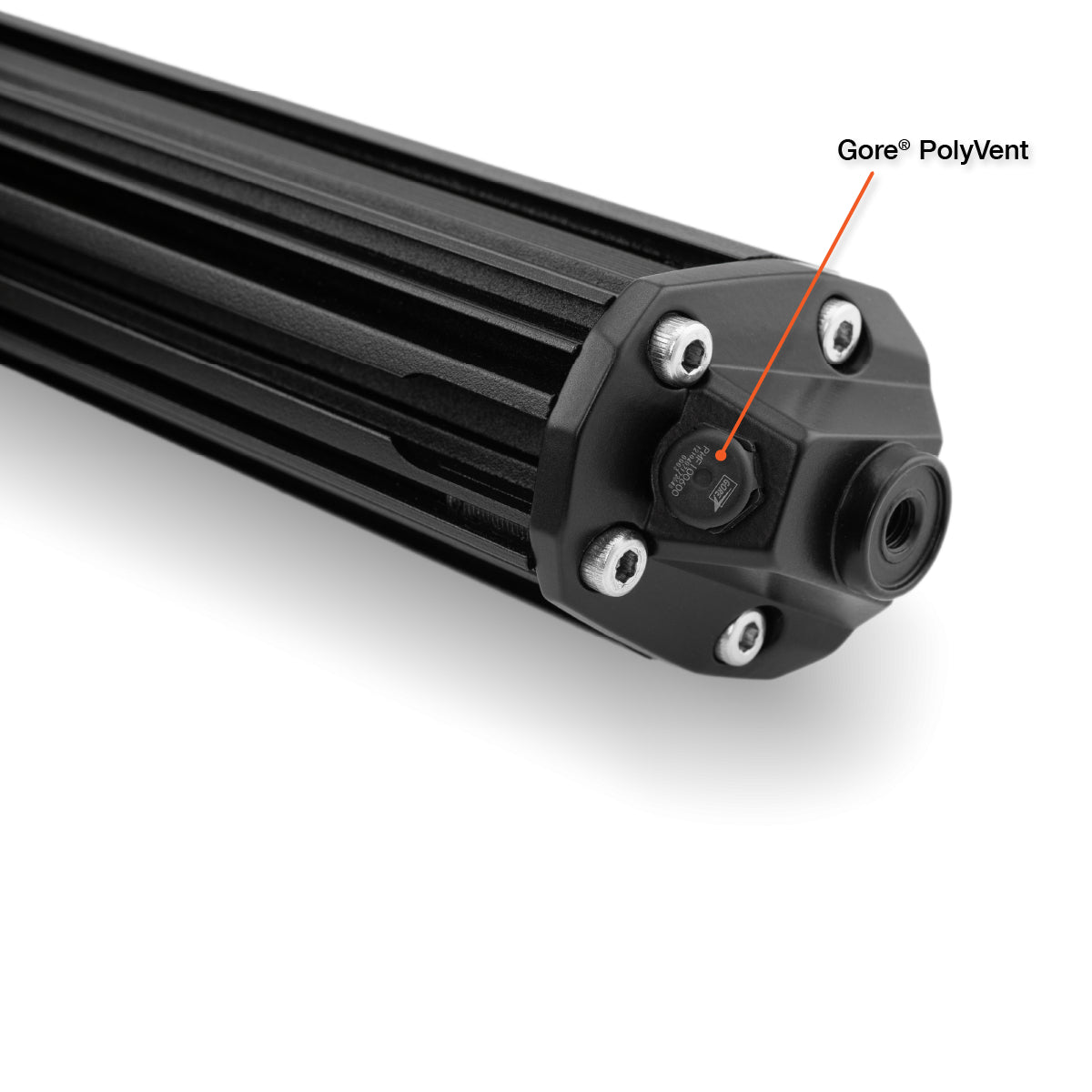

IP69K for stream jet cleaning. - Ventilation: Gore® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
- Housing: 6063 grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont® coating.
- Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.

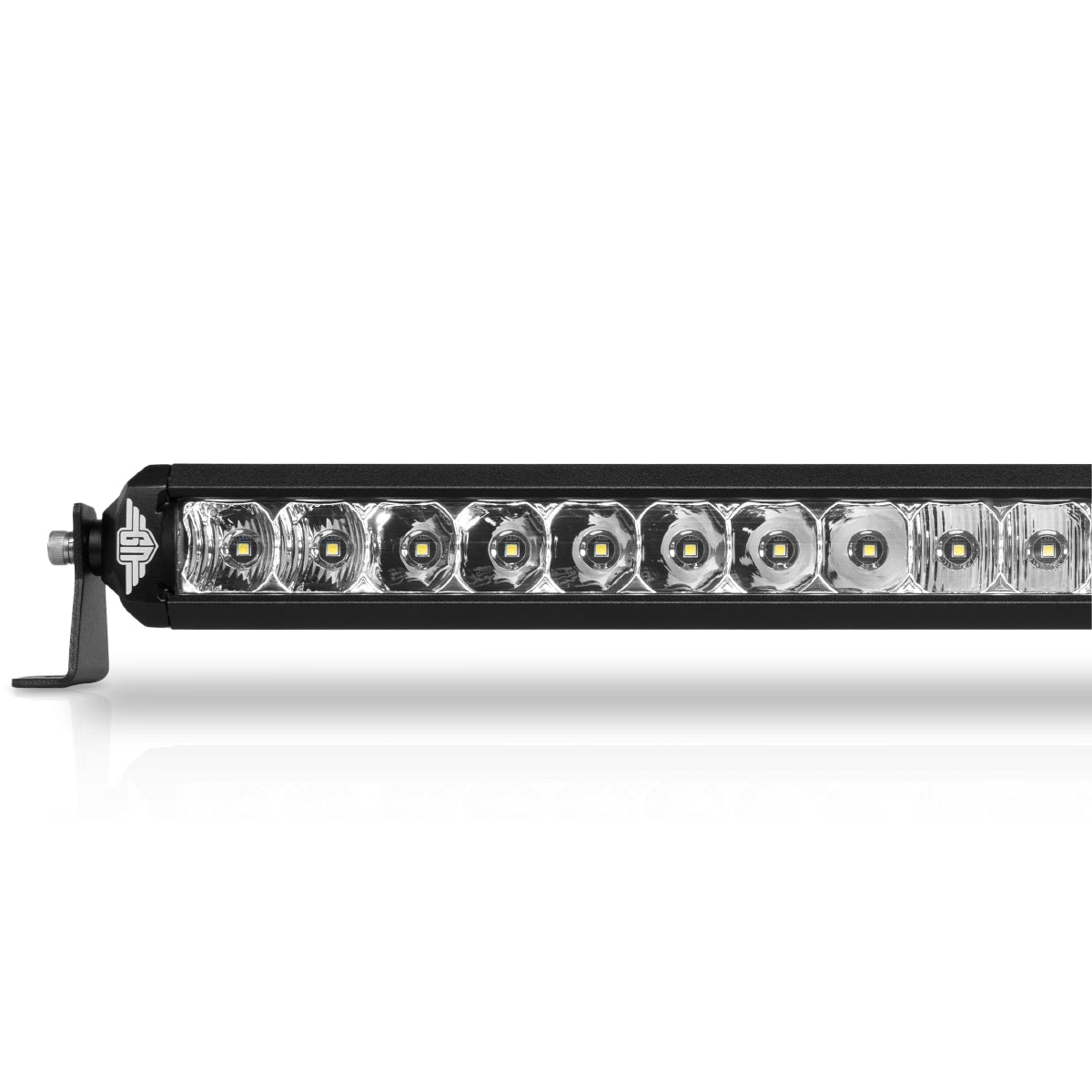

- Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
- Technology: Grade A Osram 5W LED chips & sealed DT connectors.
Specifications:
- Input Power: 9-36V
- Beam Pattern: Flood & Spot Combination
- Beam Spread: 8° Spot & 20° Flood
- Power: 150W
- Current Draw: 10A @ 13.2V
- Raw Lumen: 14,280 lm
- Effective Lumen: 7,135 lm

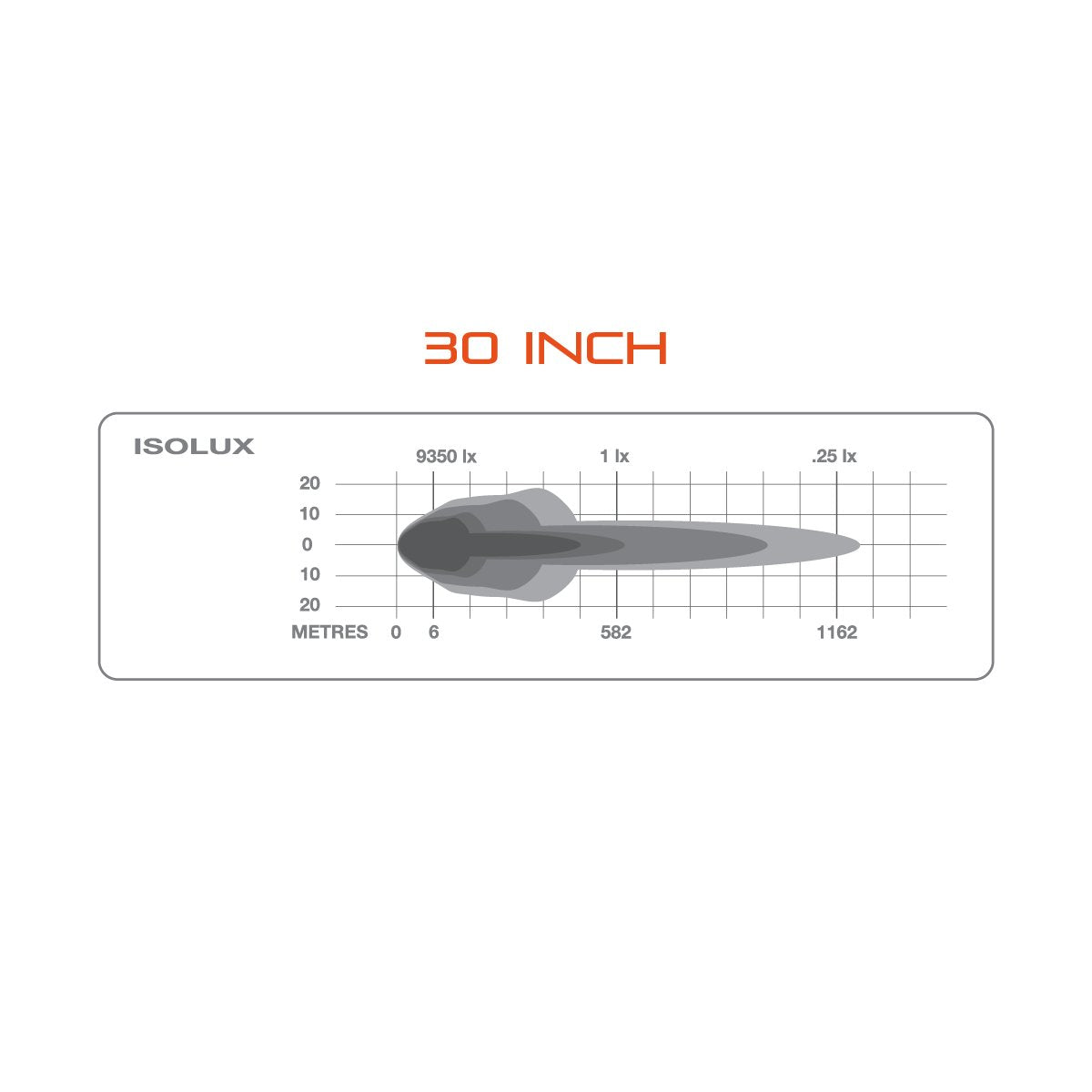

- Beam @ 1 Lux: 582m
- LED Chips: Osram 5W
- Colour Temp: 6000-6500K
- Housing Material: 6063 Aluminium
- Housing Coating: DuPont®
- Lens Material: GE Lexan® Polycarbonate
- IP Rating: IP68 / IP69K
- Ventilation: Gore® PolyVent
- Weight: 2.37Kg
- Body Dimensions: (L)762 x (H)46 x (W)49mm
- Lens Dimensions: 30" (811mm)

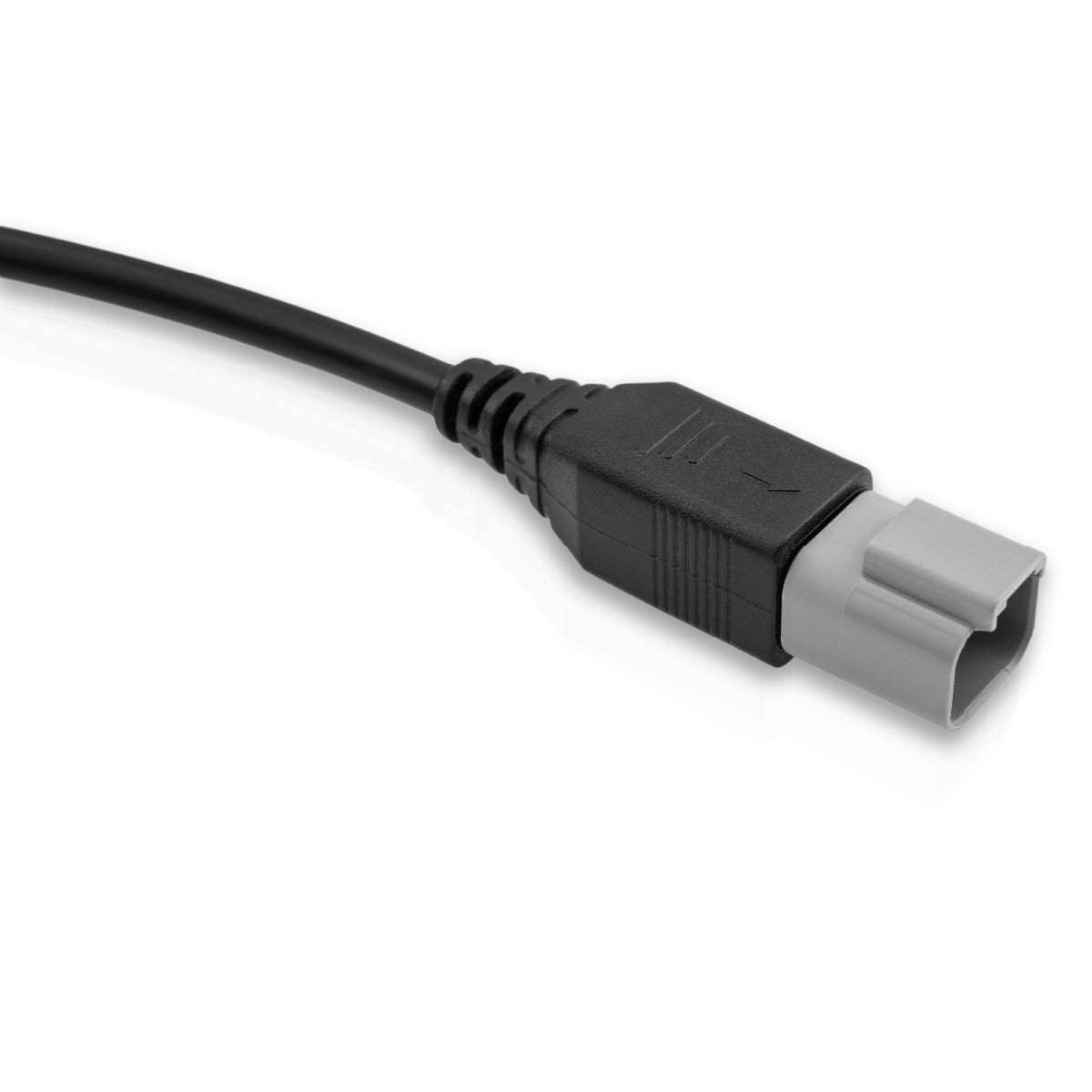

- Connector Type: DT Sealed
- Operating Temp: -40ºC - 145ºC
- Certification: CE, RoHS, RCM
Kit Includes:
- LED Light Bar

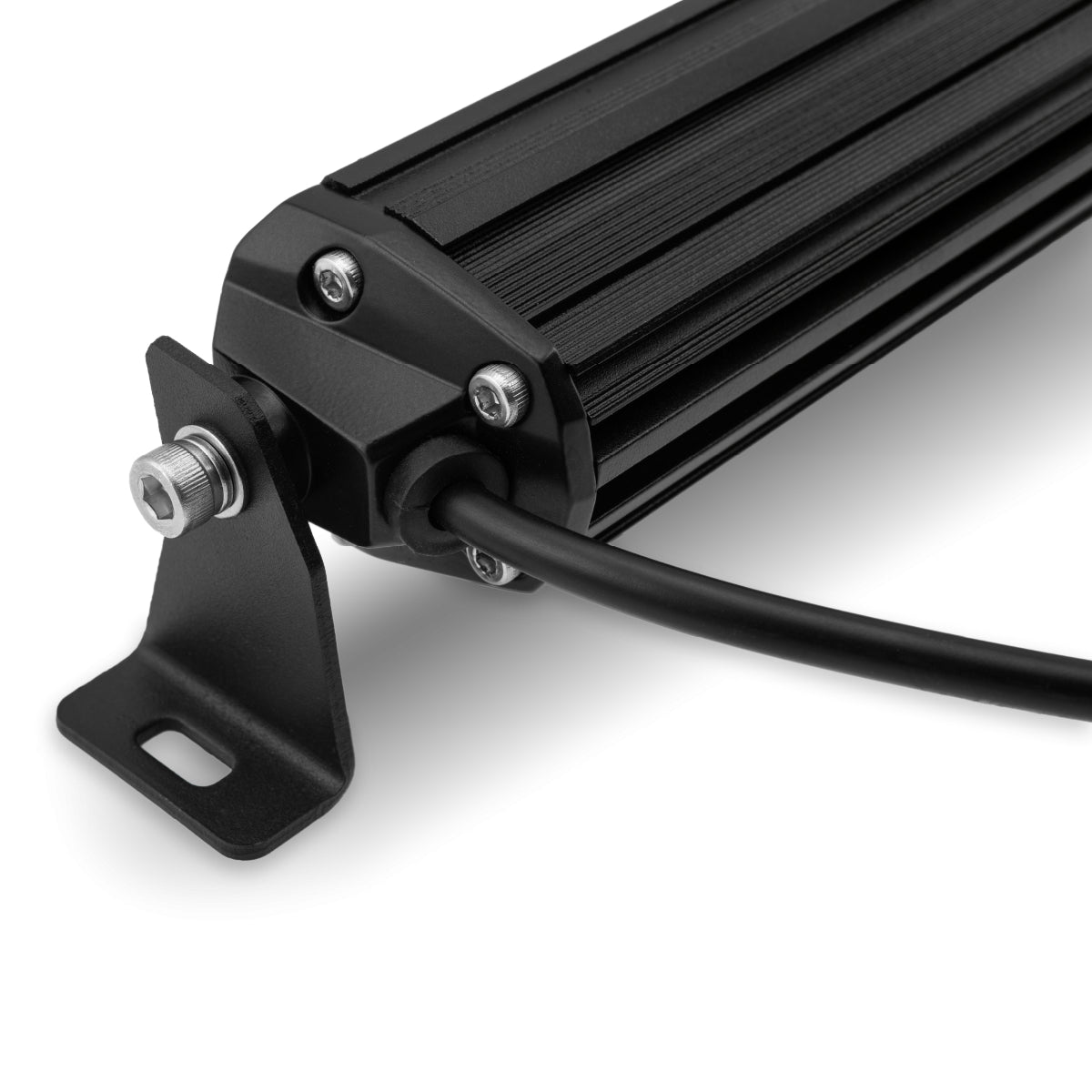

- Side-Mount Brackets & Hardware
