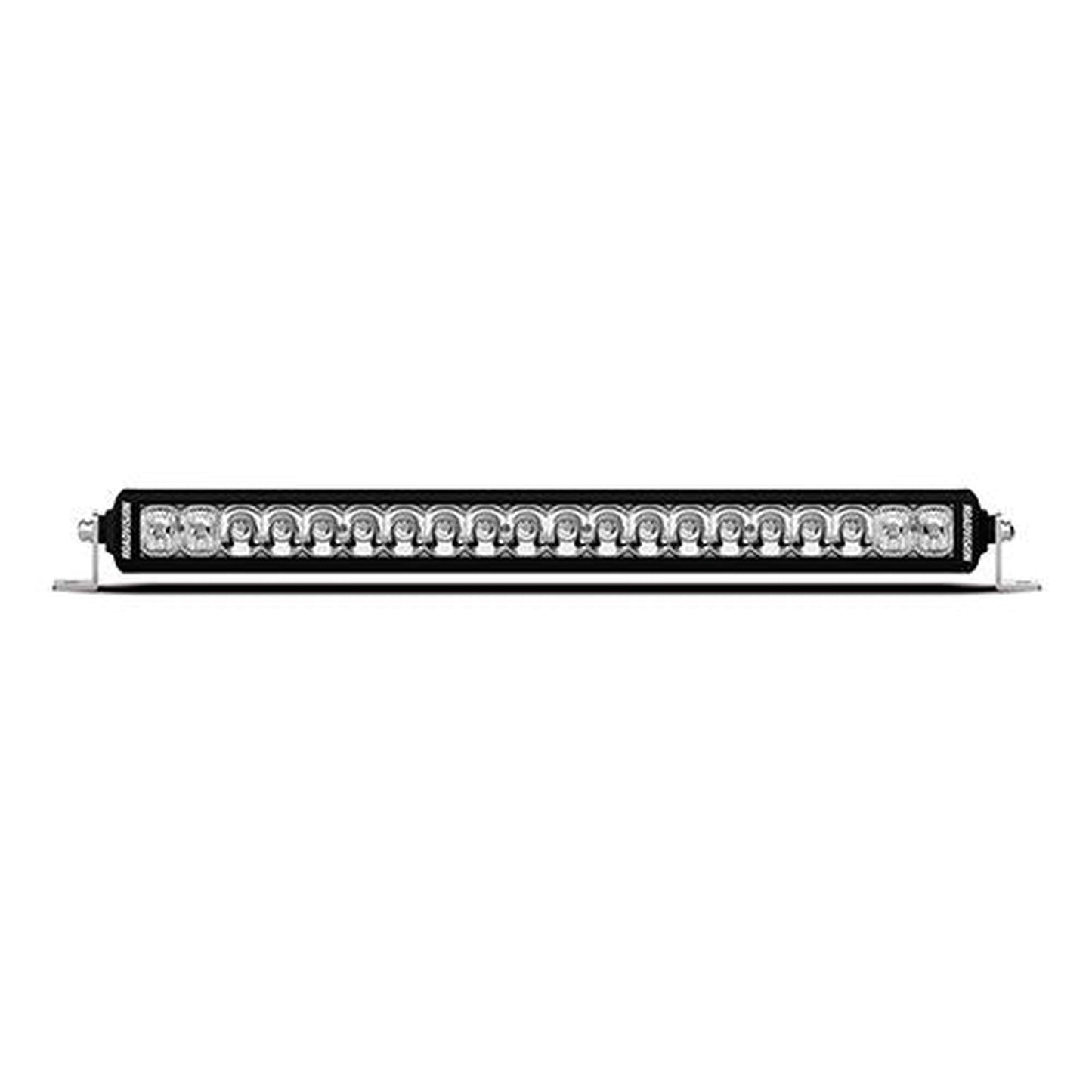

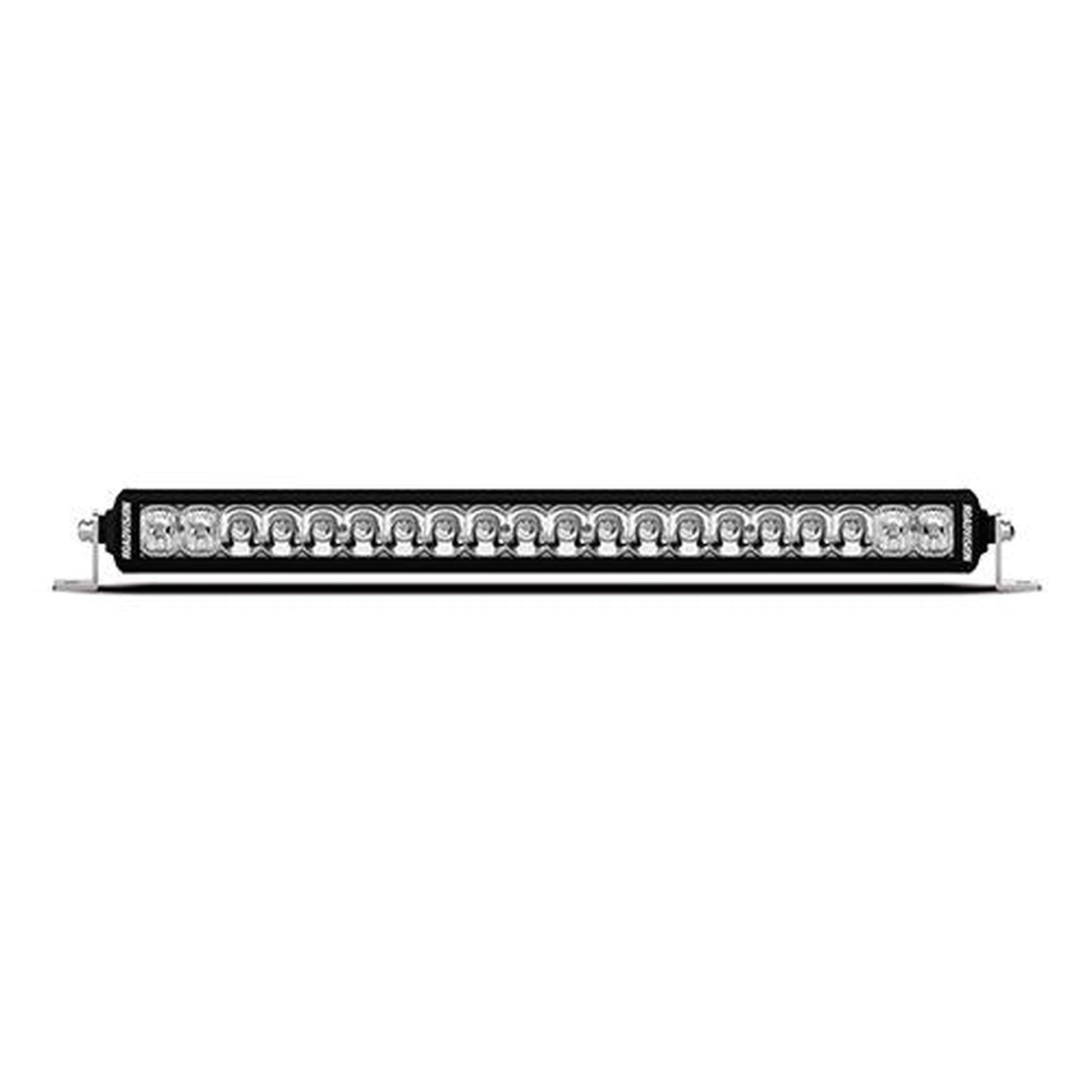

ROADVISION LED BAR LIGHT 22" SRE SERIES COMBO BEAM 8400LM - RBLW3220C

RDLW1900S ROADVISION LED BAR LIGHT 22" SRE SERIES COMBO BEAM 8400LM - RBLW3220C

The Roadvision Essentials Series LED bar lights are the ideal choice for those chasing value for money without compromising on quality. Utilising high performing 5W Osram LED’s, Thermal Management Technology, packaged in an IP68 rated housing and shielded behind a polycarbonate lens, these bar lights are built to endure the toughest conditions.

The Essentials Series single row LED bar lights produce up to 12600lm of instant light output. With the perfect combination of spot and driving optics, they produce combination style beam patterns reaching up to 623 meters @ 1 LUX. Available in the most common 12”,22” & 32” lengths, they are a perfect entry level solution while still providing great output, durability and the perfect look for your rig.

FEATURES

• SRE Series single row LED bar lights produce up to 12600lm of
• instant light output

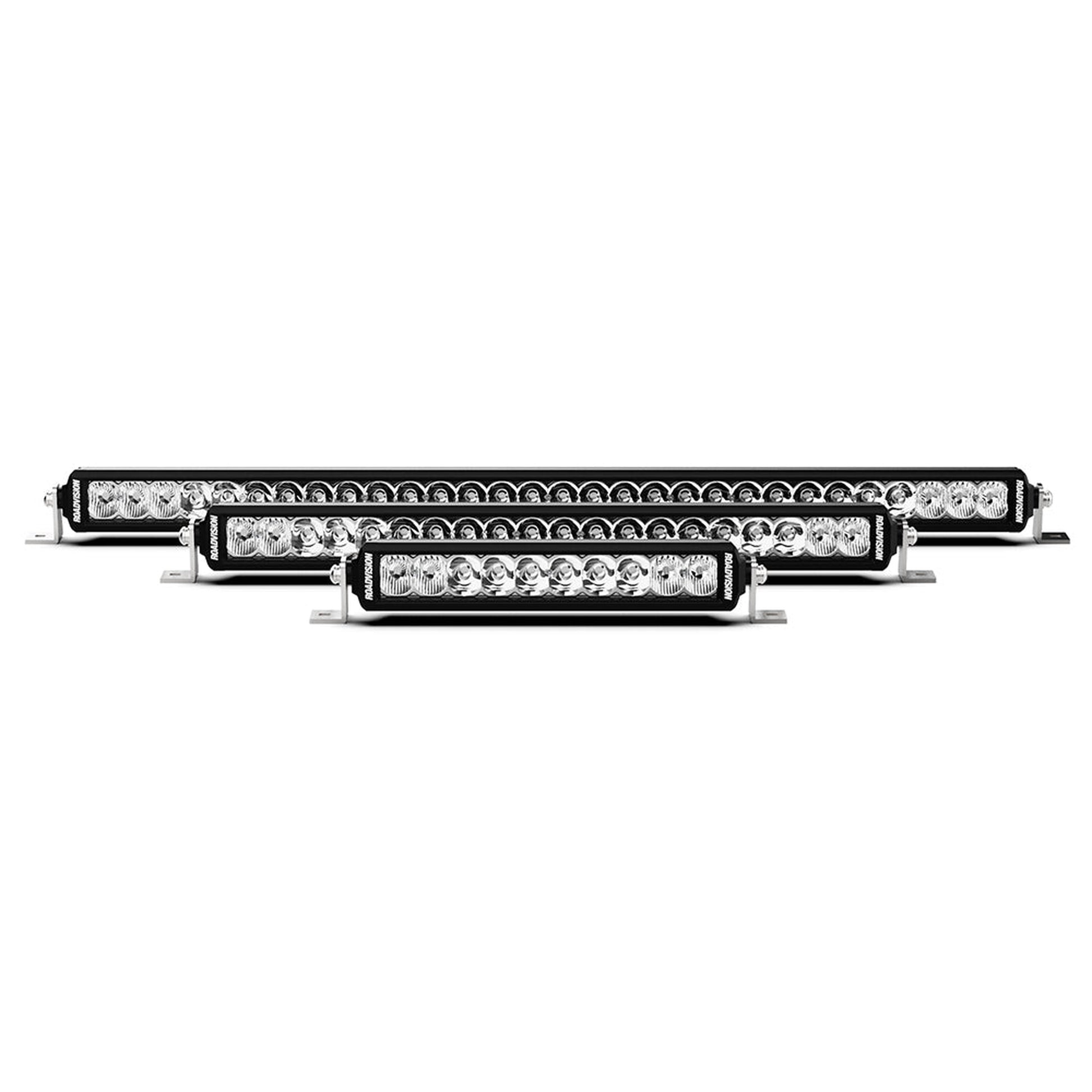

• Available in 12”, 22”, 32” models
• 5W Osram LED’s produce super white light close to daylight
• Multi-volt 11-32V DC input & low current draw
• 50,000 hour LED lifespan with solid state technology
• Thermal management technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP68 rated
• Simple 2 wire installation with Deutsch plug
• Low profile slide & end mounts
• Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

SPECIFICATIONS - RBLW3220C

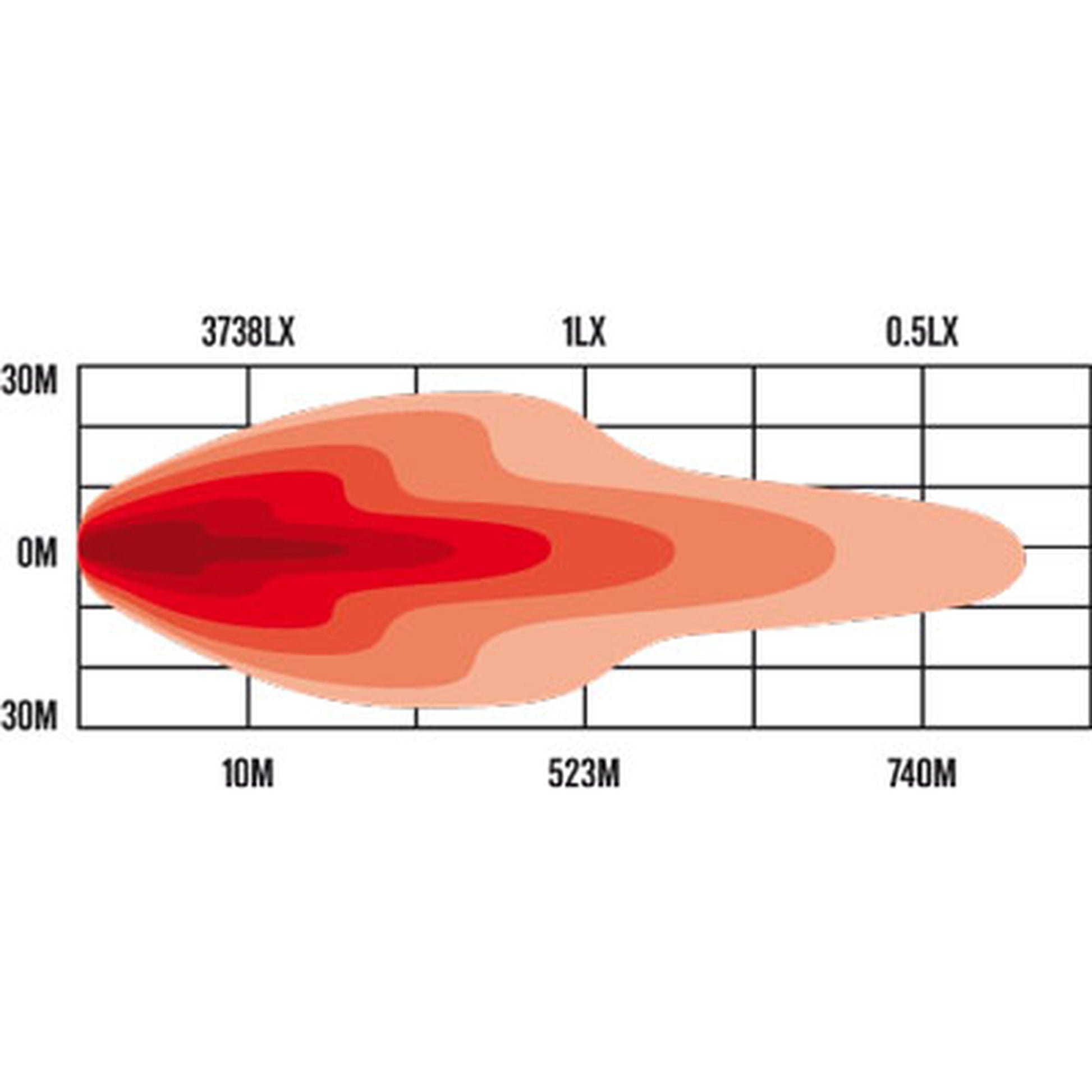

• Beam Pattern Combination
• Maximum Lumens 8400lm
• Maximum Lux @ 10m 3738lx
• Maximum BEAM DISTANCE @ 0.5lx 740m
• MAXIMUM BEAM DISTANCE @ 1LX 523m
• Input Voltage 11-32VDC
• Maximum Watts 100W
• Number of LEDS 20 x 5W Osram
• Current Draw @ 13.8V 6.0~7.2 Amps
• Lens Construction Polycarbonate
• Housing Construction Die-Cast Aluminium
• Wiring 2 Pin Deutsch Plug
• Dimensions AxBxC 601 x 63 x 62mm
