Key Features & Benefits
-
Dynamic "Show Mode" DRL: Features a unique start-up sequence that cycles through the Halo ring. You can wire it for White (Road Legal) or Amber (Off-road/Show) to match your rig's style.
-
Extreme Performance: With a total rated output of 180W, these lights punch well above their weight class, delivering a crisp 5700K white light that mimics daylight to reduce eye fatigue on long haul drives.
-
Built for the Bush: Rated IP67, these lights are dust-tight and can withstand immersion in water up to 1 meter. Whether it's red dust or river crossings, the die-cast aluminium housing and polycarbonate lens can take the abuse.
-
Radio Friendly: Fully approved for EMI/EMC radio interference. You can run your UHF radio or AM/FM station without that annoying buzzing static often found with cheaper LED lights.
-
Thermal Management: Advanced thermal technology keeps the LEDs running cool, ensuring they last the full 50,000-hour lifespan without dimming or overheating.
Technical Specifications
| Feature | Specification |
| Series | RDL7800 Series |
| Beam Pattern | Combination (Spot + Spread) |
| LED Configuration | 18 x 10W Osram LEDs |
| Raw Lumens | ~9,900lm (Per Light) |
| Distance (1 Lux) | 834 Metres (Per Pair) |
| Wattage | 180W |
| Input Voltage | 10-30V DC (Multi-volt) |
| Colour Temperature | 5700K (Crisp White) |
| IP Rating | IP67 (Water & Dust Proof) |
| Housing Material | Die-Cast Aluminium |
| Lens Material | Impact-Resistant Polycarbonate |
| DRL Mode | Dynamic Start-up (Amber or White) |
| Lifespan | 50,000 Hours |
| Included Accessories | Black Protective Cover (with DRL windows), Mounting Hardware |
Frequently Asked Questions
Q: What is the "Dynamic" feature on these lights?
A: The RDL7800 Series features a "Dynamic Start-up." When power is applied to the DRL circuit, the light ring performs a visual startup sequence (moving light effect) before settling into a solid glow.

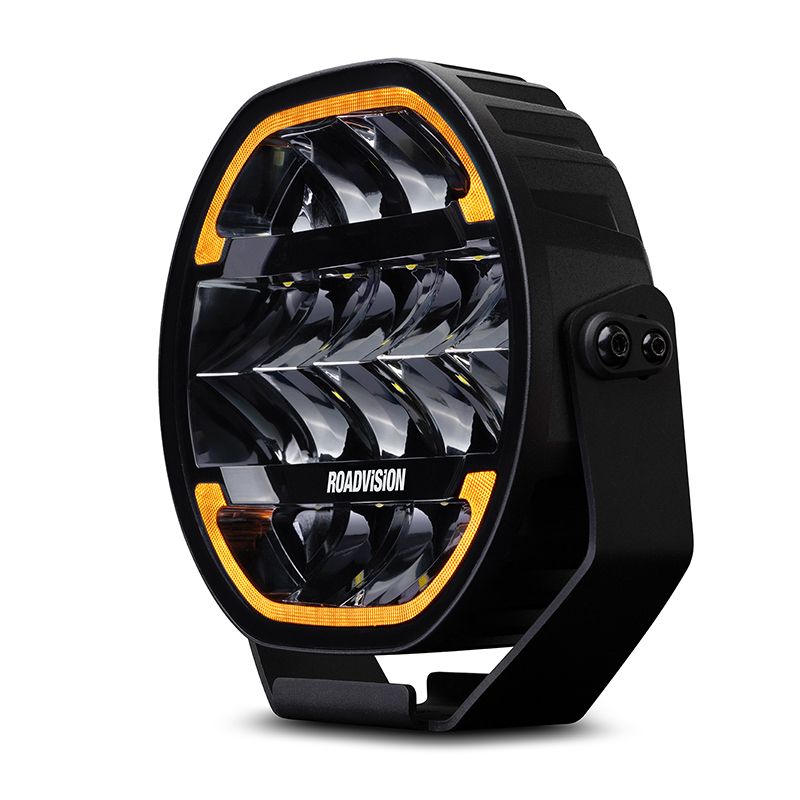

Q: Can I choose between Amber and White DRL?
A: Yes. The light wiring allows you to select either the Amber or White LED circuit for the DRL halo, giving you the flexibility to match your vehicle's colour scheme.

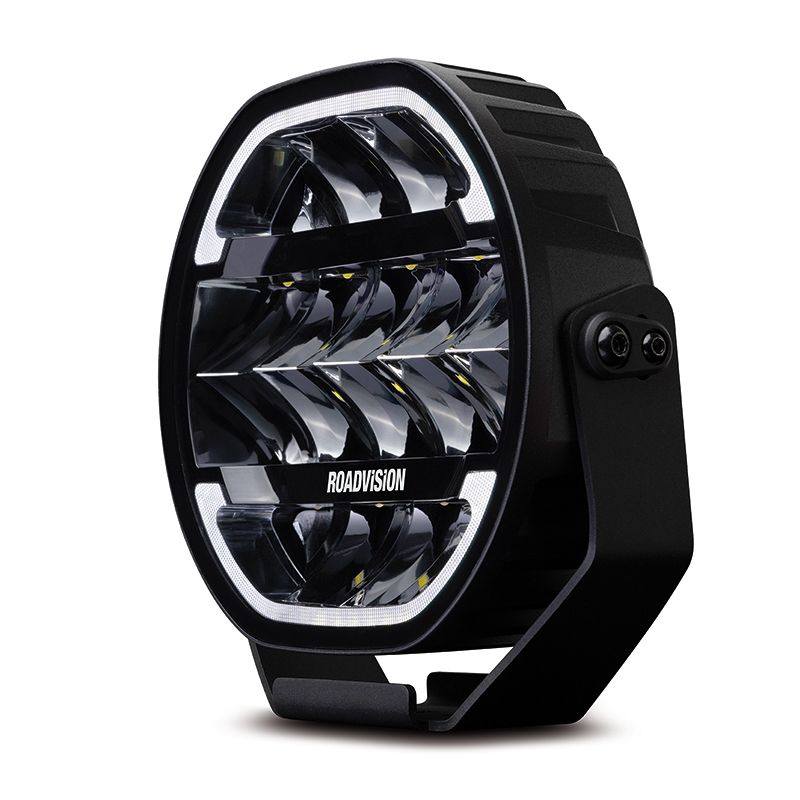

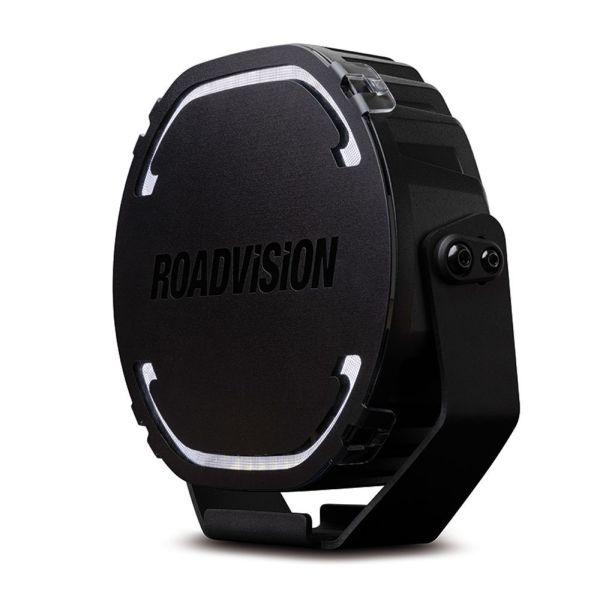

Q: Does the included black cover block the light?
A: The included black cover is designed to protect the main lens from stone chips when not in use. However, it features transparent "windows" specifically for the DRL, so your Halo ring remains visible even when the covers are on.
Q: Will these interfere with my UHF radio?
A: No. The Roadvision RDL7800 Series is EMI/EMC approved, meaning it is shielded to prevent radio frequency interference, ensuring clear communication on your UHF.
